1. Introduktion
This instruction manual provides essential information for the safe and effective use of your FOTING 1/2 HP 4900 GPH Submersible Sump Pump with Float Switch. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper function and prevent injury or damage.
Image 1.1: FOTING 1/2 HP 4900 GPH Submersible Sump Pump with Float Switch, showing the pump unit, float switch, and discharge adapter.
2. Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at mindske risikoen for elektrisk stød, brand eller personskade:
- Elektrisk sikkerhed: Sørg for, at strømforsyningen passer til pumpens volumentage (115 Volts). Use a grounded outlet. Do not operate with a damaged cord or plug.
- Vandnedsænkning: This pump is designed for submersible use only. Do not operate it dry.
- Håndtering: Always lift the pump by its handle. Never pull the pump by the power cord or discharge hose.
- Temperatur: Do not pump flammable liquids or water above 95°F (35°C).
- Affald: Ensure the pump's intake and exhaust holes are clear of debris to prevent blockages and overheating.
- Børn og kæledyr: Keep children and pets away from the operating pump and any standing water.
3. Produktet er slutview
The FOTING Submersible Sump Pump is designed for efficient water removal from various areas such as basements, ponds, pools, and flooded spaces. Key features include:
- Høj ydeevne: 1/2 HP motor with a maximum flow rate of 4900 GPH and a maximum lift height of 29 feet.
- Lavt sug: Capable of draining water down to 0.04 inches.
- Automatisk drift: Integrated float switch for automatic ON/OFF based on water level.
- Manuel tilstand: Option to lock the float switch for continuous operation.
- Holdbar konstruktion: Made from high-quality thermoplastic material with a mechanical seal and thermal overload protection.
- Alsidige forbindelser: Includes multi-hose adapter for various hose sizes (NPT 1-1/2", GHT 3/4", Φ1-1/2", Φ1-1/4", Φ1").
Billede 3.1: Overview of pump features including ultra-quiet operation, overload protection, waterproof design, and low suction capability.
Image 3.2: Diagram illustrating the internal components, including the oil-free PSC motor, stainless steel motor shaft, FKM four-lip seals, and epoxy-coated aluminum housing for durability and heat dissipation.
4. Opsætningsvejledning
- Fastgør udløbsslange:
Select the appropriate hose adapter for your discharge hose. The pump includes adapters for NPT 1-1/2", GHT 3/4", Φ1-1/2", Φ1-1/4", and Φ1" hoses. Securely attach the chosen adapter to the pump's discharge outlet.

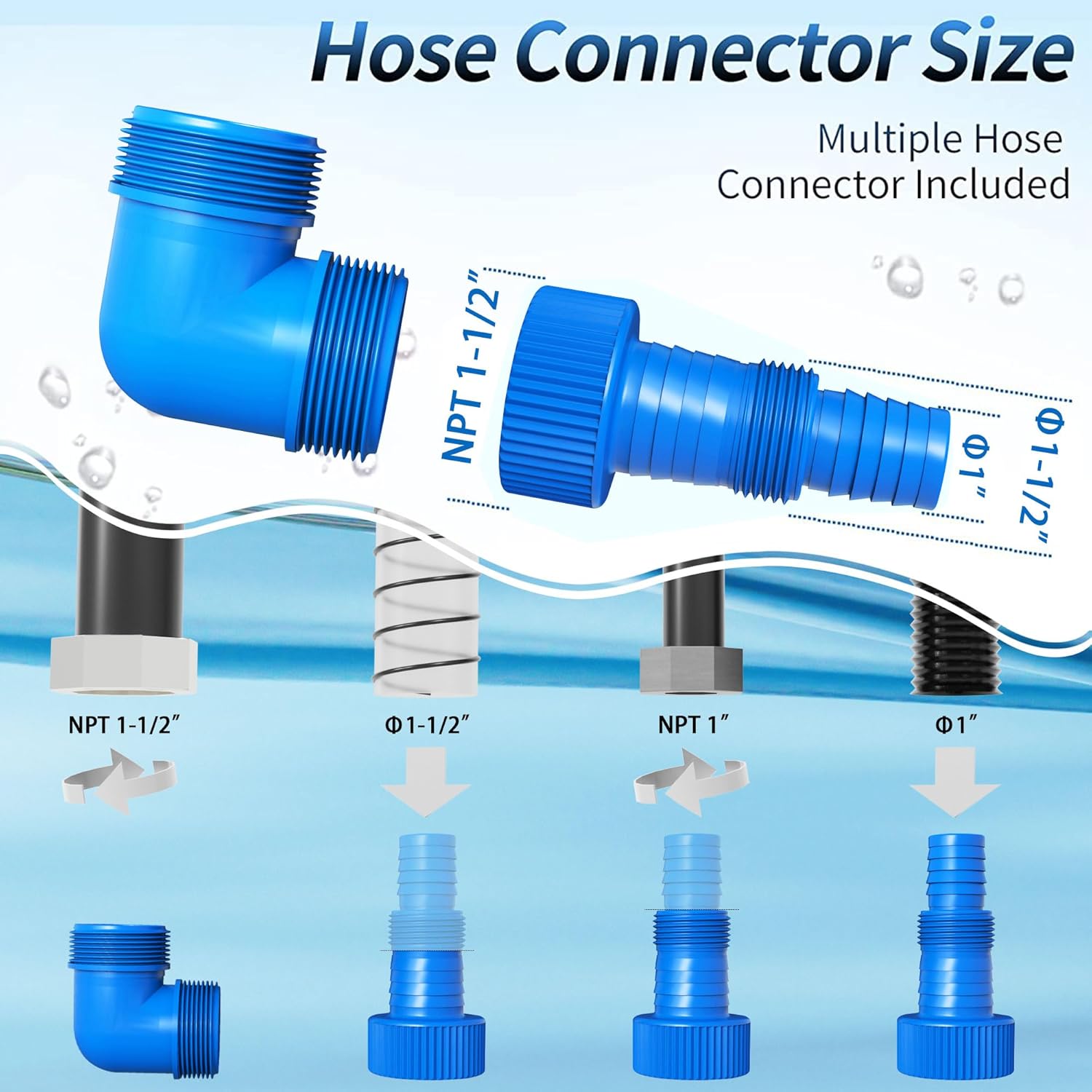

Image 4.1: Illustration of various hose connection methods using the included multi-hose adapter.
- Placer pumpen:
Place the pump on a level and solid foundation in the area to be drained. Ensure the pump is fully submerged in water before operation. The maximum submersible depth is 14 feet.
Image 4.2: Diagram indicating the maximum submersible depth of 14 feet and the automatic ON/OFF levels of the float switch.
- Adjust Base for Water Type (Optional):
The pump features an adjustable base. For clean water, turn the base up. For sewage or water with larger particles, turn the base down to allow for pumping down to 0.04 inches.
Image 4.3: Visual guide for adjusting the pump's base for optimal performance with either clean water or sewage.
- Indledende priming:
Before starting, tilt and submerge the pump in water for a few seconds to expel any trapped air inside. This prevents dry running and ensures efficient operation.
Image 4.4: A three-step visual guide for setting up the pump, including connecting the discharge pipe, submerging the pump, and initiating drainage.
5. Betjeningsvejledning
5.1 Automatisk tilstand
- Tilslut strøm: Plug the 10-foot power cord into a grounded 115-volt electrical outlet.
- Float Switch Position: Ensure the float switch is free to move. The pump will automatically start when the water level rises above approximately 7 inches and will shut off when the water level drops below approximately 1.5 inches.
- Monitordrift: Observe the pump's operation to ensure water is being drained effectively.
Image 5.1: The sump pump in operation, effectively draining water from a pool, demonstrating its low suction capability.
5.2 Manuel tilstand
For continuous operation, the float switch can be locked into its bracket.
- Lock Float Switch: Secure the float switch in the "up" position using the integrated bracket on the pump handle.
- Tilslut strøm: Plug the pump into a grounded 115-volt electrical outlet. The pump will run continuously.
- Afbryd strømmen: To stop the pump in manual mode, unplug it from the power outlet. Do not allow the pump to run dry for extended periods.
Image 5.2: Demonstrates the pump's ability to reduce water levels to 0.04 inches and how to adjust the float switch for manual operation.
6. Vedligeholdelse
- Regelmæssig rengøring: Periodically inspect the pump's intake screen and impeller for debris. Clean as necessary to maintain optimal performance.
- Vinterisering: In cold climates, if the pump is not in use, drain all water from the pump and hoses to prevent freezing and damage. Store in a dry, frost-free location.
- Inspektion af strømledning: Regularly check the power cord for any signs of damage. Do not use the pump if the cord is frayed or cut.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pumpen starter ikke. | No power; float switch not activated (automatic mode); thermal overload activated. | Check power connection and circuit breaker. Ensure water level is above float switch activation point. Allow pump to cool down if thermal overload tripped. |
| Pumpen kører, men der kommer ikke vand ud. | Air lock; clogged intake/discharge; low water level. | Tilt pump to release air. Clear any blockages from intake or hose. Ensure pump is fully submerged. |
| Pumpen tænder og slukker for ofte. | Float switch obstruction; small pit size. | Ensure float switch moves freely. Consider a larger pit or check valve if applicable. |
| Reduced flow rate. | Partial blockage; worn impeller. | Clean intake screen and discharge hose. Inspect impeller for damage. |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | FOTING |
| Modelnummer | FT-Q550237M |
| Strømkilde | AC |
| Voltage | 115 volt |
| Hestekræfter | 1 / 2 HP |
| Maksimal flowhastighed | 4900 GPH (81 gallon pr. minut) |
| Maksimal løftehøjde | 29 fod |
| Lowest Draining Depth | 0.04 tommer |
| Materiale | Termoplastisk |
| Produktmål (L x B x H) | 6.69 cm x 5.51 cm x 11.02 cm |
| Varens vægt | 10.3 pund (4.68 kilo) |
| Inkluderede komponenter | 1*10 FT power cord, 1*Manual, 1*Multi Hose Adapter, 1*NPT 1-1/2" |
Image 8.1: Key performance specifications of the FOTING Sump Pump, including horsepower, flow rate, and maximum head.
Image 8.2: Performance curve illustrating the relationship between flow rate (GPH) and lift height (Feet) for the FOTING Sump Pump.
9. Garanti og support
FOTING is committed to providing quality products and customer satisfaction. The product is designed for reliability and long-lasting performance.
- Kundeservice: FOTING customer service provides professional technical support. For assistance, please refer to the contact information provided with your purchase or visit the official FOTING webwebsted.
- Garanti: Please retain your proof of purchase for warranty claims. Specific warranty details are typically included in the packaging or available on the manufacturer's webwebsted.
Image 9.1: Highlights the pump's reliable and long-lasting design, featuring an oil-free PSC motor and robust construction.
