Genmitsu 4040 Reno CNC-router, fræsemaskine og offline-kontrolmodul, brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your Genmitsu 4040 Reno CNC Router Milling Machine and its accompanying Offline Control Module. The Genmitsu 4040 Reno is designed for precision woodworking and various crafting projects, offering a robust and user-friendly experience for both beginners and experienced DIY enthusiasts.

The machine features a modular setup, a durable aluminum construction, and a generous working area of 400 x 400 x 76mm. Its smart belt design ensures smooth and quiet operation with high accuracy, while the sturdy axis structure provides stability for precise cuts. The included offline control module allows for computer-free operation, simplifying your workflow.

Image 1.1: The Genmitsu 4040 Reno CNC Router Milling Machine with its Offline Control Module.

2. Sikkerhedsoplysninger

Always prioritize safety when operating the CNC router. Failure to follow safety guidelines can result in injury or damage to the equipment.

• Læs manualen: Thoroughly read and understand this entire manual before operating the machine.
• Personligt beskyttelsesudstyr (PPE): Always wear safety glasses or goggles to protect your eyes from flying debris. Consider hearing protection and dust masks, especially during prolonged operation.
• Arbejdsområde: Ensure your work area is clean, well-lit, and free from obstructions. Keep children and unauthorized personnel away from the machine during operation.
• Sikkert arbejdsemne: Altid sikkert clamp your workpiece to the spoil board to prevent movement during milling.
• Nødstop: Gør dig bekendt med placeringen og betjeningen af ​​nødstopknappen.
• Strømafbrydelse: Disconnect power to the machine before performing any maintenance, adjustments, or when changing tools.
• Værktøj: Use only sharp, appropriate, and undamaged cutting tools for your material.
• Ventilation: Ensure adequate ventilation to remove dust and fumes generated during operation.

3. Produktet er slutview

3.1 Nøglefunktioner

• Modular Setup & Robust Construction: Easy assembly with a tough, all-aluminum build.
• Generous Working Area: 400 x 400 x 76mm workspace suitable for various projects.
• Smart Belt Design: Ensures smooth, quiet, and precise operation with an accuracy of ±0.1mm on the XY axis.
• Sturdy Axis Structure: Double Y-axis and solid XZ frame provide enhanced stability and minimize movement for consistent results.
• 4-Axis Mode Compatibility: Supports optional 4th axis rotary kit for expanded creative control.
• Offline Control Module: Enables computer-free operation with spindle control, Z-axis tool setting, emergency stop, and an operating knob.

3.2 Komponenter

Image 3.1: The Genmitsu 4040 Reno CNC Router, highlighting its performance and design.

Image 3.2: Modular assembly and all-aluminum construction of the Genmitsu 4040 Reno.

Image 3.3: Illustration of the large 400 x 400 x 76mm working area.

Image 3.4: Detail of the new patented belt design for easy adjustment and smooth operation.

Image 3.5: The Genmitsu 4040 Reno is compatible with an optional 4th axis module for advanced projects.

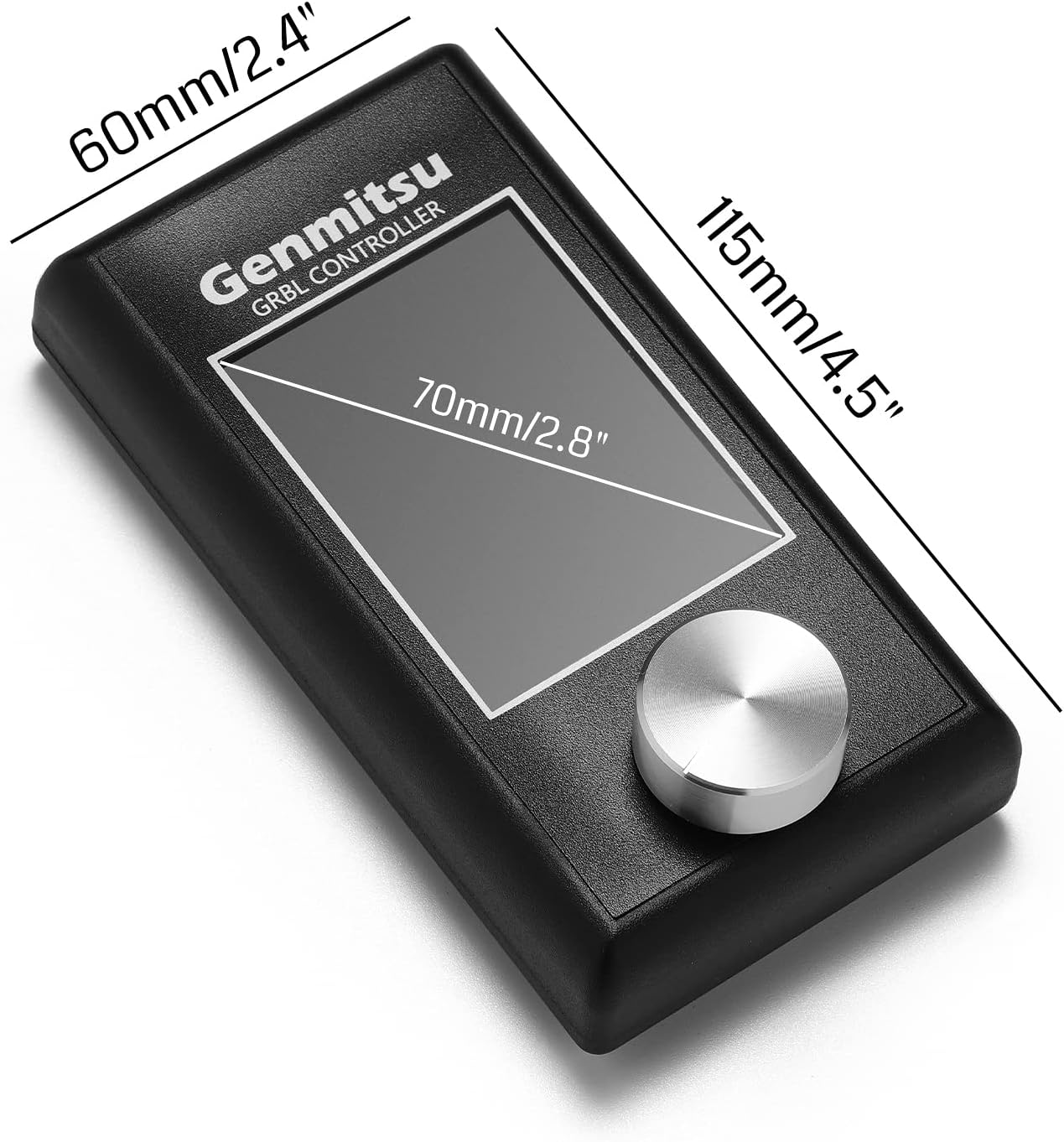

Image 3.6: Dimensions of the Genmitsu GRBL Offline Controller.

Billede 3.7: Bagside view of the Offline Controller showing the SD card slot and controller plug-in port.

4. Opsætning

4.1 Montering

The Genmitsu 4040 Reno features a modular design for straightforward assembly. Follow the detailed assembly instructions provided in the separate assembly guide or video tutorial. Ensure all components are securely fastened and connections are correctly made before proceeding.

• Pak alle komponenter ud, og kontroller dem med pakkelisten.
• Assemble the frame components, ensuring all bolts are tightened.
• Install the gantry and spindle assembly.
• Connect all motor and limit switch cables.
• Mount the spoil board.

4.2 Initial Power-Up and Calibration

After assembly, connect the power supply. Perform initial calibration steps as outlined in the quick start guide to ensure proper axis movement and homing. This typically involves:

• Connecting the offline control module.
• Initiating the homing sequence for X, Y, and Z axes.
• Verifying smooth movement of all axes.

5. Betjeningsvejledning

5.1 Using the Offline Control Module

The offline control module allows you to operate the CNC machine without a computer connection. It features a display, an operating knob, and buttons for various functions.

Image 5.1: A user interacting with the Offline Control Module.

• Navigation: Use the operating knob to scroll through menus and adjust values. Press the knob to select.
• File Indlæser: Insert an SD card with your G-code files into the module. Navigate to the 'Prepare' or 'File' menu to select and load your desired project.
• Spindle Control: Toggle the spindle on/off directly from the module interface.
• Z-Axis Tool Setting: Utilize the Z-axis tool setting function for accurate tool length calibration.
• Jogging: Manually move the X, Y, and Z axes using the dedicated jogging controls on the module.
• Start/Pause/Stop: Control the execution of your G-code program.

5.2 Preparing a Project

1. Design: Create your design using CAD/CAM software.
2. Generate G-code: Use your CAM software to generate G-code compatible with GRBL.
3. Overførsel File: Gem G-koden file til et SD-kort.
4. Sikkert arbejdsemne: Fast clamp your material to the spoil board.
5. Installationsværktøj: Insert the appropriate cutting tool into the spindle collet and tighten securely.
6. Sæt oprindelse: Use the offline controller to set the X, Y, and Z origin points for your project.

5.3 Udførelse af et job

Once your project is prepared and the origin is set:

• Select the G-code file from the offline controller.
• Initiate the job. Monitor the machine closely during operation.
• Be ready to press the emergency stop button if any issues arise.

5.4 4-Axis Operation (Optional)

If you have the optional 4th axis rotary kit, refer to its specific manual for installation and operation instructions. The offline control module supports switching to 4-axis mode for enhanced control over rotational carving projects.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your Genmitsu 4040 Reno CNC Router.

• Rensning: After each use, clean the machine thoroughly to remove dust, chips, and debris. Use a vacuum cleaner or compressed air. Avoid using liquids directly on electronic components.
• Smøring: Periodically lubricate the lead screws and linear rails with appropriate grease or oil to ensure smooth movement.
• Bæltespænding: Check the tension of the drive belts regularly. Adjust if they are too loose or too tight, referring to the assembly guide for proper tensioning.
• Værktøjsinspektion: Inspect cutting tools before each use for sharpness and damage. Replace dull or damaged tools immediately.
• Elektriske forbindelser: Kontrollér regelmæssigt alle elektriske forbindelser for tæthed og tegn på slid.

7. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på. Kontakt kundesupport ved mere komplekse problemer.

8. Specifikationer

9. Garanti og support

For warranty information and technical support, please refer to the documentation included with your product or visit the official Genmitsu webwebstedet. Du kan også finde flere oplysninger og kontaktoplysninger på Genmitsu Store på Amazon.
