Phomemo M832 Bluetooth bærbar termisk printer brugermanual

1. Produktet er slutview

The Phomemo M832 is a compact and portable thermal printer designed for convenient, inkless printing. It supports both Bluetooth and USB connectivity, making it compatible with smartphones, tablets, and laptops. This printer is ideal for various applications including documents, receipts, study materials, and photos, offering a resolution of 300 dpi for clear output.

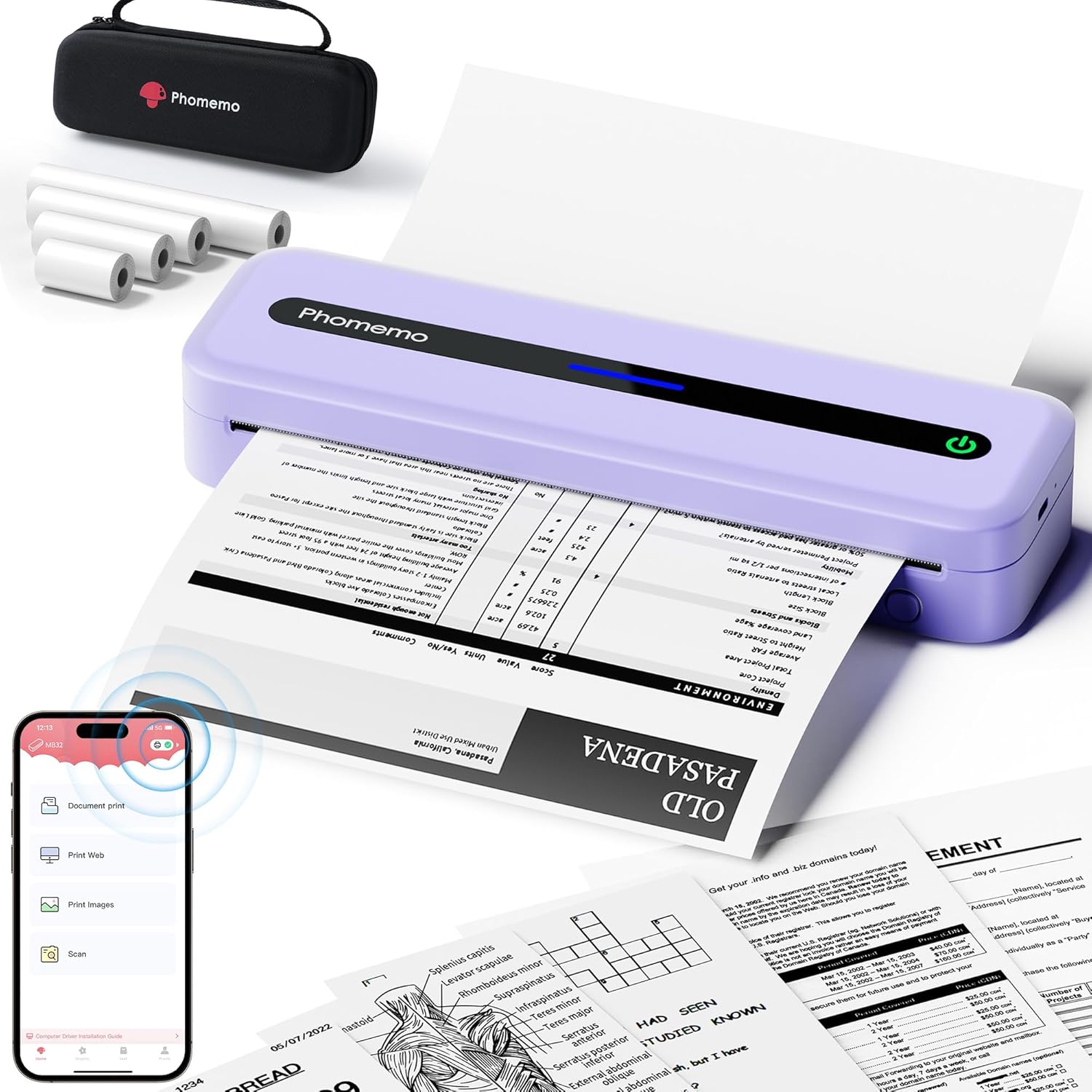

Image 1.1: The Phomemo M832 portable thermal printer in purple, shown actively printing a document. A black carrying case and several rolls of thermal paper are also displayed, highlighting the product's portability and inkless operation.

2. Hvad er der i æsken

Upon unboxing your Phomemo M832 printer, please verify that all the following components are included:

• 1 x Phomemo M832 Portable Printer (Purple)
• 1 x 8.5'' x 11'' US Letter Size Thermal Roll Paper
• 1 x 4.33'' Width Thermal Roll Paper
• 1 x 3.14'' Width Thermal Roll Paper
• 1 x 2.08'' Width Thermal Roll Paper
• 1 x Phomemo M832 printertaske
• 1 x USB Data Cable (80cm)
• 1 x strømadapter
• 1 x M832 User Manual

Image 2.1: All items included in the Phomemo M832 printer package. This includes the purple M832 printer, a black carrying case, four different sizes of thermal paper rolls, a USB data cable, a power adapter, and the user manual.

3. Opsætningsvejledning

3.1 Opladning af printeren

The Phomemo M832 printer is equipped with a 2600mAh rechargeable Lithium Polymer battery. Before initial use, ensure the printer is fully charged using the provided USB data cable and power adapter. Connect the USB Type-C end of the cable to the printer and the USB-A end to the adapter, then plug into a power outlet. The charging indicator light will provide status.

Image 3.1: An illustrative diagram highlighting the internal 2600mAh high-capacity battery of the Phomemo M832 printer, emphasizing its power source for portable use.

3.2 Ilægning af termopapir

The M832 printer supports various thermal paper types, including single sheets, roll paper, and fanfold paper. It features a built-in paper bin for convenience.

1. Open the paper compartment cover on the printer.
2. Insert the thermal paper, ensuring the printable side (usually smoother) is facing the print head.
3. For roll paper, place the roll into the designated slot. For fanfold or single sheets, align them properly in the paper path.
4. Luk dækslet til papirrummet forsvarligt.

Image 3.2: The Phomemo M832 printer showcasing its versatility in handling different thermal paper formats. One printer is shown with a roll of thermal paper, while another demonstrates the use of fan-fold paper, illustrating the flexible paper loading options.

Image 3.3: The Phomemo M832 printer is shown with various sizes of thermal paper it supports, including 8.5" x 11" (US Letter), A4, 4.33", 3.14", and 2.08" wide, highlighting its adaptability for different printing needs.

4. Betjeningsvejledning

4.1 Printing from Phone or Tablet (Bluetooth)

To print wirelessly from your smartphone or tablet, follow these steps:

1. Download appen: Install the official 'Phomemo' application from your device's app store (compatible with iOS 10+ and Android 8+).
2. Power On & Bluetooth: Turn on your M832 printer. Ensure Bluetooth is enabled on your phone or tablet.
3. Opret forbindelse via app: Open the 'Phomemo' app. Tap the 'Printer' icon within the app to search for the M832 portable printer. Select it to establish a Bluetooth connection. Note: Bluetooth connection is managed exclusively through the Phomemo app, not directly through your device's Bluetooth settings.
4. Select & Print: Within the app, select the desired paper size and file type, then initiate the printing process.

Image 4.1: The Phomemo M832 printer demonstrating Bluetooth wireless connectivity. A smartphone displaying the Phomemo app interface is shown next to the printer, indicating the method for connecting and printing from mobile devices.

4.2 Printing from Laptop or PC (USB)

For printing from a laptop or PC, a wired USB connection is required:

1. Driver installation: Besøg den officielle Phomemo website to download and install the correct M832 driver for your operating system (Windows 7/8/10/11+ or macOS 10.14+ or Linux).
2. Tilslut via USB: Use the provided USB data cable to connect your M832 printer directly to your computer.
3. Print Document: Open your document, select 'Print', and choose 'M832' from the list of available printers. Note: The printer does not support Wi-Fi printing for laptops/PCs.

Image 4.2: The Phomemo M832 printer connected to a laptop using a USB data cable, demonstrating the wired connectivity option for printing from computers. The image also highlights compatibility with Mac OS, Windows, and Linux operating systems.

5. Vedligeholdelse

The Phomemo M832 is an inkless thermal printer, which simplifies maintenance significantly. There is no need to replace ink cartridges, toner, or ribbons.

• Rensning: Tør printerens yderside regelmæssigt af med en blød, tør klud. Undgå at bruge skrappe kemikalier eller slibende materialer.
• Pleje af printhoved: The print head is a delicate component. Avoid touching it directly. If print quality degrades, a specialized thermal printer cleaning pen or card can be used according to its instructions.
• Papiropbevaring: Opbevar termisk papir et køligt, tørt sted væk fra direkte sollys og varme for at bevare dets printbarhed og levetid.
• Batteripleje: For optimal battery life, avoid completely discharging the battery frequently. Charge the printer regularly, especially if it will be stored for an extended period.

6. Fejlfinding

If you encounter issues with your Phomemo M832 printer, refer to the following common troubleshooting steps:

• Printer Not Responding/Offline:
  • Sørg for, at printeren er tændt og fuldt opladet.
  • For Bluetooth connections, verify that Bluetooth is enabled on your mobile device and that the connection is established within the Phomemo app.
  • For USB connections, check that the USB cable is securely connected to both the printer and the computer. Try a different USB port or cable if necessary.
  • Restart both the printer and your connected device.
• Print Jobs Stuck/Not Printing:
  • Check for sufficient thermal paper and ensure it is loaded correctly.
  • Verify that the paper compartment cover is closed properly.
  • Clear any pending print jobs from your device's print queue.
  • Ensure the correct printer (M832) is selected in your device's print settings.
• Poor Print Quality (Faded/Streaky):
  • Ensure the printer battery is adequately charged, as low battery can affect print darkness.
  • Check that you are using genuine Phomemo thermal paper.
  • Clean the print head if there are persistent streaks or faded areas.
  • Adjust print density settings within the Phomemo app or printer driver if available.
• Driver Issues (PC/Laptop):
  • Ensure you have downloaded and installed the latest drivers from the official Phomemo website for your specific operating system.
  • Uninstall and reinstall the printer drivers if problems persist.

7. Specifikationer

Image 7.1: A visual comparison demonstrating the high-definition printing technology of the Phomemo M832. It highlights the superior clarity of 300dpi resolution compared to a 203dpi output from another printer, showcasing enhanced detail for text and graphics.

8. Garanti og support

The Phomemo M832 Portable Thermal Printer comes with a Begrænset garanti. For specific terms and conditions of the warranty, please refer to the warranty card included in your product packaging or visit the official Phomemo webwebsted.

For technical support, driver downloads, or further assistance, please visit the official Phomemo support website or contact their customer service. Keep your product model number (M832) and purchase information readily available when seeking support.
