1. Introduktion
The GLEDOPTO ZigBee 3.0 Pro+ 5 in 1 LED Strip Controller (Model GL-C-201P) is designed for intelligent control of various LED strip types, including RGBCCT, RGBW, RGB, CCT, and Dimmer. This controller utilizes the ZigBee 3.0 protocol, ensuring compatibility with a wide range of ZigBee hubs and smart home systems. It offers enhanced stability, extended connection distance, and reduced standby power consumption. This manual provides detailed instructions for installation, operation, and troubleshooting to ensure optimal performance of your LED strip controller.
2. Sikkerhedsoplysninger
Please read all safety warnings carefully before installation and operation.
- Before powering on the device, ensure all connections are correct and secure. Do not work on the device while it is powered on.
- The device should only be operated with its rated voltage (DC12V-24V). Using excessively high or low voltage kan forårsage skade.
- Do not disassemble the device, as this may lead to fires and electric shocks.
- Do not use the product in environments exposed to direct sunlight, moisture, or high temperatures.
- Do not use the product in metal-shielded areas or near strong magnetic fields, as this can severely impair the product's wireless signal transmission.

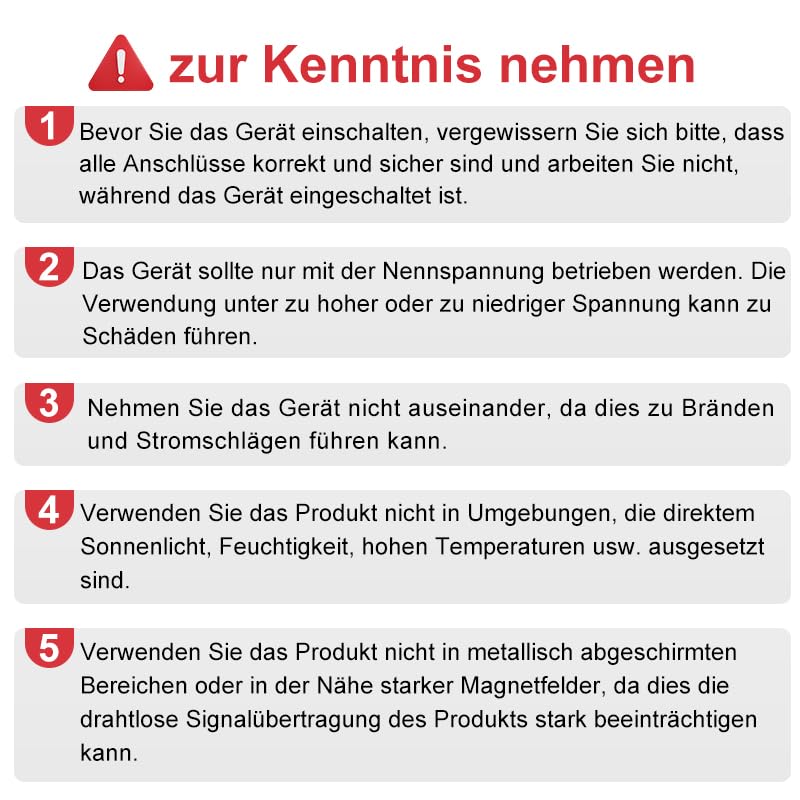

This image displays important safety warnings regarding the use and handling of the LED controller, emphasizing correct connections, voltage requirements, and environmental considerations.
3. Produktfunktioner
- ZigBee 3.0 Protocol: Compatible with general ZigBee bridges and coordinators, offering stable and convenient connection.
- 5-i-1 funktionalitet: Supports RGBCCT, RGBW, RGB, CCT, and Dimmer LED strip configurations.
- Udvidet rækkevidde: Increases connection distance up to 31 meters and functions as a signal repeater to expand network coverage.
- Lavt strømforbrug: Reduces standby power consumption for energy efficiency.
- Power-on Status Settings: Configurable default state (light on or off) after power restoration.
- Valgbar frekvens: Adjustable PWM frequency (600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz) to match different power supplies and reduce noise.
- Smart kontrol: Compatible with ZigBee hubs for app control (e.g., Tuya Smart, SmartThings) and voice control via Amazon Alexa or Google Home.
- Wide Voltage Indgang: Operates with DC12V-24V power supplies.
- Høj udgangsstrøm: Supports a total output current of 20A Max, with 15A Max per channel, suitable for longer LED strips.
4. Pakkens indhold
Kontroller venligst, at alle varer er til stede i pakken:
- 1 x GLEDOPTO ZigBee Pro+ LED Strip Controller (GL-C-201P)
- 1 x brugermanual
- 1 x 3cm Sticker
5. Specifikationer
| Specifikation | Værdi |
|---|---|
| Produktnavn | ZigBee Pro+ 5 in 1 LED Strip Controller |
| Model nr. | GL-C-201P |
| Input bindtage | DC12V-24V |
| Samlet udgangsstrøm | 20A Maks |
| Max Current/Channel | 15A Maks |
| Driftstemperatur | -20°C til 45°C |
| Dimensioner | 108 x 45 x 18 mm |
| International Protection Rating | IP20 |
| Driftstilstand | Automatisk |
| Connector Type | Tilslut |
| Kredsløbstype | Parallel |
| Aktuator type | Tryk knap |
| Kontaktmateriale | Metal |
6. Opsætningsvejledning
Follow these steps to set up your GLEDOPTO ZigBee LED Strip Controller:
- Step 1: Power Your Light Sources
Connect the LED strip to the controller's output terminals (V+, R, G, B, W, C). Ensure the correct wiring for your specific LED strip type (RGBCCT, RGBW, RGB, CCT, or Dimmer). Connect the power adapter to the controller's input (V+, V-). Plug in the power adapter to an electrical outlet.
Image 6.1: GLEDOPTO LED Strip Controller showing input and output terminals with wiring diagram. This image illustrates the physical layout of the controller, including input and output terminals, indicator light, and control buttons. It also shows a diagram for connecting different types of LED strips.
Image 6.2: The LED controller integrated into a living room environment, highlighting its quick connect port and maximum output current. This image shows the controller in a typical installation scenario, emphasizing the quick connect port for easy wiring and its capability to handle a total output current of 20A Max.
Image 6.3: The LED controller connected to multiple LED strips, illustrating its capacity to power longer light strips with a 20A maximum output. This image demonstrates the controller's ability to accommodate longer LED strips due to its 20A maximum total output current.
- Step 2: Set Up Your ZigBee Bridge/Gateway
Plug in your ZigBee bridge/gateway and ensure it is powered on. Connect it to your Wi-Fi router using the provided network cable. - Step 3: Download the Gateway App
Download the corresponding app for your ZigBee gateway (e.g., Tuya Smart, SmartThings, Philips Hue app) on your smartphone. Start the device searching process within the app. If the device is not found, try powering the controller off and on, or perform a reset. - Step 4: Complete Setup and Control Lights
Once the controller is detected and paired with your gateway, you can use the app to control the light color, color temperature, and brightness of your LED strips.
Image 6.4: A four-step diagram illustrating the setup process: powering light sources, setting up the bridge, downloading the gateway app, and controlling the lights. This image provides a visual guide to the four main steps for setting up and using the LED controller with a ZigBee gateway and smartphone app.
7. Betjeningsvejledning
7.1. 5-in-1 Mode Switching
The controller supports five different LED strip modes: RGBCCT, RGBW, RGB, CCT, and Dimmer. An indicator light on the controller corresponds to each mode. To switch between modes, short press the "Opt" button once. The indicator light will change color to reflect the selected mode:
- Hvid: RGBCCT Mode
- Gul: RGBW-tilstand
- Blå: RGB-tilstand
- Grøn: CCT -tilstand
- Rød: Dæmpertilstand
This image visually explains the one-touch switching mode functionality, showing the different LED indicator colors corresponding to each of the five supported LED strip types.
7.2. Indstillinger for startstatus
You can configure the controller's default state after a power interruption:
- To set the power-on status, long press the "Opt" button for more than 5 seconds.
- The indicator light will flash in light blue.
- After 4 seconds of being off, the indicator will resume its previous color, indicating the setting is complete.
- The default power-on status is 'light on'.
- If the indicator flashes 3 times in light blue, it means the power-on status is set to 'light on'.
- If the indicator flashes 4 times in light blue, it means the power-on status is set to 'light off'.
7.3. Smart App and Voice Control
Once connected to a compatible ZigBee hub, you can control your LED strips using a smartphone app or voice commands:
- Farveændring: Adjust the color of RGB/RGBCCT/RGBW strips to millions of options.
- Farvetemperaturregulering: For CCT/RGBCCT strips, adjust the white light color temperature from 2200K to 6500K.
- Justering af lysstyrke: Dim or brighten your LED strips from 1% to 100%.
This image displays various app interfaces for controlling LED strip characteristics such as color, color temperature, and brightness levels.
8. Frekvensindstillinger
The controller's PWM frequency can be adjusted to match different power supplies and minimize noise. To switch the frequency, short press the "Reset" key. The indicator light will flash in white and then resume its previous color after 2 seconds, indicating the frequency has changed.
Available frequencies and corresponding indicator flashes:
- 1000Hz (Default): 3 blink
- 2000Hz: 4 blink
- 4000Hz: 5 blink
- 8000Hz: 6 blink
- 600Hz: 1 blitz
- 800Hz: 2 blink
This image details how to adjust the PWM frequency of the controller using the reset button, listing the available frequencies and their corresponding indicator flash patterns.
9. Kompatibilitet
The GLEDOPTO ZigBee 3.0 Pro+ controller is compatible with most ZigBee 3.0 gateways on the market. This includes, but is not limited to, the following platforms:
- Hjemligt
- Conbee
- SmartThings
- Tuya
- Philips Hue
- Amazon Echo Studio / Echo Plus
The table below summarizes the compatibility for RGB, CCT, and Brightness control with various gateways:
| Punkt | Philips Hue | Amazon Echo Plus | SmartThings | Tuya | Conbee | Hjemligt |
|---|---|---|---|---|---|---|
| RGB | Ja | Ja | Ja | Ja | Ja | Ja |
| CCT | Ja | Ja | Ja | Ja | Ja | Ja |
| Lysstyrke | Ja | Ja | Ja | Ja | Ja | Ja |
This image provides a visual representation of the controller's compatibility with popular ZigBee gateways and the types of control functions supported by each.
10. Vedligeholdelse
To ensure the longevity and proper functioning of your LED strip controller, follow these maintenance guidelines:
- Rensning: Tør forsigtigt controlleren af med en tør, blød klud. Brug ikke flydende rengøringsmidler eller slibende materialer.
- Miljø: Keep the device in a dry environment, away from direct sunlight, moisture, and extreme temperatures.
- Forbindelser: Kontrollér regelmæssigt alle ledningsforbindelser for at sikre, at de forbliver fastgjorte og fri for korrosion.
- Ventilation: Ensure the controller has adequate ventilation and is not covered, to prevent overheating.
11. Fejlfinding
If you encounter issues with your GLEDOPTO LED Strip Controller, refer to the following common problems and solutions:
- Lysene tændes ikke:
- Check power connections to the controller and LED strip.
- Ensure the power adapter is functioning correctly and providing the correct voltage (DC12V-24V).
- Verify that the LED strip is correctly wired to the controller's output terminals.
- Controller not responding to app/voice commands:
- Ensure your ZigBee gateway is powered on and connected to your network.
- Check if the controller is successfully paired with your ZigBee gateway. Try re-pairing if necessary.
- Verify that your smartphone app is connected to the gateway and updated to the latest version.
- Confirm that the controller is within the effective range of your ZigBee network.
- Incorrect colors or modes:
- Ensure the correct 5-in-1 mode is selected on the controller (refer to Section 7.1).
- Check the wiring of your LED strip to ensure it matches the selected mode (e.g., RGBW strip wired to RGBW terminals).
- Flickering or unstable lights:
- Adjust the PWM frequency (refer to Section 8) to see if it resolves the issue, especially if using a different power supply.
- Ensure the power supply is sufficient for the length and type of LED strip being used.
- Tjek for løse forbindelser eller beskadigede ledninger.
- Overophedning af enheden:
- Sørg for tilstrækkelig ventilation omkring controlleren.
- Verify that the total current draw of your LED strips does not exceed the controller's maximum (20A total, 15A per channel).
12. Garanti og support
Warranty and specific support information for the GLEDOPTO ZigBee 3.0 Pro+ 5 in 1 LED Strip Controller (Model GL-C-201P) are not provided in this manual. Please refer to the product packaging, the retailer's website, or contact GLEDOPTO customer service directly for details regarding warranty coverage and technical support.
13. Anvendelsesscenarier
The GLEDOPTO ZigBee 3.0 Pro+ 5 in 1 LED Strip Controller is suitable for various indoor lighting applications, enhancing ambiance and functionality in different spaces.
This image displays several examples of how LED strips controlled by this device can be used to create decorative and functional lighting in residential environments.
