Indledning
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your TYLT Bell Portable Magnetic Bluetooth Speaker. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience.
The TYLT Bell is a compact and versatile portable speaker designed for high-quality audio on the go. It features a magnetic attachment system, Bluetooth connectivity, and a built-in microphone for hands-free calls.
Pakkens indhold
- TYLT Bell Portable Magnetic Bluetooth Speaker
- Opladningskabel (USB-C)
- Brugermanual
Opsætning
1. Opladning af højttaleren
Before first use, fully charge your TYLT Bell speaker. Connect the provided USB-C charging cable to the charging port on the speaker and the other end to a USB power adapter (not included) or a computer's USB port.
Image: The TYLT Bell speaker shown connected to a charging cable, demonstrating the charging port location. The speaker is magnetically attached to the back of a smartphone.
The LED indicator will show charging status (e.g., red for charging, blue for fully charged, refer to LED indicator section for details).
2. Tænd/sluk
To power on the speaker, press and hold the power button (marked with a power icon) for approximately 3 seconds until you hear an audible prompt and the LED indicator lights up. To power off, press and hold the power button again for 3 seconds.
Billede: Et nærbillede view of the TYLT Bell speaker's top surface, highlighting the power button (right) and Bluetooth pairing button (left) icons.
3. Bluetooth-parring
- Ensure the speaker is powered on and within 1 meter (3 feet) of your Bluetooth-enabled device (smartphone, tablet, etc.).
- The speaker will automatically enter pairing mode when first powered on, indicated by a flashing blue LED. If it doesn't, press and hold the Bluetooth button (marked with a Bluetooth icon) for 3 seconds to enter pairing mode.
- Gå til Bluetooth-indstillinger på din enhed og søg efter tilgængelige enheder.
- Select "TYLT Bell" from the list of found devices.
- Når parringen er afsluttet, lyser LED-indikatoren konstant blåt, og du vil høre en bekræftelsestone.
Højttaleren vil automatisk forsøge at genoprette forbindelsen til den sidst parrede enhed, når den tændes, hvis den pågældende enhed er inden for rækkevidde og har Bluetooth aktiveret.
4. Magnetisk vedhæftning
The TYLT Bell features a strong magnetic base for secure attachment to compatible magnetic surfaces. This allows for flexible positioning, such as on the back of a magnetic phone case, a metal desk, or a refrigerator.
Image: The TYLT Bell speaker shown attached to the back of a smartphone, illustrating its magnetic mounting capability.
Ensure the surface is clean and flat for optimal magnetic adhesion.
Betjeningsvejledning
Lydafspilning
Once paired, audio from your connected device will automatically play through the TYLT Bell speaker. Control playback (play/pause, skip tracks) directly from your connected device.
Håndfri opkald
The built-in microphone allows for hands-free calling. When a call comes in, the speaker will ring. To answer a call, briefly press the power button. To end a call, briefly press the power button again. To reject an incoming call, press and hold the power button for 2 seconds.
Aktivering af stemmeassistent
To activate your device's voice assistant (e.g., Siri, Google Assistant), double-press the power button. The speaker's microphone will then pick up your commands.
LED-indikatorstatus
| LED-status | Mening |
|---|---|
| Blinkende blå | Parringstilstand |
| Ensfarvet blå | Forbundet / Parret |
| Ensfarvet rød | Opladning |
| LED Off (while charging) | Fuldt opladet |
| Blinker rødt | Lavt batteri |
Opretholdelse
Rensning
Wipe the speaker with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or spray directly onto the speaker. Avoid exposing the speaker to excessive moisture.
Opbevaring
Når højttaleren ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer. Det anbefales at oplade højttaleren mindst én gang hver tredje måned for at bevare batteriets sundhedstilstand.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Højttaleren tænder ikke. | Lavt batteri. | Oplad højttaleren helt. |
| Kan ikke parre med Bluetooth-enhed. | Højttaleren er ikke i parringstilstand; enhedens Bluetooth er slået fra; for langt fra højttaleren. | Ensure speaker is in pairing mode (flashing blue LED). Turn on Bluetooth on your device. Move device closer to speaker (within 1 meter). Forget "TYLT Bell" from your device's Bluetooth list and try pairing again. |
| Ingen lyd eller forvrænget lyd. | Lydstyrken er for lav; højttaleren er ikke tilsluttet; problem med lydkilden. | Increase volume on both speaker and connected device. Ensure speaker is successfully paired and connected. Try playing audio from a different source or application. |
| Den magnetiske fastgørelse er svag. | Surface is not magnetic or has a thick non-magnetic layer. | Ensure you are attaching to a truly magnetic surface. Remove any non-magnetic cases or covers from your device if attaching directly. |
Specifikationer

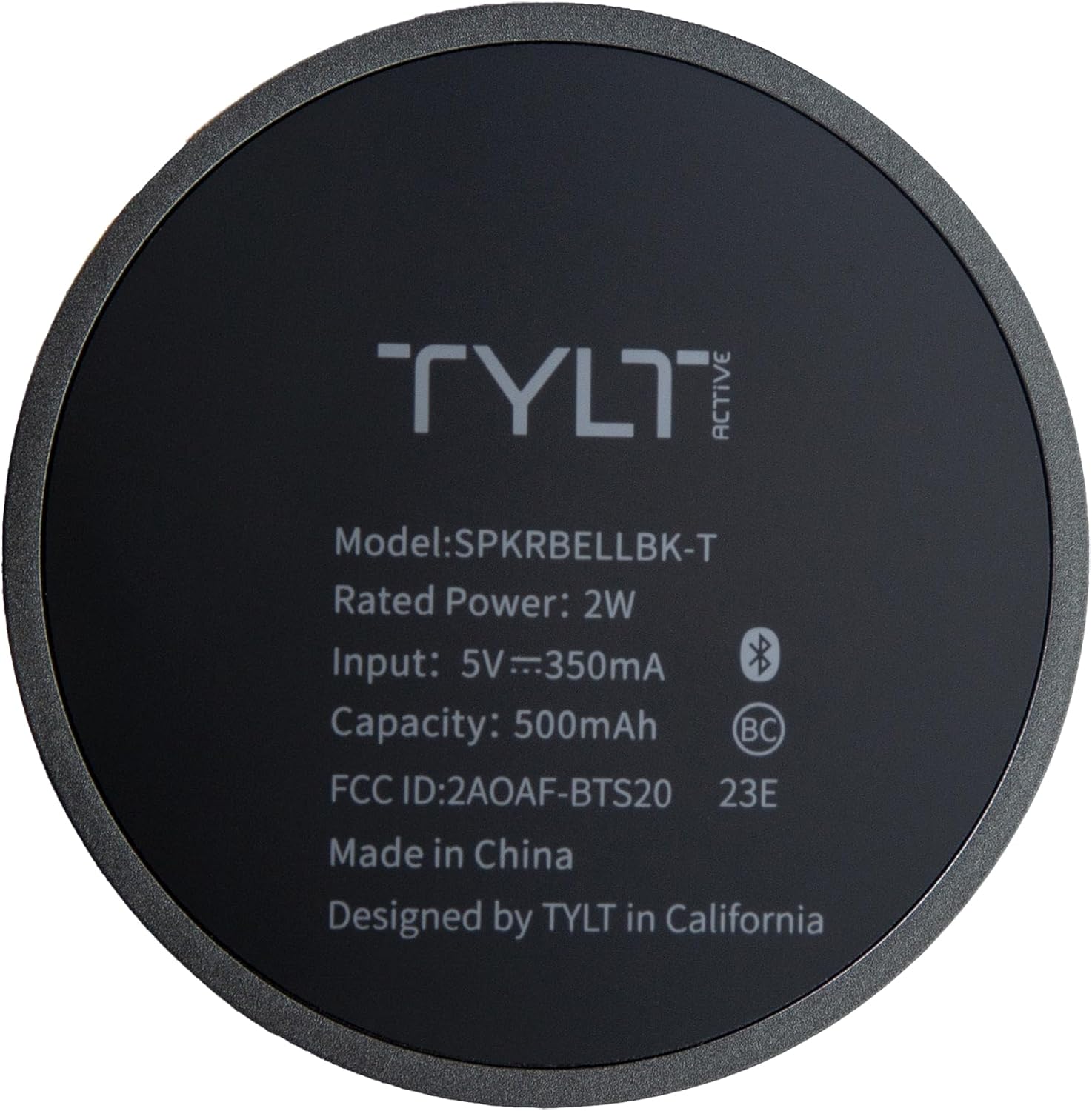

Image: The underside of the TYLT Bell speaker, displaying its model number (SPKRBELLBK-T), rated power (2W), input (5V=350mA), capacity (500mAh), FCC ID, and manufacturing details.
| Feature | Detalje |
|---|---|
| Modelnavn | TYLT Bell (Model: 4955R / SPKRBELLBK-T) |
| Forbindelse | Bluetooth |
| Højttaler type | Bashøjttaler |
| Særlige funktioner | Portable, Lightweight, Built-in Microphone, Magnetic Attachment |
| Mål (D x B x H) | 1.8" x 2.5" x 1.8" (4.57 cm x 6.35 cm x 4.57 cm) |
| Vægt | 4.8 ounce (136 gram) |
| Strømkilde | Batteridrevet |
| Input bindtage | 5V = 350mA |
| Batterikapacitet | 500mAh |
| Højttaler Maksimal udgangseffekt | 5 watt |
| Frekvensrespons | 20 KHz |
| Farve | Sort |
| Materiale | Plast |
| UPC | 849944086042 |
Bemærk: Specifikationerne kan ændres uden varsel.
Garanti og support
The TYLT Bell Portable Magnetic Bluetooth Speaker comes with a Limited Warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official TYLT webwebsted.
For technical support, troubleshooting assistance, or to inquire about warranty claims, please contact TYLT Customer Service:
- Webwebsted: Visit the TYLT Store on Amazon (for generel produktinformation)
- Refer to product packaging or included documentation for direct support contact information.
Please have your product model number (4955R) and proof of purchase ready when contacting support.
