Gens ace Redline 2.0 Series 4200mAh 2S Lipo Battery 140C 7.6V HV HardCase Shorty Instruction Manual

1. Introduktion

Thank you for choosing the Gens ace Redline 2.0 Series 4200mAh 2S Lipo Battery. This high-performance Lithium Polymer (LiPo) battery is designed for demanding RC applications, offering a 140C discharge rate and a 7.6V HV (High Voltage) configuration in a durable hard case. This manual provides essential information for the safe and effective use, charging, and maintenance of your battery. Please read it thoroughly before use.

2. Sikkerhedsinstruktioner

ADVARSEL: Lithiumpolymer-batterier er flygtige. Manglende overholdelse af disse instruktioner kan resultere i brand, personskade og materielle skader.

• Opladningssikkerhed:
  • Always use a LiPo-compatible charger with a balance charging function.
  • Oplad aldrig batterier uden opsyn.
  • Charge batteries in a fireproof area or a LiPo-safe charging bag.
  • Do not charge batteries that are swollen, damaged, or have exposed wires.
  • Ensure the charger settings match the battery's voltage (7.6V HV) and capacity (4200mAh).
• Discharge Safety:
  • Do not over-discharge the battery. Stop using the battery when you notice a significant drop in power or when the voltage reaches the minimum safe level (typically 3.0V per cell for standard LiPo, consult your ESC/vehicle manual for HV LiPo cutoffs).
• Håndtering og opbevaring:
  • Do not puncture, drop, short circuit, or expose the battery to extreme temperatures (hot or cold).
  • Store batteries in a cool, dry place, away from direct sunlight and flammable materials.
  • For long-term storage, charge the battery to a storage voltage (typisk 3.8V-3.85V pr. celle).
  • Hold batterier utilgængeligt for børn og kæledyr.
• Bortskaffelse:
  • Do not dispose of LiPo batteries in regular trash. Consult local regulations for proper LiPo battery recycling or disposal.

3. Produktet er slutview

The Gens ace Redline 2.0 Series 4200mAh 2S Lipo Battery is engineered for high-performance remote-controlled vehicles. Its hard case design provides enhanced protection, while the 140C discharge rate ensures ample power delivery for competitive racing and demanding applications. This package includes two batteries.

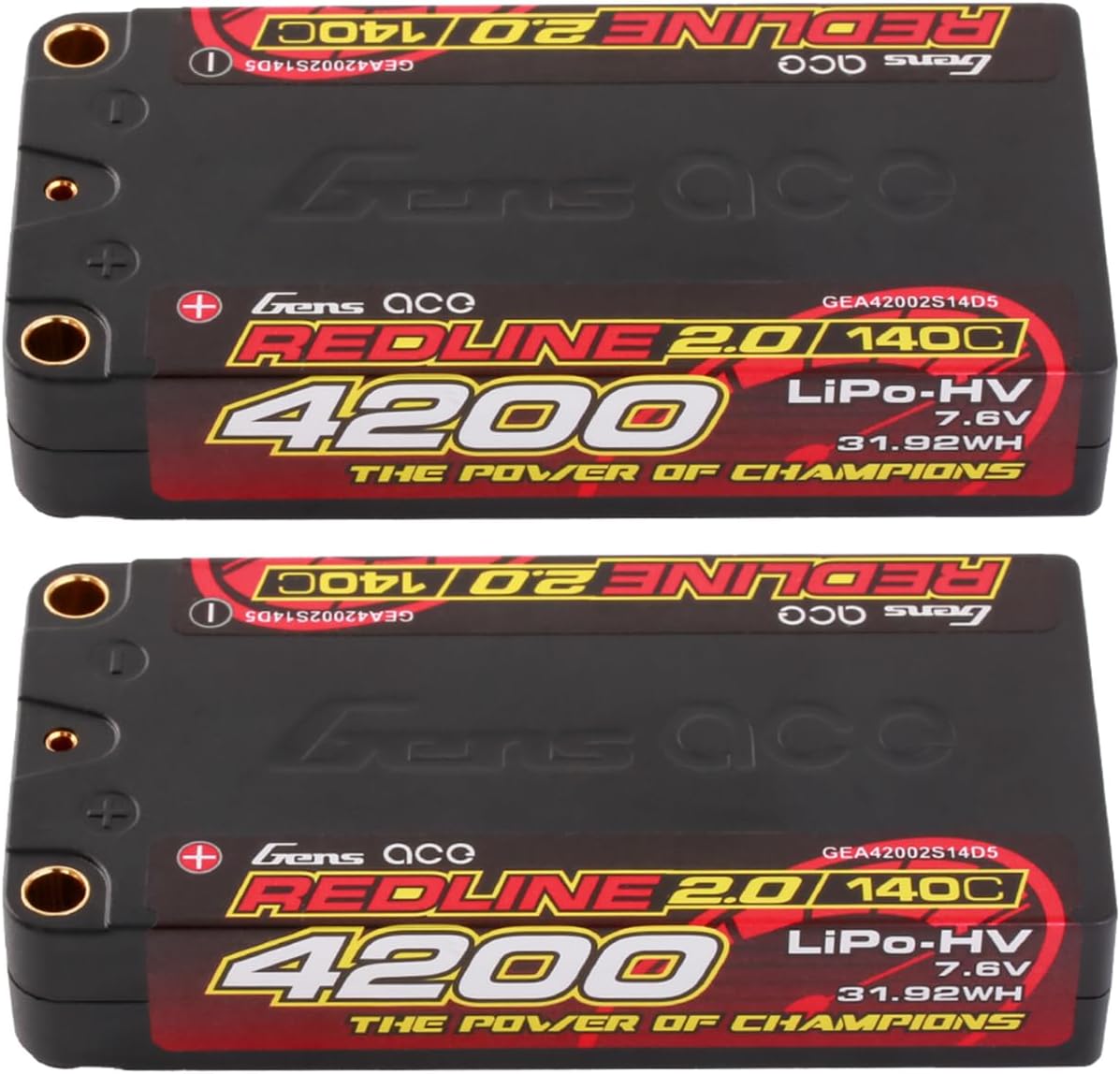

Image 1: Two Gens ace Redline 2.0 Series 4200mAh 2S Lipo Batteries, showing the top view med branding og specifikationer.

Image 2: A single Gens ace Redline 2.0 Series 4200mAh 2S Lipo Battery, presented at an angle to highlight its hard case design and connectors.

4. Opsætning

4.1 Indledende opladning

1. Connect the battery's balance lead to the balance port on your LiPo-compatible charger.
2. Connect the main discharge plug (5.0mm bullet) to the main output port of your charger.
3. Set your charger to the 'LiPo HV Balance Charge' mode.
4. Indstil voltage to 2S (7.6V) and the charging current to 1C (4.2A for a 4200mAh battery). Never exceed 1C unless specified by the manufacturer.
5. Begin charging and monitor the process closely. The charger will indicate when charging is complete.

4.2 Connecting to Your RC Model

1. Ensure your RC model's Electronic Speed Controller (ESC) is compatible with 2S LiPo HV batteries and has a 5.0mm bullet connector or an appropriate adapter.
2. Carefully connect the battery's main discharge plug to the ESC. Ensure correct polarity (red to positive, black to negative).
3. Secure the battery within the battery tray of your RC model to prevent movement during operation.

5. Betjening

Once properly charged and installed, your Gens ace Redline 2.0 Series LiPo battery is ready for use in your RC model.

• Førkørselstjek: Before each use, visually inspect the battery for any signs of damage, swelling, or exposed wires. Ensure all connections are secure.
• Under drift: Monitor your RC model's performance. If you notice a significant decrease in power or speed, it's an indication that the battery is nearing its discharge limit.
• Post-Run: After use, allow the battery to cool down before recharging. Never attempt to charge a hot battery.

Billede 3: Side view of the Gens ace Redline 2.0 Series 4200mAh 2S Lipo Battery, highlighting its compact 'shorty' form factor.

6. Vedligeholdelse

Proper maintenance extends the life and performance of your LiPo battery.

• Rensning: Keep the battery and connectors clean and free from dirt, dust, and moisture. Use a soft, dry cloth for cleaning.
• Inspektion: Regularly inspect the battery for any physical damage, such as cracks in the hard case, swelling, or damaged wires/connectors. Discontinue use immediately if any damage is found.
• Opbevaring: For optimal longevity, store the battery at room temperature (15-25°C or 59-77°F) and at a storage voltage of 3.8V-3.85V per cell. Do not store fully charged or fully discharged for extended periods.

Image 4: Gens ace Redline 2.0 Series 4200mAh 2S Lipo Battery shown with its retail packaging, including a small instruction card and 5.0mm bullet connectors.

7. Fejlfinding

If you encounter issues with your Gens ace LiPo battery, consider the following common problems and solutions:

• Batteri oplades ikke:
  • Ensure all connections between the battery and charger are secure.
  • Verify charger settings (LiPo HV, 2S, 4.2A) are correct.
  • Check for any damage to the battery or charger cables.
• Reduceret køretid:
  • Sørg for, at batteriet er fuldt opladet før brug.
  • Check for proper storage voltage når den ikke er i brug.
  • Battery age and number of cycles can affect performance.
• Batteri hævelse:
  • IMMEDIATELY DISCONTINUE USE AND CHARGING. Swelling indicates internal damage and a high risk of fire.
  • Carefully move the battery to a safe, non-flammable location.
  • Do not attempt to charge or use a swollen battery. Dispose of it safely according to local regulations.

8. Specifikationer

9. Garanti og support

Gens ace is committed to providing high-quality products and customer satisfaction. If you have any questions, concerns, or require assistance with your Gens ace Redline 2.0 Series LiPo battery, please contact our customer service team. We offer 7x24 hours friendly customer service to address any issues you may encounter.

Se venligst din købsdokumentation for specifikke garantivilkår.
