Povasee A40

Povasee 5000A Jump Starter

Instruktionsmanual

Model: A40

Produkt overview

The Povasee 5000A Jump Starter is a powerful and versatile portable device designed to jump start 12V vehicles with all gas engines or diesel engines up to 10L. It features a newly upgraded 3-inch LCD display for clear status indication, a built-in power bank with dual USB outputs for charging electronic devices, and a 600-lumen LED flashlight with multiple modes for emergencies.

Povasee 5000A Jump Starter with jumper cables
Figure 1: Povasee 5000A Jump Starter and Smart Jumper Cables.

This image displays the main unit of the Povasee 5000A Jump Starter alongside its smart jumper cables. The unit is compact and features a digital display.

Sikkerhedsoplysninger

Please read and understand all safety instructions before using the Povasee Jump Starter. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

  • Do not short circuit: Ensure proper connection to avoid short circuits.
  • Omvendt polaritetsbeskyttelse: The device includes protection against incorrect connections, but always double-check polarity.
  • Beskyttelse mod overafladning: Avoid fully discharging the unit to prolong battery life.
  • Temperaturområde: Operate and store the unit within the specified temperature range (-22°F to 140°F).
  • Hold tør: Udsæt ikke enheden for vand eller fugt.
  • Ventilation: Ensure adequate ventilation during use and charging.
  • Børn og kæledyr: Opbevares utilgængeligt for børn og kæledyr.

Opsætning

Hvad er der i æsken

  • Povasee A40 Car Jump Starter x 1
  • Heavy-Duty Jumper Cables x 1
  • DC 5.5mm Cigarette Lighter Adapter x 1
  • USB to Type C Cable x 1 (Note: AC adapter not included)
  • Opbevaringsboks x 1
  • Brugervejledning x 1
Packing list of Povasee Jump Starter components
Figure 2: Contents of the Povasee Jump Starter package.

This image illustrates all the items included in the product package, neatly arranged, including the jump starter unit, cables, adapters, and carrying case.

Indledende opladning

Before first use, fully charge the Povasee Jump Starter. Connect the provided USB-A to C cable to the unit's USB-C input port and a suitable USB wall adapter (not included). The 3-inch LED display will show the charging progress. A full charge ensures optimal performance.

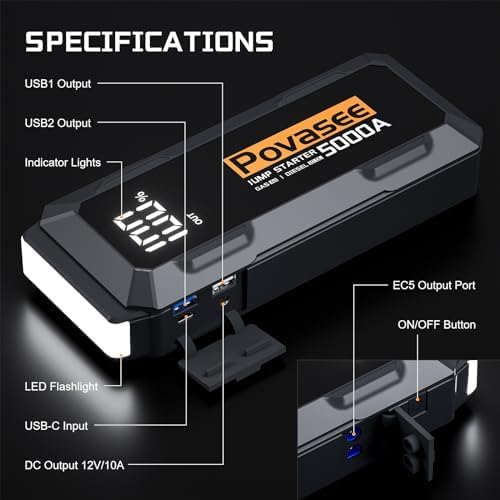

Side view of Povasee Jump Starter showing input and output ports
Figure 3: Input and Output Ports on the Jump Starter.

This image highlights the various ports on the side of the jump starter, including USB-C input, USB outputs, and the EC5 output port for jumper cables.

Betjeningsvejledning

Hopstart af et køretøj

  1. Tilslut smarte jumperkabler: Insert the blue plug of the smart jumper cables into the EC5 output port on the jump starter. Ensure a firm connection.
  2. Tilslut til køretøjets batteri:
    • Fastgør den røde (+) clamp til den positive (+) pol på køretøjets batteri.
    • Fastgør den sorte (-) clamp to the negative (-) terminal of the vehicle's battery or a solid metal part of the engine block (ground).

    The indicator light on the smart jumper cable will show the connection status. A solid green light indicates a correct connection and readiness to jump start.

  3. Start køretøjet: Once the green indicator light is solid, start your vehicle's engine. If the battery voltage is extremely low (below 9V), press the "RST" button on the smart cable to force a start.
  4. Fjern kabler: After the vehicle starts, immediately remove the smart jumper cables from the vehicle battery, then disconnect them from the jump starter.
Povasee Jump Starter connected to a car battery for jump starting
Figure 4: Jump Starting Process.

This image shows the Povasee Jump Starter connected to a car battery, illustrating the ease and speed of the jump-starting process. The digital display indicates full charge.

Three steps to jump start a car with Povasee Jump Starter
Figure 5: Step-by-step guide for jump starting.

This visual guide breaks down the jump-starting process into three simple steps: connecting the smart clip, attaching to the battery, and starting the car engine.

Bruges som powerbank

The Povasee Jump Starter doubles as a portable power bank. It features two USB output ports (QC3.0 output 2 (5-12V) and standard 5V/2.4A output) to quickly charge your smartphones, tablets, and other USB-powered devices.

Povasee Jump Starter charging multiple electronic devices
Figure 6: Charging Electronic Devices.

This image shows the jump starter connected to and charging various electronic devices such as a smartphone, laptop, and smartwatch, demonstrating its power bank functionality.

LED-lommelygtefunktioner

The built-in 600 lumen LED light offers three modes for various situations:

  • Lommelygte: Provides steady illumination for working in dark environments.
  • Strobe: A flashing light mode for signaling or attracting attention.
  • SOS: Emits the international Morse code distress signal (three short, three long, three short flashes).
Povasee Jump Starter with its 600 lumen LED emergency torch activated
Figure 7: LED Flashlight Modes.

This image illustrates the jump starter's integrated 600-lumen LED light, showcasing its utility as an emergency torch with flashlight, strobe, and SOS modes.

Opretholdelse

  • Genoplad regelmæssigt: To maintain optimal battery health, recharge the jump starter every 3-6 months, even if not used.
  • Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
  • Rensning: Brug en blød, tør klud til at rengøre enheden. Brug ikke skrappe kemikalier eller slibende materialer.

Fejlfinding

Fælles problemer og løsninger

ProblemMulig årsagLøsning
Enheden tænder ikke.Batteriet er helt afladet.Oplad enheden helt før brug.
Vehicle does not start after jump.Incorrect cable connection; vehicle battery too low; vehicle issue.Check cable connections (red to +, black to -/ground). Press RST button for very low batteries. Consult a mechanic if the issue persists.
Smart cable indicator shows red/flashing.Incorrect connection; short circuit; reverse polarity.Disconnect immediately and re-check connections. Ensure correct polarity.

Specifikationer

FeatureDetalje
MærkePovasee
ModelA40
Peak Output Current5000 Amps
MotorkompatibilitetAll Gas or 10L Diesel Engines
BatteritypeLithium polymer
Vise3" LCD-skærm
USB-udgangeQC3.0 (5-12V), 5V/2.4A
LED lys600 Lumens (Flashlight, Strobe, SOS modes)
Driftstemperatur-22°F til 140°F (-30°C til 60°C)
Sikkerhedsbeskyttelse10 systems including reverse polarity, over-discharge, short circuit, etc.

Garanti og support

The Povasee 5000A Jump Starter comes with a 36 måneders garanti from the date of purchase, as stated in the product features. For any questions or support needs, please feel free to contact Povasee Customer Service.

Customer service and warranty information for Povasee products
Figure 8: Customer Service and Warranty Details.

This image provides information on customer service availability (24 Hours, 7*24), return policy (30 Days Worry Free), and after-sales warranty (24 Months). Please refer to the product description for the most accurate warranty period of 36 months.
