Indledning
Thank you for choosing the TREBLAB HD-Max Wireless Speaker. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read it thoroughly to ensure optimal performance and longevity of your speaker.
Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- TREBLAB HD-Max Bluetooth Speaker
- 3.5 mm AUX-kabel
- Bærerem
- Flaskeåbner
- USB/Type-C Charging cable
- TREBLAB HD-Max User Manual
- Garantikort
- Klistermærke
- Katalog
Image: All items included in the TREBLAB HD-Max speaker package.
Produkt overview
The TREBLAB HD-Max speaker features a robust design with intuitive controls and versatile connectivity options.
Billede: Forside view of the TREBLAB HD-Max speaker, showcasing its cylindrical shape and integrated carrying strap.
Billede: Bagside view of the TREBLAB HD-Max speaker, highlighting the protected port panel for charging and auxiliary connections.
Opsætning
Opladning af højttaleren
Before first use, fully charge your TREBLAB HD-Max speaker. Connect the provided USB Type-C charging cable to the speaker's charging port and a compatible USB power source. The LED indicator will show charging status. A full charge takes approximately 5 hours and provides up to 20 hours of playtime at 10% volume.
Tænd/sluk
- To power on: Press and hold the Power button until the LED indicator illuminates.
- Sådan slukker du: Tryk på tænd/sluk-knappen, og hold den nede, indtil LED-indikatoren slukker.
Bluetooth-parring
- Ensure the speaker is powered on and in pairing mode (LED will flash).
- Aktiver Bluetooth på din enhed (smartphone, tablet, computer).
- Søg efter available devices and select "TREBLAB HD-Max".
- Når den er tilsluttet, vil LED-indikatoren stoppe med at blinke og forblive konstant.
Ægte trådløs stereo (TWS) parring
To achieve a stereo sound experience, you can pair two TREBLAB HD-Max speakers together:
- Ensure both HD-Max speakers are powered on and not connected to any other Bluetooth device.
- On one speaker, press and hold the TWS button until you hear a confirmation tone. This speaker will be the primary unit.
- The primary speaker will automatically search for the secondary speaker. Once connected, you will hear another confirmation tone.
- Now, connect your device to the primary HD-Max speaker via Bluetooth as described above. Audio will play through both speakers in stereo.
Image: Two TREBLAB HD-Max speakers positioned to demonstrate True Wireless Stereo pairing for an immersive audio experience.
AUX tilslutning
Use the provided 3.5mm AUX cable to connect the speaker to devices without Bluetooth capability. Insert one end into the speaker's AUX input and the other into your device's audio output. The speaker will automatically switch to AUX mode.
USB-afspilning
Indsæt et USB-flashdrev med lyd files into the USB-A port. The speaker will automatically detect and begin playing music from the drive.
Betjeningsvejledning
Grundlæggende kontrol
- Lydstyrke op/ned: Tryk på knapperne '+' eller '-'.
- Afspil/pause: Tryk på knappen Afspil/pause.
- Næste nummer: Tryk på '+'-knappen og hold den nede.
- Forrige nummer: Tryk på '-'-knappen og hold den nede.
Lydtilstande
The HD-Max offers three distinct sound modes to optimize your listening experience:
- Indendørs tilstand: Balanced audio for enclosed spaces.
- Udendørs tilstand: Enhanced volume and clarity for open environments.
- Bass Boost-tilstand: Amplified low frequencies for a deeper bass response.
Press the Mode button to cycle through these options.
Image: Visual representation of the three sound modes (Indoor, Outdoor, Bass Boost) and their intended use scenarios.
Håndfri opkald
With the built-in microphone, you can answer calls directly through the speaker when connected via Bluetooth:
- Besvar opkald: Tryk på knappen Afspil/pause.
- Afslut opkald: Press the Play/Pause button again.
- Afvis opkald: Tryk og hold knappen Afspil/Pause nede.
Image: A user engaging in a hands-free call using the TREBLAB HD-Max speaker's integrated microphone.
Power Bank funktion
The HD-Max can function as a power bank to charge your mobile devices. Connect your device's charging cable to the USB-A output port on the speaker. The speaker's 6600mAh battery will provide power to your device.

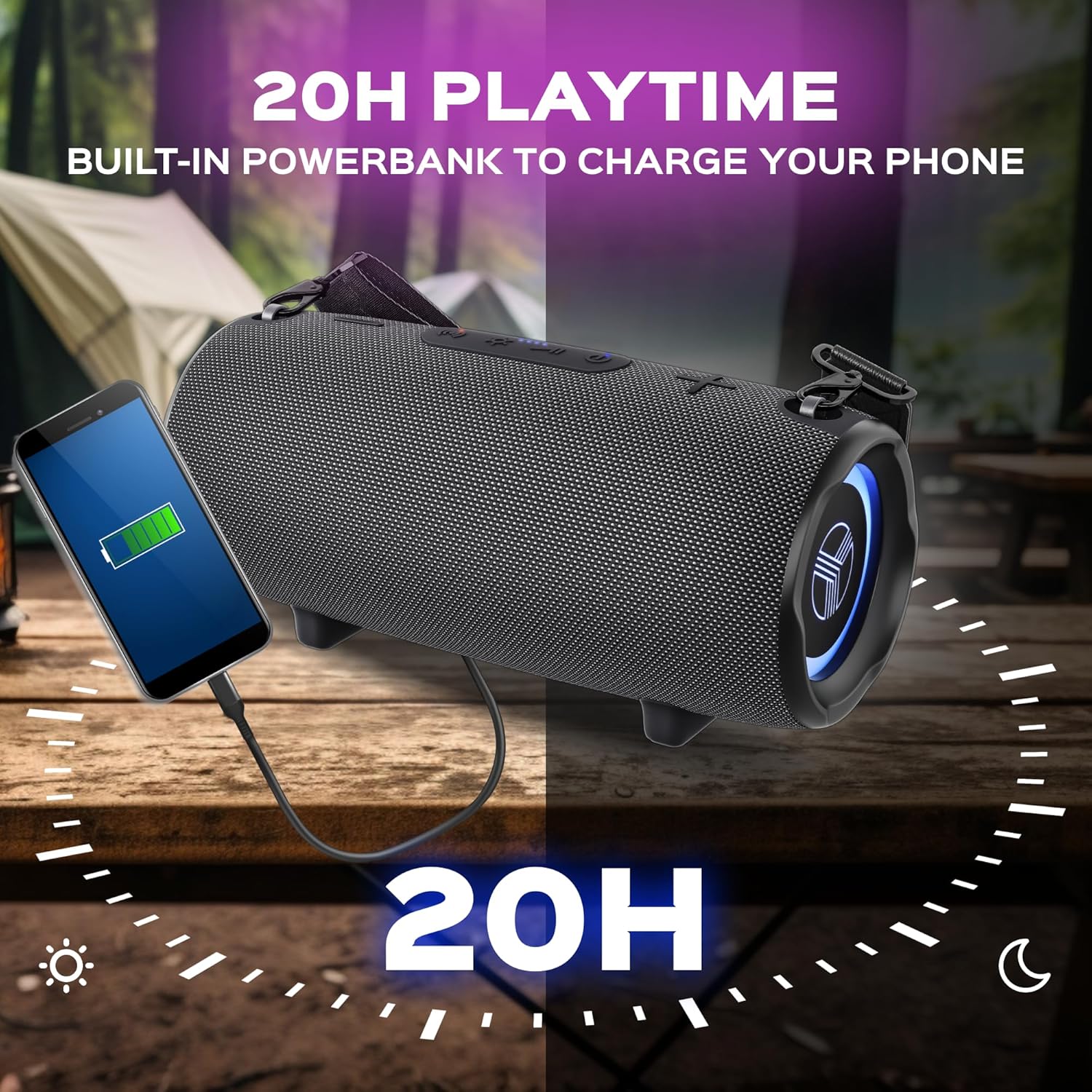

Image: The TREBLAB HD-Max speaker actively charging a smartphone, demonstrating its power bank capability.
RGB belysning
The speaker features dynamic RGB lighting. Press the Light button to cycle through different lighting modes or to turn the lights off.
Opretholdelse
Rensning
Tør højttaleren af med en blød, damp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at alle portdæksler er forsvarligt lukket, før du rengør eller udsætter dem for vand.
Opbevaring
Opbevar højttaleren et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer. Hvis den opbevares i en længere periode, skal batteriet oplades til ca. 50% hver par måneder for at bevare batteriets tilstand.
Vandtæthed (IPX7)
The TREBLAB HD-Max is rated IPX7, meaning it can be submerged in water up to 1 meter (3 feet) for 30 minutes. Ensure all port covers are firmly sealed before exposing the speaker to water. This rating protects against accidental submersion but is not intended for prolonged underwater use.
Image: The TREBLAB HD-Max speaker shown partially submerged in water, highlighting its IPX7 water resistance feature.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Højttaleren tændes ikke | Lavt batteri; Tænd/sluk-knappen er ikke trykket korrekt ind | Charge the speaker; Press and hold the Power button for 3 seconds. |
| Kan ikke parres via Bluetooth | Speaker not in pairing mode; Device Bluetooth off; Speaker already connected to another device | Ensure speaker LED is flashing; Enable Bluetooth on your device; Disconnect from other devices. |
| Ingen lyd | Volume too low; Incorrect input source; Device not playing audio | Increase speaker and device volume; Check AUX cable connection or Bluetooth status; Ensure audio is playing on your device. |
| TWS-parring mislykkes | Speakers too far apart; One speaker already paired to a device; Incompatible Bluetooth versions (for older models) | Place speakers closer; Ensure both speakers are disconnected from other devices; Note that new Bluetooth 5.3 speakers may not pair with older 4.2/5.0 models in TWS mode. |
| Powerbanken oplader ikke enheden | Speaker battery low; Cable issue; Device not compatible | Charge the speaker; Try a different USB cable; Ensure your device is compatible with USB charging. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | HD-Max |
| Trådløs teknologi | Bluetooth 5.3 |
| Signalrækkevidde | 33 fod / 10 meter |
| Udgangseffekt | 60 watt |
| Dynamics Quantity | 4 |
| Spilletid | Op til 20 timer (ved 10 % volumen) |
| Opladningstid | Op til 5 timer |
| Batterikapacitet | 6600mAh (13200 Milliamp timer) |
| Vandmodstand | IPX7 |
| Produktdimensioner | 5.43" D x 5.51" B x 12.2" H |
| Varens vægt | 5.94 pund |
| Kontrolmetode | Røre |
| Lydudgangstilstand | Stereoanlæg |
| Særlige funktioner | Powerbank, 3 Sound Modes, Built-in Mic, RGB Lighting |
| UPC | 860005982578 |
Garanti og support
The TREBLAB HD-Max Wireless Speaker comes with a 1 års garanti og en 30 dages returret, ensuring a risk-free purchase. For any questions, technical support, or warranty claims, please visit the official TREBLAB store or contact customer service through the retailer where you purchased the product.
For yderligere information og support kan du besøge TREBLAB Store on Amazon.
