1. Introduktion
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Westgate RDL6-MCT5-WP LED Multi-CCT Recessed Light. Please read this manual thoroughly before installation and retain it for future reference. This LED recessed light is designed for both residential and commercial applications, offering versatile lighting with adjustable color temperature and dimming capabilities.
2. Vigtige sikkerhedsinstruktioner
For at mindske risikoen for brand, elektrisk stød eller personskade, bedes du overholde følgende:
- Always turn off the power at the circuit breaker before installation, removal, or servicing.
- Ensure all electrical connections comply with local and national electrical code standards.
- Dette produkt skal installeres i overensstemmelse med den gældende installationskode af en person, der er bekendt med produktets konstruktion og drift og de involverede farer.
- Do not use with dimmers other than those specified as compatible (TRIAC dimmers).
- Velegnet til våde steder.
- Forsøg ikke at ændre armaturet. Enhver ændring kan ugyldiggøre garantien og skabe sikkerhedsrisici.
- Brug sikkerhedsbriller og handsker under installationen.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Westgate RDL6-MCT5-WP LED Multi-CCT Recessed Light (Retrofit Downlight)
4. Produktspecifikationer
| Kategori | Specifikation |
|---|---|
| Modelnummer | RDL6-MCT5-WP |
| Wattage | 14W |
| Voltage | 120VAC |
| Lumen output | Up to 1400lm (max) |
| Farvetemperatur (CCT) | 2700K, 3000K, 3500K, 4000K, 5000K (kan vælges) |
| Dæmpning | TRIAC Dæmpbar |
| Lyskilde | LED (Epistar Chip COB) |
| CRI | ≥ 90 |
| Materiale | Spun Aluminum with White Powder Coat Finish, Translucent Acrylic Lens |
| Dimensioner | 7.5 cm L x 7.5 cm B x 3.4 cm H |
| Kompatibilitet | Fits standard 6-inch recessed housings |
| Placeringsvurdering | Wet Location Suitable |
| Garanti | 5 års begrænset garanti |
Billede 1: Overview of product features and technical specifications, including electrical, mechanical, and lighting details.
5. Installationsvejledning
5.1 Før installation
- Sluk for strømmen ved afbryderen eller sikringsboksen.
- Ensure the existing recessed housing is a standard 6-inch size.
- Pak armaturet ud og kontroller det for eventuelle skader.
5.2 Trin-for-trin installation
- Forbered huset: Remove the existing bulb and trim from the 6-inch recessed housing.
- Tilslut adapter: Screw the E-26 screw-in adapter (included) into the existing socket of the recessed housing.
- Vælg farvetemperatur: Locate the multi-CCT switch on the back of the LED fixture. Select your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) by sliding the switch. This must be done before installation.
- Tilslut ledninger: Plug the connector from the LED fixture into the E-26 screw-in adapter.
- Indsæt armatur: Gently push the LED recessed light into the 6-inch housing. The spring clips on the sides of the fixture will secure it in place.
- Sikker armatur: Ensure the fixture is flush with the ceiling.
- Gendan strøm: Tænd for strømmen igen ved afbryderen.
Billede 2: Bagside view of the light fixture, highlighting the multi-CCT switch for color temperature selection.
Billede 3: Vinklet view of the recessed light, showing the smooth trim and spring clips for installation.

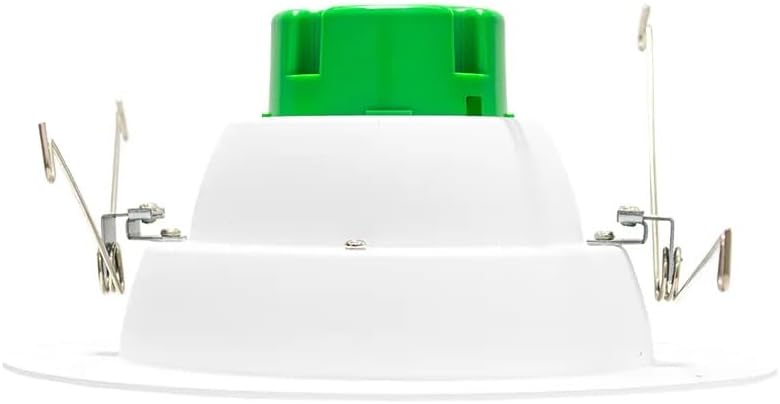

Billede 4: Side profile of the recessed light, illustrating its compact design and integrated driver.
Billede 5: Forside view of the recessed light, showcasing its smooth, white trim and translucent acrylic lens.
Image 6: Additional views of the light fixture (side, front, back) and photometric charts illustrating light distribution.
6. Operating Your Light
6.1 Valg af farvetemperatur
The RDL6-MCT5-WP features a multi-CCT switch on the back of the fixture, allowing you to select from five different color temperatures: 2700K (Warm White), 3000K (Soft White), 3500K (Neutral White), 4000K (Cool White), and 5000K (Daylight). This selection must be made prior to installation by sliding the switch to your preferred setting.
6.2 Dæmpningsfunktion
This LED recessed light is TRIAC dimmable. To utilize the dimming feature, ensure you are using a compatible TRIAC LED dimmer switch. Adjust the dimmer switch to achieve your desired light output level. The product also supports remote control as a control method, though specific remote details are not provided in this manual.
7. Pleje og vedligeholdelse
The Westgate RDL6-MCT5-WP LED Recessed Light requires minimal maintenance. To clean the fixture:
- Sørg for, at strømmen er afbrudt ved afbryderen inden rengøring.
- Brug en blød, tør eller let damp cloth to wipe the surface of the fixture.
- Brug ikke slibende rengøringsmidler, opløsningsmidler eller stærke kemikalier, da disse kan beskadige overfladen eller de elektriske komponenter.
8. Fejlfinding
If you encounter issues with your LED recessed light, refer to the following table:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tænder ikke | Ingen strøm til armaturet Løs ledningsforbindelse Incorrect CCT switch setting | Kontroller afbryderen og vægafbryderen Ensure all connections are secure (power off first) Verify CCT switch is set to a valid position |
| Lyset flimrer eller dæmpes forkert | Inkompatibel lysdæmperkontakt Løs ledningsforbindelse | Ensure a compatible TRIAC LED dimmer is used Check wiring connections (power off first) |
| Forkert farvetemperatur | CCT-kontakten er indstillet forkert | Turn off power, remove fixture, adjust CCT switch to desired setting, reinstall. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
9. Garanti og kundesupport
9.1 Garantioplysninger
The Westgate RDL6-MCT5-WP LED Multi-CCT Recessed Light is covered by a 5 års begrænset garanti fra købsdatoen. Denne garanti dækker defekter i materialer og udførelse ved normal brug. Den dækker ikke skader som følge af forkert installation, ulykker, misbrug, misbrug eller uautoriserede ændringer.
9.2 Kundesupport
For technical assistance, warranty claims, or any questions regarding your Westgate product, please contact Westgate customer support. Refer to the product packaging or the official Westgate webhjemmeside for aktuelle kontaktoplysninger.
