RAINPOINT Sprinkler Timer 2 Udgang Brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your RAINPOINT Sprinkler Timer 2 Outlet. Please read this manual thoroughly before use to ensure proper functionality and longevity of your device.

2. Produktfunktioner

• Uneven/Regular/Daily Watering Cycle Modes: Specific Day, Regular Day Cycle (every 2/3/4/5/6 days), or Daily Watering.
• 2 Zone with 3 Separate Programs: Water 2 areas 1-3 times within a day (morning, noon, evening). Automatic watering duration from 1 minute to 3 hours 59 minutes.
• 3 Switchable Automatic & Manual Modes: ZONE L, ZONE R, and BOTH ZONES for individual or simultaneous use. Auto mode: 1-239 mins, manual mode: 1-479 mins.
• Upgraded Dual Zone Technology: Built-in premium 2-zone valve with self-cleaning function for faster and smoother water flow.
• 1-3 Days Rain Delay: Postpone schedule for 24/48/72 hours based on local weather.

3. Pakkens indhold

• RAINPOINT Sprinkler Timer 2 Outlet (Model: ITV201P)
• Brugermanual
• (Batterier ikke inkluderet)

4. Sikkerhedsoplysninger

• Nedsænk ikke timeren i vand.
• Use only fresh alkaline batteries of the specified type.
• Protect the timer from freezing temperatures. Remove batteries and store indoors during winter.
• Sørg for, at alle forbindelser er tætte for at forhindre lækager.

5. Opsætning

5.1 Batteriinstallation

The timer requires 2 AA alkaline batteries (not included). Open the battery compartment cover on the back of the unit. Insert the batteries, ensuring correct polarity (+/-). Close the cover securely.

Image: Step-by-step guide showing battery insertion into the timer.

5.2 Tilslutning af timeren

1. Screw the timer onto your outdoor faucet. Ensure the connection is hand-tight to prevent leaks.
2. Connect your garden hoses to the two outlets (Zone L and Zone R) at the bottom of the timer.

Image: The RainPoint Sprinkler Timer connected to a water faucet with two hoses attached to its outlets.

6. Betjeningsvejledning

The RAINPOINT Sprinkler Timer features a large LCD display and a rotary dial for easy programming. The dial has positions for SET CLOCK, START TIME, HOW LONG, HOW OFTEN, ON, and OFF.

6.1 Indstilling af uret

1. Drej drejeknappen til SÆT UR.
2. Brug + og - buttons to adjust the current time. Press OK/MANUEL for at bekræfte.

6.2 Programming Watering Schedules (Automatic Mode)

The timer supports 3 separate programs (P1, P2, P3) for each zone (Zone L, Zone R, or Both Zones).

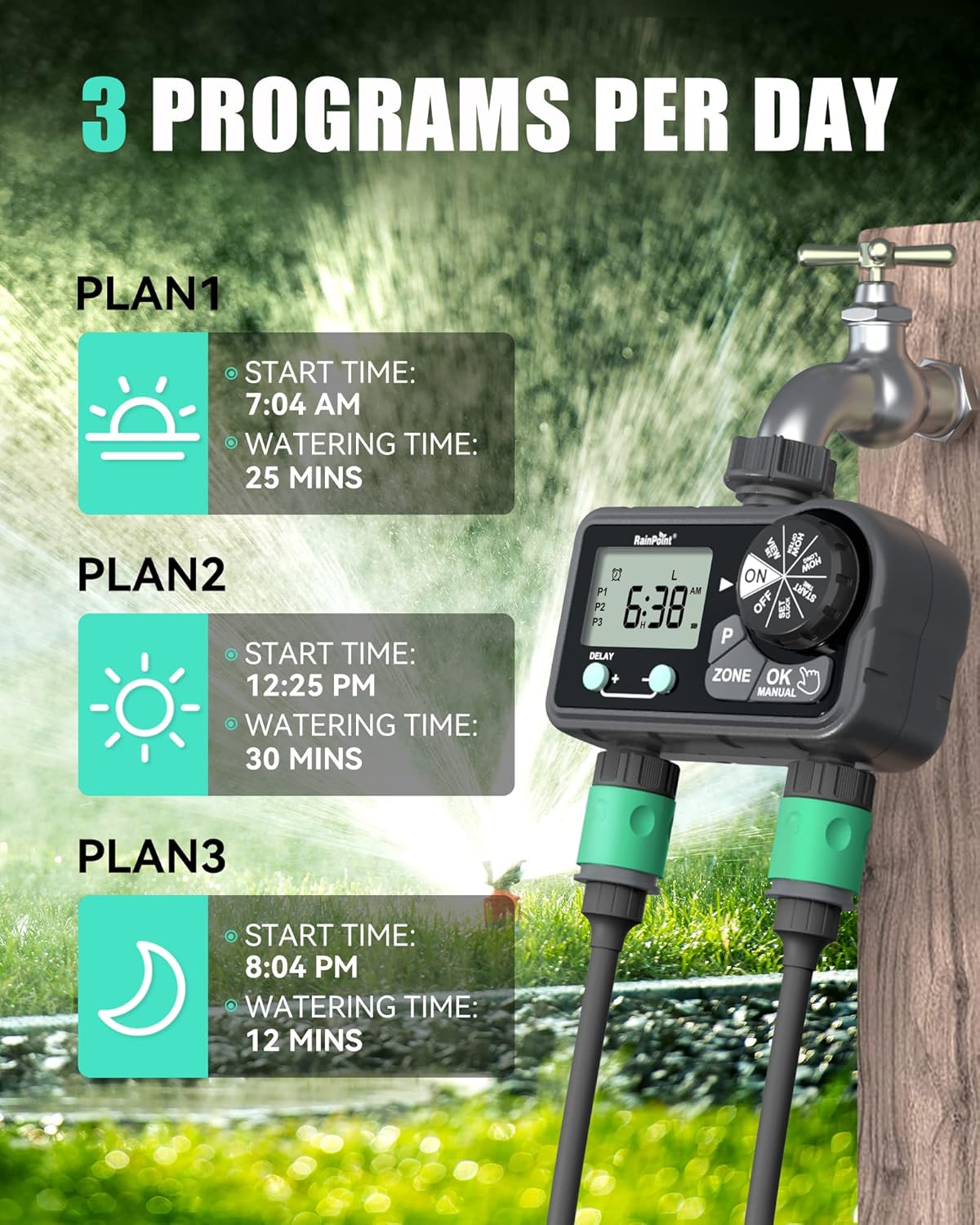

Image: Visual representation of setting up to 3 watering programs per day.

Indstilling af starttidspunkt:

1. Drej drejeknappen til STARTTID.
2. Tryk på P button to select Program 1 (P1), Program 2 (P2), or Program 3 (P3).
3. Tryk på ZONE button to select Zone L, Zone R, or Both Zones.
4. Bruge + og - buttons to set the desired start time for the selected program and zone. Press OK/MANUEL for at bekræfte.

Setting Watering Duration (How Long):

1. Drej drejeknappen til HVOR LÆNGE.
2. Tryk på P button to select the program (P1, P2, or P3) you wish to set the duration for.
3. Tryk på ZONE button to select Zone L, Zone R, or Both Zones.
4. Bruge + og - buttons to set the watering duration (1 minute to 3 hours 59 minutes). Press OK/MANUEL for at bekræfte.

Setting Watering Frequency (How Often):

Choose between Specific Day, Regular Day Cycle, or Daily Watering.

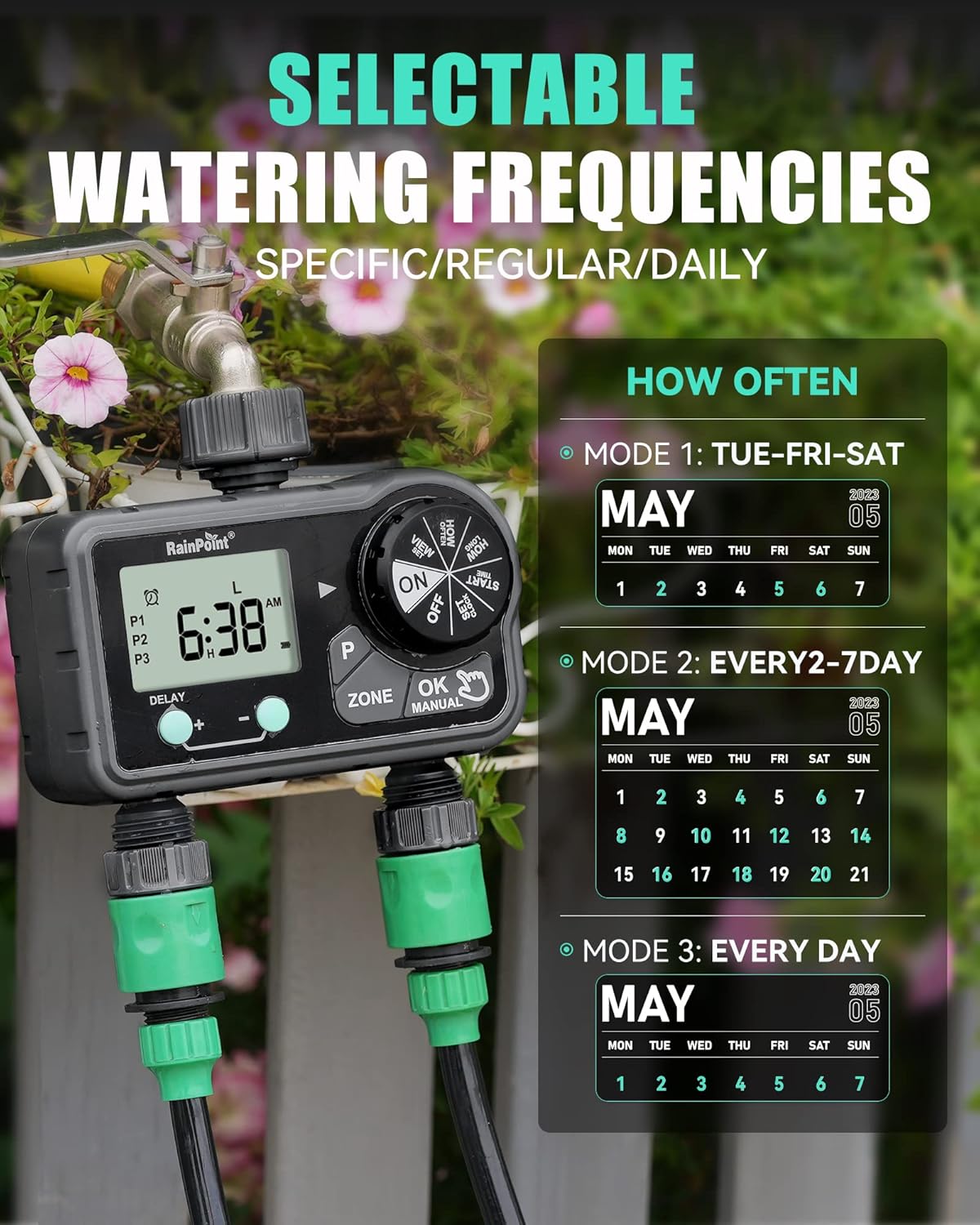

Image: Illustration of the three watering frequency modes available on the timer.

1. Drej drejeknappen til HVOR OFTE.
2. Tryk på P button to select the program (P1, P2, or P3).
3. Tryk på ZONE button to select Zone L, Zone R, or Both Zones.
4. Bruge + og - buttons to select the desired frequency:
   • Specific Day: Select individual days of the week (e.g., TUE, FRI, SAT).
   • Regular Day Cycle: Set to water every 2, 3, 4, 5, or 6 days.
   • Daglig: Water every day.
5. Trykke OK/MANUEL for at bekræfte.

6.3 Manuel vanding

To initiate manual watering:

1. Ensure the dial is on ON.
2. Tryk på OK/MANUEL knap.
3. Brug ZONE button to select Zone L, Zone R, or Both Zones.
4. Bruge + og - buttons to set the manual watering duration (1 minute to 479 minutes).
5. Trykke OK/MANUEL again to start watering.
6. For at stoppe manuel vanding, tryk på OK/MANUEL igen eller drej drejeknappen til SLUKKET.

Image: A user demonstrating the manual watering mode of the RainPoint Sprinkler Timer.

6.4 Regnforsinkelsesfunktion

Sådan sætter du din vandingsplan midlertidigt på pause på grund af regn:

1. Ensure the dial is on ON.
2. Tryk på FORSINKELSE + knap.
3. Brug + og - buttons to select the delay duration (24, 48, or 72 hours).
4. The timer will automatically resume its programmed schedule after the delay period.

Image: The timer's display showing a 24-hour rain delay activated.

7. Vedligeholdelse

• Udskiftning af batteri: Replace batteries when the low battery indicator appears on the screen. Always use fresh alkaline batteries.
• Rensning: Periodically clean the filter washer located at the inlet to prevent debris from clogging the timer.
• Vinteropbevaring: Before the first frost, remove the timer from the faucet, drain any remaining water, remove batteries, and store the unit indoors in a dry, protected area.

8. Fejlfinding

9. Specifikationer

• Produktdimensioner: 5.8 x 3 x 6.2 tommer
• Varens vægt: 1.34 pund
• Fabrikant: RainPoint Irrigation
• ASIN: B0CWR9LM4H
• Farve: Sort
• Antal indstillinger: 17
• Vandingsvarighed: 1 min to 3h 59 min (Auto), 1 min to 479 min (Manual)
• Forsinket regn: 24h, 48h, 72h
• Strømkilde: 2 x AA alkaliske batterier (medfølger ikke)

10. Garanti og support

RAINPOINT offers a 5-year warranty on this product, ensuring quality and reliability. For technical support, warranty claims, or any inquiries, please refer to the contact information provided on the product packaging or visit the official RAINPOINT webwebsted.
