Klipsch RSM-650 Indendørs/Udendørs Højttaler Brugsanvisning

1. Produktet er slutview

The Klipsch RSM-650 Indoor/Outdoor Speakers are part of the RSM Series, designed as full-range residential surface mount loudspeakers. These speakers are built to deliver high-quality audio performance in various environments, both indoors and outdoors.

Nøglefunktioner omfatter:

• IPX6 klassificeret: Ensures water resistance and rainproof performance for challenging weather conditions, making them suitable for outdoor installations.
• Tractrix Hyperfold Port: An innovative port design engineered to extend port length for maximum bass power, reducing chuffing and providing wider dispersion.
• Dual 5-Way Binding Post: Offers versatile connection options for various audio setups.
• 1" Titanium Compression Driver: Features a titanium-loaded floating driver bridge with wide dispersion phase plug for effortless, high-clarity detail and broad coverage.
• Set Screws on Grille: Provides a secure fit between the speaker and grille, ensuring stability in any environment.

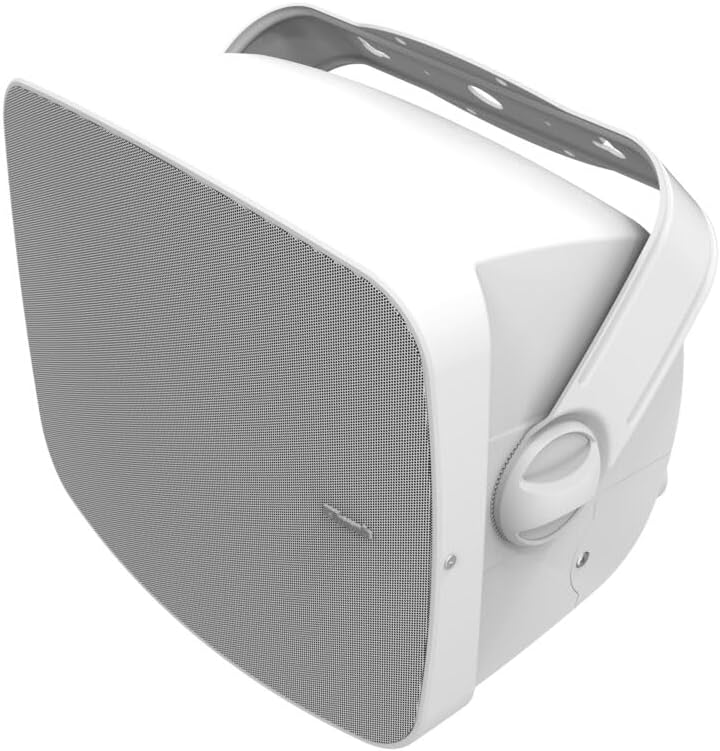

Figur 1.1: Vinklet view of the Klipsch RSM-650 speaker, showcasing its white enclosure and grille.

2. Opsætning og installation

2.1 Udpakning

Carefully remove the speakers from their packaging. Ensure all components are present. The box should contain:

• Klipsch RSM-650 Indoor/Outdoor Speakers (Pair)
• Monteringsbeslag
• Grilles with set screws

2.2 Placeringsovervejelser

The RSM-650 speakers are designed for both indoor and outdoor use. When selecting a location, consider the following:

• Udendørs brug: Due to their IPX6 rating, these speakers are resistant to water jets and rain. Mount them in areas where they can provide optimal sound coverage, such as patios, decks, or outdoor kitchens.
• Indendørs brug: For indoor installations, position the speakers to achieve the desired sound dispersion.
• Monteringsoverflade: Ensure the mounting surface is sturdy enough to support the weight of the speakers (approximately 25.6 pounds per pair). The recommended mounting type is wall mount.

Figur 2.1: Eksample of Klipsch RSM-650 speakers mounted on an outdoor patio wall.

2.3 Montering af højttalerne

The speakers come with integrated mounting brackets. Follow these general steps for wall mounting:

1. Determine the optimal mounting height and angle for sound dispersion.
2. Use the mounting bracket as a template to mark drilling locations on the wall.
3. Drill pilot holes and secure the mounting bracket to the wall using appropriate hardware (not included, ensure it's suitable for your wall type and speaker weight).
4. Attach the speaker to the secured mounting bracket. The bracket allows for adjustment of the speaker angle.

Figur 2.2: Bagside view of the speaker, highlighting the integrated mounting bracket.

2.4 Tilslutning af højttalerne

The Klipsch RSM Series speakers employ dual 5-way binding posts for audio connections. Use high-quality speaker wire for optimal performance.

1. Fjern cirka 1,25 cm isolering fra enderne af din højttalerledning.
2. Unscrew the binding post terminals on the back of the speaker.
3. Insert the bare wire into the hole in the binding post. Ensure positive (+) from the amplifier connects to positive (+) on the speaker, and negative (-) to negative (-).
4. Tighten the binding post terminals securely to ensure a good connection.
5. Tilslut den anden ende af højttalerledningen til din amplifier or receiver, maintaining correct polarity.

Figure 2.3: Detail of the dual 5-way binding posts for speaker wire connection.

3. Betjening

3.1 Powering On and Audio Playback

Once the speakers are properly installed and connected to an amplifier or receiver, you can begin audio playback.

1. Sørg for din ampHvis støjrelæet/modtageren er tændt og indstillet til den korrekte inputkilde.
2. Start playing audio from your desired device. Compatible devices include Desktop, Laptop, MP3 Player, Projector, Smartphone, Tablet, and Television.
3. Juster lydstyrken på din ampindstille lydstyrken/modtageren til et behageligt lytteniveau.

3.2 Kontrolmetode

The primary control method for these speakers is through the connected audio source (e.g., amplifier, receiver, or directly from a device if it has volume control). The speakers themselves do not have integrated touch controls for audio playback.

4. Vedligeholdelse og pleje

Proper maintenance ensures the longevity and optimal performance of your Klipsch RSM-650 speakers.

4.1 Rengøring

• For general cleaning, use a soft, dry cloth to wipe down the speaker enclosure and grille.
• For outdoor installations, if the speakers become dirty, you can gently wipe them with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish or components.
• The IPX6 rating means they are resistant to strong water jets, but avoid submerging the speakers or directing high-pressure water directly at the drivers.

4.2 Grille Maintenance

The grilles are secured with set screws. Periodically check these screws to ensure they remain tight, especially in environments with vibrations or extreme weather changes.

5. Fejlfinding

If you experience issues with your Klipsch RSM-650 speakers, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Klipsch customer support or your authorized dealer for further assistance.

6. Tekniske specifikationer

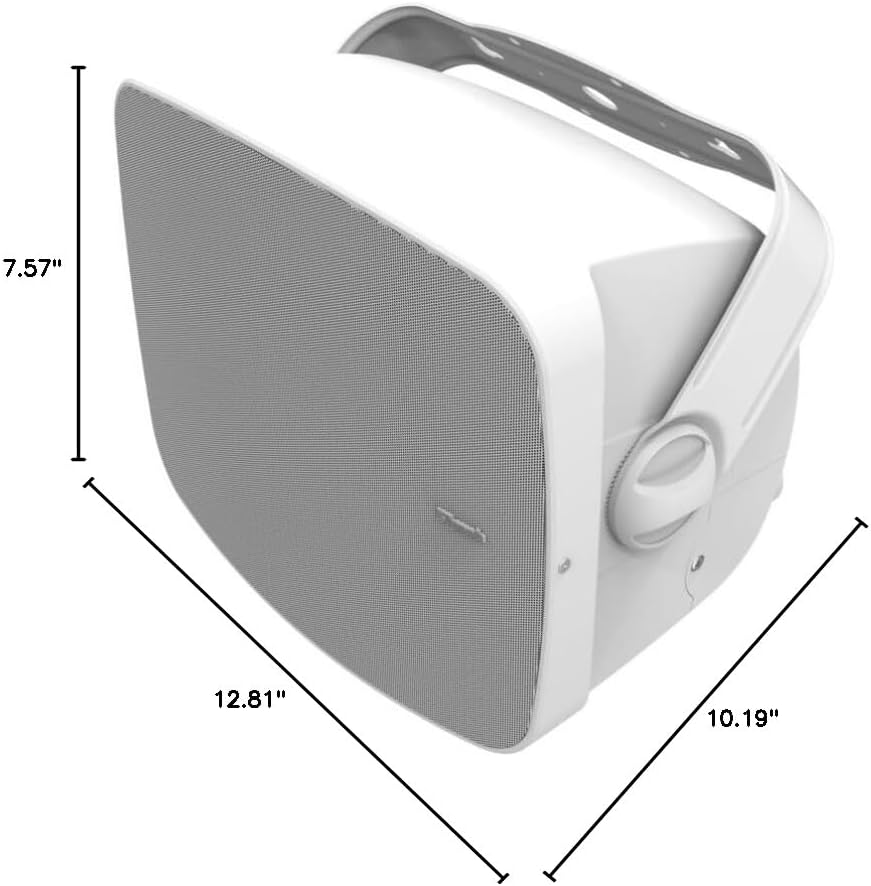

Figure 6.1: Detailed dimensions of the Klipsch RSM-650 speaker.

7. Garanti og support

7.1 Garantioplysninger

The Klipsch RSM-650 speakers come with a Begrænset garanti. For specific terms and conditions of your warranty, please refer to the documentation included with your purchase or visit the official Klipsch webwebsted.

7.2 Kundesupport

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Klipsch customer support. You can find contact information on the official Klipsch webhjemmeside eller gennem din autoriserede forhandler.

You can also visit the official Klipsch store on Amazon for more product information and resources: Klipsch Amazon Store.
