Produkt overview

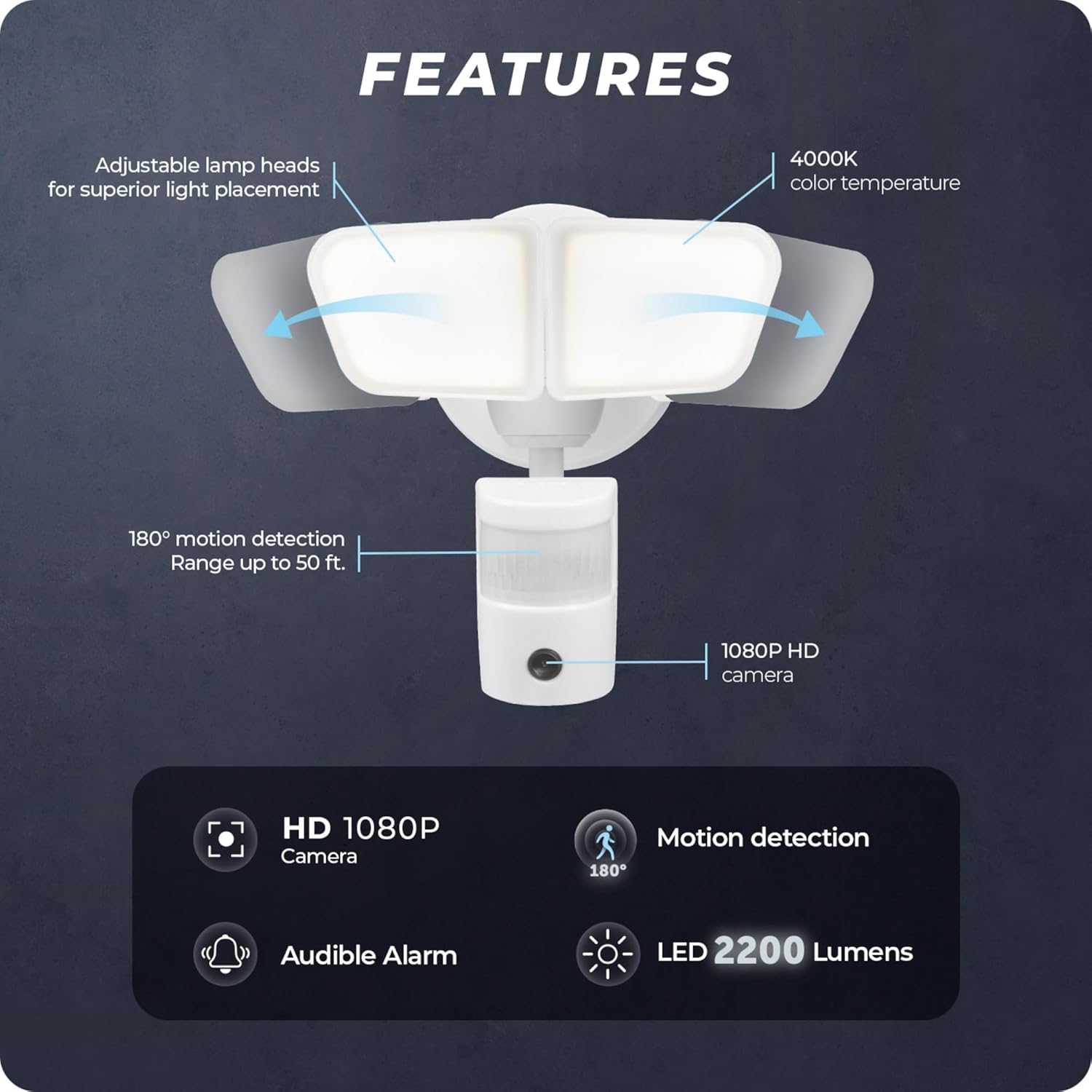

The GLOBE Electric Wi-Fi Smart Motion Security Video Light is an advanced outdoor lighting solution designed to enhance security and convenience. This hardwired LED light features a 1080p camera, motion detection, and an audible alarm, all controllable via the GLOBE SUITE™ App. It provides bright white illumination and offers flexible installation options.
Image: The GLOBE Electric Smart Motion Security Video Light shown with its accompanying smartphone application interface, demonstrating real-time control and monitoring capabilities.
Opsætning og installation
1. Udpakning og klargøring
- Fjern forsigtigt alle komponenter fra emballagen.
- Ensure all parts listed in the packing list are present.
- Sluk for strømmen ved afbryderen, før installationen påbegyndes.
2. Monteringsmuligheder
The security light supports both wall mount and eave mount installations. Choose the option that best suits your property's layout.
Image: Illustration of the dual mounting system, demonstrating how the fixture can be rotated for either wall or eave installation, along with adjustable lamp heads for optimal light placement.
- Vægbeslag: Position the fixture so the light heads face outwards and the motion sensor points downwards.
- Eave Mount: Rotate the fixture 180 degrees so the light heads face downwards and the motion sensor points outwards.
- Use the included mounting hardware for secure installation.
3. Elektrisk tilslutning
This is a hardwired device. Connect the light to your home's electrical system according to local electrical codes. If you are unsure, consult a qualified electrician.
- Connect the ground wire (green or bare copper) to the ground screw in the junction box.
- Connect the white wire (neutral) from the fixture to the white wire from the junction box.
- Connect the black wire (live) from the fixture to the black wire from the junction box.
- Fastgør alle forbindelser med trådmøtrikker.
4. App-download og Wi-Fi-forbindelse
To utilize smart features, download the GLOBE SUITE™ App and connect the device to your home Wi-Fi network (2.4 GHz only).
- Download the "GLOBE SUITE" app from your smartphone's app store (iOS or Android).
- Opret en konto eller log ind.
- Follow the in-app instructions to add your new security light. This typically involves putting the device into pairing mode and connecting it to your 2.4 GHz Wi-Fi network.
Image: A user interacting with the Globe Suite app on a smartphone, demonstrating the ability to view and control the security light remotely from any location.
Betjeningsvejledning
1. App-kontrol og -funktioner
The GLOBE SUITE™ App provides comprehensive control over your security light:
- Levende View: Access the 1080p HD camera feed in real-time to monitor your property.
- Bevægelsesdetektion: Adjust sensitivity and receive instant notifications when motion is detected within the 180° detection zone (up to 50 ft / 15 m).
- Hørbar alarm: Activate the built-in alarm remotely via the app.
- Lysstyring: Turn the light on/off, adjust brightness, and set how long the light stays on after motion detection.
- Planlægning: Create custom schedules for the light to turn on/off or activate the alarm based on your needs.
Image: A smartphone displaying a notification from the security light app, indicating that motion has been detected, allowing users to stay informed whether home or away.
Image: The scheduling feature within the security light app, allowing users to set daily or weekly schedules for light activation and siren activation.
2. Motion Detection Adjustment
You can fine-tune the motion sensor sensitivity through the GLOBE SUITE™ App to prevent false alarms or ensure optimal detection.

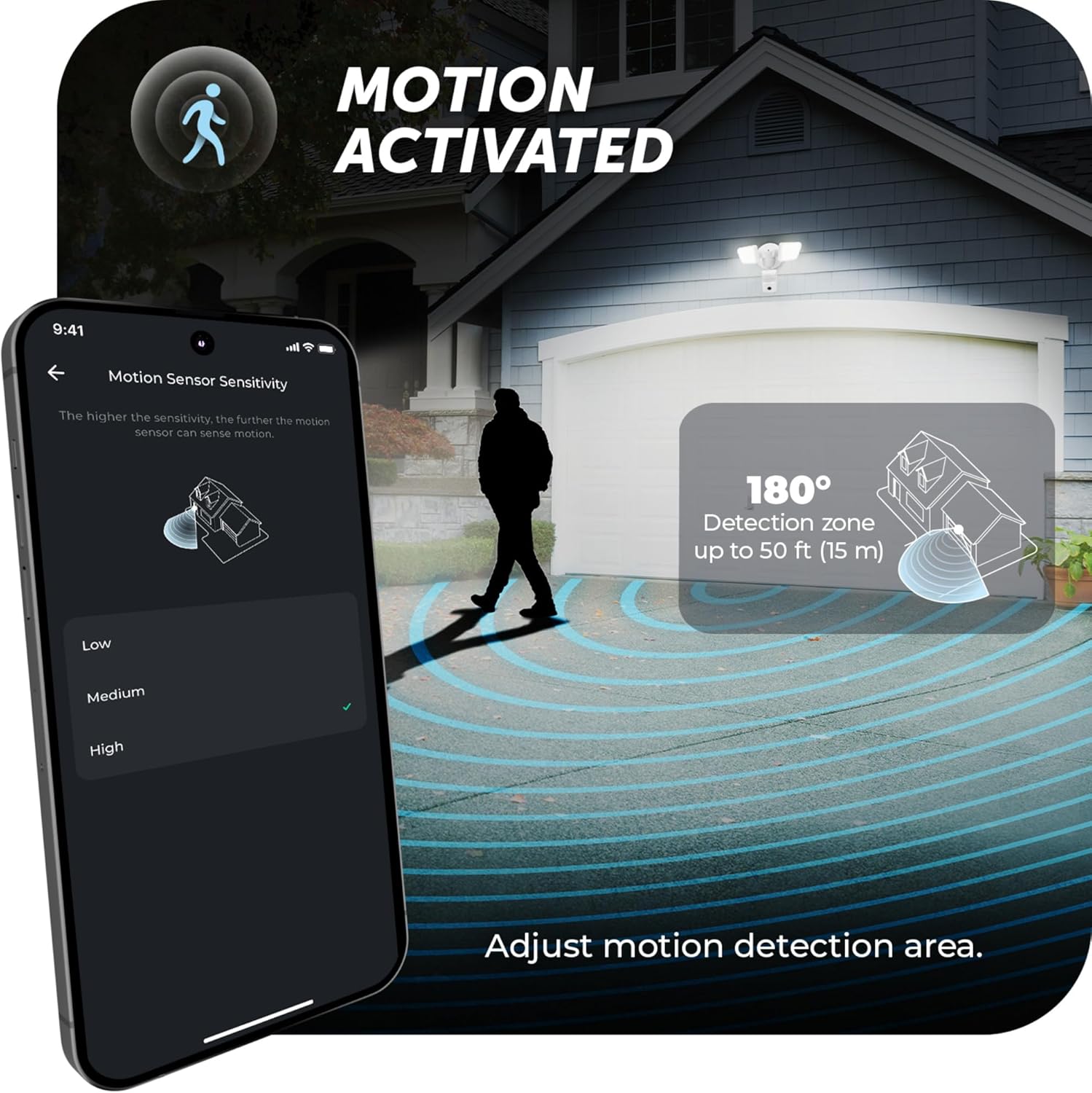

Image: The app interface for adjusting motion sensor sensitivity, illustrating the 180-degree detection zone and its range of up to 50 feet (15 meters).
3. Integration af stemmestyring
The security light is compatible with voice assistants like Amazon Alexa and Google Assistant, allowing for hands-free control.
- Link your GLOBE SUITE™ account with your preferred voice assistant in their respective apps.
- Use commands such as "Turn on Smart Motion Security Video Light" to control the device.
Image: A user demonstrating voice control functionality for the security light, integrated with smart home devices like Amazon Alexa and Google Assistant.
Opretholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din sikkerhedslampe.
- Rensning: Periodically wipe the light fixture, camera lens, and motion sensor with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler.
- Inspektion: Annually inspect the wiring and mounting hardware for any signs of wear, corrosion, or loosening. Ensure all connections remain secure.
- Softwareopdateringer: Keep the GLOBE SUITE™ App updated to the latest version to receive new features and security enhancements.
Note: Always turn off power at the circuit breaker before performing any maintenance on the electrical components.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power; faulty wiring; light mode set to "Off" in app. | Check circuit breaker. Verify wiring connections. Ensure light mode is set to "On" or "Auto" in the GLOBE SUITE™ App. |
| Motion detection is not working or is too sensitive. | Sensor obstructed; sensitivity settings incorrect; environmental factors. | Clear any obstructions from the sensor. Adjust motion sensitivity settings in the GLOBE SUITE™ App (Low, Medium, High). Avoid pointing the sensor at moving trees or busy streets. |
| Kan ikke oprette forbindelse til Wi-Fi. | Incorrect Wi-Fi password; 5 GHz network; weak signal. | Ensure you are connecting to a 2.4 GHz Wi-Fi network. Double-check your Wi-Fi password. Move the light closer to your router or consider a Wi-Fi extender. |
| Video feed is unclear or pixelated. | Poor Wi-Fi signal; dirty camera lens. | Improve Wi-Fi signal strength. Gently clean the camera lens with a soft cloth. |
Produktspecifikationer
| Feature | Detalje |
|---|---|
| Mærke | GLOBUS |
| Modelnummer | 17000214 |
| Farve | White, Smart 180-Degree |
| Materiale | Plast |
| Strømkilde | Hardwired |
| Lyskildetype | LED |
| Wattage | 26 watt |
| Voltage | 120 volt |
| Lumen output | 2200 lumen |
| Farvetemperatur | 4000 Kelvin (lyse hvid) |
| CRI | 80 |
| Bevægelsesdetekteringszone | 180 grader |
| Rækkevidde for bevægelsesdetektering | Op til 50 fod (15 m) |
| Kameraopløsning | 1080p HD |
| Forbindelse | Wi-Fi (kun 2.4 GHz) |
| Kontrolmetode | App (GLOBE SUITE™), Voice (Alexa, Google Assistant) |
| Produktmål (L x B x H) | 8.2" x 8.3" x 7.9" (20.9 cm x 21 cm x 20 cm) |
| Varens vægt | 1.87 pund |
| Inkluderede komponenter | Monteringshardware |
Image: Detailed dimensional drawing of the security light, providing length, width, and height measurements in both inches and centimeters.
Garanti og support
Garantioplysninger
This GLOBE Electric Wi-Fi Smart Motion Security Video Light is backed by a 1 års begrænset producentgaranti. Denne garanti dækker fejl i materialer og udførelse ved normal brug.
For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official GLOBE Electric webwebsted.
Kundesupport
For technical assistance, troubleshooting, or warranty claims, please contact GLOBE Electric customer support. You can typically find contact information on the product packaging, the GLOBE Electric website, or within the GLOBE SUITE™ App.
Ensure you have your product model number (17000214) and proof of purchase ready when contacting support.
