Indledning
This manual provides essential information for the safe and effective installation, operation, and maintenance of your GLOBE Electric Motion Activated Outdoor Integrated LED Flood Light Security Light. Please read all instructions carefully before beginning installation and retain this manual for future reference.

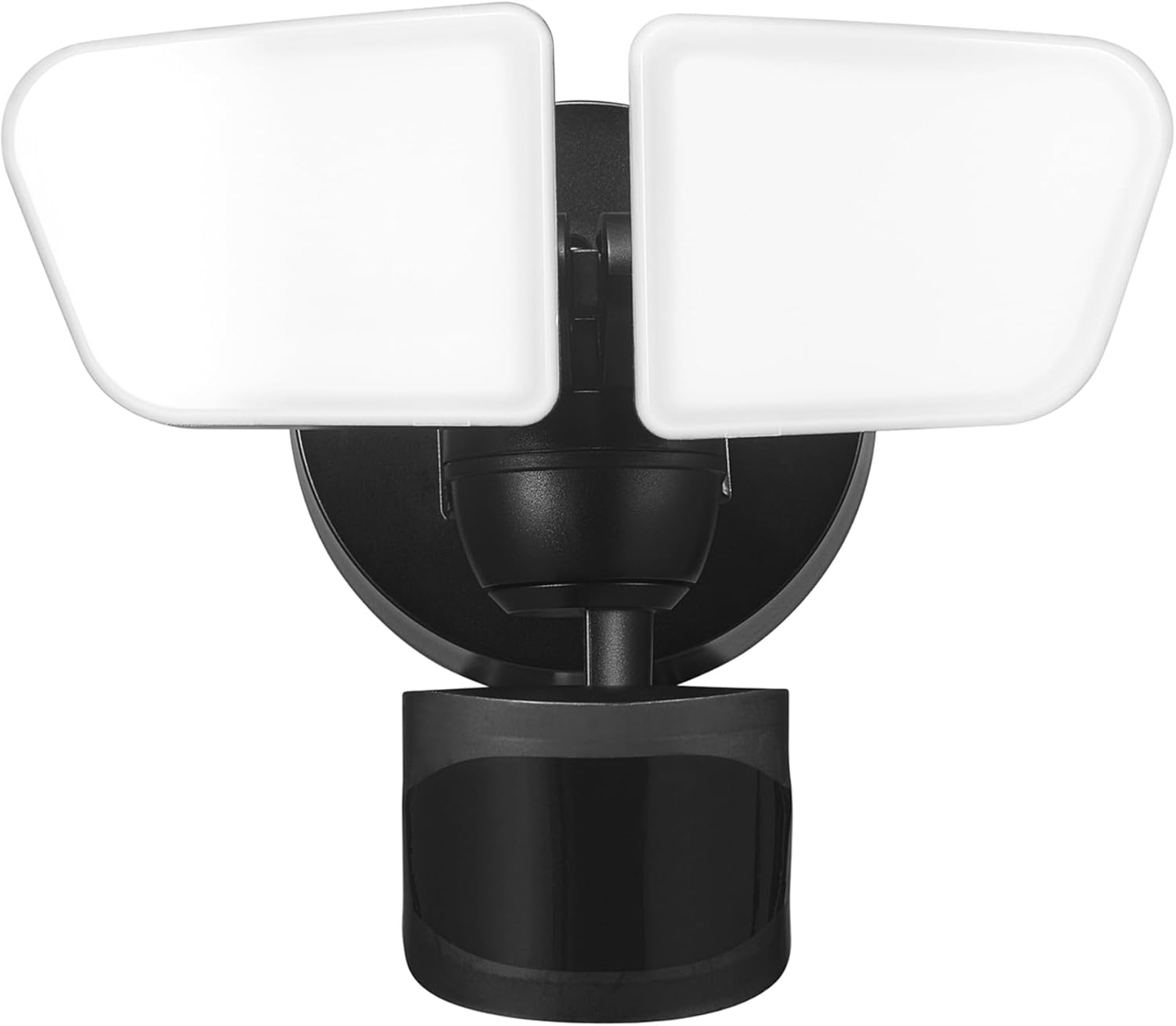

The GLOBE Electric 17000204 Twin Head LED Flood Light, designed for outdoor security lighting.
Produktegenskaber
- Bevægelse aktiveret: Detects motion from all angles up to 50 feet (15 meters) with a 240° detection zone. Adjustable shut-off times of 1, 5, or 20 minutes.
- MotionBright 2-Level Lighting: Provides constant low ambient lighting when no motion is detected, transitioning to full brightness upon motion detection for energy efficiency and enhanced security.
- Højt lysoutput: Delivers 2200 lumens of daylight white (4000 Kelvin) light for bright and even illumination.
- Dobbelt monteringssystem: Supports both wall mount and eave mount installations, with all necessary hardware included. The fixture can be rotated for desired positioning.
- Vejrbestandig: Constructed from durable, outdoor-rated materials to withstand various weather conditions.
Key features of the security light, including adjustable settings and durable construction.
Demonstration of the MotionBright feature, providing two levels of illumination based on motion.
Opsætning og installation
The GLOBE Electric Flood Light is designed for easy installation with its Dual Mount system. Ensure power is turned off at the circuit breaker before beginning any electrical work.
Installationstrin:
- Install the mounting bar onto your existing junction box.
- Attach the mounting plate securely to the mounting bar.
- Tilslut de elektriske ledninger i henhold til lokale elektriske regler.
- Attach the fixture to the mounting plate using the center bolt.
- Juster lamp heads and motion sensor to your desired angles.
Simplified installation steps for the flood light.
Monteringsmuligheder:
The fixture can be installed as either a wall mount or an eave mount. Simply rotate the canopy to switch between the two orientations.
Illustrations of wall mount and eave mount configurations, along with adjustable lamp hoveder.
Betjeningsvejledning
After installation, you can configure the motion sensor and lighting settings to suit your needs.
Justerbare indstillinger:
- Til tiden: Set the duration the light stays on after motion detection (1, 5, or 20 minutes). A "Test" mode is available for initial setup.
- Sensitivity (Sens): Adjust the motion sensor's detection range (Low, Medium, High).
- Lysstyrke: Control the brightness level of the ambient light when no motion is detected (Low, High).
- MotionBright: Select between OFF, Dusk to Dawn, or 6 Hour modes for the MotionBright feature. The photocell ensures night-only operation.
Detaljeret view of the control dials for customizing light operation.
Opretholdelse
The GLOBE Electric Flood Light is designed for durability and minimal maintenance. Regular cleaning can help maintain optimal performance and appearance.
- Rensning: Tør armaturet regelmæssigt af med en blød kludamp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components.
- Inspektion: Annually inspect the wiring and mounting hardware for any signs of wear or damage. Ensure all connections remain secure.
- LED-levetid: The integrated LED lights are designed for long life and do not require bulb replacement.
The light is weather-resistant, suitable for outdoor environments.
Fejlfinding
If you experience issues with your flood light, refer to the following common troubleshooting steps:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power, faulty wiring, photocell detecting daylight. | Check circuit breaker. Verify wiring connections. Ensure installation location is dark enough for photocell to activate. |
| Lyset er tændt konstant. | Motion sensor sensitivity too high, continuous motion, MotionBright setting. | Adjust sensitivity dial to a lower setting. Ensure no continuous motion in detection zone. Check MotionBright setting. |
| Light turns on and off frequently. | Intermittent motion, sensor obstruction, power fluctuations. | Clear any obstructions from sensor's view. Adjust sensitivity. Consult an electrician if power fluctuations are suspected. |
| Bevægelsesdetekteringsrækkevidden er dårlig. | Sensor angle incorrect, sensitivity too low, environmental factors. | Adjust sensor angle. Increase sensitivity. Consider environmental factors like extreme temperatures or large objects. |
Specifikationer
| Attribut | Detalje |
|---|---|
| Mærke | GLOBUS |
| Modelnummer | 17000204 |
| Lyskildetype | Integreret LED |
| Lysstyrke | 2200 lumen |
| Farvetemperatur | 4000 Kelvin (Daylight White) |
| Wattage | 22 watt |
| Voltage | 120 volt |
| Bevægelsesdetekteringsvinkel | 240 grader |
| Rækkevidde for bevægelsesdetektering | Op til 50 fod (15 meter) |
| Strømkilde | Hardwired |
| Materiale | Plast |
| Farve | Sort |
| Produktdimensioner | 17 cm L x 21 cm B x 20 cm H (ca. 6.7 cm L x 8.3 cm B x 7.9 cm H) |
| Varens vægt | 1.65 pund (ca. 0.75 kg) |
| Installationstype | Wall Mount / Eave Mount |
| Vejrbestandighed | Outdoor Rated, Water Resistant |
Product dimensions for planning installation space.
Garanti og support
Garantioplysninger:
This GLOBE Electric Flood Light (Model 17000204) is backed by a 3 års begrænset producentgarantiDenne garanti dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.
Kundesupport:
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact GLOBE Electric customer support. Refer to the product packaging or the official GLOBE Electric webhjemmeside for de seneste kontaktoplysninger.
Note: Do not attempt to repair the integrated LED components yourself. This may void the warranty and pose a safety risk.
