Indledning
Thank you for choosing the Sofirn Q8 Plus and SC13 Flashlight Bundle. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new flashlights. The Sofirn Q8 Plus is a high-power, ultra-bright flashlight designed for extensive illumination, while the Sofirn SC13 is a compact, versatile EDC (Everyday Carry) flashlight. Both models feature USB-C rechargeable capabilities and robust construction.

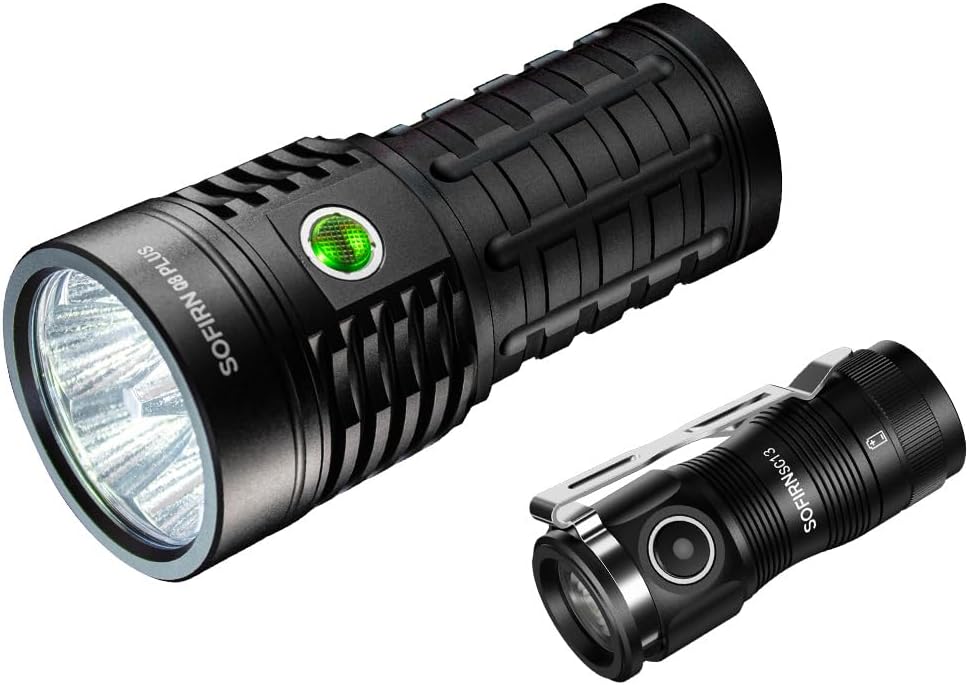

Image: The Sofirn Q8 Plus (larger) and Sofirn SC13 (smaller) flashlights, showcasing bundtet.
Opsætning
Batteriinstallation og første opladning
Both the Sofirn Q8 Plus and SC13 come with pre-installed Lithium-Ion batteries. Before first use, it is recommended to fully charge both flashlights.
- Q8 Plus: Unscrew the tail cap to ensure the battery insulating film is removed. Screw it back on tightly.
- SC13: Unscrew the head of the flashlight to ensure the battery insulating film is removed. Screw it back on tightly.
- Connect the included USB-C charging cable to the flashlight's USB-C port and plug the other end into a compatible USB power adapter (e.g., 5V 3A for Q8 Plus).
- The indicator light will show charging status. For SC13, a red light indicates charging (0-70%), and a green light indicates charging (70-100%) or fully charged. For Q8 Plus, the button light will indicate charging status (blinking for charging, steady for fully charged).
- Allow the flashlights to charge until the indicator shows a full charge. This typically takes about 5 hours for the Q8 Plus.
Image: The Sofirn Q8 Plus connected via USB-C for charging, with indicator lights showing charging and discharging states.
Image: The Sofirn SC13 connected via USB-C for charging, with indicator lights showing battery levels (red for low, green for high).
Betjeningsvejledning
Sofirn Q8 Plus Operation (Anduril 2.0 UI)
The Q8 Plus utilizes the advanced Anduril 2.0 user interface, offering a wide range of modes and customization. Basic operation is as follows:
- Tænd/sluk: Enkelt klik på sidekontakten.
- Skift lysstyrke (Ramping): While on, press and hold the switch to ramp op eller ned. Slip og tryk igen for at ændre retning.
- Turbo tilstand: From ON, double-click to activate Turbo (16000 lumens). Double-click again to return to the previous brightness.
- Måneskinstilstand: From OFF, press and hold the switch for 1 second.
- Batterikontrol: From OFF, triple-click. The main LEDs will flash out the voltage (e.g., 4 flashes, pause, 1 flash for 4.1V).
- Lockout-tilstand: From OFF, 4 clicks to activate. The light will flash once to confirm. To unlock, 4 clicks again.
- Momentan turbo: From lockout mode, hold the switch.
- Momentary Moonlight: From lockout mode, single click and hold.
Image: The Sofirn Q8 Plus illuminating a wide area, highlighting its 16000 lumens output, 554 meters beam distance, 120-degree flood, 10-hour runtime at medium, Anduril 2.0 UI, IPX8 water resistance, and solid build.
Sofirn SC13 Operation
The SC13 offers multiple lighting modes for various situations:
- Tænd/sluk: Enkelt klik på sidekontakten.
- Skift lysstyrke: While on, press and hold the switch to cycle through Moonlight (1lm), Low (10lm), Medium (150lm), High (500lm). Release to select.
- Turbo tilstand: Double-click from ON or OFF to activate Turbo (1300 lumens). Double-click again to return to the previous mode.
- Strobetilstand: Triple-click from ON or OFF to activate Strobe. Single click to turn off.
- Lockout funktion: From OFF, rapidly click the switch 3 times to activate lockout. The light will flash once to confirm. To unlock, rapidly click 3 times again. This prevents accidental activation during transit or storage.
Image: The Sofirn SC13 in hand, illustrating its various lighting modes: Moonlight (1lm), Low (10lm), Medium (150lm), High (500lm), Turbo (1300lm), and Strobe (1300lm), along with its Fresnel Lens.
Image: A hand demonstrating the 3-click lockout/unlock function of the Sofirn SC13, preventing accidental activation.
Opretholdelse
Proper maintenance ensures the longevity and optimal performance of your Sofirn flashlights.
- Rensning: Wipe the flashlight body with a clean, soft cloth. For optical surfaces, use a lens cleaning cloth. Avoid harsh chemicals.
- Smøring: Påfør silikonefedt på O-ringene og gevindene med jævne mellemrum for at opretholde vandtæthed og jævn drift.
- Batteripleje: Recharge batteries regularly, even if not frequently used, to prevent deep discharge. Store flashlights with a partial charge (around 50%) if storing for extended periods.
- Vandtæthed: Ensure all parts are screwed on tightly to maintain the water-resistant seal (IPX8 for Q8 Plus). Avoid submerging the flashlight beyond its rated depth.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lommelygten tænder ikke. | Battery low or depleted; Battery insulating film not removed; Loose tail cap/head; Lockout mode activated. | Charge the battery; Remove insulating film; Tighten tail cap/head; Deactivate lockout mode (4 clicks for Q8 Plus, 3 clicks for SC13). |
| Lyset flimrer eller dæmpes uventet. | Low battery; Loose connections; Dirty contacts. | Recharge battery; Ensure all parts are tightly screwed; Clean battery contacts and threads with a clean cloth. |
| Cannot change modes. | Incorrect operation; Lockout mode. | Refer to operating instructions for correct mode changes; Deactivate lockout mode. |
| Opladning virker ikke. | Cable issue; Power adapter issue; Dirty charging port. | Try a different USB-C cable and power adapter; Clean the USB-C port. |
Specifikationer
Sofirn Q8 Plus
- Maks lysstyrke: 16000 lumen
- Stråleafstand: 605 Yards (approx. 554 meters)
- Lyskilde: 6 x LED
- Strømkilde: Batteridrevet (lithium-ion)
- Kørselstid: Up to 10 hours at 1800 lumens
- Vandtæthed: Vandtæt (IPX8)
- Opladning: USB-C genopladelig
- Brugergrænseflade: Anduril 2.0
Image: A chart detailing the runtime of the Sofirn Q8 Plus at various brightness levels: Turbo (16000lm for 2.5h), High (7000lm for 4.5h), Med (1800lm for 10.25h), Low (200lm for 27.75h), and Moon (5lm for 40 days).
Sofirn SC13
- Maks lysstyrke: 1300 lumen
- Stråleafstand: Op til 217 meter
- Dimensioner: Length 2.54 inches, Diameter 1.12 inches
- Vægt: 1.41 ounces (40g excluding battery)
- Strømkilde: Batteridrevet (lithium-ion)
- Opladning: USB-C genopladelig
- Særlige funktioner: Lockout Function, Fresnel Lens

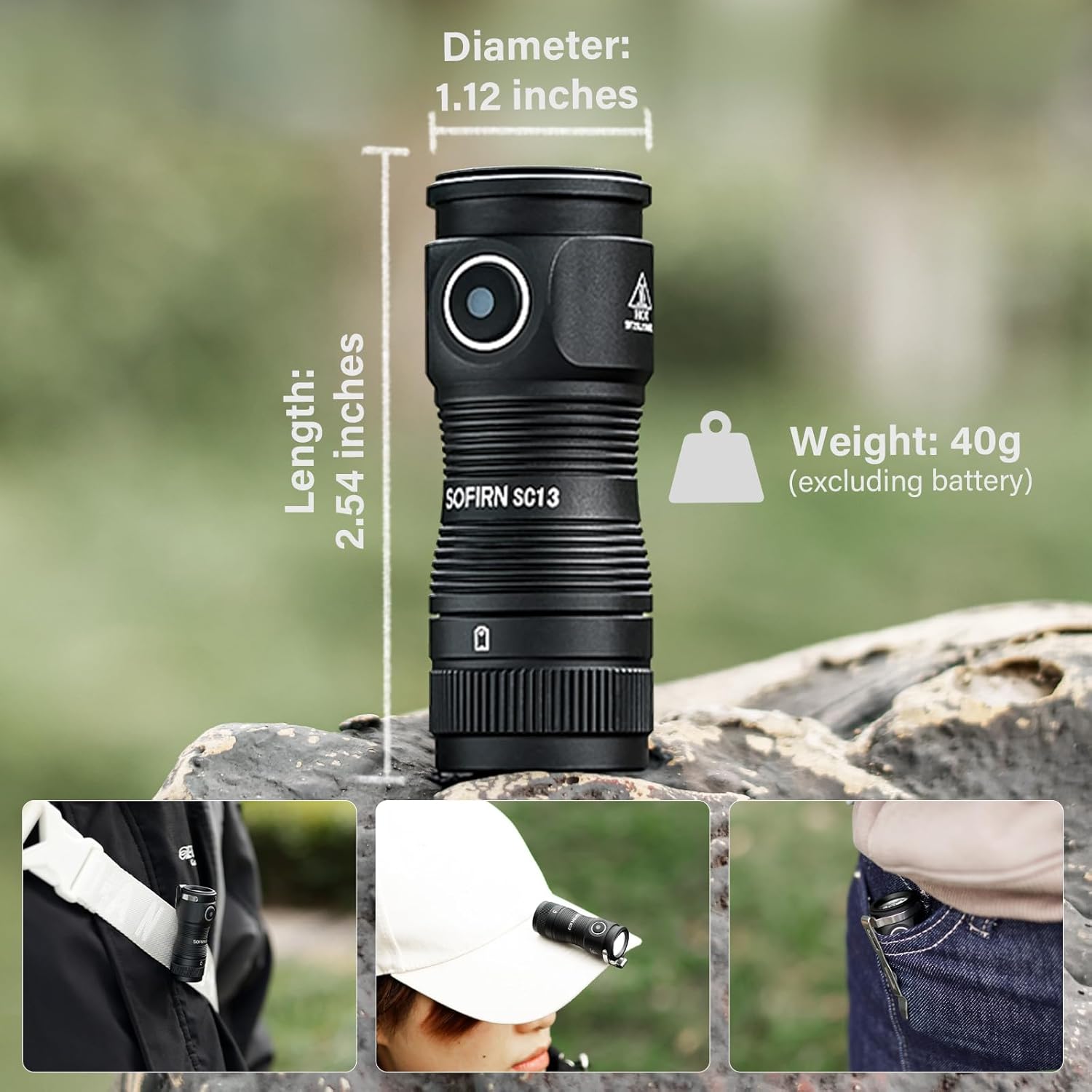

Image: The Sofirn SC13 with its dimensions (Length: 2.54 inches, Diameter: 1.12 inches, Weight: 40g excluding battery) and examples of its portability (clipped to a strap, worn on a hat, carried in a pocket).
Garanti og support
Sofirn products are designed for durability and performance. For specific warranty details and customer support, please refer to the warranty card included with your product or visit the official Sofirn website. If you encounter any issues not covered in this manual, please contact Sofirn customer service for assistance.
For yderligere information og produktopdateringer, besøg Sofirn Store on Amazon.
