Instruktionsmanual

1. Produktet er slutview

The KW-Trio Circe Rotary Circle Cutter is a versatile tool designed for paper crafting and various office needs. It allows for precise circular cuts with an adjustable diameter range, making it suitable for both small and large projects. Its design emphasizes ease of use and accuracy, featuring a visible center point and an angle scale for specialized cuts.

Figure 1: Circe Rotary Circle Cutter, showcasindens design og funktionalitet.

2. Opsætning

Before first use, familiarize yourself with the cutter's components and adjust it to your desired cutting diameter.

1. Adjusting Cutting Diameter: The cutter features an adjustable diameter ranging from 3 inches (8 cm) to 12.6 inches (32 cm). To set the desired size, unscrew the knob located on the ruler arm, slide it to the corresponding measurement on the clear scale, and then securely lock the knob in place.

Figur 2: Detaljeret view of the adjustable ruler and knob for setting the cutting diameter.
2. Visible Center of Circle: The transparent top of the handle and cross-positioning points on the bottom allow for easy visual location of the center of the circle. This feature ensures accurate placement for your cuts.


Figure 3: Illustration of the visible center point for precise alignment.

3. Bladbeskyttelse: Ensure the blade protective sheath is removed before use. Reattach it when the tool is not in use for safety.

3. Betjeningsvejledning

Follow these steps for effective and precise cutting:

1. Forbered dit materiale: Place the material you wish to cut on a flat, stable surface. Ensure it is free from obstructions.
2. Set Diameter: Adjust the cutting diameter as described in the Setup section.
3. Placer fræseren: Place the cutter on the material, aligning the visible center point with the desired center of your circle. The non-slip mat on the base helps secure the cutter during operation.


Figure 4: Close-up of the precision steel blade and non-slip mat for stable cutting.

4. Udfør snittet: Apply gentle, even pressure to the center handle and rotate the cutter clockwise or counter-clockwise until a complete circle is cut. For thicker materials, multiple passes with light pressure may be required.

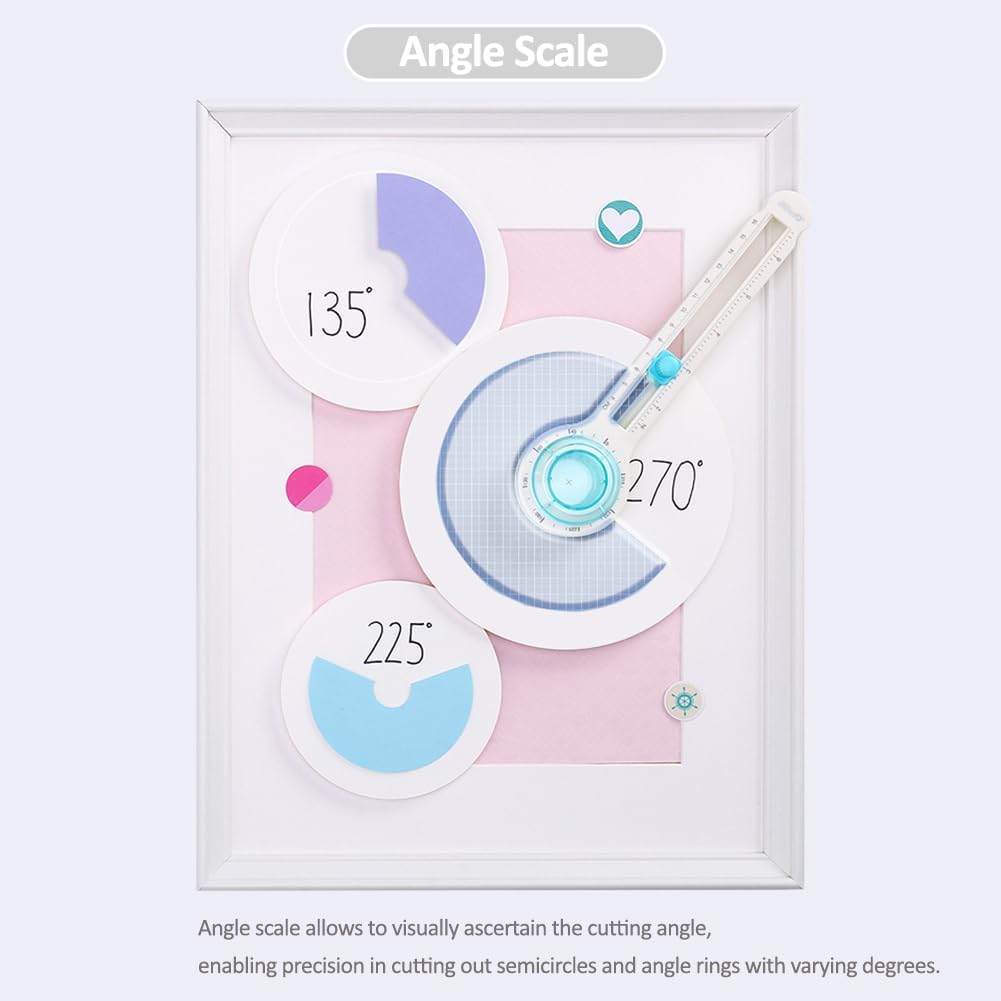

5. Angle Scale Usage: The integrated angle scale allows for cutting semicircles and angle rings. Align the desired angle on the scale with your starting point and rotate accordingly.

4. Vedligeholdelse

Proper maintenance ensures the longevity and performance of your Circe Rotary Circle Cutter.

• Udskiftning af knive: The stainless steel blade is detachable and replaceable. To replace the blade, remove the blade holder limit nut and positioning indicator block. Carefully replace the blade in the correct direction, then reinstall the positioning indicator block and limit nut. Replacement blades are sold separately.


Figure 5: Steps for detaching and replacing the blade for continued sharp cuts.

• Rensning: Wipe the cutter with a dry, soft cloth after each use to remove any paper dust or debris. Avoid using abrasive cleaners or solvents.
• Opbevaring: Always cover the blade with its protective sheath when not in use. Store the cutter in a dry, safe place away from direct sunlight and extreme temperatures.

5. Fejlfinding

If you encounter issues with your Circe Rotary Circle Cutter, consider the following:

• Cutter Not Cutting Cleanly:
  • Ensure the blade is sharp. If dull, replace it as per the Maintenance section.
  • Verify that sufficient, even pressure is applied during rotation.
  • Check the material thickness. Very thick or dense materials may require multiple light passes.
  • Ensure the material is placed on a firm, flat cutting surface.
• Unøjagtige snit:
  • Confirm the knob is securely locked at the desired measurement on the ruler.
  • Ensure the center point is accurately positioned and held steady throughout the cut.

6. Specifikationer

7. Garanti og support

Specific warranty details are not provided in this manual. For information regarding warranty, replacement parts, or further assistance, please contact KW-Trio customer support directly or visit the official KW-Trio store on Amazon: KW-Trio Amazon Store.
