Airdog X3D Black Air Purifier User Manual

1. Introduktion

Thank you for choosing the Airdog X3D Black Air Purifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

Figur 1: Forside view of the Airdog X3D Black Air Purifier.

2. Sikkerhedsoplysninger

To reduce the risk of electric shock, fire, or injury, always follow basic safety precautions when operating electrical appliances. This device is for indoor use only.

• Nedsænk ikke enheden i vand eller andre væsker.
• Hold netledningen væk fra opvarmede overflader.
• Betjen ikke enheden med en beskadiget ledning eller stik.
• Ensure the air inlets and outlets are not blocked.
• Tag stikket ud af enheden, før du rengør eller udfører vedligeholdelse.
• Opbevares utilgængeligt for børn og kæledyr.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Airdog X3D Black Air Purifier Unit
• Strømadapter
• Fjernbetjening
• Brugervejledning (dette dokument)

4. Produktet er slutview

The Airdog X3D features a compact design with advanced air purification technology, including a TPA filter system, light sensor, human sensor, and a 3-way wide-angle exhaust system for efficient air circulation.

4.1. Hovedenhedens komponenter

• Kontrolpanel/display: Shows air quality index (AQI) and operational status.
• Luftindtag: Located on the sides and back of the unit.
• Luftudtag: Top of the unit, designed for 3-way wide-angle exhaust.
• TPA Filter System: Internal, washable filter components.
• Sensorer: Integrated light and human presence sensors.

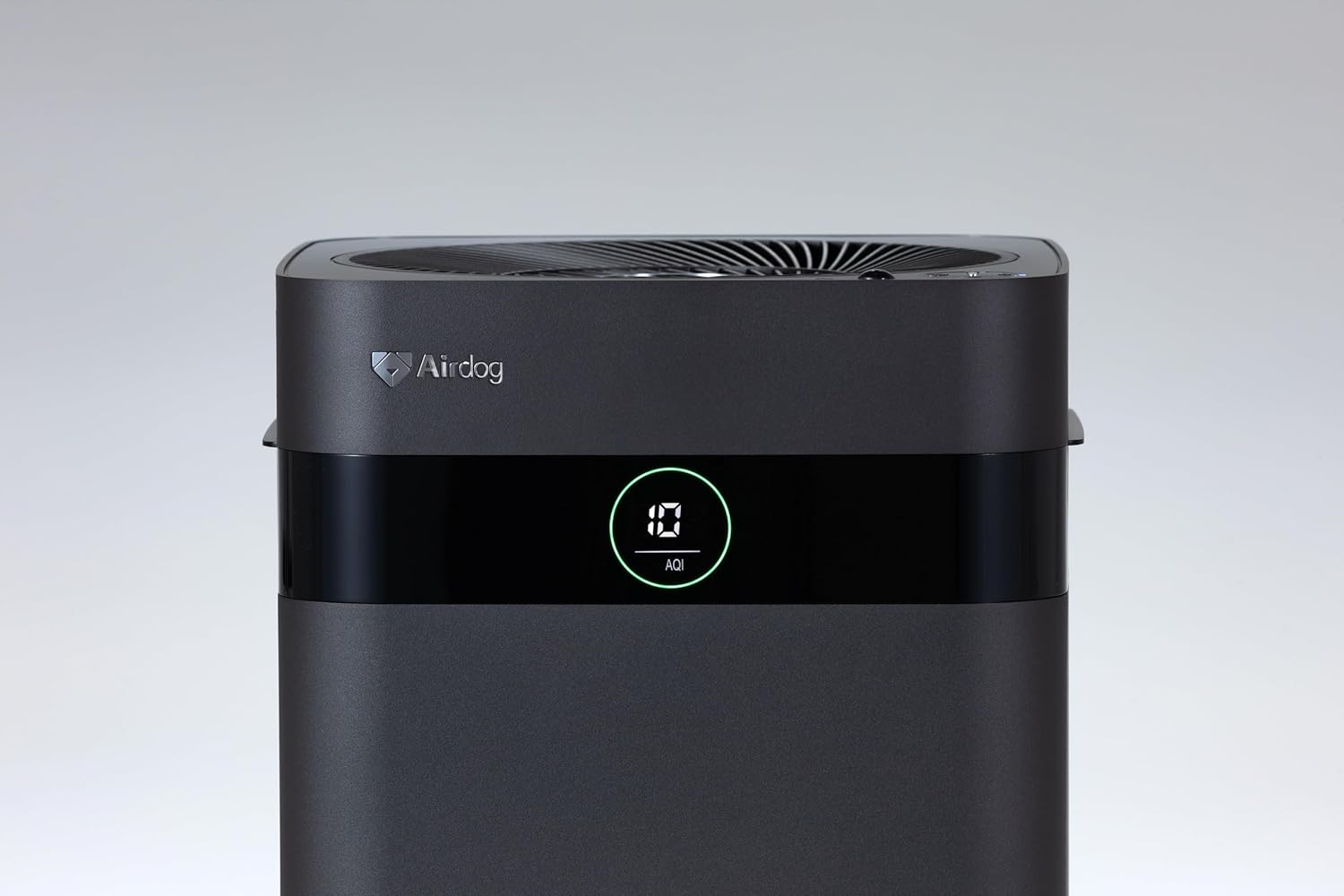

Figure 2: Close-up of the control panel and AQI display.

Figur 3: Øverst view illustrating the air outlet design.

Figure 4: The bottom light indicator provides visual feedback on air quality.

5. Opsætning

5.1. Udpakning

1. Tag forsigtigt luftrenseren ud af emballagen.
2. Remove all protective films and packaging materials from the unit.
3. Sørg for, at alle komponenterne, der er anført i afsnit 3, er til stede.

5.2. Placering

Place the air purifier on a flat, stable surface. For optimal performance, ensure there is adequate space around the unit for air circulation. Avoid placing it directly against walls or furniture that might obstruct the air inlets or the 3-way wide-angle exhaust.

Figur 5: Eksample placement in a kitchen area.

Figur 6: Eksample placement in a living room.

5.3. Strømtilslutning

Connect the power adapter to the power input port on the back of the unit, then plug the adapter into a suitable electrical outlet.

6. Betjeningsvejledning

6.1. Tænd/sluk

Press the power button on the control panel or the remote control to turn the unit on or off. The display will illuminate when the unit is active.

6.2. Valg af tilstand

The Airdog X3D offers various operating modes:

• Automatisk tilstand: The unit automatically adjusts fan speed based on detected air quality (AQI).
• Manuel tilstand: Allows you to manually select the desired fan speed.
• Sove mode: Operates at the lowest fan speed with reduced display brightness for quiet operation.

Use the mode button on the control panel or remote control to cycle through the available modes.

6.3. Sensor Functions

• Lyssensor: Automatically adjusts display brightness based on ambient light conditions.
• Human Sensor: Detects human presence to optimize operation, potentially saving energy when the room is unoccupied.

6.4. Fjernbetjening

The included remote control allows for convenient operation from a distance. Point the remote control directly at the unit's sensor. Note that the effective range of the remote control may be limited (approximately 1 meter).

7. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your Airdog X3D air purifier.

7.1. TPA Filter Cleaning

The TPA filter system is washable and reusable. Refer to the detailed instructions in the full user manual for specific cleaning procedures. Generally, the collector plates should be cleaned regularly to maintain purification efficiency.

1. Turn off and unplug the unit before opening the filter compartment.
2. Remove the collector plates and wash them with water and mild detergent.
3. Ensure all filter components are completely dry before reinserting them into the unit.

7.2. Udvendig rengøring

Tør ydersiden af ​​enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.

8. Fejlfinding

If you encounter issues with your Airdog X3D, please refer to the following common problems and solutions:

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.

9. Specifikationer

10. Garanti og support

The Airdog X3D Black Air Purifier comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, service, or warranty claims, please contact Airdog customer service through their official webwebstedet eller kontaktoplysningerne i din produktdokumentation.
