INTERGREAT 53-inch Wall-Mount Gun Safe Instruction Manual

1. Introduktion

This manual provides essential instructions for the safe and proper installation, operation, and maintenance of your INTERGREAT 53-inch Wall-Mount Gun Safe. Please read this manual thoroughly before using the product to ensure optimal performance and security.

2. Vigtige sikkerhedsoplysninger

• Always secure the safe to the wall and floor to prevent tipping. Reserved holes are provided at the bottom and back of the safe for this purpose.
• Be aware of the anti-theft alarm system. Follow the instructions for deactivating it before attempting to open the safe if the alarm has been triggered.
• Keep all keys and access codes in a secure location, away from unauthorized individuals, especially children.
• Ensure the safe is installed in a location that is dry and protected from extreme temperatures.

3. Produktfunktioner

The INTERGREAT 53-inch Wall-Mount Gun Safe is designed for secure storage of firearms and other valuables. Key features include:

• Skjult design: Engineered for in-wall installation between standard 16-inch on-center studs, allowing for discreet placement.
• Flere oplåsningsmetoder: Offers three access options: a digital keypad, a fingerprint sensor, and emergency keys.
• Justerbar indvendig: Features three removable shelves and key hooks for organized storage. Shelves can be adjusted or removed to accommodate items of various sizes.
• Rummeligt interiør: Designed to store multiple rifles, pistols, ammunition, and other accessories.
• Tyverisikringssystem: Activates a 60-second warning beep after three consecutive incorrect password attempts or significant movement/bumping.
• Dør opbevaring: Includes multiple textile bags on the inside of the door for additional storage of ammunition, pistols, or other small accessories.

Figur 3.1: Overview of the INTERGREAT 53-inch Wall-Mount Gun Safe, illustrating its exterior and interior storage capabilities for firearms and other items.

4. Opsætning og installation

The INTERGREAT 53-inch Wall-Mount Gun Safe is designed for installation between wall studs. Proper installation is crucial for security and stability.

4.1. Valg af sted

Choose a location with standard 16-inch on-center wall studs. The exterior dimensions of the safe are approximately 18" (W) x 6" (D) x 53" (H).

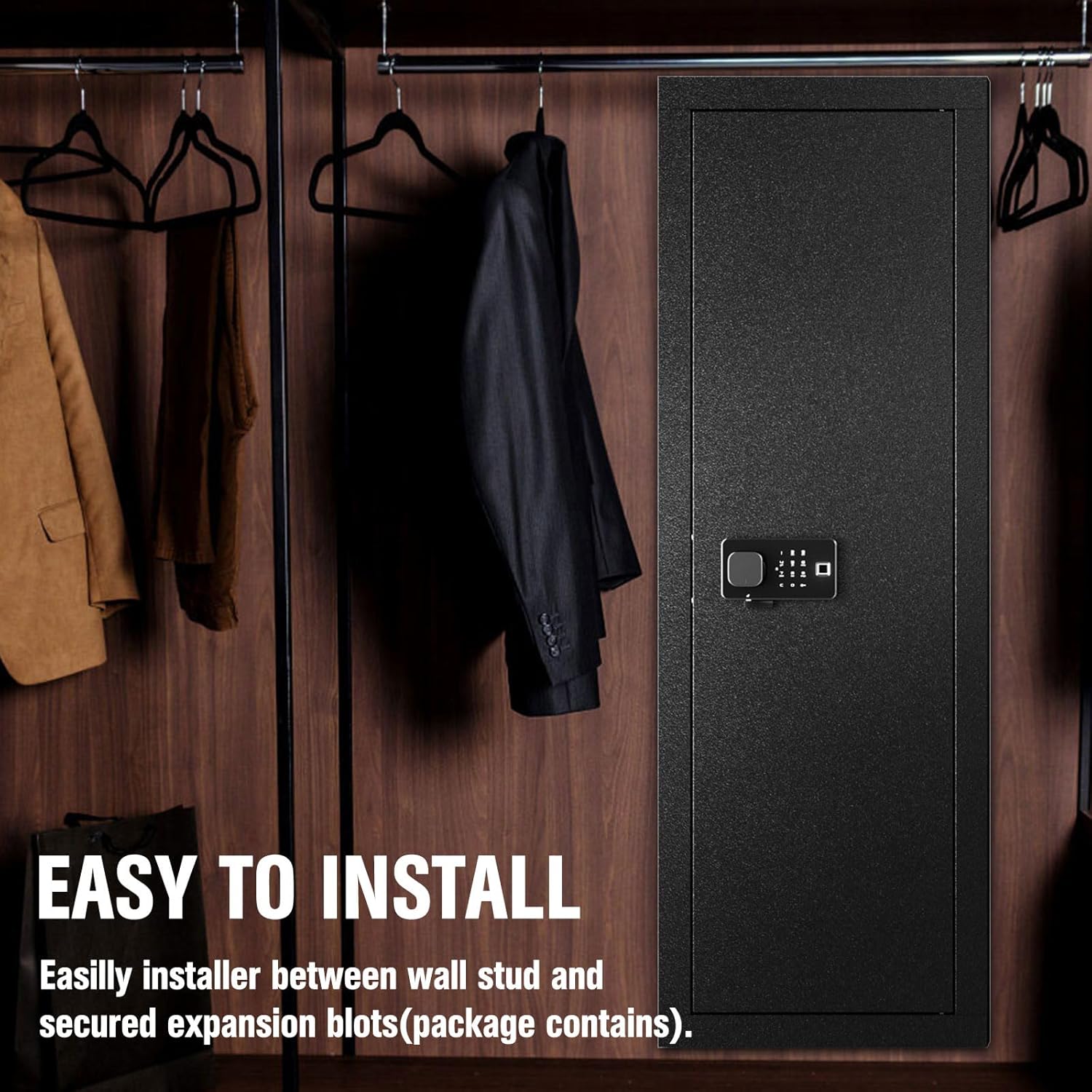

Figure 4.1: The safe installed within a wall, demonstrating its discreet placement in a home environment.

4.2. Installationstrin

1. Forbered vægåbningen: Carefully measure and cut an opening in the wall between two studs that are 16 inches on center. Ensure the opening matches the safe's dimensions (18" W x 53" H).
2. Reinforce the Opening (Recommended): For enhanced stability, reinforce the wall opening with additional framing (e.g., 2x4s) as needed.
3. Insert the Safe: Slide the safe into the prepared wall opening.
4. Sikr pengeskabet: Use the provided expansion bolts to firmly secure the safe to the wall studs through the pre-drilled holes at the back and bottom of the safe. This step is critical to prevent tipping and enhance security.

Note: Some users have reported that screw holes may not always align perfectly during assembly, and the quantity of screws provided might vary. Professional installation is recommended if you encounter difficulties. For assembly assistance, contact INTERGREAT customer support.

5. Betjeningsvejledning

5.1. Strømforsyning til pengeskabet

The digital keypad and fingerprint sensor are powered by 4 AA batteries (not included). Install fresh batteries into the designated battery compartment, typically located on the inside of the door or behind the keypad unit.

5.2. Oplåsningsmetoder

Your safe offers three methods for access:

• Digitalt tastatur: Enter your pre-programmed numerical code on the keypad. The safe will indicate successful entry (e.g., a green light or beep), then turn the handle to open the door.
• Fingeraftrykssensor: Place your registered finger on the fingerprint sensor. The safe will verify your fingerprint (e.g., a green light or beep), then turn the handle to open the door. The safe can store up to 10 fingerprints.
• Nødnøgle: In case of battery failure or forgotten codes, use one of the provided emergency keys. Insert the key into the emergency keyhole (often concealed) and turn it to unlock the safe.

Figure 5.1: Illustration of the three primary methods to unlock the safe: using a numerical password on the keypad, scanning a registered fingerprint, or utilizing the physical emergency key.

5.3. Tyverialarmsystem

Pengeskabet er udstyret med et alarmsystem for at forhindre uautoriseret adgang:

• If three incorrect password attempts are made consecutively, the alarm will activate and sound for 60 seconds.
• Any significant movement or bumping of the safe can also trigger the alarm.
• To stop the alarm, enter the correct user code and press "#" to confirm, or power off the system if applicable.

Figure 5.2: Explanation of the dual alarm system, which activates upon three incorrect password entries or detection of physical tampering.

5.4. Indretning

The safe's interior is designed for flexible storage:

• Justerbare hylder: The three removable shelves can be adjusted to different heights or removed entirely to accommodate taller items like rifles.
• Key Hooks: Utilize the integrated key hooks for small items.
• Dørlommer: The door features multiple textile bags suitable for storing pistols, ammunition, or other small accessories.

Figure 5.3: The interior of the safe, highlighting the adjustable and removable shelves for customized storage configurations.

6. Vedligeholdelse

• Udskiftning af batteri: Replace the 4 AA batteries when the low battery indicator appears or if the keypad/fingerprint sensor becomes unresponsive. Always use fresh, high-quality batteries.
• Rensning: Clean the exterior and interior of the safe with a soft, damp klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen eller de elektroniske komponenter.
• Smøring: Periodically check the door hinges and locking mechanism for smooth operation. Apply a small amount of lubricant if necessary.
• Nøgleopbevaring: Store emergency keys in a secure location separate from the safe and away from the primary user.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

INTERGREAT is committed to customer satisfaction. If you encounter any assembly problems, product damage upon receipt, or require installation video assistance, please contact customer support via email. They aim to respond and resolve issues within 24 hours.

For specific contact information, please refer to the product packaging or the official INTERGREAT store page.

10. Produktvideo overview
