VEVOR HR-360 6-Person Inflatable Dinghy Boat User Manual

1. Introduktion og sikkerhedsoplysninger

This manual provides essential instructions for the safe assembly, operation, and maintenance of your VEVOR HR-360 6-Person Inflatable Dinghy Boat. Please read this manual thoroughly before using the boat to ensure your safety and the longevity of the product. Keep this manual for future reference.

Generelle sikkerhedsadvarsler:

• Always wear a Coast Guard-approved personal flotation device (PFD) when on the water.
• Do not exceed the maximum load capacity of 680.4 kg (1500 lbs) or 6 persons.
• Ensure all air chambers are properly inflated before use.
• Never operate the boat under the influence of alcohol or drugs.
• Be aware of weather conditions and water hazards. Do not use in rough waters or during storms.
• Regularly inspect the boat for damage or leaks before each use.
• Familiarize yourself with local boating regulations and safety guidelines.

2. Pakkens indhold

Carefully unpack all components and verify that all items listed below are present and undamaged. If any items are missing or damaged, contact VEVOR customer support.

Image: All components included with the VEVOR HR-360 inflatable dinghy boat.

• 1 x Inflatable Boat (HR-360)
• 1 x Marine Wood Floor
• 2 x Aluminum Oars (1520 mm / 59.8 inches)
• 1 x Carry Bag (1130 × 370 × 620 mm)
• 1 x Foot Pump
• 2 x Aluminum Benches (1000 × 200 × 16 mm)
• 1 x reparationssæt
• 1 x nylonstrop
• 1 x Fuel Tank Protection Pad

3. Opsætningsvejledning

Follow these steps to properly set up your inflatable dinghy boat.

3.1 Inflation

1. Unfold the boat on a clean, flat surface, free from sharp objects.
2. Locate the four independent air chambers. Each chamber has a separate valve.
3. Using the provided foot pump, inflate each chamber sequentially until firm. Do not overinflate. The boat features 4 separate air chambers for enhanced safety and buoyancy.

Image: Illustration of the 4 separate air chambers for independent inflation.

3.2 Floor and Bench Installation

1. Once the boat is partially inflated, insert the marine wood floor panels into the designated slots at the bottom of the boat. Ensure they fit snugly.
2. Fully inflate the boat to secure the floor panels in place.
3. Attach the two aluminum benches to the side mounts. The benches are adjustable for optimal seating position.

Image: Marine wood floor and aluminum bench installation.

3.3 Oar and Motor Preparation

• Assemble the aluminum oars and secure them in the oarlocks on the sides of the boat.
• If using an outboard motor (up to 15HP) or an electric trolling motor, mount it securely to the transom according to the motor manufacturer's instructions. The boat is designed to accommodate these motor types.

Image: Outboard motor compatibility and transom dimensions.

4. Betjeningsvejledning

Proper operation ensures a safe and enjoyable experience.

4.1 Launching and Capacity

• Carefully launch the boat into the water, ensuring it is fully afloat before boarding.
• The boat has a maximum capacity of 6 persons or 680.4 kg (1500 lbs). Do not exceed these limits.
• The marine wood floor and aluminum benches provide enhanced stability, allowing for comfortable sitting or standing.

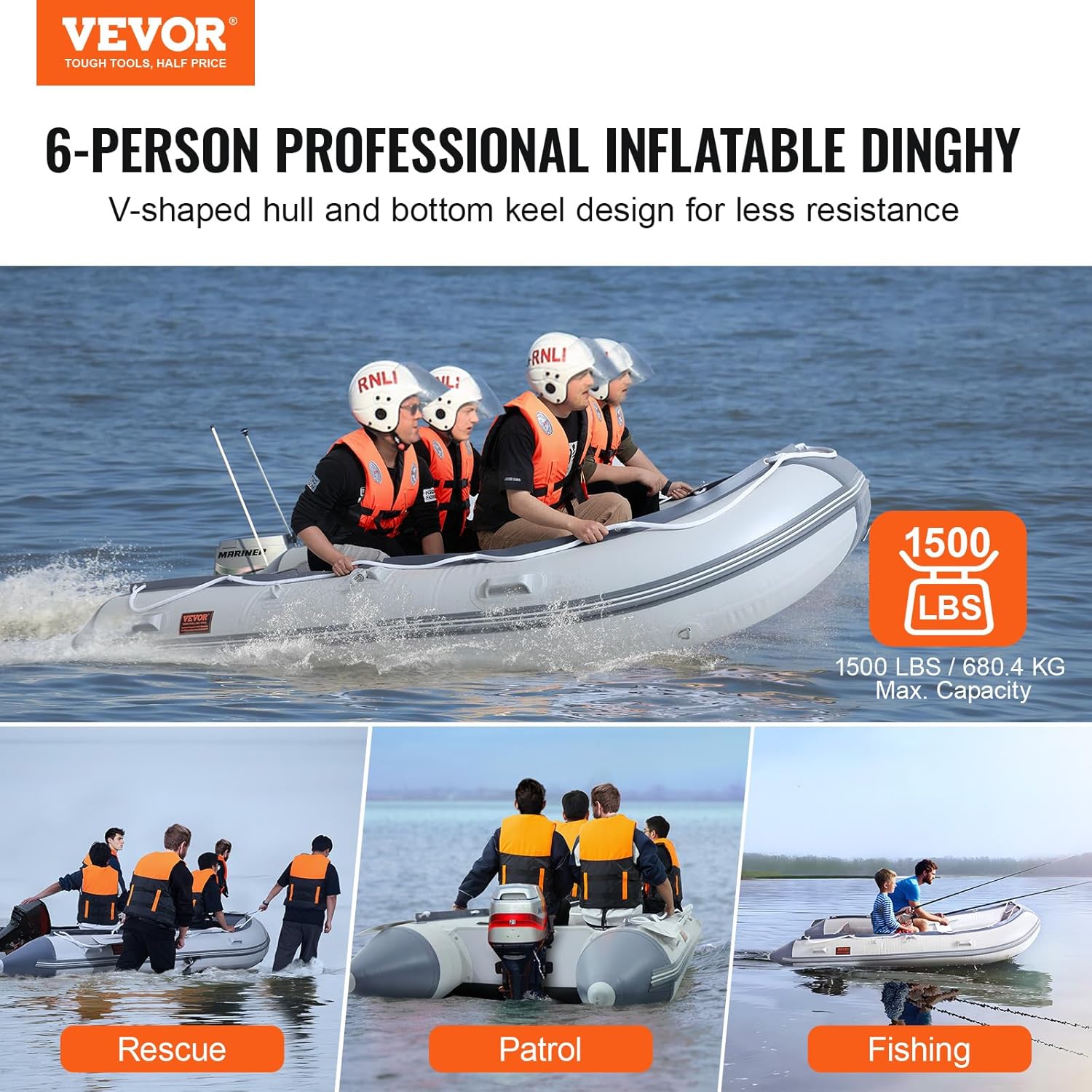

Image: VEVOR inflatable boat in operation with multiple occupants.

4.2 Navigation

• Use the aluminum oars for manual propulsion. Ensure a steady rowing motion for efficient movement.
• If using a motor, follow the motor's operating instructions. The V-shaped hull and inflatable keel design reduce water resistance and improve steering flexibility, allowing for efficient navigation and wave breaking.

Image: Manual rowing with aluminum oars.

5. Vedligeholdelse

Regular maintenance will extend the life of your inflatable boat.

5.1 Rengøring

• After each use, especially in saltwater, rinse the boat thoroughly with fresh water.
• Use mild soap and a soft brush or cloth to clean any dirt or grime. Avoid harsh chemicals or abrasive cleaners.
• Ensure the boat is completely dry before deflating and storing to prevent mildew.

5.2 Inspection and Repair

• Periodically inspect the PVC material for any signs of wear, punctures, or damage. The thickened PVC material is designed for superior tensile strength and puncture resistance.
• If a small puncture or tear is found, use the provided repair kit according to its instructions. For larger damage, professional repair may be necessary.
• Check all valves for proper sealing.

Image: Thickened PVC material construction for durability.

5.3 Opbevaring

• Deflate the boat completely and remove all accessories (floor, benches, oars).
• Fold the boat neatly and place it in the carry bag.
• Store the boat in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Fejlfinding

Her er nogle almindelige problemer og deres potentielle løsninger:

• Langsom luftlækage: Check all valve caps to ensure they are tightly closed. Inspect the boat surface for small punctures or abrasions. Use soapy water to identify the leak source (bubbles will appear). Repair with the provided kit.
• Boat Drifts or is Hard to Steer: Ensure the inflatable keel is properly inflated. Verify that the motor (if used) is correctly mounted and functioning. Check for even weight distribution of occupants and gear.
• Vanskeligheder med oppustning: Ensure the pump hose is securely attached to the valve. Check the pump for any blockages or damage.
• Ustabil tur: Confirm that the marine wood floor panels are correctly installed and the boat is fully inflated to the recommended pressure. Ensure weight is evenly distributed.

7. Specifikationer

Detailed technical specifications for the VEVOR HR-360 Inflatable Dinghy Boat:

Image: Dimensions and accessory overview of the VEVOR HR-360.

8. Garanti og support

For garantioplysninger henvises til den dokumentation, der følger med dit produkt, eller besøg den officielle VEVOR-side. website. If you require technical support, have questions about product operation, or need to report a missing or damaged part, please contact VEVOR customer service through their official channels.

Please have your model number (HR-360) and purchase details ready when contacting support.
