Indledning
The Brio Universal Water Bottle Pump provides a convenient and portable solution for dispensing water from 1-5 gallon water jugs. Designed for ease of use and durability, this manual pump is perfect for various settings, from home kitchens to outdoor activities. Its simple operation and easy maintenance ensure fresh water access whenever you need it.

The Brio Water Bottle Pump is 100% BPA-Free, portable, compatible with 3- and 5-gallon bottles (including 53mm screw-cap models), and constructed from durable, food-grade materials.
Sikkerhedsoplysninger
- Må kun anvendes med drikkevand.
- Ensure all connections are secure before use to prevent leaks.
- Opbevares utilgængeligt for små børn, når det ikke er i brug.
- Do not attempt to modify the pump or its components.
- Clean the pump regularly as per maintenance instructions to prevent bacterial growth.
Hvad er inkluderet

The package includes all necessary components for assembly and maintenance.
- Pumpehus
- Tud
- Støvhætte
- Rengøringsbørste
- 53mm Adapter (if applicable)
- Flexing Tubing
- Mid-length Tubing
- Long-length Tubing
- Nedre rør
Monteringsvejledning
Follow these steps for quick and easy assembly of your Brio Water Bottle Pump:

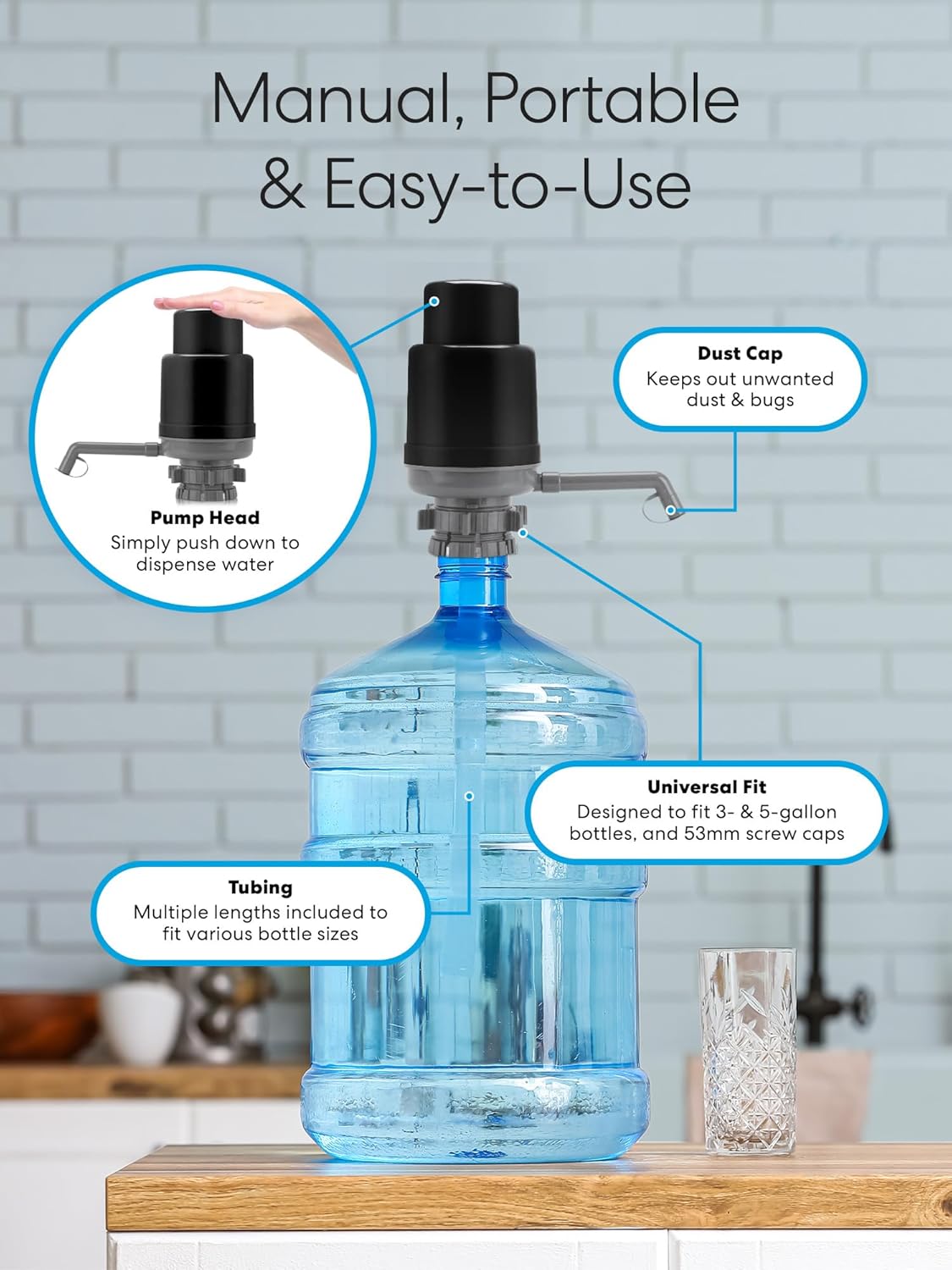

Visual guide for pump assembly.
- Tilslut rørene: Select the appropriate length of tubing (flexing, mid-length, or long-length) based on your water jug's size (3-gallon or 5-gallon). Connect the tube segments firmly together.
- Insert Connected Tube into Pump: Attach the assembled tubing to the bottom inlet of the pump body. Ensure it is securely fitted.
- Connect Spout to Pump Head: Attach the dispensing spout to the designated outlet on the pump head.
- Install Pump to Bottle: Place the assembled pump onto the opening of your water jug. Push down firmly to create a seal. If necessary, use the 53mm adapter for screw-cap bottles. Rotate the locking mechanism on the pump base to secure it tightly to the bottle neck.
Betjeningsvejledning
Using your Brio Universal Water Bottle Pump is straightforward:

- Dispensering af vand: Place a glass or container under the spout. Firmly push down on the pump head. Water will begin to flow from the spout.
- Stop af vandgennemstrømning: Release the pump head. The water flow will stop.
- Støvhætte: Utilize the included dust cap to cover the spout when not in use, keeping it clean and free from contaminants.
The manual operation ensures you have control over the water flow and can dispense water without electricity or batteries, making it ideal for any location.
Pleje og vedligeholdelse
Regular cleaning ensures the longevity and hygienic operation of your Brio Water Bottle Pump:
- Rensning: The pump is designed for easy cleaning. Use the included tube brush to clean the internal tubing and spout.
- Kun håndvask: All components should be hand washed with mild soap and warm water. Do not use abrasive cleaners or put parts in a dishwasher.
- Tørring: Lad alle dele lufttørre helt, før de samles eller opbevares igen.
- Opbevaring: Store the pump in a clean, dry place when not in use.
Fejlfinding
If you encounter issues with your Brio Water Bottle Pump, consider the following:
- Ingen vandgennemstrømning eller langsom vandgennemstrømning:
- Ensure the pump is securely attached to the bottle and the locking mechanism is tightened.
- Check that the internal tubing reaches the bottom of the water jug. Adjust tube length if necessary.
- Verify that the spout is not clogged. Clean if needed.
- Confirm there is sufficient water in the jug.
- Lækker:
- Ensure the pump is properly seated and tightened on the bottle neck.
- Check the rubber seals for any damage or misalignment.
- Difficulty Pumping:
- Ensure the pump mechanism is clean and free of debris.
- Verify that the air intake on the pump is not blocked.
If problems persist, please contact Brio customer support for assistance.
Specifikationer

| Feature | Detalje |
|---|---|
| Modelnummer | PU100GBLK |
| Mærke | Brio |
| Farve | Sort |
| Materiale | Plast |
| Kapacitetskompatibilitet | 1-5 Gallon Water Jugs (48mm & 55mm neck sizes) |
| Strømkilde | Manuel |
| Varens vægt | 1.38 pund |
| Pakkedimensioner | 10.08 x 5.59 x 4.92 tommer |
| Plejevejledning | Kun håndvask |
Garanti og support
For warranty information, product support, or any inquiries not covered in this manual, please refer to the official Brio website or contact Brio customer service directly. Keep your purchase receipt for warranty claims.
