Timex Expedition Field Chronograph Watch Brugermanual

1. Introduktion

Thank you for choosing the Timex Expedition Field Chronograph Watch. This analog timepiece is designed for rugged outdoor use, featuring a durable construction and a comfortable adjustable strap. It includes an INDIGLO backlight for low-light visibility and a chronograph function for precise time measurement. This manual provides detailed instructions for setting up, operating, and maintaining your watch to ensure its longevity and optimal performance.

Figur 1.1: Forside view of the Timex Expedition Field Chronograph Watch, showcasing the black dial, gunmetal case, and brown strap.

2. Indledende opsætning

2.1 Udpakning og inspektion

Carefully remove the watch from its packaging. Inspect the watch for any visible damage. Ensure all protective films are removed from the crystal and case back.

2.2 Indstilling af klokkeslæt

1. Træk kronen: Gently pull the crown (the knob on the side of the watch) out to the Time Setting Position. The second hand may stop moving.
2. Juster tiden: Drej kronen med eller mod uret for at flytte time- og minutviserne til det korrekte klokkeslæt.
3. Tryk kronen ind: Når tiden er indstillet, skal du skubbe kronen tilbage til dens oprindelige position. Sekundviseren genoptager bevægelsen.

2.3 Setting the Date (if applicable)

If your watch model includes a date display, pull the crown out to the Date Setting Position (usually one click out). Turn the crown to adjust the date. Once the date is set, push the crown back in.

Figur 2.1: Side view of the watch, highlighting the crown for time and date adjustments.

3. Betjening

3.1 Brug af kronograffunktionen

The chronograph allows for precise measurement of elapsed time. Your watch features sub-dials for seconds, minutes, and potentially 1/20th of a second, depending on the specific movement.

1. Start/Stop: Tryk på top pusher button (usually at 2 o'clock) to start the chronograph. Press it again to stop.
2. Nulstil: Mens kronografen er stoppet, skal du trykke på bottom pusher button (usually at 4 o'clock) to reset all chronograph hands to zero.
3. Mellemtid (hvis relevant): Some models may offer a split time function. Consult the full Timex manual for advanced chronograph features.

3.2 INDIGLO Natlampe

Your Timex Expedition watch is equipped with the INDIGLO night-light feature, which illuminates the entire dial for easy reading in low-light conditions.

• Aktiver: Press and hold the crown (or the main pusher button, depending on the model) to activate the INDIGLO night-light.
• Varighed: The light will remain on as long as the button is pressed.

Figure 3.1: The Timex Expedition watch is designed for outdoor adventures, where features like the chronograph and INDIGLO backlight are highly useful.

4. Pleje og vedligeholdelse

4.1 Rengøring af dit ur

To maintain the appearance of your watch, regularly wipe the case and crystal with a soft, damp cloth. For the strap, follow these guidelines:

• Leather/Fabric Straps: Avoid prolonged exposure to water, direct sunlight, and harsh chemicals. Clean with a dry, soft cloth.
• Metal Bracelets: Can be cleaned with a soft brush and mild soapy water, then rinsed thoroughly and dried. Ensure the crown is pushed in before cleaning.

4.2 Vandtæthed

Your watch is water resistant up to 50 meters (164 feet). This means it is suitable for short periods of recreational swimming, but not for diving or snorkeling. Do not operate the crown or pusher buttons when the watch is wet or submerged.

4.3 Udskiftning af batteri

The watch is powered by a standard watch battery (CR2016 CELL, as indicated on the case back). When the watch stops or the INDIGLO light dims significantly, the battery may need replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.

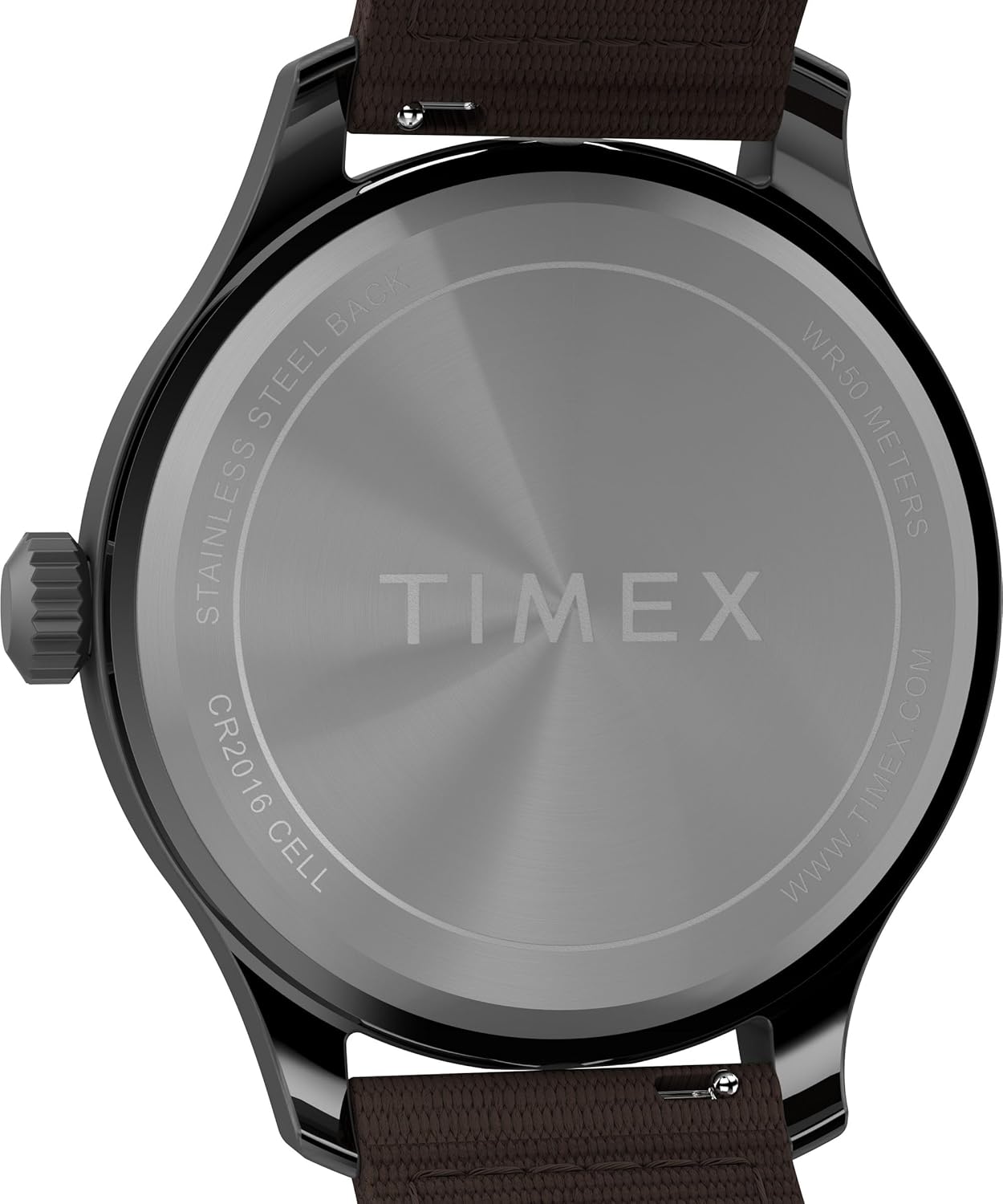

Figure 4.1: The watch case back indicates water resistance and battery type (CR2016 CELL).

5. Fejlfinding

For issues not listed here or if solutions do not resolve the problem, please contact Timex customer support or visit an authorized service center.

6. Specifikationer

• Modelnummer: TW4B309009J
• Æske diameter: 43 mm
• Etui materiale: Gunmetal finish
• Remmateriale: Brown fabric/leather (8 inch length)
• Skivefarve: Sort
• Linse materiale: Mineralglas
• Vandtæthed: 50 meter (164 fod)
• Bevægelse: Kvarts analog
• Funktioner: Chronograph, INDIGLO Night-Light
• Batteritype: CR2016 CELL
• Pakkedimensioner: 6.69 x 4.61 x 2.44 tommer
• Varens vægt: 4.06 ounce

Figur 6.1: Bagside view of the watch, showing the durable case back and strap attachment.

7. Garanti og support

7.1 Garantioplysninger

Timex watches are manufactured to high standards and come with a limited warranty. Specific warranty terms and conditions, including duration and coverage, are provided with your purchase documentation or can be found on the official Timex webwebsted. Gem venligst din købsbevis til garantikrav.

7.2 Kundesupport

For further assistance, technical support, or service inquiries, please visit the official Timex website or contact their customer service department. Contact information can typically be found on the Timex website or in the documentation included with your watch.

Officiel Timex Webwebsted: www.timex.com
