Timex Expedition CAT5 41mm Digital Watch User Manual

Indledning

This manual provides detailed instructions for the operation and maintenance of your Timex Expedition CAT5 41mm Digital Watch, Model TW4B303009J. Please read this guide thoroughly to ensure proper use and to fully utilize all features of your timepiece. This watch is designed for durability and functionality, featuring a digital display, acrylic lens, and water resistance up to 100 meters.

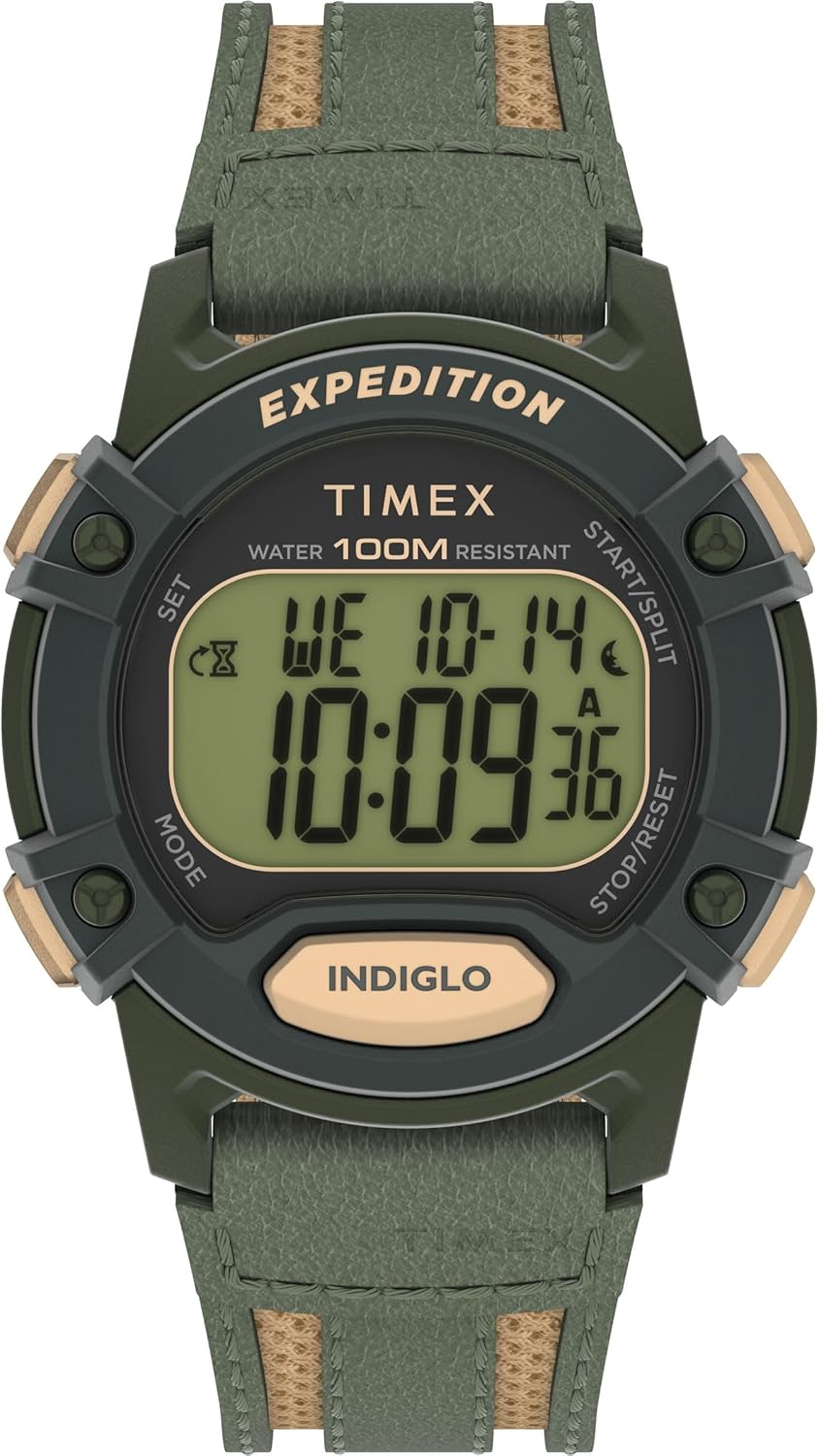

Figur 1: Forside view of the Timex Expedition CAT5 41mm Digital Watch.

Opsætning: Indstilling af tid og dato

Your Timex Expedition watch features two independent time zones (T1 and T2), each with its own time and date settings. This allows for tracking different locations simultaneously.

Knapfunktioner overview:

• SÆT (Øverst til venstre): Bruges til at aktivere og afslutte indstillingstilstande.
• TILSTAND (nederst til venstre): Cycles through different watch modes (Chronograph, Timer, Alarms, Timekeeping). Also used to navigate between settings within a mode.
• START/MELLEM (Øverst til højre): Used to increment values in setting modes or start/split functions in Chronograph/Timer.
• STOP/NULSTIL (Nederst til højre): Used to decrement values in setting modes or stop/reset functions in Chronograph/Timer.
• INDIGLO (Bottom Center): Aktiverer baggrundsbelysningen

Setting Time (T1 or T2)

1. Ensure the watch is in Timekeeping mode. If not, press the MODE button repeatedly until the current time is displayed.
2. Tryk og hold på SÆT button (Top Left) until "HOLD TO SET" appears, followed by "SET TIME 1" or "SET TIME 2" with a blinking indicator.
3. Brug START/OPDEL (Top Right) or STOP/NULSTIL (Bottom Right) buttons to select either "TIME 1" or "TIME 2" for adjustment.
4. Tryk på MODE button (Bottom Left) to enter the time setting for the selected time zone. The hour value will begin blinking.
5. Brug START/OPDEL (Top Right) or STOP/NULSTIL (Bottom Right) buttons to adjust the hour. Press and hold for faster adjustment.
6. Tryk på MODE button to move to the minute setting. Adjust minutes using the START/OPDEL or STOP/NULSTIL knapper.
7. Tryk på MODE button to move to the seconds setting. Use the START/OPDEL or STOP/NULSTIL buttons to reset seconds to zero.
8. Når tiden er indstillet, skal du trykke på SÆT button (Top Left) to exit the setting mode.

Setting Date (Month, Day, Year, and Format)

1. Ensure the watch is in Timekeeping mode.
2. Tryk og hold på SÆT button (Top Left) until "HOLD TO SET" appears, followed by "SET TIME 1" or "SET TIME 2". Select the desired time zone (T1 or T2) for date adjustment.
3. Tryk på MODE button repeatedly to cycle through time settings (hours, minutes, seconds) until the month value starts blinking.
4. Brug START/OPDEL or STOP/NULSTIL knapper for at justere måneden.
5. Tryk på MODE button to move to the day setting. Adjust the day.
6. Tryk på MODE button to move to the year setting. Adjust the year.
7. Tryk på MODE button to cycle through time format (12HR/24HR) and date format (MM.DD / DD.MM). Adjust as desired using START/OPDEL or STOP/NULSTIL.
8. Once date and formats are set, press the SÆT knappen for at afslutte.

Switching Main Time Zone Display (T1/T2)

For hurtigt view your alternate time zone (T2 if T1 is main, or vice-versa), simply press the START/OPDEL button (Top Right) once. The display will briefly show the alternate time zone.

To permanently switch your main displayed time zone:

1. From Timekeeping mode, press and hold the START/OPDEL button (Top Right) for a few seconds.
2. The watch will switch its main display to the other time zone (e.g., from T1 to T2, or T2 to T1).

Driftsfunktioner

Hourly Klokke

Hourly chime provides an audible alert at the top of each hour. There is no on-screen indicator for this feature.

1. From Timekeeping mode, press and hold the SÆT button (Top Left) until "HOLD TO SET" appears, then "SET TIME 1" or "SET TIME 2".
2. Tryk på MODE button (Bottom Left) nine (9) times. The display will show "CHIME".
3. Brug START/OPDEL (Top Right) or STOP/NULSTIL (Bottom Right) buttons to toggle the chime "ON" or "OFF".
4. Tryk på SÆT knappen for at bekræfte og afslutte.

Button Tones (Beep)

This feature controls the audible beep sound when buttons are pressed.

1. From Timekeeping mode, press and hold the SÆT button (Top Left) until "HOLD TO SET" appears, then "SET TIME 1" or "SET TIME 2".
2. Tryk på MODE button (Bottom Left) ten (10) times. The display will show "BEEP".
3. Brug START/OPDEL (Top Right) or STOP/NULSTIL (Bottom Right) buttons to toggle the beep "ON" or "OFF".
4. Tryk på SÆT knappen for at bekræfte og afslutte.

Alarms (ALM 1, ALM 2, ALM 3)

The watch has three independent alarms with various repeat options.

1. Fra Tidsvisningstilstand skal du trykke på MODE button (Bottom Left) repeatedly until "ALM 1", "ALM 2", or "ALM 3" is displayed.
2. To turn an alarm ON/OFF without adjusting its time, use the START/OPDEL (Top Right) or STOP/NULSTIL (Bottom Right) buttons. The display will show "DAILY", "WEEKDAYS", "WEEKENDS", or "OFF".
3. To adjust an alarm's time: While on the desired alarm screen, press the SÆT button (Top Left). The hour will blink.
4. Brug START/OPDEL or STOP/NULSTIL knapper for at justere timen.
5. Tryk på MODE button to move to minutes. Adjust minutes.
6. Tryk på MODE button to move to AM/PM indicator. Adjust AM/PM.
7. Tryk på MODE button to select the repeat option: "DAILY", "WEEKDAYS", or "WEEKENDS".
8. Tryk på SÆT button to confirm and exit. Adjusting an alarm automatically turns it ON.

An alarm icon will appear on the Timekeeping screen when any alarm is active.

Nedtællingstimer

The countdown timer can be set from 1 second up to 24 hours, with options to stop or repeat.

1. Fra Tidsvisningstilstand skal du trykke på MODE button (Bottom Left) two (2) times to enter Timer mode.
2. To start the timer with its current setting, press the START/OPDEL button (Top Right).
3. To stop the timer, press the STOP/NULSTIL button (Bottom Right).
4. To reset the timer to its default value while stopped, press and hold the STOP/NULSTIL knap.
5. To adjust the timer: While in Timer mode, press the SÆT button (Top Left). The hour value will blink.
6. Brug START/OPDEL or STOP/NULSTIL knapper for at justere timen.
7. Tryk på MODE button to move to minutes. Adjust minutes.
8. Tryk på MODE button to move to seconds. Adjust seconds.
9. Tryk på MODE button to select the repeat option: "REPEAT" (timer restarts automatically) or "STOP" (timer stops after one cycle).
10. Tryk på SÆT knappen for at bekræfte og afslutte.

Kronograf (stopur)

The chronograph measures elapsed time, including split/lap times.

1. Fra Tidsvisningstilstand skal du trykke på MODE button (Bottom Left) once to enter Chronograph mode. The display will show "CHRONO" and "00.00.00".
2. Tryk på START/OPDEL button (Top Right) to start the chronograph.
3. To record a split/lap time while running, press the START/OPDEL button. The display will show the split time for 10 seconds, then resume showing the running total.
4. To pause the chronograph, press the STOP/NULSTIL button (Bottom Right). Press START/OPDEL at genoptage.
5. To stop the chronograph, press the STOP/NULSTIL knap.
6. To reset the chronograph to zero while stopped, press and hold the STOP/NULSTIL knap.
7. To change the display format (Lap/Split vs. Split/Lap): While in Chronograph mode and reset to zero, press the SÆT button (Top Left). Use START/OPDEL or STOP/NULSTIL to toggle between "LAP SPL" (Lap time on top, Split time on bottom) and "SPL LAP" (Split time on top, Lap time on bottom). Press SÆT for at bekræfte.

Indiglo Backlight

The Indiglo backlight illuminates the watch face for easy viewunder dårlige lysforhold.

• Tryk på INDIGLO button (Bottom Center) to activate the backlight. It will stay on for approximately 4 seconds.
• If you continue to press other buttons while the backlight is active, it will remain on for 4 seconds after the last button press.
• There are no adjustable settings for backlight brightness or duration.

Opretholdelse

• Vandtæthed: This watch is water resistant up to 100 meters. It is suitable for showering, swimming, and snorkeling, but not for scuba diving. Do not press buttons underwater.
• Batteri: The watch uses 1 Lithium Metal battery (included). Battery replacement should be performed by a qualified technician to ensure water resistance is maintained.
• Rensning: Clean the watch with a soft, damp klud. Undgå barske kemikalier eller slibende materialer.
• Opbevaring: Opbevar uret et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.

Figure 2: Close-up of the watch back, indicating water resistance and battery information.

Fejlfinding

• Dim display: If the digital display appears dim, the battery may be low and require replacement.
• Forkert tidspunkt/dato: Se afsnittet "Indstilling af tid og dato" for at justere igen.
• Watch Not Functioning: Ensure the battery is properly installed and charged. If issues persist, contact Timex customer support.
• Vandindtrængning: If water appears inside the watch, immediately take it to a qualified watch repair center.

Specifikationer

Garanti og support

For garantioplysninger, produktsupport eller serviceforespørgsler henvises til den officielle Timex webwebstedet eller kontakt deres kundeservice direkte. Gem din købsbevis til eventuelle garantikrav.
