Indledning
The JMDHKK K68+ is an advanced multi-functional detector designed to enhance your privacy and security. It effectively identifies hidden cameras, listening devices, and magnetic trackers across various environments such as homes, offices, hotels, and vehicles. This device provides comprehensive protection against unauthorized surveillance, ensuring your peace of mind.

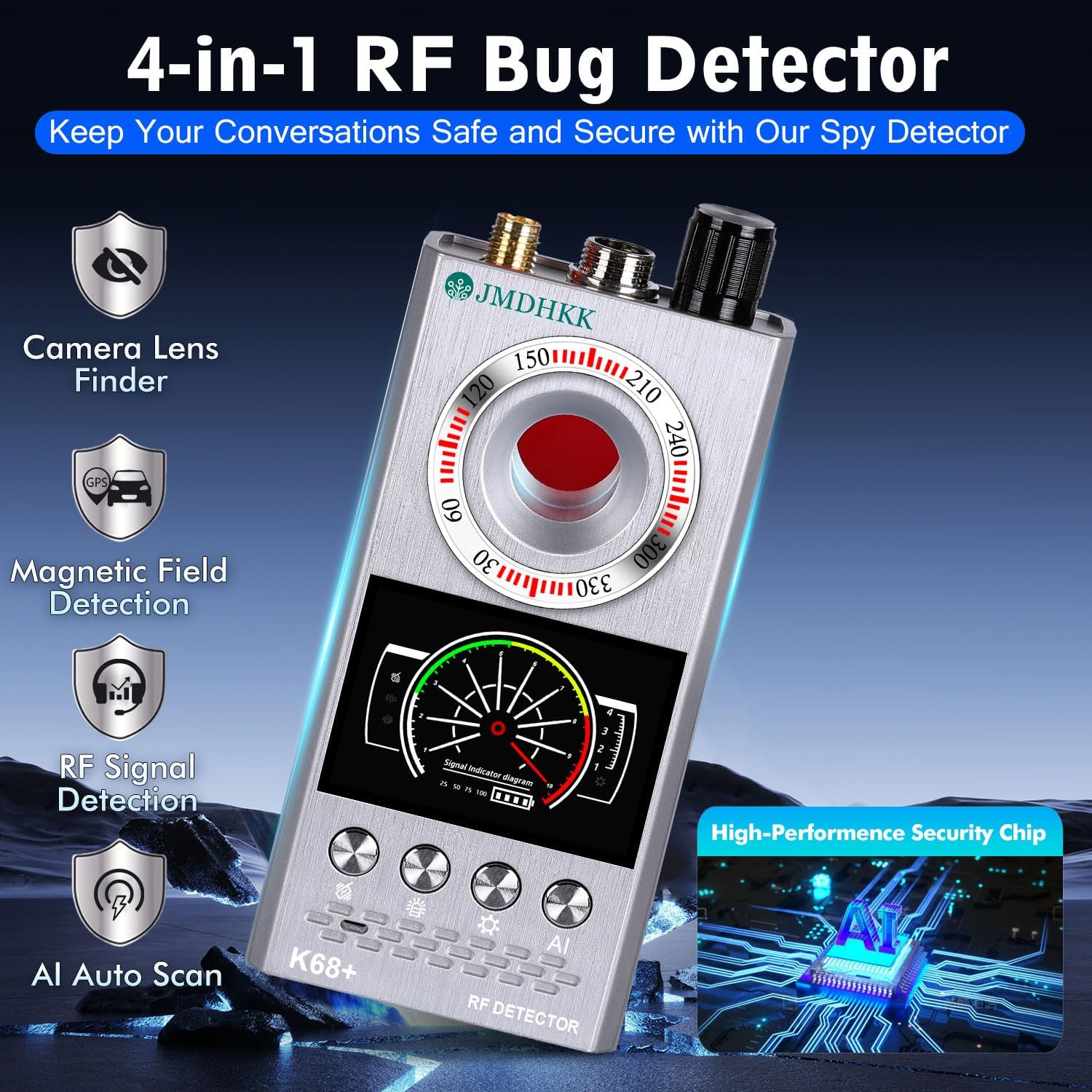

Figure 1: JMDHKK K68+ Detector highlighting its four primary detection functions.
Hvad er der i æsken
Kontroller venligst, at alle komponenter er til stede ved udpakning:
- Hovedenhed
- RF antenne
- GS Probe
- Ladekabel
- Brugermanual
Figure 2: The JMDHKK K68+ detector and its included accessories.
Opsætning
- Opladning af enheden: Connect the provided charging cable to the device's charging port and a compatible USB power source. The device's indicator will show charging status. Ensure the device is fully charged before first use for optimal performance.
- Attaching the RF Antenna: Screw the RF Antenna into the designated port on the top of the main unit. This antenna is crucial for wireless signal detection.
- Attaching the GS Probe: Connect the GS Probe (Magnetic Field Probe) to its dedicated port on the top of the main unit. This probe is used for detecting magnetic trackers.
Betjeningsvejledning
1. Wireless Signal Detection (RF Detection)
This mode detects radio frequency signals emitted by wireless cameras, listening devices, GPS trackers, and other transmitting bugs. It is ideal for sweeping rooms, offices, or vehicles for active surveillance devices.
- Aktivering: Tænd enheden, og vælg RF-detektionstilstand.
- Følsomhedsjustering: Use the sensitivity control knob to adjust the detection range. Start with higher sensitivity in open areas and decrease it as you narrow down a signal source.
- Scanning: Slowly sweep the device across the area of interest, paying close attention to walls, furniture, electronic devices, and hidden compartments. The signal strength indicator on the display will increase as you approach a signal source.
- Advarsler: The device will provide visual (LED indicators) and/or audible/vibration alerts when a signal is detected.
Figure 3: Wireless Signal Detection in action, identifying various transmitting devices.
2. Magnetisk feltdetektion
This function is specifically designed to locate magnetic GPS trackers and other devices that attach using magnets, commonly found on vehicles or metallic surfaces.
- Aktivering: Ensure the GS Probe is attached. Select the magnetic field detection mode.
- Scanning: Slowly move the GS Probe along surfaces where magnetic devices might be hidden, such as under car chassis, wheel wells, or metallic furniture.
- Advarsler: The device will indicate the presence of a magnetic field through visual and/or audible alerts. The closer the probe is to a magnetic source, the stronger the indication.
Figure 4: Magnetic Field Detection for locating hidden GPS trackers on vehicles.
3. Hidden Camera Lens Finder (Infrared Scanning)
This mode helps identify hidden pinhole cameras, even if they are not actively transmitting, by detecting their reflective lenses using infrared light.
- Aktivering: Select the camera lens finder mode. The device will emit a red infrared light.
- Scanning: Kig gennem det røde viewing window on the device while slowly scanning the area. Pay attention to objects like smoke detectors, air vents, picture frames, electrical outlets, and small holes.
- Identifikation: En skjult kameralinse vil fremstå som en lys, reflekterende rød prik, når viewed through the device's window.
Figure 5: Hidden Camera Lens Finder in use, revealing concealed camera lenses.
4. AI Auto Scan Mode
The AI Auto Scan mode provides an intelligent, automated scan for various threats, simplifying the detection process.
- Aktivering: Select the AI Auto Scan mode. The device will automatically cycle through detection methods.
- Overvågning: Place the device in an area you wish to monitor. It will continuously scan for signals and alerts you to any detected threats.
Opretholdelse
- Rensning: Brug en blød, tør klud til at rengøre enheden. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: For at forlænge batteriets levetid bør du undgå at aflade batteriet helt ofte. Oplad enheden regelmæssigt, selvom den ikke er i brug, for at opretholde batteriets sundhed.
- Håndteres med forsigtighed: Undgå at tabe enheden eller udsætte den for kraftige stød, da dette kan beskadige de interne komponenter.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tændes ikke. | Lavt batteri eller ingen opladning. | Oplad enheden helt med det medfølgende opladningskabel. |
| Poor RF signal detection. | Antenna not properly attached or low sensitivity setting. | Ensure the RF antenna is securely attached. Increase sensitivity using the control knob. |
| Magnetisk detektion virker ikke. | GS Probe not attached or damaged. | Verify the GS Probe is securely connected. If still not working, the probe may be damaged and require replacement. |
| Camera lens finder not showing red dots. | Not scanning correctly or no hidden cameras present. | Sørg for at du kigger gennem det røde felt viewing window and slowly scanning the area. Test with a known camera (e.g., phone camera) to verify function. |
Specifikationer
- Model: K68+
- Produktdimensioner: 4.84 x 2.44 x 0.87 tommer
- Varens vægt: 7.4 ounce
- Batterier: 1 lithium-ion batteri (medfølger)
- Fabrikant: Biznlink
- Oprindelsesland: Kina
Figure 6: Product dimensions for the JMDHKK K68+ detector.
Garanti og support
For warranty information and technical support, please refer to the contact details provided on the product packaging or visit the official JMDHKK webwebsted. Gem din købskvittering for garantikrav.
Du kan også finde yderligere ressourcer og ofte stillede spørgsmål på JMDHKK Store on Amazon.
