1. Introduktion
Thank you for choosing the Cecotec ForceClima 7550 Style Connected Portable Air Conditioner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.
This portable air conditioner is designed to provide cooling, fan, dehumidification, and night mode functions for rooms up to 14 m².
2. Sikkerhedsinstruktioner
Overhold følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af apparatet:
- Sørg for, at strømforsyningen matcher voltage angivet på mærkatet.
- Betjen ikke enheden med en beskadiget strømledning eller stik.
- Hold apparatet væk fra varmekilder, direkte sollys og brandfarlige materialer.
- Bloker ikke luftindtag eller -udtag. Sørg for tilstrækkelig afstand omkring enheden for korrekt luftgennemstrømning.
- Dette apparat bruger kølemiddel R-290, som er brandfarligt. Håndter med forsigtighed, og sørg for korrekt ventilation under installation og vedligeholdelse.
- Do not insert objects into the air outlets.
- Tag stikket ud af enheden, før du rengør eller udfører vedligeholdelse.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de er blevet under opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed. .
- Børn skal være under opsyn for at sikre, at de ikke leger med apparatet.
3. Produktet er slutview
The Cecotec ForceClima 7550 Style Connected is a versatile portable air conditioner offering multiple functions for your comfort.
3.1 Komponenter
- Hovedenhed
- Udstødningsslange
- Vinduesæt
- Fjernbetjening
- Brugermanual
Billede 3.1: Overview of the Cecotec ForceClima 7550 Style Connected Portable Air Conditioner, showing the unit, remote control, and smartphone app interface.
Billede 3.2: Forside view of the portable air conditioner, highlighting its compact design.
3.2 Kontrolpanel og fjernbetjening
The unit features a touch control panel with an LED display for quick adjustments and status viewing. A remote control is also included for convenient operation from a distance.
Billede 3.3: Detaljeret view of the touch control panel on the unit and the included remote control.
3.3 Nøglefunktioner
- Høj kølekapacitet: 7000 BTU (1750 frigories) for rapid and effective cooling.
- Bredt dækningsområde: Velegnet til rum op til 14 m².
- 4 driftstilstande: Cooling, Fan, Dehumidifier, and Night mode.
- 2 blæserhastigheder: Low and High settings for customized airflow.
- Affugterfunktion: Capable of extracting up to 20 liters of moisture per day.
- 24-timers timer: Program the unit to turn on or off automatically.
- Wi-Fi-forbindelse: Control the unit remotely via a smartphone app.
- Miljøvenligt kølemiddel: Uses R-290 gas.
- Portabilitet: Equipped with 360° multi-directional wheels for easy movement.
4. Opsætning
4.1 Udpakning
Carefully remove the air conditioner and all accessories from the packaging. Check for any damage during transit. Retain the packaging for future storage or transport.

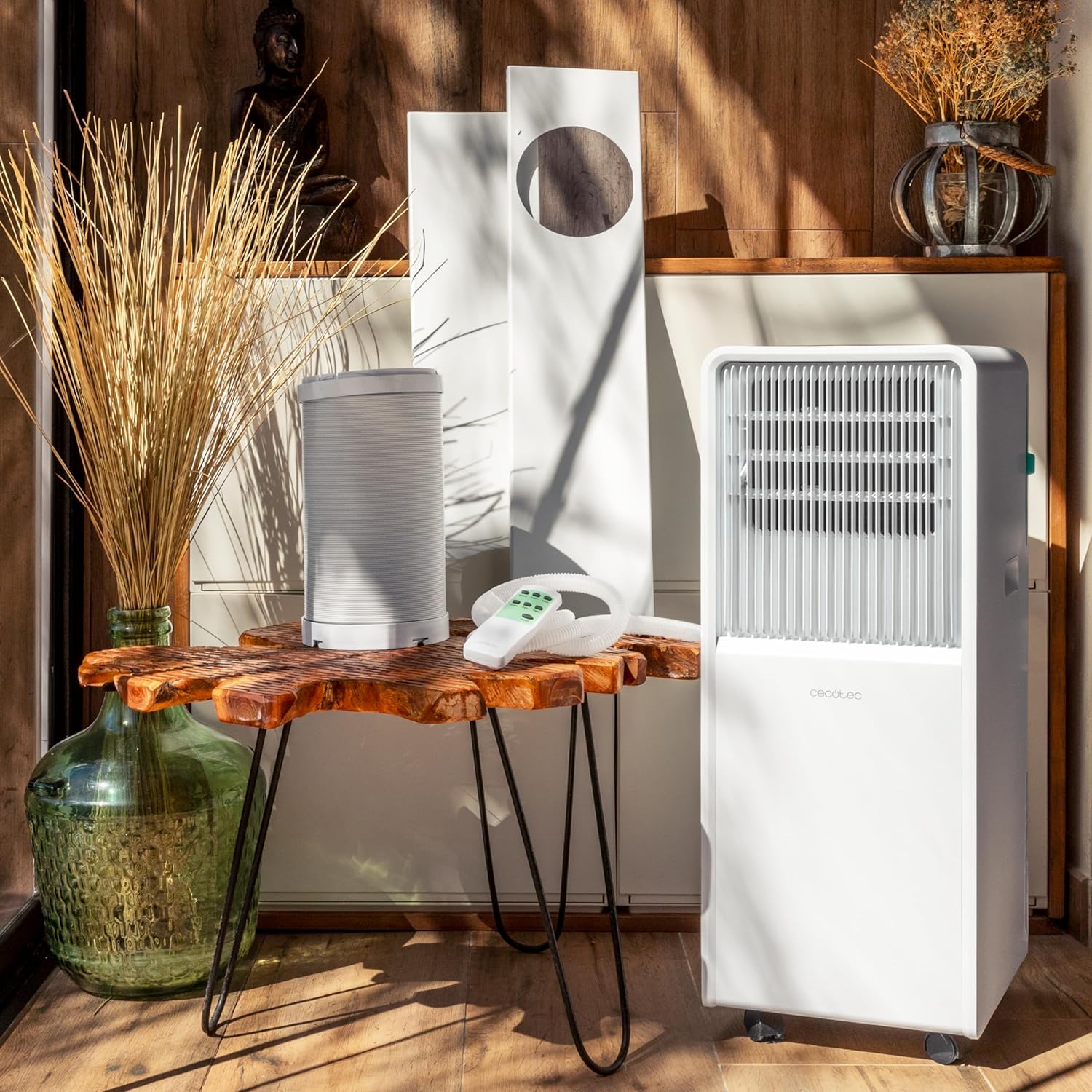

Image 4.1: The portable air conditioner unit displayed with its accessories, including the exhaust hose, window kit, and remote control.
4.2 Placering
Place the air conditioner on a stable, level surface. Ensure there is at least 30 cm (12 inches) of clearance around the unit for proper air circulation. The 360° multi-directional wheels allow for easy repositioning.
Image 4.2: A user demonstrating the ease of moving the portable air conditioner with its integrated wheels.
4.3 Montering af udstødningsslange og vinduessæt
- Fastgør den ene ende af udstødningsslangen til luftudløbet på bagsiden af enheden.
- Assemble the window kit according to the instructions provided with the kit.
- Secure the other end of the exhaust hose to the window kit.
- Install the window kit in a suitable window opening, ensuring a tight seal to prevent outside air from entering.
Image 4.3: The portable air conditioner in use, with its exhaust hose properly installed in a window.
4.4 Strømtilslutning
Plug the power cord into a grounded electrical outlet. Ensure the outlet meets the electrical requirements of the unit.
5. Betjeningsvejledning
Operate your air conditioner using either the touch control panel on the unit or the remote control.
5.1 Tænd/sluk
Tryk på tænd / sluk-knappen (U) på kontrolpanelet eller fjernbetjeningen for at tænde eller slukke enheden.
5.2 Valg af tilstand
Press the Mode button to cycle through the available operating modes:
- Køletilstand: Provides powerful cooling. Adjust temperature using Temp +/- buttons.
- Ventilatortilstand: Cirkulerer luft uden afkøling.
- Affugtertilstand: Fjerner overskydende fugt fra luften.
- Night Mode (Sleep Mode): Operates quietly for comfortable sleep, gradually increasing temperature in cooling mode.
Image 5.1: Visual representation of the four distinct operating modes of the air conditioner.
5.3 Temperaturjustering
In Cooling mode, use the Temperature Up (TEMP+) and Temperature Down (MIDLERTIDIG-) buttons on the control panel or remote to set your desired room temperature.
5.4 Valg af ventilatorhastighed
Press the Speed button to choose between Low and High fan speeds, adjusting the intensity of airflow.
Image 5.2: Comparison of the two available fan speeds: Low for gentle circulation and High for stronger airflow.
5.5 Timer funktion
Use the Timer button to program the unit to automatically turn on or off after a set period, up to 24 hours. Press the Timer button, then use the Temp +/- buttons to set the desired duration.
Image 5.3: A hand interacting with the timer function on the control panel.
5.6 Wi-Fi Connectivity (Connected Feature)
The 'Style Connected' feature allows you to control your air conditioner via a smartphone application. Download the official Cecotec app, follow the in-app instructions to pair your device, and enjoy remote control functionality.
Image 5.4: A user operating the air conditioner remotely through the dedicated smartphone application.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på dit klimaanlæg.
6.1 Aftapning af vand
In Dehumidifier mode, or when the internal water tank is full, the unit will collect water. The unit may stop operating when the tank is full. Refer to the specific instructions in the full manual for draining the collected water. The unit can extract up to 20 liters per day.
Image 6.1: Visual representation of the air conditioner's dehumidification capability, indicating 20 liters per day.
6.2 Rengøring af luftfiltre
The air filters should be cleaned regularly (e.g., every two weeks) to maintain efficiency. Turn off and unplug the unit before cleaning. Remove the filters, wash them with lukewarm water and mild detergent, rinse thoroughly, and allow them to air dry completely before reinserting.
6.3 Udvendig rengøring
Tør ydersiden af enheden af med en blød, damp klud. Brug ikke skrappe kemikalier, slibemidler eller opløsningsmidler, da disse kan beskadige overfladen.
6.4 Opbevaring
If storing the unit for an extended period, ensure it is clean and dry. Drain any remaining water, clean the filters, and store the unit in a cool, dry place, preferably in its original packaging.
7. Fejlfinding
Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | No power supply; Power cord not plugged in; Fuse blown. | Kontroller strømtilslutningen; Kontroller afbryder/sikring. |
| Enheden køler ikke effektivt | Window kit not properly sealed; Room too large; Air filters dirty; Exhaust hose blocked or bent. | Ensure window kit is sealed; Clean air filters; Check exhaust hose for obstructions. |
| Vandlækage | Water tank full; Drain plug not properly sealed. | Drain water tank; Ensure drain plug is securely closed. |
| Usædvanlig støj | Unit not on a level surface; Internal components loose. | Place on a level surface; If noise persists, contact support. |
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Cecotec |
| Modelnummer | 08163 |
| Kølekapacitet | 7000 BTU (1750 frigories) |
| Dækningsområde | Op til 14 m² |
| Affugtningskapacitet | 20 liter/dag |
| Energieffektivitetsklasse | A |
| Støjniveau | 50.5 decibel |
| Kølemiddel | R-290 |
| Effekt (watt) | 785 W |
| Voltage | 2 Kilovolts (Note: This value seems unusually high and might be a data entry error. Please refer to the product label for actual operating voltage.) |
| Produktmål (L x B x H) | 27.5 x 68.5 x 33 cm |
| Vægt | 1.95 kg (Note: This value seems unusually low for an air conditioner. Please refer to the product label for actual weight.) |
| Særlige funktioner | Dehumidifier, Remote Controlled |
9. Garanti og support
Your Cecotec ForceClima 7550 Style Connected Portable Air Conditioner comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Cecotec webwebsted.
For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact Cecotec customer support. Contact information can typically be found on the manufacturer's webwebsted eller i produktemballagen.
