1. Introduktion
Thank you for choosing the AREBOS 43-liter compressor cooler. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read these instructions carefully before use and retain them for future reference.
2. Sikkerhedsinstruktioner
For at sikre sikker drift bedes du følge følgende retningslinjer:
- Sørg for, at strømforsyningen matcher voltagsom angivet på kølerens typeskilt.
- Do not operate the cooler if the power cord is damaged. Contact qualified service personnel for repairs.
- Hold køleren væk fra varmekilder og direkte sollys.
- Ensure adequate ventilation around the cooler to prevent overheating. Do not block ventilation openings.
- Køleren må ikke nedsænkes i vand, og den må ikke udsættes for kraftig regn.
- Unplug the cooler before cleaning or performing any maintenance.
- Dette apparat er ikke beregnet til brug af personer (inklusive børn) med nedsatte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og viden, medmindre de har fået opsyn eller instruktion i brugen af apparatet af en person, der er ansvarlig for deres sikkerhed.
- Opbevar ikke eksplosive stoffer såsom spraydåser med et brændbart drivmiddel i dette apparat.
3. Produktet er slutview
The AREBOS 43-liter compressor cooler is designed for versatile use, offering efficient cooling, freezing, and heating capabilities. It features a robust construction and intuitive controls.
Image: The AREBOS 43-liter compressor cooler, showcasing its main unit, digital control panel, and connectivity with a smartphone application.
Nøglekomponenter:
- Kontrolpanel: Digital display and buttons for temperature adjustment and mode selection.
- USB-port: Til opladning af mobile enheder.
- Strømindgange: 12/24V DC and 230V AC connections.
- Håndtag: Integreret for nem transport.
- Låg: Adaptable opening direction.
- Indvendigt LED lys: For at give bedre overblik inde i køleren.
- Bundprop: For easy water drainage.
Billede: Detaljeret view of the cooler's LCD control panel and the corresponding mobile application interface for remote temperature management.
4. Opsætning
4.1 Udpakning
- Tag forsigtigt køleren ud af emballagen.
- Inspect the cooler for any signs of damage. If damaged, do not use and contact your retailer.
- Fjern alt emballagemateriale og bortskaf det på en ansvarlig måde.
4.2 Strømtilslutning
The cooler supports multiple power sources:
- 12/24V DC (Car/Truck): Connect the provided 2.2m DC cable to the cooler's DC input and then to your vehicle's cigarette lighter socket.
- 230V AC (Household): Connect the provided 2.5m AC cable to the cooler's AC input and then to a standard wall outlet.
- Bærbart kraftværk/solpanel: The cooler can also be powered by compatible portable power stations or solar panels via DC input.
Image: The cooler demonstrating its versatile power connection options, including a car adapter, standard wall plug, and compatibility with portable solar power setups.
4.3 Indledende rengøring
Before first use, wipe the interior and exterior surfaces of the cooler with a damp cloth and mild detergent. Ensure it is completely dry before connecting to power.
5. Betjening
5.1 Tænd/sluk
Press the power button on the control panel to turn the cooler on or off. The LCD display will illuminate when the unit is active.
5.2 Temperaturjustering
You can adjust the temperature using the control panel or the dedicated smartphone application.
- Kontrolpanel: Brug knapperne '+' og '-' til at indstille den ønskede temperatur. Displayet viser den aktuelle og den ønskede temperatur.
- App kontrol: Download the AREBOS app from your smartphone's app store. Connect your cooler via Bluetooth. The app allows for remote temperature setting, mode selection, and monitoring.
5.3 Mode Selection (Max/Eco)
The cooler offers two operating modes:
- MAX-tilstand: Provides rapid cooling or heating for quicker temperature changes.
- ØKO -tilstand: Optimizes energy consumption for extended operation, ideal for battery-powered use.
5.4 Cool and Heat Function
This cooler can maintain temperatures from -20°C to 20°C, allowing for both cooling/freezing and warming of contents.
Image: The cooler's dual functionality is depicted, showing it keeping items cold in a summer outdoor setting and warm in a winter snowy environment.
5.5 USB-opladningsport
A USB port is located on the control panel for convenient charging of mobile devices.

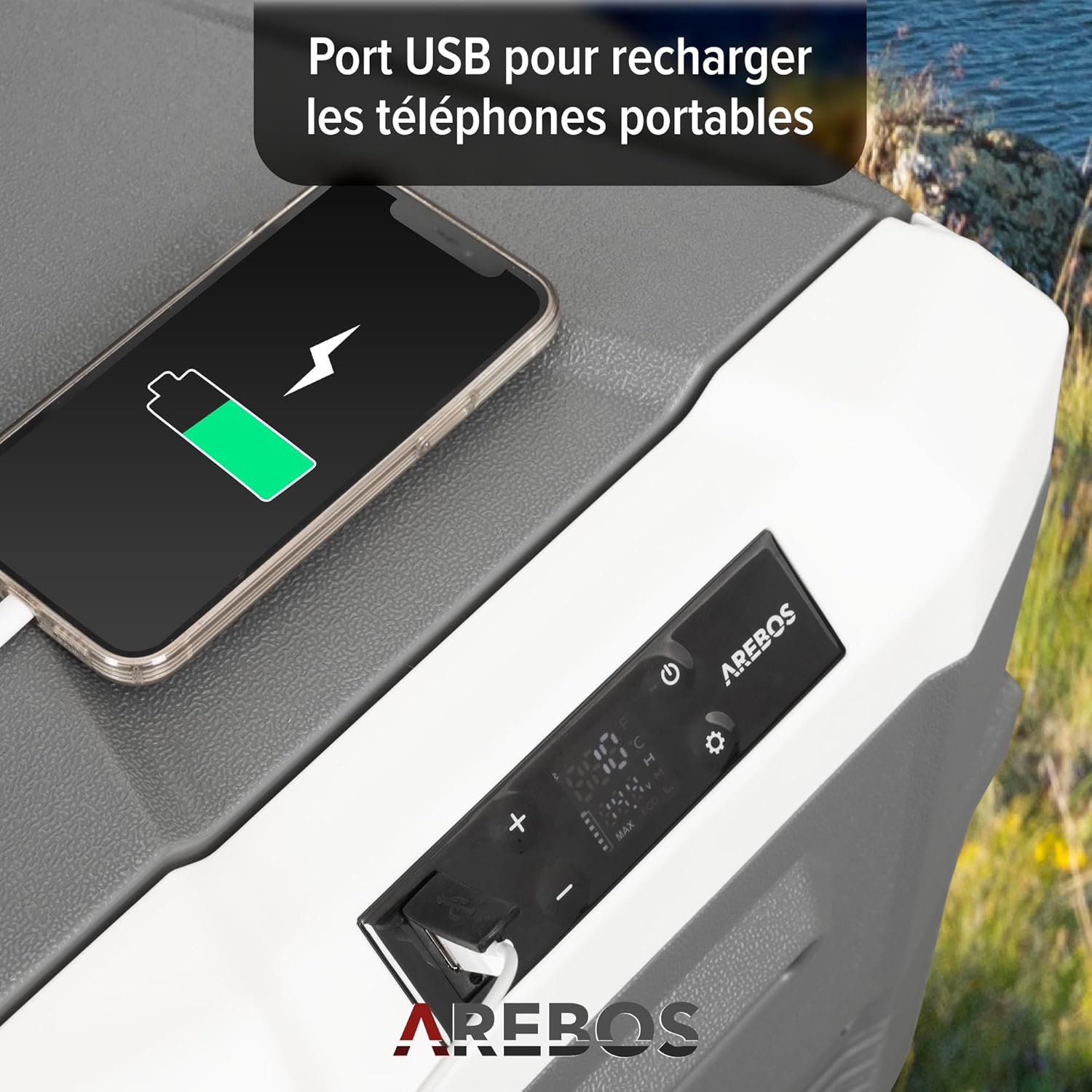

Image: A smartphone is shown connected to the cooler's integrated USB port, indicating its capability to charge external devices.
5.6 Adaptable Lid Opening
The cooler's lid can be opened from either side or completely removed for convenience. Refer to the product diagram for specific instructions on changing the lid's opening direction.
6. Vedligeholdelse
6.1 Rengøring
- Always unplug the cooler before cleaning.
- Tør indvendigt og udvendigt af med adamp klud og et mildt, ikke-slibende rengøringsmiddel.
- Do not use harsh chemicals or abrasive cleaners, as they can damage the surfaces.
- Sørg for, at alle overflader er tørre, før du tilslutter strømmen igen.
6.2 Aftapning af vand
The cooler is equipped with an integrated drain plug for easy removal of condensed water or melted ice.
Billede: En detaljeret view of the cooler's interior, highlighting the integrated drain plug for convenient water removal.
6.3 Opbevaring
When not in use for extended periods, ensure the cooler is clean and dry. Store it in a cool, dry place with the lid slightly ajar to prevent odors and mildew.
7. Fejlfinding
If you encounter issues with your AREBOS compressor cooler, refer to the following table for common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køleren tænder ikke. | No power supply; damaged power cord; faulty power outlet. | Check power connections; try a different outlet; inspect power cord for damage. |
| Køleren køler ikke effektivt. | Temperature setting too high; ventilation blocked; excessive ambient temperature; lid not closed properly. | Lower the temperature setting; ensure clear ventilation; move cooler to a cooler environment; ensure lid is securely closed. |
| Usædvanlig lyd fra køleren. | Cooler not on a level surface; fan obstruction. | Place cooler on a flat, stable surface; check for any obstructions around the fan. |
| Fejlkode vist. | Specifik intern fejl. | Se den fulde brugermanual for specifikke betydninger af fejlkoder, eller kontakt kundesupport. |
If the problem persists after attempting these solutions, please contact AREBOS customer support.
8. Specifikationer
Technical specifications for the AREBOS Compressor Cooler 43 Liters (Model AR-HE-KK40A):
| Feature | Specifikation |
|---|---|
| Mærke | Arebos |
| Modelnummer | AR-HE-KK40A |
| Kapacitet | 43 liter |
| Farve | Antracit |
| Materiale | Plastik (Kunststof) |
| Isoleringsmateriale | Polyurethanskum |
| Produktmål (L x B x H) | 61.8 x 37.6 x 51.4 cm |
| Varens vægt | 13 kilo |
| Temperaturområde | -20°C til 20°C |
| Særlige funktioner | Portable, Compressor Cooling System, App Control, LCD Touch Screen, Quiet Operation, Lockable & Adjustable Lid Opening, LED Interior Lighting, USB Port, AC/DC Connectivity, Drain Screw, Cool & Heat Function |
| Inkluderede komponenter | 1x 12/24V (DC) Cable (2.2m), 1x AC Connection Cable (2.5m), 1x User Manual |

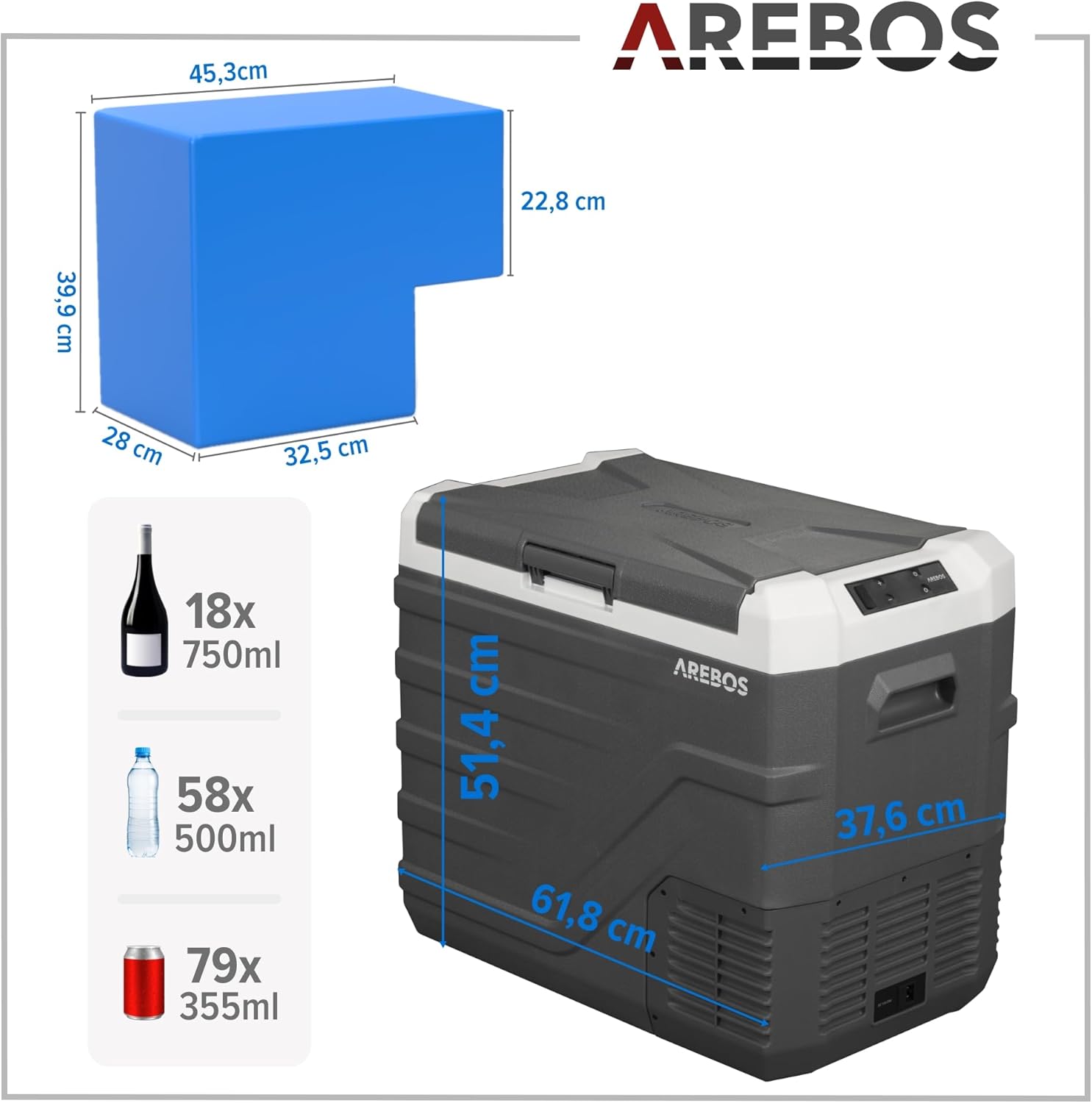

Image: Visual representation of the cooler's external dimensions and internal capacity, indicating how many bottles or cans it can hold.
9. Garanti og support
AREBOS products are manufactured with quality and reliability in mind. For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. For technical support or inquiries, please reach out to the manufacturer, AREBOS, directly through their official channels.
