Melitta CI Touch F630-111 Automatic Coffee Maker User Manual

Indledning

Thank you for choosing the Melitta CI Touch F630-111 Automatic Coffee Maker. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read these instructions carefully before first use and keep them for future reference.

Sikkerhedsinstruktioner

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af apparatet:

• Sørg for, at apparatet er tilsluttet en korrekt jordet stikkontakt.
• Apparatet, netledningen eller stikket må ikke nedsænkes i vand eller andre væsker.
• Keep children away from the appliance during operation due to hot surfaces and liquids.
• Tag stikket ud af apparatet før rengøring og når det ikke er i brug i længere perioder.
• Brug ikke apparatet, hvis netledningen eller stikket er beskadiget, eller hvis apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Use only original Melitta spare parts and accessories.

Produkt overview

Familiarize yourself with the components of your Melitta CI Touch coffee maker.

Figur 1: Front view of the Melitta CI Touch F630-111 automatic coffee maker, showing the display, coffee spout, and drip tray.

Figur 2: Side view of the Melitta CI Touch F630-111, highlighting the water tank and overall compact design.

Nøglekomponenter:

• Berøringsskærm: For selecting beverages and navigating menus.
• Kaffetud: Højdejusterbar til forskellige kopstørrelser.
• Two-Chamber Bean Container: Allows selection between two types of coffee beans.
• Integreret kværn: Super-quiet steel cone grinder.
• Aftagelig bryggeenhed: For nem rengøring.
• Mælkesystem: External milk container for milk-based specialties.
• Vandtank: Removable for refilling.

Opsætning

1. Udpakning og placering:

• Fjern alt emballagemateriale.
• Placer kaffemaskinen på en stabil, jævn og varmebestandig overflade.
• Sørg for tilstrækkelig ventilation omkring apparatet.

2. Initial Rinse:

• Fyld vandbeholderen med frisk, koldt vand.
• Placer en beholder under kaffetuden.
• Follow the on-screen instructions for the initial rinsing process.

3. Filling the Bean Container:

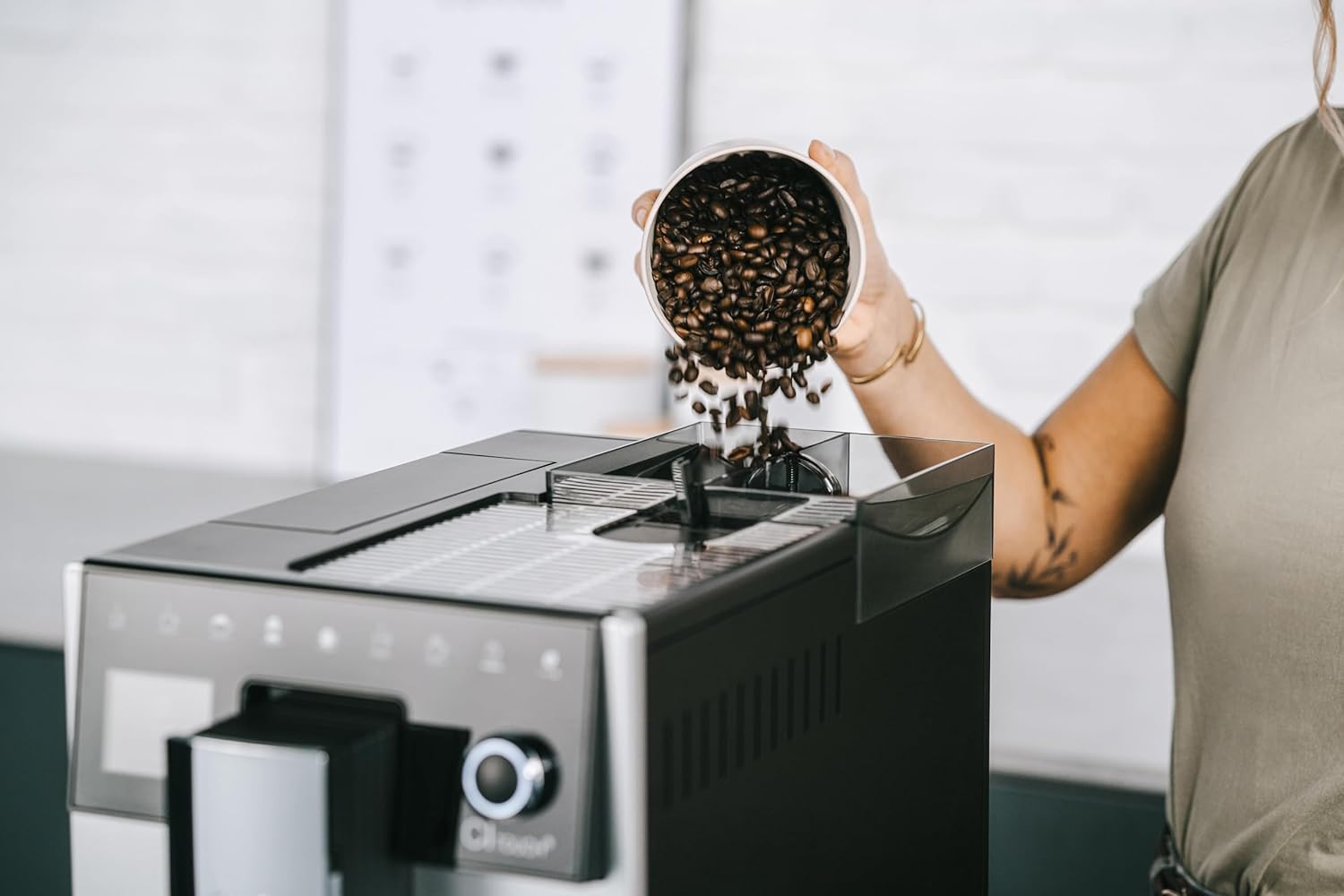

Figur 3: Pouring whole coffee beans into the two-chamber bean container located at the top of the machine.

• Open the lid of the two-chamber bean container.
• Pour whole coffee beans into the desired chamber(s).
• Luk låget forsvarligt.

4. Setting up the Milk System:

• Connect the milk hose to the coffee maker and the external milk container.
• Fill the milk container with fresh, cold milk.

Betjeningsvejledning

1. Tænd/sluk:

• Press the power button to turn the machine on or off. The display will guide you through the start-up or shut-down process.

2. Selecting a Beverage:

Figur 4: A hand touching the display to select a coffee beverage, showing the intuitive interface.

• Use the touch display to select your desired coffee specialty (e.g., Espresso, Café Crème, Cappuccino, Latte Macchiato).
• Adjust the coffee strength and volume as prompted on the display.

3. Adjusting Coffee Thickness and Grinding Degree:

Figur 5: A hand operating the rotary knob to navigate menus and adjust settings, such as coffee thickness or grinding degree.

• Access the settings menu via the touch display or rotary knob.
• Select "Coffee Thickness" or "Grinding Degree" to customize your preference.
• The grinding degree can be adjusted directly on the grinder inside the bean container (refer to specific instructions in the full manual for precise adjustment).

4. Double Cup Mode:

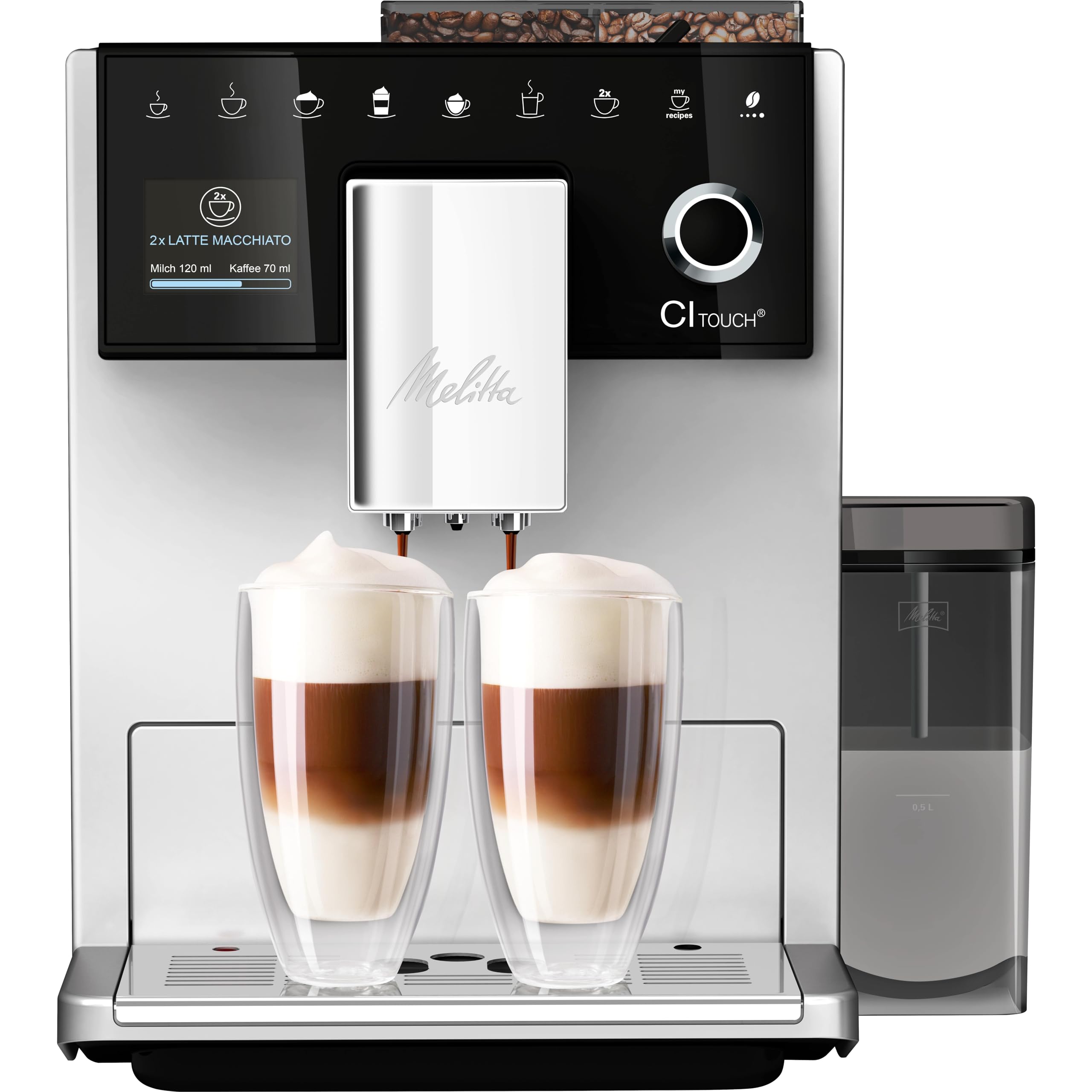

Figur 6: The Melitta CI Touch brewing two latte macchiatos into tall glasses, demonstrating the double cup mode functionality.

• For two servings, select the "2x" option on the display before choosing your beverage.
• Placer to kopper under kaffeudløbet.

Vedligeholdelse og rengøring

1. Cleaning the Brewing Unit:

• Bryggeenheden er aftagelig for nem rengøring.
• Sluk for maskinen, og tag stikket ud.
• Remove the brewing unit according to the instructions in the full manual.
• Rinse thoroughly under running water. Allow to air dry before reinserting.

2. Cleaning the Milk System:

• The Melitta CI Touch features an easy steam cleaning function for the milk system.
• The external milk container and its components are dishwasher safe.
• Perform regular cleaning cycles as prompted by the machine or after each milk preparation.

3. Emptying Drip Tray and Coffee Grounds Container:

• Tøm og rengør drypbakken og beholderen til kaffegrums dagligt, eller når maskinen angiver det.

4. Afkalkning:

• Maskinen vil give dig besked, når afkalkning er nødvendig.
• Use a suitable descaling agent recommended by Melitta and follow the on-screen instructions carefully.

Fejlfinding

If you encounter issues with your Melitta CI Touch, refer to the following common problems and solutions:

For more detailed troubleshooting, please consult the comprehensive manual or contact Melitta customer support.

Specifikationer

• Mærke: Melitta
• Modelnavn: Melitta CI Touch (F630-111)
• Farve: Sølv
• Produktdimensioner: 18.5" D x 10.04" B x 13.39" H
• Kaffemaskine type: Espressomaskine
• Driftstilstand: Fuldautomatisk
• Voltage: 230 volt
• Kapacitet: 1.8 liter (vandtank)
• Kaffeindgangstype: Hele bønner
• Særlige funktioner: Integrated Coffee Grinder, Milk Frother, Programmable, Two-Chamber Bean Container, One Touch Display
• Varens vægt: 20.4 pund
• Fabrikant: Melitta Europa GmbH & Co. KG

Garanti og support

Your Melitta CI Touch F630-111 Automatic Coffee Maker comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.

For technical support, spare parts, or service inquiries, please visit the official Melitta webwebstedet eller kontakt deres kundeserviceafdeling. Hav dit købsbevis klar, når du kontakter support.

Melitta Official Webwebsted: www.melitta.com
