Intelbras MFR 7000 Smart indbygget dødbolt med håndtag brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, setup, operation, and maintenance of your Intelbras MFR 7000 Smart Embedded Deadbolt with Handleset. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Sikkerhedsoplysninger

• Sørg for, at alle komponenter er til stede og ubeskadigede før installation.
• Forsøg ikke at skille låsen ad eller ændre den. Dette kan ugyldiggøre garantien og kompromittere sikkerheden.
• Use only specified AA alkaline batteries. Do not mix old and new batteries or different types of batteries.
• Opbevar fysiske nøgler et sikkert sted uden for ejendommen.
• Protect your passwords and biometric data. Do not share them with unauthorized individuals.
• This lock is designed for indoor use or protected outdoor environments. Avoid direct exposure to extreme weather conditions.

3. Pakkens indhold

Bekræft, at alle følgende varer er inkluderet i din pakke:

• 1 x Digital Lock (MFR 7000 unit)
• 4 x AA batterier
• 1 x installationsskabelon
• 1 x Fixing Kit (screws and mounting hardware)
• 1 x Brugermanual (dette dokument)
• 2 x fysiske nøgler
• 3 x klistermærke Tags
• 3 x Proximity Tags
• 1 x Installation Manual (separate guide for physical installation)

4. Produktet er slutview

The Intelbras MFR 7000 is a smart embedded deadbolt with a handleset, offering multiple access methods for enhanced security and convenience. It integrates with the Intelbras Mibo ecosystem for smart home functionalities when paired with a compatible automation hub.

Nøglefunktioner:

• Multiple Access Methods: Biometrics (up to 100), Proximity Tags (up to 100), Passwords (up to 15), and Physical Keys.
• Smart Home Integration: Remote access and management via the Mibo app (requires MCA 1001 Automation Hub, sold separately).
• Auto-Lock Function: Automatically locks the door after closing.
• Non-Disturb Function: Prevents external access for privacy.
• Reversible Lever: Adaptable for left or right-handed doors.
• Standard Mortise: Compatible with ABNT 14913 standard mortise for easy replacement.

Produktkomponenter:

Figur 4.1: Front view of the Intelbras MFR 7000 Smart Embedded Deadbolt, showing the keypad, fingerprint reader, and handleset.

Figur 4.2: Side view of the MFR 7000, illustrating its slim profile.

Figur 4.3: Tilbage view of the MFR 7000, showing the interior handleset and battery compartment.

5. Installation

The MFR 7000 is designed for straightforward installation, compatible with doors from 30mm to 60mm thick and utilizing the ABNT 14913 standard mortise. For detailed physical installation steps, refer to the separate Installation Manual included in your package. Professional installation is recommended.

Generelle installationstrin:

1. Forbered døren: If replacing an existing lock, remove the old lock mechanism. Ensure the door meets the thickness requirements and mortise standard.
2. Install the Mortise: Insert the MFR 7000 mortise mechanism into the door edge.
3. Mount the Handleset: Attach the exterior and interior handleset components, ensuring proper alignment and cable connections.
4. Sikr låsen: Use the provided fixing kit to secure all components firmly.
5. Test funktionalitet: After installation, test the mechanical operation of the handleset and deadbolt before proceeding with electronic setup.

Figur 5.1: Diagram illustrating the easy installation process with the ABNT 14913 standard mechanism. This image shows the steps: remove old lock, insert MFR 7000 mechanism, and finalize installation.

Figur 5.2: The MFR 7000 Smart Deadbolt handleset installed on a door, demonstrating its integrated appearance.

6. Setup and User Management

After physical installation, proceed with the electronic setup and user registration.

6.1 Initial Power-Up and Master Code Setup

1. Insert the 4 AA batteries into the battery compartment on the interior unit.
2. The lock will power on and prompt for initial setup. Follow the voice prompts or display instructions to set a master password. This master password is crucial for managing other users and settings.

6.2 Registering Users

The MFR 7000 supports up to 100 biometrics, 100 proximity tags, and 15 passwords.

• Biometric Registration: Access the user management menu using your master password. Select the option to add a new biometric user. Follow the on-screen prompts to scan the fingerprint multiple times for accurate registration.
• Nærhed Tag Tilmelding: In the user management menu, select to add a new tag. Present the sticker tag or proximity tag to the designated reader area on the lock.
• Password Registration: From the user management menu, choose to add a new password. Enter a 6-10 digit password and confirm it.

Vigtig: For remote access, user management, and smart home integration features, you must purchase and connect the MCA 1001 Automation Hub (sold separately) and use the Intelbras Mibo app.

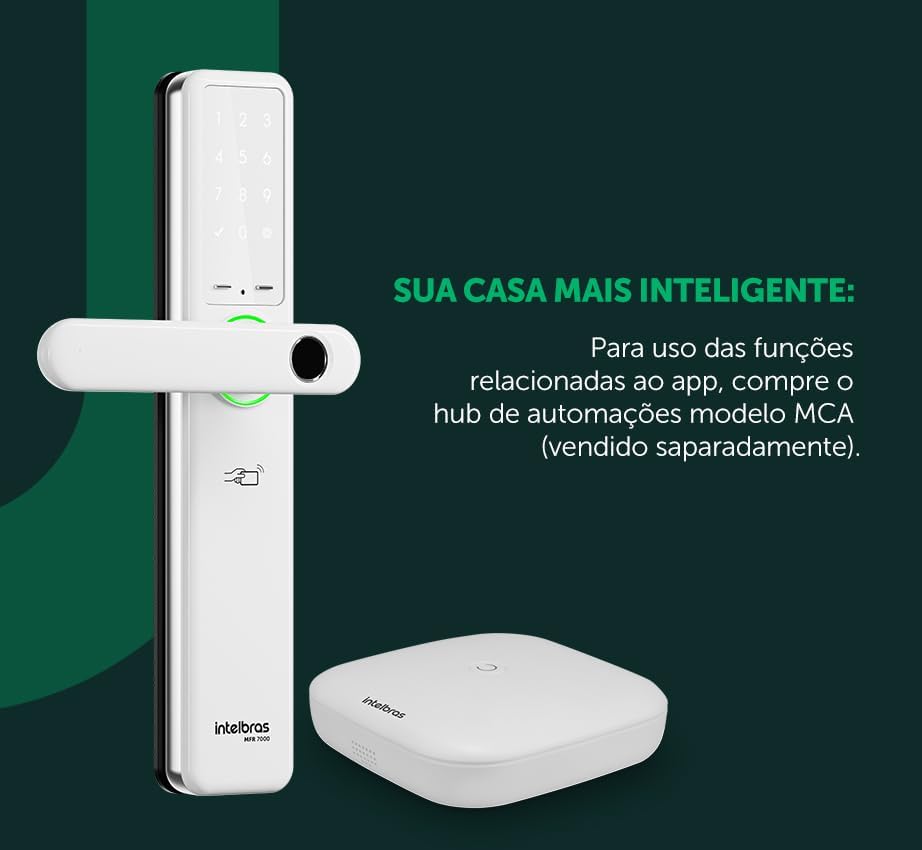

Figur 6.1: The MFR 7000 Smart Deadbolt shown alongside the Mibo Automation Hub, which is required for app-related smart functions.

7. Betjeningsvejledning

7.1 Oplåsning af døren

• Using Biometrics: Placer din registrerede finger på fingeraftrykslæseren. Låsen låses op, hvis fingeraftrykket genkendes.
• Using Proximity Tags: Present a registered proximity tag til tag reader area on the lock. The lock will unlock.
• Brug af en adgangskode: Enter your registered password on the keypad, then press the '#' or 'Enter' key. The lock will unlock.
• Using Physical Keys: In case of battery depletion or electronic malfunction, insert the physical key into the keyhole and turn to unlock.
• Remote Unlocking (with Mibo Hub): Open the Intelbras Mibo app on your smartphone and select the MFR 7000 lock to remotely unlock it.

7.2 Låsning af døren

• Automatisk låsning: The MFR 7000 features an auto-lock function that engages the deadbolt automatically a few seconds after the door is closed.
• Manuel låsning: From the exterior, press the '#' key on the keypad. From the interior, turn the thumb-turn or lift the handleset (if applicable for manual deadbolt engagement).
• Remote Locking (with Mibo Hub): Use the Intelbras Mibo app to remotely lock the door.

7.3 Non-Disturb Function

Activate the non-disturb function from the interior unit to prevent external access, even with valid credentials. This provides enhanced privacy and security when inside.

8. Vedligeholdelse

8.1 Udskiftning af batteri

• The lock is powered by 4 AA alkaline batteries, providing an average duration of 10 months (based on 10 daily accesses).
• The lock will provide a low battery warning when replacement is needed.
• To replace, open the battery compartment on the interior unit, remove old batteries, and insert new ones, ensuring correct polarity.

8.2 Rengøring

• Clean the lock's exterior surfaces with a soft, dry cloth.
• Brug ikke slibende rengøringsmidler, opløsningsmidler eller kemiske spraymidler, da disse kan beskadige overfladen og de elektroniske komponenter.
• Keep the fingerprint sensor and keypad clean for optimal performance.

9. Fejlfinding

10. Specifikationer

11. Garanti og support

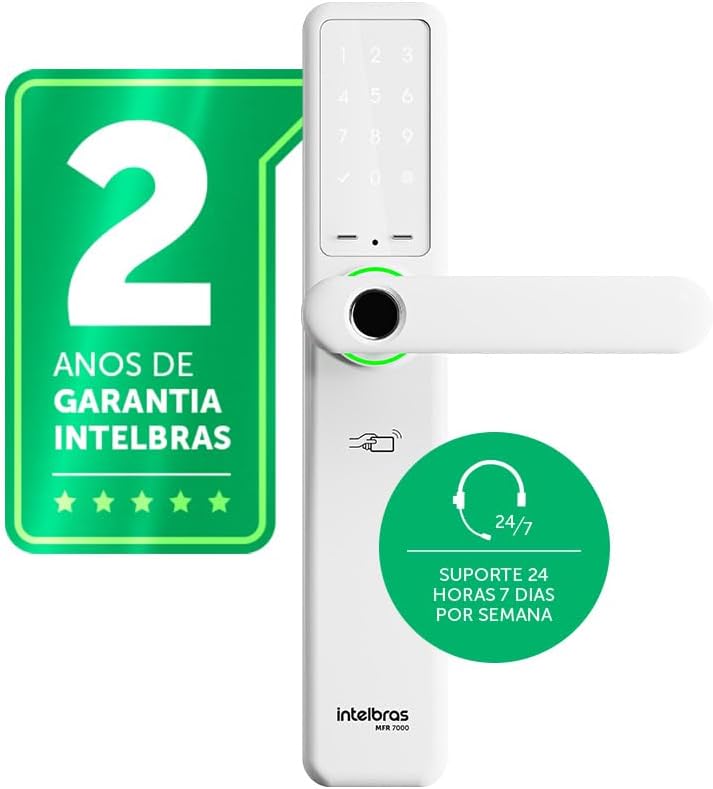

• Garanti: The Intelbras MFR 7000 Smart Embedded Deadbolt comes with a 2 års Intelbras-garantiGem venligst din købsbevis i tilfælde af garantikrav.
• Teknisk support: Intelbras tilbyder 24/7 teknisk support for its products. For assistance, please refer to the contact information provided on the Intelbras official website or your regional support channels.
• Online ressourcer: Visit the official Intelbras website for updated manuals, FAQs, and additional support resources.
