Vigtige sikkerhedsoplysninger
Læs alle instruktioner, før du bruger apparatet. Følg alle sikkerhedsforanstaltninger for at mindske risikoen for brand, elektrisk stød eller personskade.
- Sørg for korrekt jording.
- Opbevar ikke eksplosive stoffer såsom spraydåser med et brændbart drivmiddel i dette apparat.
- Hold ventilationsåbninger fri af forhindringer.
- Brug ikke mekaniske anordninger eller andre midler til at fremskynde afrimningsprocessen, ud over dem, der anbefales af producenten.
- Beskadig ikke kølemiddelkredsløbet.
- Dette apparat er beregnet til at blive brugt i husholdninger og lignende applikationer.
- Tag stikket ud af køleskabet, før du rengør eller udfører vedligeholdelse.
Forslag 65 Advarsel: Dette produkt indeholder kemikalier, der af staten Californien vides at forårsage kræft og fødselsdefekter eller anden reproduktionsskade. For mere information, besøg www.P65Warnings.ca.gov.
Produkt overview
The CONTOURE R-1900SS is a 19.0 cu.ft. side-by-side refrigerator designed for RV use, featuring efficient ultra-fast cooling, LED lighting, and a stainless steel look.

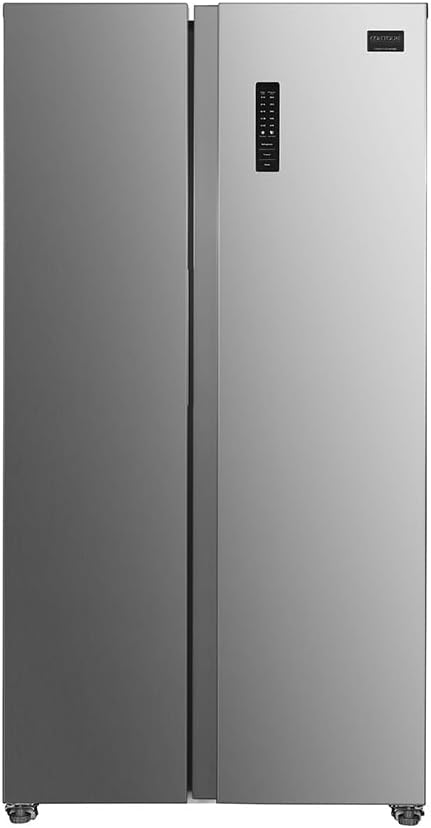

Front view of the CONTOURE R-1900SS RV Side-by-Side Refrigerator, showcasing its stainless steel finish and integrated control panel.
Nøglefunktioner:
- Spacious Side-by-Side Design: 19.0 cu.ft. capacity for fresh and frozen essentials.
- Rapid-Cooling Technology: Ensures optimal temperature without start-up delays.
- ForeverFresh Crisper: Built-in crisper and storage drawers to extend produce freshness.
- Justerbare hylder: Edge-to-edge adjustable shelves for versatile storage.
- Sleek Stainless Steel Look: Modern aesthetic with an integrated handle design.
Opsætning og installation
Udpakning:
- Fjern alle emballagematerialer, inklusive skum og tape.
- Undersøg køleskabet for eventuelle transportskader. Rapporter eventuelle skader straks til forhandleren.
- Clean the interior and exterior surfaces with a soft cloth and mild detergent before use.
Placeringskrav:
- Place the refrigerator on a level, stable surface capable of supporting its weight (approximately 196 lbs).
- Ensure adequate clearance around the unit for proper ventilation.
- Undgå direkte sollys eller varmekilder.
Diagram showing the dimensions of the CONTOURE R-1900SS refrigerator: approximately 35 1/16" width, 69 3/8" height, and 26 3/16" depth.
Elektrisk tilslutning:
- Connect the refrigerator to a dedicated 115 Volt, 60 Hz, AC-only electrical outlet.
- Brug ikke forlængerledninger eller ujordede adaptere.
- Ensure the electrical supply is properly grounded.
Betjeningsvejledning
Indledende opstart:
- After positioning and connecting to power, allow the refrigerator to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle.
- Plug in the refrigerator. The internal lights will illuminate, and the compressor will start.
- Allow the refrigerator to operate for 24 hours empty to reach stable operating temperatures before loading with food.
Temperaturkontrol:
The refrigerator features an electronic control panel for temperature adjustment. Refer to the control panel image for button layout.
Close-up of the integrated control panel on the refrigerator door, used for temperature settings and other functions.
- Use the temperature up/down buttons to set desired temperatures for the refrigerator and freezer compartments.
- Recommended refrigerator temperature: 37°F (3°C).
- Recommended freezer temperature: 0°F (-18°C).
Opbevaringsanbefalinger:
Indre view of the CONTOURE R-1900SS refrigerator, showing adjustable shelves, door compartments, and crisper drawers.
- Utilize the ForeverFresh Crisper drawers for fruits and vegetables to maintain freshness.
- Adjust shelves as needed to accommodate various item sizes.
- Do not block air vents inside the refrigerator to ensure proper air circulation.
Opretholdelse
Rensning:
- Indre: Clean regularly with a solution of mild soap and warm water. Rinse thoroughly and dry. Remove shelves and drawers for easier cleaning.
- Ydre: Wipe down with a soft cloth and mild detergent. For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain.
- Dørpakninger: Clean door gaskets with warm water and mild soap to ensure a proper seal.
- Kondensator spoler: Periodically vacuum the condenser coils at the back or bottom of the refrigerator to maintain efficiency. Unplug the unit before cleaning coils.
afrimning:
This refrigerator features a frost-free system, eliminating the need for manual defrosting. However, ensure proper airflow is maintained for optimal performance.
Fejlfinding
Før du kontakter service,view følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Køleskabet fungerer ikke. | Ikke tilsluttet; afbryder udløst; strømafbrydelsetage. | Sørg for, at stikket er sikkert fastgjort; nulstil afbryderen; kontroller husholdningens strøm. |
| Temperaturen er for varm. | Door left open; large amount of warm food added; temperature setting too high; poor ventilation. | Check door seal; allow time for cooling after adding food; adjust temperature setting; ensure proper clearance. |
| Usædvanlige lyde. | Køleskabet er ikke i vater; genstande vibrerer indeni; normale driftslyde. | Level the unit; rearrange items; gurgling/hissing sounds are normal refrigerant flow. |
| Excessive frost buildup (freezer). | Door left open; door gasket not sealing; frequent door openings. | Ensure door is closed properly; clean/inspect gasket; minimize door openings. |
Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | KONTOUR |
| Model | R-1900SS |
| Kapacitet | 19.0 Kubikfod |
| Installationstype | Frit stående |
| Formfaktor | Side om side |
| Farve | Rustfrit stål-look |
| Voltage | 115 volt |
| Optøningssystem | Frostfri |
| Antal døre | 2 |
| Varens vægt | 196 pund |
| Produktmål (dybde x bredde x højde) | 73.25" D x 38" B x 28.25" H |
Garanti og support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official CONTOURE webwebsted.
CONTOURE Customer Support:
- Online support: Besøg CONTOURE-butikken på Amazon
- For further assistance, please contact CONTOURE directly.
