WAINLUX K10 3W Mini lasergraveringsmaskine brugermanual

1. Sikkerhedsoplysninger

Please read all safety instructions carefully before operating the WAINLUX K10 laser engraving machine. Failure to follow these instructions may result in injury or damage to the device.

• Øjenbeskyttelse: The machine features an eye-friendly shield and laser filtering. However, always ensure the shield is properly closed during operation. Avoid direct exposure to the laser beam.
• Vedlagt design: The WAINLUX K10 is designed with a fully enclosed structure to enhance safety.
• Automatic Stop Features:
  • Micro-open Induction Safety Protection: The laser engraving machine will automatically stop operation immediately if the protective lid is opened during engraving.
  • Tilt Induction Safety Protection: If the machine's angle relative to the horizontal plane exceeds 13(±5°) for more than 1 second, the laser will stop working immediately.
• Ventilation: The machine includes a built-in fan for smoke extraction. Ensure proper ventilation in your workspace.
• Materiale kompatibilitet: This laser engraver is suitable for materials such as wood, plastic, leather, parchment, plywood, painted metal, and black plastic. Do not engrave or cut white, transparent, or reflective materials directly as the laser may not interact with them effectively or could cause unexpected reflections.
• Brandfarlige materialer: Keep flammable materials away from the engraving area.
• Overvågning: Efterlad ikke maskinen uden opsyn under drift.

Image: Micro-open Induction Safety Protection Design. The machine stops when the lid is opened.

Image: Tilt Induction Safety Protection Design. The machine stops if tilted beyond a safe angle.

Billede: Overview of multiple security protections including anti-blue light shield and built-in fan.

2. Produktet er slutview

The WAINLUX K10 is a compact and versatile 3W mini laser engraving machine designed for various creative and practical applications. It offers high precision and multiple connectivity options.

Nøglefunktioner:

• Kompakt størrelse: Measuring 27 x 27 x 14 cm, it is highly portable and suitable for various environments.
• Laser modul: Features a 3W compressed spot laser module with 24W input power.
• Høj nøjagtighed: Achieves an engraving accuracy of 0.01 mm for detailed results.
• Graveringsområde: Provides an 80 mm x 80 mm engraving range.
• Graveringshastighed: Capable of speeds up to 3000 mm/min.
• Forbindelse: Supports Bluetooth connection via a mobile app (Android/iOS) and USB connection to Windows or Mac computers.
• Understøttet File Formater: JPG, BMP, PNG, PEG, GIF, PLT, XJ, HPGL, DXF.
• Engraving Modes: Black and white, discrete, and contour.

Understøttede materialer:

The WAINLUX K10 can engrave a wide range of materials, including:

• Wood chips, Plywood, Bamboo
• Plastic, Black Plastic
• Leather, Parchment
• Coated Metal (painted metal surfaces)
• Cardboard, Paper
• Silica Gel
• Skifer
• Ceramic, Glass (with preparation, see Operating Instructions)
• Akryl
• Mad

It can also be used as a laser cutter for parchment up to 0.5 mm thick.

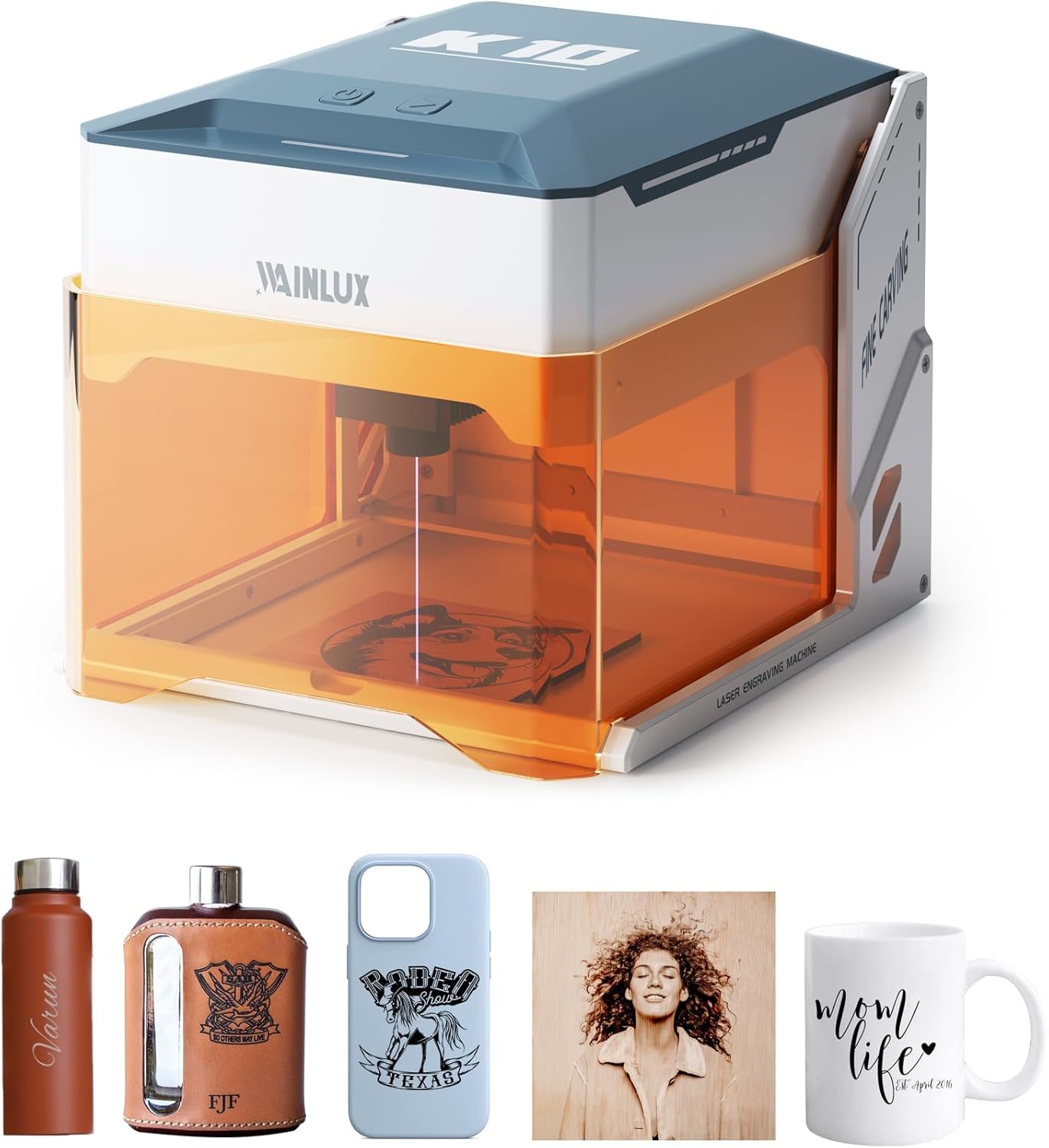

Image: The WAINLUX K10 laser engraver shown with various engraved items like a water bottle, flask, phone case, and mug.

Image: Demonstrates the compact size and capability of the K10, with a laptop displaying design software.

Billede: Eksamples of unique designs engraved on different materials such as cardboard, plywood, bamboo, leather, slate, and glass.

3. Opsætning

Follow these steps to set up your WAINLUX K10 laser engraving machine.

Pakkeindhold:

Verify that all standard parts are included in your package:

• WAINLUX K10 Laser Engraver (3W)
• Brugermanual
• Strømforsyning
• Type-C kabel
• Maker Pen
• Wood Board *2
• Brush Kraft Paper *2
• Skruenøgle

Optional parts (sold separately) may include an Air Purifier and an Engraving Positioning Module.

Image: The WAINLUX K10 machine along with its standard accessories and optional parts.

Indledende opsætning:

1. Placering: Place the WAINLUX K10 on a stable, level surface in a well-ventilated area.
2. Strømtilslutning: Connect the power supply to the machine and plug it into a suitable power outlet.
3. Enhedsforbindelse:
   • Bluetooth (Mobile App): Download the official WAINLUX app on your Android or iOS mobile phone. Enable Bluetooth on your phone and pair it with the K10 machine.
   • USB (Computer): Connect the machine to your Windows or Mac computer using the provided Type-C USB cable.
4. Software/App Installation: Install the WAINLUX application on your mobile device or the recommended software (e.g., CutlabX, LightBurn, LaserGRBL) on your computer. The application is free and supports various file formater.

Image: Demonstrates easy height adjustment for accommodating larger items or rotary attachments (not included).

4. Betjeningsvejledning

This section outlines the general steps for operating your WAINLUX K10 laser engraver.

Basic Engraving Process:

1. Forbered materiale: Place the material you wish to engrave inside the machine's engraving area. Ensure it is flat and securely positioned.
2. Tilslut enhed: Ensure your mobile phone or computer is connected to the K10 via Bluetooth or USB.
3. Open Software/App: Launch the WAINLUX app or your chosen engraving software (e.g., CutlabX, LightBurn, LaserGRBL).
4. Import/Create Design: Import your desired image or design into the software. The app supports various image formats like JPG, BMP, PNG, etc.
5. Juster parametre: Set engraving parameters such as power, speed, and engraving mode (black and white, discrete, or contour) based on your material and desired outcome. Refer to the software's guide for detailed parameter settings.
6. Preview (hvis tilgængelig): Brug preview funktion til at sikre, at designet er korrekt placeret på dit materiale.
7. Start gravering: Close the protective lid and initiate the engraving process from the software/app. The machine will begin engraving.
8. Overvåg fremskridt: Observe the engraving process through the eye-friendly shield. The machine will automatically stop if the lid is opened or if it is tilted.
9. Færdiggørelse: Once engraving is complete, the machine will stop. Carefully remove your engraved item.

Engraving on Glass (Example):

For engraving on transparent materials like glass, a preparatory step is often required:

1. Soak Colored Paper: Soak a piece of colored paper (e.g., black) in water.
2. Glue to Glass: Carefully glue the wet colored paper to the surface of the glass where you intend to engrave. This provides a surface for the laser to interact with.
3. Mobile App Design: Use the mobile app to design or import your engraving pattern.
4. Engrave: Place the prepared glass inside the machine and start the engraving process. The laser will engrave through the paper onto the glass.

Image: Step-by-step guide for engraving on glass, showing preparation with colored paper and the final engraved result.

5. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your WAINLUX K10 laser engraver.

• Rengøring af linsen: Periodically inspect the laser lens for dust or debris. Use a soft, lint-free cloth and a small amount of lens cleaning solution (if recommended by manufacturer, otherwise dry clean) to gently wipe the lens.
• Rengøring af graveringsområdet: After each use, clear any debris, dust, or small material scraps from the engraving platform and surrounding area. A small brush or vacuum can be used.
• Rengøring af ventilator: The built-in fan helps extract smoke and fumes. Over time, dust may accumulate. Gently clean the fan vents to ensure proper airflow.
• Udvendig rengøring: Tør maskinens ydre af med en blød, damp klæde. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler.
• Opbevaring: When not in use, store the machine in a clean, dry environment away from direct sunlight and extreme temperatures.

6. Fejlfinding

If you encounter issues with your WAINLUX K10, refer to the following common problems and solutions.

Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport for yderligere assistance.

7. Specifikationer

8. Garanti og support

WAINLUX is committed to providing quality products and excellent customer service.

• Kvalitetssikring: The WAINLUX K10 laser engraving machine undergoes rigorous quality checks to ensure performance and reliability.
• Kundeservice: A professional customer service team is available to assist you with any pre-sales inquiries or post-purchase issues.
• Støtte: For product services, technical support, or warranty information, please refer to the official support website or contact customer service directly. Contact details can typically be found in the product packaging or on the manufacturer's webwebsted.
