1. Introduktion
This manual provides essential information for the safe and efficient operation of your Fisher Inverter Split Air Conditioner, model FSACQD-XF18HIB. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Fisher FSACQD-XF18HIB is an 18000 BTU inverter split air conditioner designed for both heating and cooling, featuring Wi-Fi control for enhanced convenience.
2. Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af enheden.
- Ensure the power supply matches the unit's specifications (220V-1Ph-50/60Hz).
- Do not attempt to install or repair the unit yourself. Contact qualified service personnel.
- Hold området omkring udendørsenheden fri for forhindringer.
- Stik ikke genstande ind i luftudløbet eller -indtaget.
- If abnormal operation occurs (e.g., strange sounds, smell), immediately turn off the unit and disconnect power.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- Indendørsenhed
- Udendørsenhed
- Fjernbetjening
- Brugervejledning (dette dokument)
- Installation Kit (pipes, cables, etc. - typically provided by installer, not included with the product)
4. Produktet er slutview
The Fisher FSACQD-XF18HIB consists of an indoor unit and an outdoor unit, controlled by a wireless remote control. Key features include inverter technology, hot/cold functionality, and Wi-Fi connectivity.
4.1 Indoor and Outdoor Units
Figur 4.1: Fisher Inverter Split Air Conditioner, showing both the indoor unit (top) and the outdoor unit (bottom) with the energy efficiency label visible on both.
The indoor unit is designed for wall mounting and distributes conditioned air. The outdoor unit houses the compressor and condenser coil.
4.2 Fjernbetjening
Figur 4.2: Wireless remote control for the Fisher Air Conditioner. It features buttons for mode selection, fan speed, temperature adjustment, swing, timer, sleep, health, iClean, anti-fungus, and display functions, along with an LCD screen showing current settings.
The remote control allows you to adjust various settings such as operating mode, temperature, fan speed, and timer functions. Refer to the "Operating Instructions" section for detailed usage.
5. Opsætning og installation
This air conditioner is designed for professional installation. The product is sold "Without Installation," meaning installation services are not included with the purchase. It is crucial to engage a qualified and certified technician for the installation process to ensure proper functioning, safety, and warranty validity.
5.1 Kontrol før installation
- Beliggenhed: Ensure suitable locations for both indoor and outdoor units, considering air circulation, drainage, and noise levels.
- Strømforsyning: Confirm a dedicated 220V-1Ph-50/60Hz power outlet is available and meets the unit's requirements.
- Strukturel integritet: Verify that the wall or mounting surface can support the weight of the indoor unit.
5.2 Professionelle installationstrin (overview for User Awareness)
- Mounting the indoor unit plate.
- Drilling a hole for piping.
- Connecting refrigerant pipes and drain hose.
- Wiring electrical connections.
- Mounting the outdoor unit.
- Vacuuming and charging the refrigerant system.
- Performing a test run.
Vigtig: Improper installation can lead to refrigerant leakage, electric shock, fire, or other hazards. Always rely on certified professionals.
6. Betjeningsvejledning
This section details how to use the remote control to operate your air conditioner.
6.1 Grundlæggende betjening
- Tænd/sluk: Tryk på ON/OFF knappen på fjernbetjeningen.
- Valg af tilstand: Tryk på MODE button to cycle through modes: AUTO, COOL, DRY, HEAT, FAN.
- Temperaturjustering: Brug UP og NED arrow buttons to set the desired temperature.
- Blæserhastighed: Tryk på HASTIGHED button to select fan speed: AUTO, LOW, MID, HIGH.
6.2 avancerede funktioner
- Swing funktion: Trykke SWING for at justere den lodrette luftstrømsretning.
- Timer funktion: Brug TIMER button to set the unit to turn on or off automatically after a specified period.
- Sove mode: Activates a quiet operation mode with gradual temperature adjustments for comfortable sleep.
- iClean Function: Initiates a self-cleaning cycle for the indoor unit.
- Wi-Fi kontrol: The unit supports Wi-Fi connectivity. Refer to the separate Wi-Fi setup guide (if provided) or the manufacturer's app instructions for pairing and remote control via smartphone.
7. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på dit klimaanlæg.
7.1 Rengøring af luftfilter
Clean the air filters every two weeks or more frequently depending on usage and air quality.
- Sluk enheden og afbryd strømmen.
- Åbn frontpanelet på indendørsenheden.
- Fjern luftfiltrene.
- Clean filters with a vacuum cleaner or wash them with lukewarm water and mild detergent.
- Lad filtrene tørre helt, før de sættes i igen.
- Luk frontpanelet.
7.2 Rengøring af udendørsenhed
Periodically check the outdoor unit for debris (leaves, dust) and clear any obstructions from the coils and fan blades. This should be done by a professional during annual servicing.
7.3 Sæsonbestemte kontroller
- Before the cooling season, ensure the outdoor unit is clear and filters are clean.
- Before the heating season, check for proper drainage and ensure no blockages.
8. Fejlfinding
Før du kontakter service,view følgende almindelige problemer og løsninger.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden starter ikke | No power; remote control batteries low; timer set. | Check power supply; replace batteries; cancel timer. |
| Utilstrækkelig køling/opvarmning | Dirty air filters; blocked outdoor unit; wrong mode/temperature setting; room too large. | Clean filters; clear obstructions; adjust settings; consider room size. |
| Usædvanlig støj | Løse dele; fremmedlegemer i ventilator; enhed ikke i vater. | Turn off and inspect; contact service if persistent. |
| Vandlækage fra indendørsenhed | Tilstoppet afløbsslange; forkert installation. | Rens afløbsslangen; kontakt installatøren for inspektion. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, skal du kontakte kvalificeret servicepersonale.
9. Specifikationer
Technical specifications for the Fisher Inverter Split Air Conditioner FSACQD-XF18HIB.
| Feature | Specifikation |
|---|---|
| Modelnummer | FSACQD-XF18HIB |
| Type | Inverter Split klimaanlæg |
| Fungere | Varm/kold |
| Kølekapacitet | 18000 BTU (5.28 kW) |
| Varmekapacitet | 4.9 kW |
| Strømforsyning | 220V-1Ph-50/60Hz |
| Kompressor type | Roterende inverter |
| Kølemiddel | R-410A |
| Støjniveau (indendørs) | 46 decibel (maks.) |
| Særlige funktioner | Fast Cooling, Inverter Compressor, Remote Controlled, Wi-Fi Control, Puri Clean, Silence, Freeze-Prevention, Self Clean, 57°C High Temperature Sterilization |
| Dimensions (Indoor Unit) | Ca. 100 cm (B) x 32 cm (H) x 22 cm (D) |
| Dimensions (Outdoor Unit) | Ca. 85 cm (B) x 60 cm (H) x 30 cm (D) |
| Varens vægt | 51 kg (Total) |
Note: Indoor and Outdoor unit dimensions are approximate based on typical 18000 BTU split AC units.
Energy Efficiency Label:

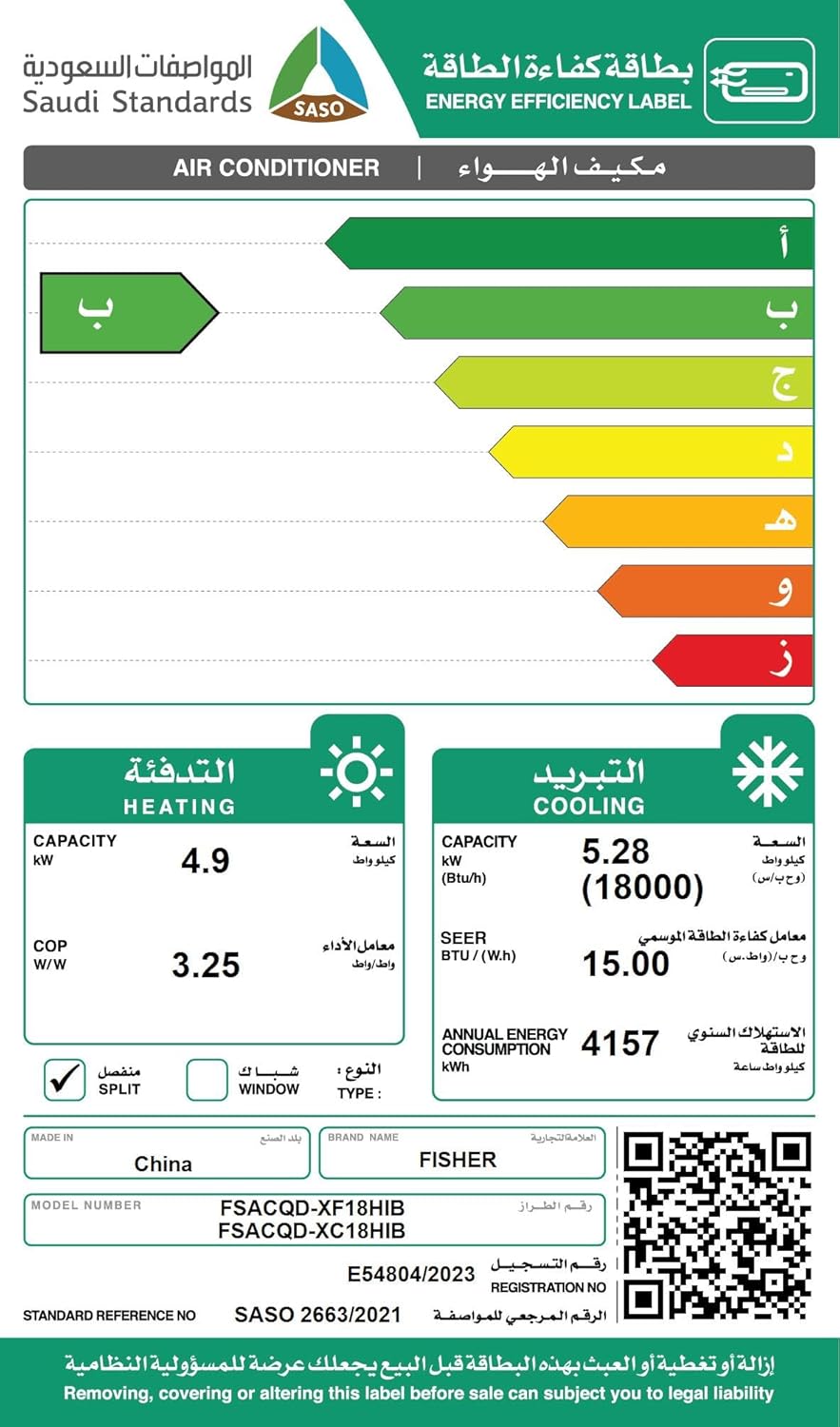

Figur 9.1: Saudi Standards Energy Efficiency Label for the Fisher FSACQD-XF18HIB air conditioner. It displays the energy efficiency rating, cooling and heating capacities, SEER, COP, and annual energy consumption. The label indicates a cooling capacity of 5.28 kW (18000 BTU) and an annual energy consumption of 4157 kWh.
For verification of the energy efficiency certificate, visit: Saudi Standards Energy Efficiency Certificate Authentication
10. Garanti og support
For warranty information, please refer to the warranty card included with your product or contact Fisher customer service. Keep your purchase receipt as proof of purchase.
For technical support, service requests, or inquiries, please contact your local Fisher authorized service center or the retailer from whom you purchased the unit.
