1. Introduktion
This instruction manual provides comprehensive guidance for the safe and efficient operation, installation, maintenance, and troubleshooting of your PAKROMAN Commercial Ice Maker, Model FASK39C. Please read this manual thoroughly before operating the appliance and retain it for future reference.

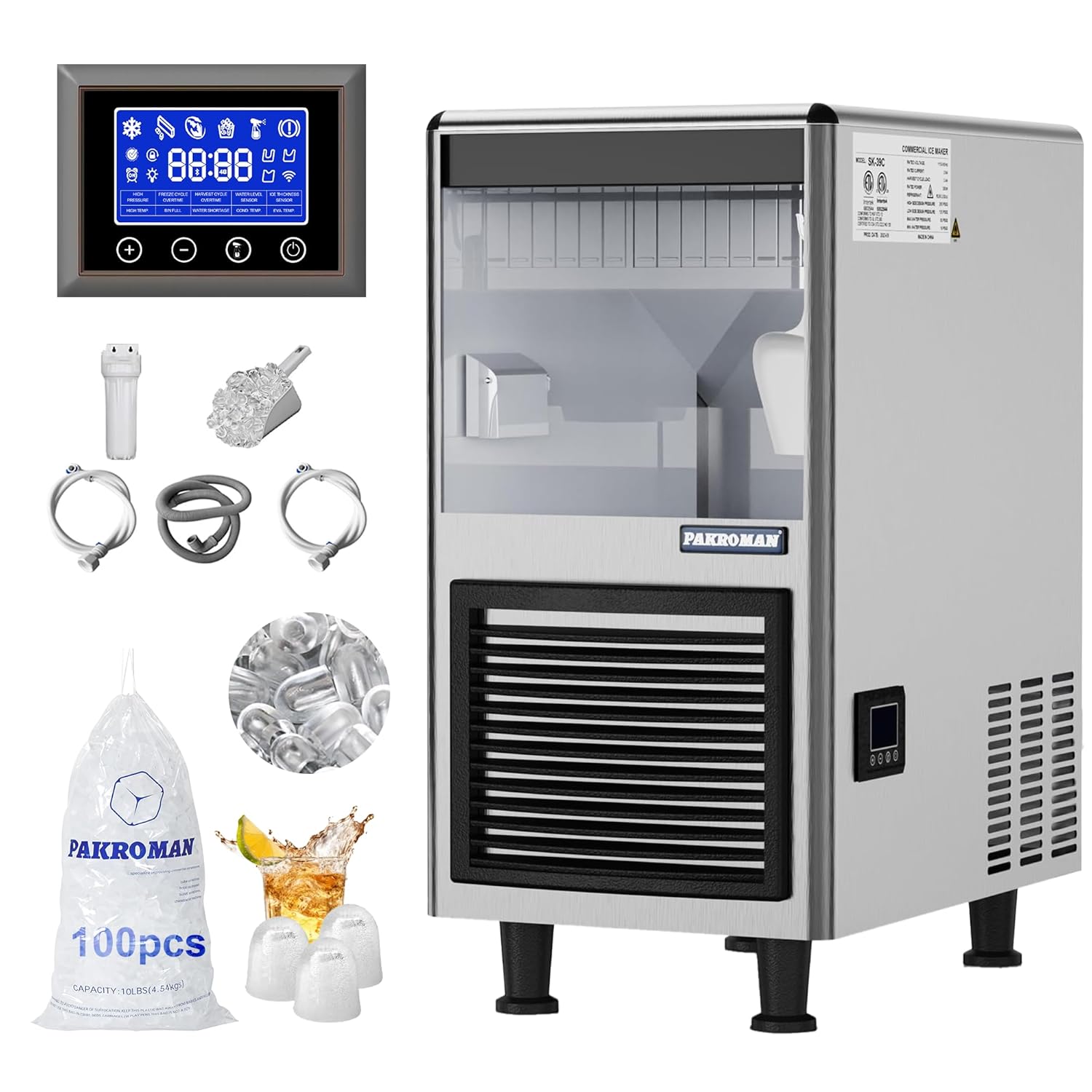

Figure 1.1: PAKROMAN Commercial Ice Maker Model FASK39C and included accessories.
2. Sikkerhedsoplysninger
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af apparatet.
- Ensure the ice maker is connected to a grounded power outlet with the correct voltage.
- Betjen ikke apparatet med en beskadiget netledning eller stik.
- Hold ventilationsåbningerne fri af forhindringer.
- Opbevar ikke eksplosive stoffer såsom spraydåser med et brændbart drivmiddel i dette apparat.
- Only qualified personnel should perform repairs or servicing.
- Afbryd strømforsyningen før rengøring eller vedligeholdelse.
- Dette apparat er designet til kommerciel brug.
3. Hvad er der i æsken
Ved udpakning skal du kontrollere, at alle komponenter er til stede:
- Commercial Ice Maker Unit
- Is Scoop
- Vandfilter
- Vandtilførselsslange
- Afløbsslange
- Slange Clamps
- Instruktionsmanual
4. Produktfunktioner
The PAKROMAN Commercial Ice Maker FASK39C is engineered for high performance and reliability:
- Kompakt design: Designed to fit comfortably under most counters, with a width of 14.8 inches, ideal for space-limited establishments.
- High Ice Production & Storage: Capable of producing up to 90 pounds of bullet ice per 24 hours, with a storage bin capacity of up to 35 pounds, ensuring a continuous supply of ice.
- Bullet Ice: Produces bullet-shaped ice cubes that are approximately 2 times larger than standard cube ice. This ice cools beverages quickly and is easy to chew, suitable for cocktails and bagged ice.
- Luftkølet system: Features an efficient air-cooled system that conserves water while maintaining optimal ice-making performance.
- Certificeringer: Energy Star certified for energy efficiency and ETL certified for sanitation standards, ensuring high quality and safety.

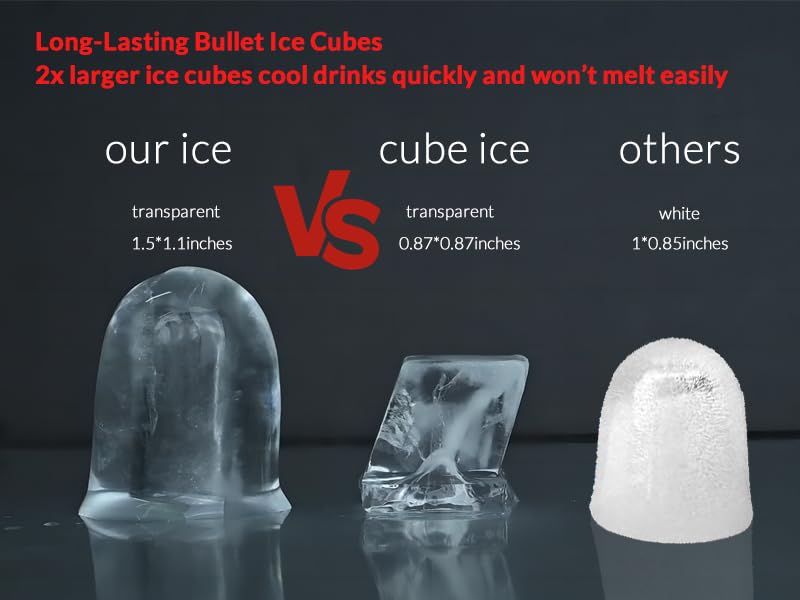

Figure 4.1: Comparison illustrating the larger size and transparency of PAKROMAN bullet ice compared to standard cube ice.
Figure 4.2: Detail of bullet ice dimensions, showing 1 1/2 inch length and 1 1/10 inch width.
5. Opsætning og installation
Proper installation is crucial for the performance and longevity of your ice maker. Follow these steps carefully:
- Udpakning: Tag forsigtigt ismaskinen ud af emballagen. Undersøg den for eventuelle forsendelsesskader.
- Placering: Position the ice maker on a flat, stable surface. Ensure adequate clearance around the unit for proper air circulation, especially at the rear and sides where ventilation grilles are located.
- Vandtilslutning: Connect the water inlet hose to a potable water supply. Install the included water filter in line with the water supply to ensure clean ice production. Connect the other end of the water inlet hose to the designated water inlet on the back of the ice maker.
- Afløbstilslutning: Connect the drain hose to the water outlet (pre-installed) on the back of the unit. Route the drain hose to a suitable floor drain or sink, ensuring a continuous downward slope for proper drainage.
- Strømtilslutning: Plug the power cord into a dedicated, grounded electrical outlet. Ensure the voltage opfylder apparatets krav.
Figur 5.1: Bagside view of the ice maker, highlighting the power cord, water inlet, and pre-installed water outlet for fast installation.
6. Betjeningsvejledning
Gør dig bekendt med kontrolpanelet for effektiv betjening.
Figure 6.1: Straightforward control panel with four operation buttons: Power (⏻), Self-cleaning (Ὣf;), Adjust data +, and Adjust data -.
6.1 Første opstart
- Efter tilslutning af vand og strøm, tryk på Magt knap (⏻) for at tænde enheden.
- The machine will automatically begin the ice-making cycle. The display will show the current status and time.
6.2 Isproduktion
The ice maker produces up to 90 pounds of bullet ice per 24 hours. Each ice-making cycle typically takes 11-18 minutes. The storage bin can hold up to 35 pounds of ice. The machine will automatically stop when the ice bin is full and resume when ice is removed.
6.3 Justering af indstillinger
Brug + og - buttons to adjust default data or settings as indicated on the control panel display. Refer to the display icons for specific adjustments such as ice thickness or cycle duration, if applicable.
6.4 Selvrensende funktion
To initiate the self-cleaning cycle, press the Selvrensende knap (🚿). Follow any on-screen prompts. This function helps maintain hygiene and efficiency.
7. Vedligeholdelse og rengøring
Regular maintenance ensures optimal performance and extends the lifespan of your ice maker.
7.1 Daglig rengøring
- Tør enhedens yderside af med en blød, tør klud.amp klæde.
- Clean the ice storage bin with a mild detergent and rinse thoroughly.
- Ensure the ice scoop is clean before use.
7.2 Ugentlig/hver anden ugentlig rengøring
- Run the self-cleaning cycle as described in Section 6.4.
- Inspect and clean the air filter located on the front grille. Remove the filter and wash it with warm, soapy water. Allow it to dry completely before reinserting.
Figure 7.1: Removing the air filter for cleaning.
7.3 Monthly/Quarterly Maintenance
- Udskiftning af vandfilter: Replace the water filter every 3-6 months, or more frequently depending on water quality and usage, to ensure optimal ice quality and prevent scale buildup.
- Rengøring af kondensatorspole: Periodically clean the condenser coils at the back of the unit using a brush or vacuum cleaner to remove dust and debris. This improves efficiency and prevents overheating.
- Drain System Check: Ensure the drain hose is free of kinks and blockages. Clean the drain pan if necessary.
Figure 7.2: Internal water pump component, which should be checked for cleanliness during maintenance.
Figure 7.3: The compressor unit, a key component for ice production, requires proper ventilation and occasional inspection.
8. Fejlfinding
Se dette afsnit for almindelige problemer og løsninger. Hvis problemet fortsætter, skal du kontakte kundesupport.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ismaskinen producerer ikke is. | No water supply; clogged water filter; power issue; high ambient temperature. | Check water connection and supply valve; replace water filter; ensure power cord is securely plugged in; move unit to a cooler environment. |
| Isproduktionen er langsom. | Dirty condenser coils; high ambient temperature; low water pressure. | Clean condenser coils; ensure proper ventilation; check water supply pressure. |
| Isterninger er små eller hule. | Low water flow; dirty evaporator; water quality issues. | Check water supply and filter; clean the evaporator plate; consider water treatment if water quality is poor. |
| Enheden lækker vand. | Loose drain hose connection; clogged drain; damaged water line. | Secure drain hose connections; clear any drain blockages; inspect water lines for damage. |
| Usædvanlig støj under drift. | Løse komponenter; blokering af ventilator; problem med kompressor. | Check for loose parts; ensure fan is clear; if compressor noise persists, contact service. |
9. Specifikationer
Key technical specifications for the PAKROMAN Commercial Ice Maker FASK39C:
| Attribut | Værdi |
|---|---|
| Modelnummer | FASK39C |
| Mærke | PAKROMAN |
| Produktmål (D x B x H) | 13" D x 14.8" B x 25" H |
| Isproduktionskapacitet | Op til 90 kg / 24 timer |
| Isopbevaringskapacitet | Op til 35 lbs |
| Wattage | 380 watt |
| Is Type | Bullet Ice (approx. 1.5" x 1.1") |
| Kølesystem | Luftkølet |
| Certificeringer | Energy Star, ETL Certified |
| Første ledige dato | 30. januar 2024 |
Figur 9.1: Dimensionel overview of the PAKROMAN Commercial Ice Maker.
10. Garanti og support
For warranty information or technical support, please contact PAKROMAN customer service. Keep your purchase receipt and model number handy for faster service.
You can visit the official PAKROMAN store for more information and support: PAKROMAN Store on Amazon.
