Pro-Line Racing Coyote Grande Clear Body PRO362500 Brugsanvisning

1. Introduktion

This manual provides instructions for the Pro-Line Racing Coyote Grande Clear Body, model PRO362500. This body is designed for 12.3" (313mm) wheelbase Class 2 and Class 3 scale crawlers. It features an SUV-inspired design with a pinched front end, dove-tailed rear, and wheel arches optimized for tire clearance up to 4.85" without trimming. Short overhangs contribute to improved approach and departure angles for crawling performance.

Image: The Coyote Grande Clear Body, painted and mounted on a remote-controlled crawler, demonstrating its fit and appearance during operation on a rocky surface.

2. Sikkerhedsoplysninger

ADVARSEL: Læs HELE instruktionsmanualen for at blive fortrolig med produktets funktioner, før du bruger det. Manglende korrekt betjening af produktet kan resultere i skader på produktet, personlige ejendele og forårsage alvorlig personskade.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. The product manual contains instructions for safety, operation, and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup, or use, in order to operate correctly and avoid damage or serious injury.

3. Opsætning og montering

The Coyote Grande Clear Body requires preparation, painting, and trimming before installation on your RC crawler chassis. Detailed assembly and painting instructions are included with the product.

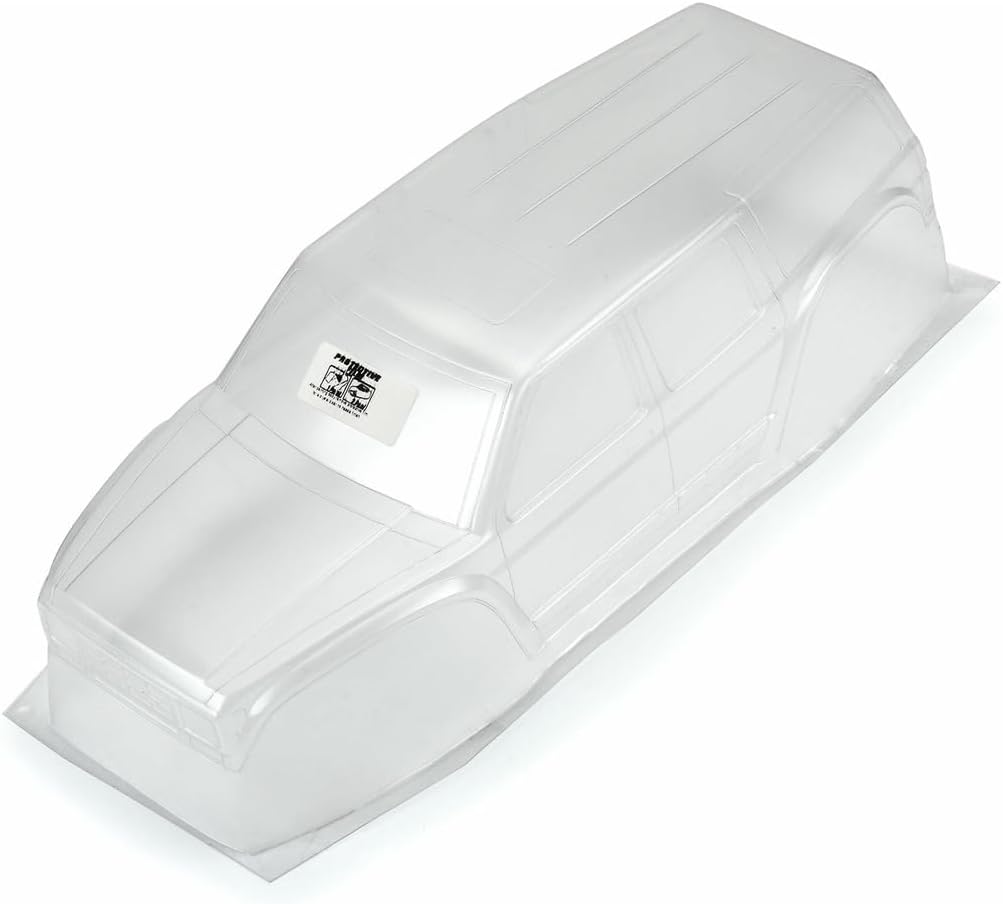

Image: The clear, unpainted Pro-Line Coyote Grande body as it appears out of the packaging, ready for trimming and customization.

3.1 Preparation Steps:

1. Inspect the Body: Carefully remove the clear body from its packaging and inspect for any manufacturing imperfections.
2. Trim the Body: Using sharp hobby scissors or a body reamer, carefully trim the body along the molded cut lines. Pay close attention to wheel wells, front and rear bumpers, and body post holes.
3. Wash the Body: Before painting, wash the inside of the body with mild soap and water to remove any mold release agents or oils. Rinse thoroughly and allow to air dry completely.
4. Maskering: Apply masking tape to areas you do not wish to paint, such as windows. Use liquid mask for intricate designs if desired.

3.2 Painting:

• Use polycarbonate-specific (Lexan) paints.
• Apply paint to the indenfor of the body for durability and a glossy finish.
• Apply multiple thin coats rather than one thick coat to prevent runs and ensure even coverage.
• Allow each coat to dry thoroughly before applying the next.

3.3 Montering:

• Once painted and fully dry, remove all masking.
• Align the body with your 12.3" (313mm) wheelbase chassis.
• Mark and drill body post holes if not already present.
• Secure the body to the chassis using body clips.

4. Driftsmæssige overvejelser

When operating your RC crawler with the Coyote Grande body, ensure that the body is securely mounted to prevent detachment during use. While designed for durability, extreme impacts can cause damage. The body's design provides optimal clearance for tires up to 4.85 inches, enhancing crawling performance.

5. Vedligeholdelse

• Rensning: Clean the body with mild soap and water. Avoid harsh chemicals that may damage the paint or polycarbonate material.
• Inspektion: Regularly inspect the body for cracks or damage, especially after rigorous use. Small cracks can often be repaired with polycarbonate-compatible adhesives or tape from the inside.
• Opbevaring: Store the body in a cool, dry place away from direct sunlight to prevent material degradation and paint fading.

6. Fejlfinding

• Body Not Fitting Chassis: Ensure your chassis has a 12.3" (313mm) wheelbase. Adjust body post height and position as needed. Some chassis may require minor modifications for optimal fit.
• Paint Peeling/Flaking: This often occurs if the body was not properly cleaned before painting, or if non-polycarbonate paint was used. Ensure proper preparation and use appropriate paints.
• Cracks Developing: Polycarbonate bodies are durable but not indestructible. Reinforce high-stress areas (e.g., body post holes, corners) with Shoo Goo or similar flexible adhesive from the inside to prevent cracks.

7. Specifikationer

8. Hvad er der i æsken

• Coyote Grande Clear Body for 12.3" (313mm) Wheelbase Scale Crawlers

9. Garanti og support

For warranty information or technical support regarding your Pro-Line Racing Coyote Grande Clear Body, please contact the manufacturer, Horizon Hobby. Refer to the packaging or their official website for the most current contact details and warranty policies.
