Craftsman 46-inch Gas Zero-Turn Riding Lawn Mower (Model 17ARFACT093) User Manual

1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and care of your Craftsman 46-inch Gas Zero-Turn Riding Lawn Mower. This model is equipped with a 22.0 HP* Kohler 7000 Series Engine and a dual hydrostatic transmission, designed for effective lawn maintenance.

Nøglefunktioner omfatter:

• 46-inch Zero-Turn Design: Engineered to reduce mowing time and effort.
• High-Performance 22 HP* Kohler 7000 Series Engine: Delivers consistent cutting power in various grass conditions.
• Holdbar konstruktion: Features a 46-inch stamped steel deck and robust steel frame.
• Dual Hydrostatic Transmission: Provides smooth control and maneuverability.
• Twin-Cylinder Design: Ensures reliable starting in diverse temperatures.
• 20x8 Turf Master Tires: Offer enhanced traction control.
• Justerbar komfort: Includes 3 easily adjustable lap bar positions and a high-back seat for operator comfort.

*Horsepower (HP) information is provided by the engine manufacturer for comparison purposes only. Actual operating horsepower may vary.

Figur 1: Foran-venstre view of the Craftsman 46-inch Gas Zero-Turn Riding Lawn Mower.

2. Sikkerhedsoplysninger

Operating this lawn mower safely is crucial to prevent injury to yourself and others. Always read and understand all safety instructions before operating the machine.

• Keep hands and feet clear of the mowing area.
• Do not operate mower without proper safety equipment installed and functioning.
• Allow the engine to cool before refueling to prevent fire hazards.
• Keep children and pets away from the mowing area during operation.
• Avoid making sharp turns at high speeds, as this can lead to loss of control.
• Brug altid passende personlige værnemidler (PPE), herunder øjenbeskyttelse, høreværn og robust fodtøj.
• Brug aldrig plæneklipperen under påvirkning af alkohol eller narkotika.
• Inspect the area to be mowed for debris before starting.
• Gør dig bekendt med betjeningselementerne og nødstopprocedurerne.

3. Opsætning og montering

The Craftsman 46-inch Zero-Turn Mower requires some assembly upon delivery. Refer to the separate assembly guide included with your product for detailed instructions. General setup steps include:

1. Udtagning og inspektion: Carefully remove the mower from its packaging. Inspect for any shipping damage.
2. Wheel and Deck Assembly: Attach any wheels or deck components as specified in the assembly guide.
3. Batteriforbindelse: Connect the battery terminals. Ensure proper polarity.
4. Væskekontrol: Verify engine oil level, fuel level, and hydraulic fluid levels before first use.
5. Seat and Lap Bar Adjustment: Adjust the seat position and lap bars for comfortable and safe operation.
6. Dæktryk: Check and adjust tire pressure to recommended levels.

Figur 2: Forside og side views of the mower, illustrating its structure for assembly reference.

4. Betjeningsvejledning

Follow these steps for safe and effective operation of your zero-turn mower.

1. Kontrol før operation: Before each use, inspect the mower for loose parts, damaged blades, and proper fluid levels. Ensure all safety guards are in place.
2. Start af motor:
   • Sørg for, at parkeringsbremsen er aktiveret.
   • Placer PTO-håndtaget (kraftudtag) i frakoblet position.
   • Move the throttle to the "Choke" position (for cold starts) or "Fast" position (for warm starts).
   • Turn the ignition key to the "Start" position. Release when the engine starts.
   • Once started, move the throttle to the "Fast" position.
3. Engaging the Blades: With the engine running at full throttle and the mower stationary, slowly engage the PTO lever to start the cutting blades.
4. Kørsel og styring:
   • Slip parkeringsbremsen.
   • Use the lap bars to control direction and speed. Pushing both forward moves the mower forward; pulling both back moves it backward.
   • To turn, push one lap bar further forward than the other, or pull one back while pushing the other forward for zero-turn maneuvers.
   • Maintain a safe and controlled speed, especially on slopes or uneven terrain.
5. Standsning af plæneklipperen:
   • Disengage the PTO lever to stop the blades.
   • Move the throttle to the "Slow" or "Idle" position.
   • Aktiver parkeringsbremsen.
   • Turn the ignition key to the "Off" position.

Figure 3: The mower in operation, demonstrating its cutting capability.

5. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your Craftsman zero-turn mower. Refer to the "Mower Maintenance Guide" below for recommended parts and intervals.

Figure 4: Craftsman Mower Maintenance Guide. Refer to this guide for specific part numbers and recommended service intervals (As Needed, Every Season, Every 50 Hours).

Common Maintenance Items:

• AGM Battery: Check terminals and charge as needed. (Part: 725P17335)
• Motorolie: Check and change regularly. (Part: CMXGZAM00044)
• Brændstoffilter: Replace periodically. (Part: CMXGZAM202005)
• Drive Belt & Deck Belt: Inspect for wear and replace if necessary. (Drive Belt: CMXGZAM501069, Deck Belt: CMXGZAM501082)
• Blade: Inspect for sharpness and balance. Replace with High-Lift (CMXGZAM110192), Mulch (CMXGZAM110203), or Low-Lift / Sand Blades (CMXGZAM110199) as needed. Use Arnold Blade Removal Tool (490-850-0005) for safe replacement.
• Spindle Assembly: Inspect for proper function. (Part: 618P09395)
• Hjul: Check tire pressure and condition. (Front: 634-0566A, Rear: 634Z07264, Deck: CMXGZAM325073)

Vedhæftede filer og tilbehør:

Enhance your mower's versatility with official Craftsman attachments and accessories:

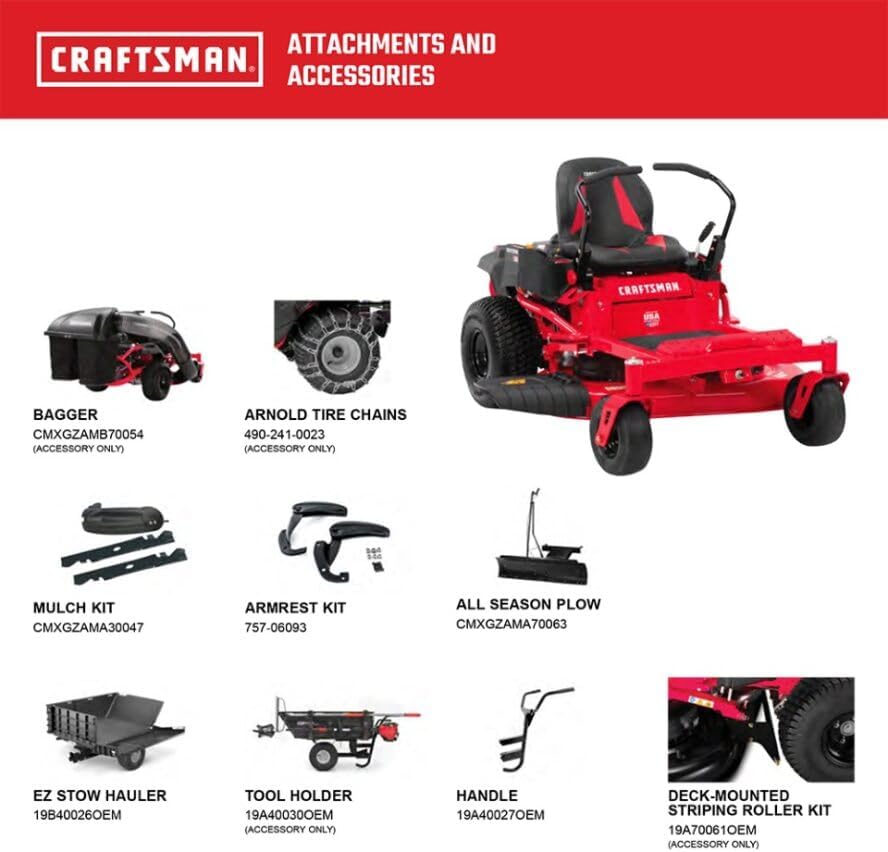

Figure 5: Craftsman Attachments and Accessories Guide. Optional accessories include a Bagger (CMXGZAMB70054), Mulch Kit (CMXGZAMA30047), Armrest Kit (757-06093), All Season Plow (CMXGZAMA70063), EZ Stow Hauler (19B40026OEM), Tool Holder (19A40030OEM), Handle (19A40027OEM), and Deck-Mounted Striping Roller Kit (19A70061OEM).

6. Fejlfinding

This section provides general guidance for common issues. For detailed troubleshooting, consult the full service manual or contact Craftsman customer support.

• Motoren starter ikke:
  • Tjek brændstofniveauet.
  • Ensure spark plug is clean and properly gapped.
  • Verify battery connections and charge.
  • Confirm PTO is disengaged and parking brake is set.
• Dårlig skærekvalitet:
  • Undersøg knivene for skarphed og skader.
  • Check deck level and tire pressure.
  • Ensure engine RPM is at full throttle during mowing.
• Mower Not Moving:
  • Verify parking brake is disengaged.
  • Check lap bar positions.
  • Ensure transmission is engaged (if applicable, though this model has hydrostatic).
• Overdreven vibration:
  • Check for bent or unbalanced blades.
  • Inspect for loose fasteners on the deck or engine.

7. Specifikationer

*All specifications are approximate and subject to change without notice.

8. Garanti og support

For specific warranty details, registration, and customer support, please refer to the official documentation provided with your Craftsman 46-inch Gas Zero-Turn Riding Lawn Mower or visit the official Craftsman website. Keep your purchase receipt and model number (17ARFACT093) readily available for any warranty claims or service inquiries.
