1. Introduktion
This manual provides essential information for the safe installation, operation, and maintenance of your PARTPHONER Outdoor Wall Lights. Please read these instructions thoroughly before installation and retain them for future reference.

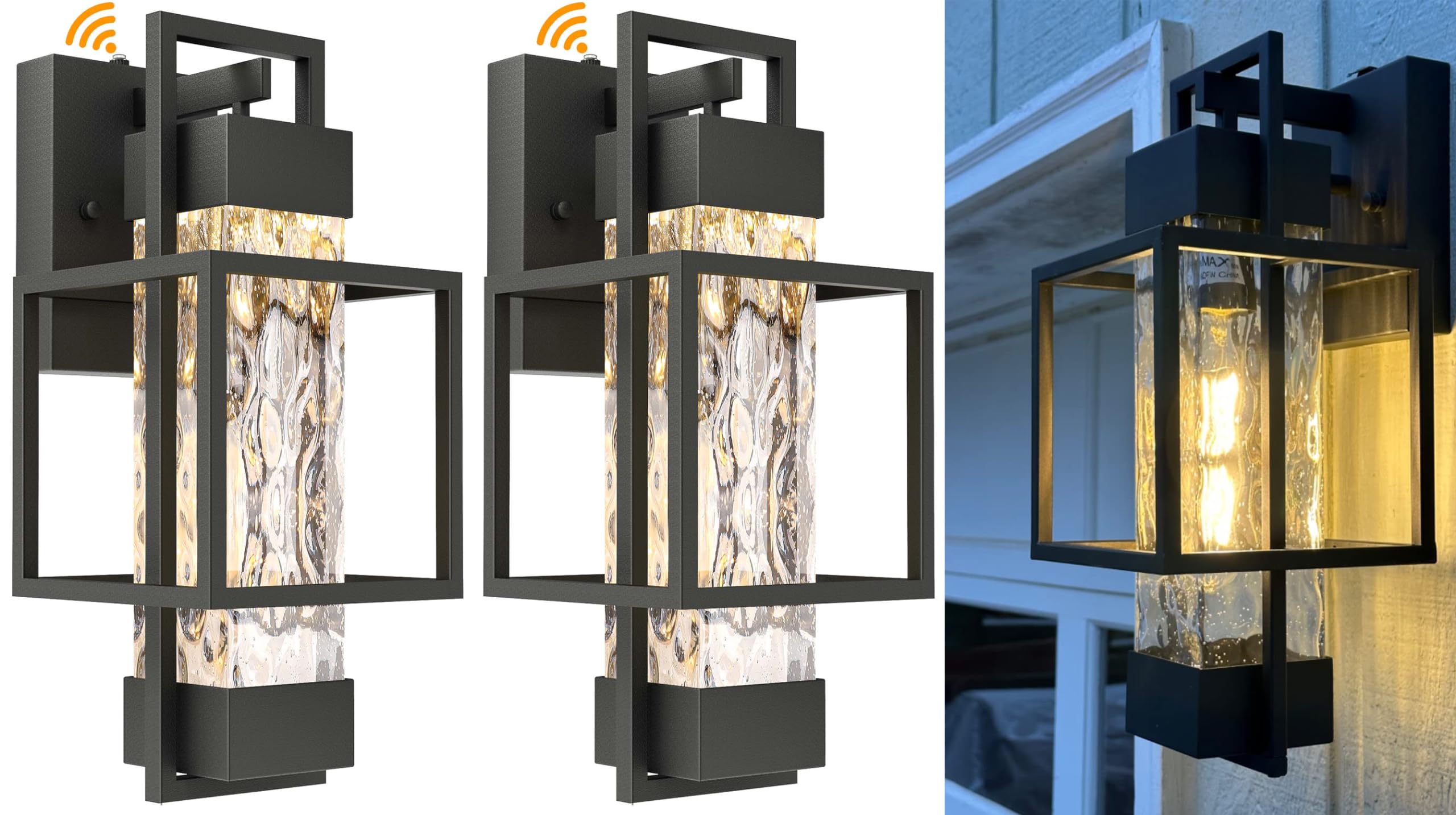

Image 1.1: PARTPHONER Outdoor Wall Light with integrated dusk to dawn sensor.
2. Sikkerhedsoplysninger
ADVARSEL: To avoid electric shock, fire, or serious injury, always turn off power at the circuit breaker or fuse box before installation, servicing, or removing the fixture.
- Alle elektriske forbindelser skal være i overensstemmelse med lokale forskrifter og forordninger samt den nationale elektriske kode (NEC).
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
- Do not install this fixture on a wet surface or near standing water.
- Sørg for, at alle ledningsforbindelser er sikre og korrekt isolerede.
- Overskrid ikke det maksimale wattage specificeret for pæren.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Outdoor Wall Light Fixture (2 or 1 unit, depending on package)
- T10 LED Bulb (6W, 2700K, Dimmable)
- Monteringsudstyr (skruer, trådmøtrikker, monteringsplade)
- Instruktionsmanual
4. Produktfunktioner
- Dusk to Dawn-sensor: Built-in IC light sensor automatically turns the light on at night and off during the day, optimizing energy use.
- Bubble Water Glass Design: Features a unique water-seeded glass shade that diffuses light evenly, creating an appealing visual effect.
- Pære inkluderet: Comes with a 6W, 2700K, dimmable T10 LED bulb with an E26 base, supporting up to 60W.
- Vejrbestandig: Constructed from solid water glass and anti-rust metal, designed to withstand various weather conditions including rain, snow, wind, and sun.
- Bred anvendelse: Suitable for various outdoor spaces such as porches, garages, courtyards, hallways, entryways, and patios.
Image 4.1: The fixture is designed to be windproof, sunproof, snowproof, and rainproof.
Image 4.2: Detail of the sturdy metal structure and decorative water glass shade.
5. Specifikationer
| Attribut | Værdi |
|---|---|
| Mærke | PARTFONER |
| Modelnummer | 09e0e44b-41ba-4d0b-a7fe-70f2fcae8dc2 |
| Farve | Sort |
| Materiale | Glas, Metal |
| Lysarmatur Form | Væg |
| Indendørs/Udendørs brug | Udendørs |
| Strømkilde | Elektrisk med ledning |
| Installationstype | Vægbeslag |
| Speciel funktion | Dimmable (with compatible bulb) |
| Lyskildetype | LED |
| Finish Type | Tekstureret |
| Skærmmateriale | Glas |
| Antal lyskilder | 1 pr. armatur |
| Lys farve | Warm White (2700K with included bulb) |
| Wattage | Max 60 watts (E26 base) |
| Pære base | E26 |
| Vandmodstandsniveau | Vandtæt |
| Lysstyrke | 450 lumen (with included bulb) |
| Maksimal lysudbytte | 450 lumen |
| Montering påkrævet | Ingen |
Image 5.1: Dimensional drawing of the PARTPHONER Outdoor Wall Light.
6. Opsætning og installation
Før du begynder: Ensure the power is turned off at the circuit breaker. It is recommended to have a second person assist with installation.
- Forbered monteringsoverfladen: Sørg for, at vægoverfladen er ren, tør og strukturelt solid for at understøtte armaturet.
- Fastgør monteringsplade: Secure the mounting plate to the junction box using the provided screws. Ensure the plate is level.
- Ledningsforbindelser: Connect the fixture's wires to your household electrical wires. Match the wires:
- Sort (Live) til Sort (Live)
- Hvid (Neutral) til hvid (Neutral)
- Grøn eller bart kobber (jord) til grøn eller bart kobber (jord)
- Monter armaturet: Carefully align the fixture with the mounting plate and secure it with the provided screws. Ensure no wires are pinched.
- Installer pære: Screw the included T10 LED bulb into the E26 socket. Do not overtighten.
- Gendan strøm: Tænd for strømmen igen ved afbryderen.

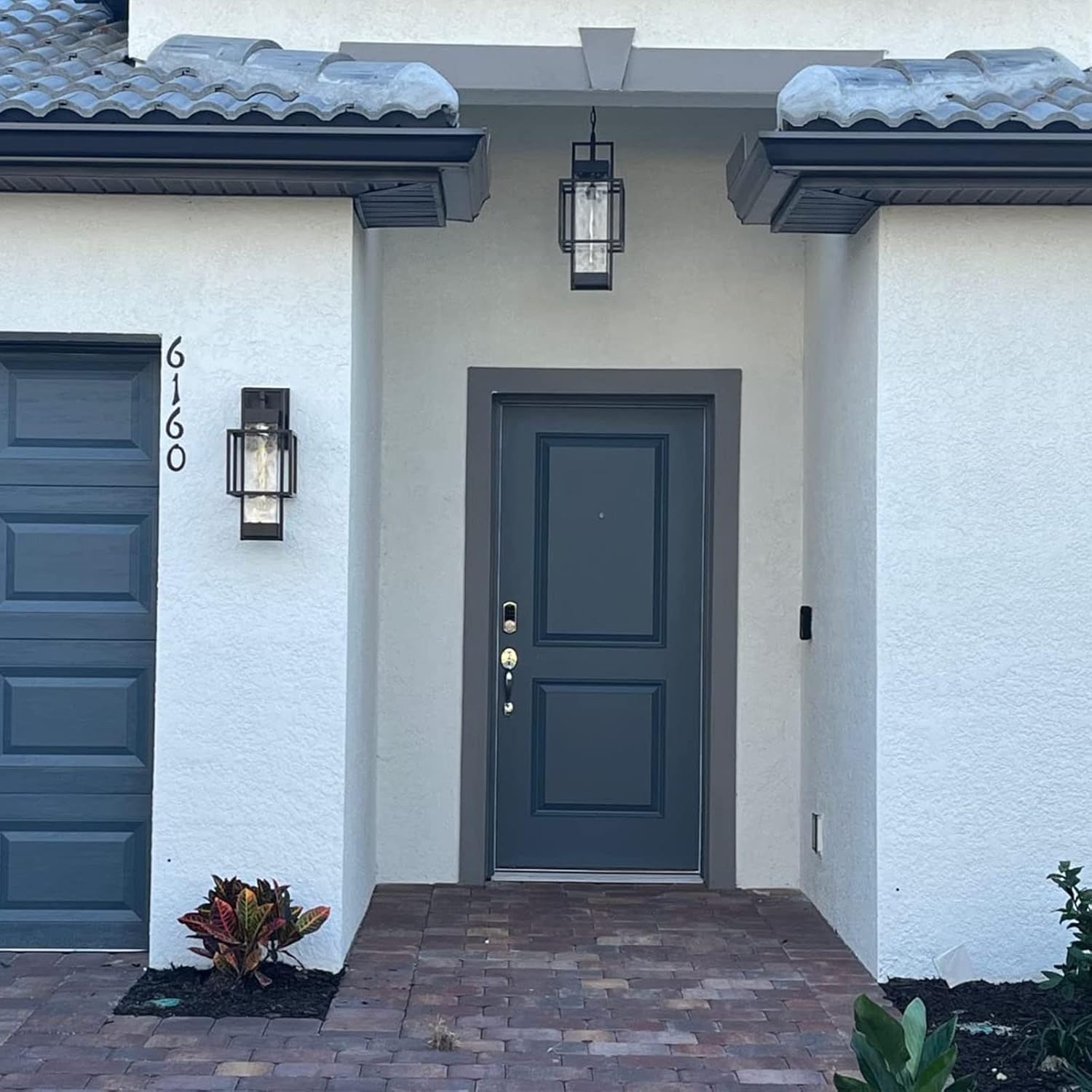

Billede 6.1: Eks.ample of the outdoor wall light installed on a residential exterior.
7. Betjeningsvejledning
The PARTPHONER Outdoor Wall Light features a built-in dusk to dawn sensor for automatic operation.
- Automatisk tænd/sluk: The integrated IC light sensor detects ambient light levels. The fixture will automatically turn on when the surrounding brightness is less than approximately 10 Lux (at dusk) and turn off when brightness exceeds approximately 200 Lux (at dawn).
- Dæmpbar funktionalitet: The included T10 LED bulb is dimmable. To utilize dimming, the fixture must be connected to a compatible external dimmer switch (not included).
Image 7.1: Explanation of the smart sensor's automatic on/off thresholds based on ambient light.
8. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your outdoor wall lights.
- Rensning: Tør armaturet regelmæssigt af med en blød kludamp cloth to remove dust and dirt. Do not use abrasive cleaners or solvents, as these can damage the finish or glass. Ensure power is off before cleaning.
- Udskiftning af pære: If the bulb needs replacement, ensure power is off at the circuit breaker. Allow the bulb to cool completely before unscrewing it. Replace with an E26 base bulb, not exceeding 60 watts.
- Inspektion: Annually inspect the wiring and mounting for any signs of wear, damage, or loosening. Address any issues promptly.
9. Fejlfinding
If you encounter issues with your PARTPHONER Outdoor Wall Lights, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strøm til armaturet. Pæren er defekt eller løs. Dusk to dawn sensor detects too much light. | Tjek afbryderen. Ensure bulb is screwed in tightly; replace if necessary. Cover the sensor temporarily to test if it turns on. |
| Lyset forbliver tændt i løbet af dagen. | Dusk to dawn sensor is obstructed or faulty. Sensor is installed in a shaded area. | Sørg for, at sensoren er ren og uhindret. Relocate fixture to an area with adequate daylight exposure. |
| Lyse flimrer. | Løs ledningsforbindelse. Defekt pære. Inkompatibel lysdæmper (hvis relevant). | Sluk for strømmen og kontroller alle ledningsforbindelser. Udskift pæren. Ensure dimmer switch is compatible with LED bulbs. |
10. Garanti og support
PARTPHONER products are manufactured to high-quality standards. For warranty information or technical support, please refer to the product packaging or contact PARTPHONER customer service through their official channels. You can visit the PARTPHONER store for more information: PARTPHONER Store on Amazon.
