Indledning
Thank you for choosing the Breezary 52/42-IN LED Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before beginning installation and retain them for future reference.
Image 1: The Breezary 52/42-IN LED Ceiling Fan with black blades and gold finish, integrated into a modern living room setting.
Vigtige sikkerhedsinstruktioner
- Elektrisk sikkerhed: Always disconnect power at the main circuit breaker before installation or servicing. Ensure all electrical connections comply with local codes and national electrical codes.
- Montering: The ceiling fan must be mounted to a structurally sound ceiling joist or an outlet box rated for fan support (at least 35 lbs).
- Klingeafstand: Ensure there is at least 7 feet (2.1 meters) clearance from the floor to the fan blades and at least 30 inches (76 cm) from the wall to the blade tips.
- Ledningsføring: Kontakt en kvalificeret elektriker, hvis du ikke er bekendt med elektriske ledninger.
- Operation: Indsæt ikke genstande i ventilatorbladenes bane.
- Lyssæt: The integrated LED light kit is not user-serviceable. Do not attempt to replace individual LEDs.
Produktkomponenter
Your Breezary LED Ceiling Fan package includes the following main components:
- Motor Housing (with integrated LED light)
- Fan Blades (5 plywood blades)
- Downrod (5-inch, 1-inch diameter, for standard installation)
- Monteringsbeslag
- Fjernbetjening (kræver 2 AAA-batterier, medfølger ikke)
- Hardwarepakke (skruer, møtrikker osv.)
Billede 2: Overview of the Breezary 52/42-IN LED Ceiling Fan, showcasing its black blades and gold finish.
Billede 3: Top-down view of the five black plywood blades and the central gold motor housing.
Opsætning og installation
Før du begynder: Ensure power is turned off at the circuit breaker. Gather necessary tools (screwdriver, wire strippers, ladder, etc.). This fan supports sloped ceilings up to 15 degrees.
- Montering af monteringsbeslag: Secure the mounting bracket to the ceiling outlet box. Ensure the outlet box is rated for fan support.
- Downrod-samling: Insert the downrod through the canopy and motor housing. Secure with the provided pin and screw.
- Ledningsforbindelser: Carefully connect the fan's electrical wires to the household wiring according to the wiring diagram in the full instruction manual (not provided here). Ensure all connections are secure with wire nuts.
- Hæng ventilatoren: Lift the fan assembly and hang it onto the mounting bracket.
- Klingefastgørelse: Attach each of the five fan blades to the motor housing using the provided screws. Ensure they are securely fastened.
- Montering af baldakin: Slide the canopy up to the ceiling and secure it to the mounting bracket, covering the wiring.
- Tænd: Gendan strømmen ved afbryderen.
Note: For higher ceilings, an optional extended downrod is available for purchase separately from the Breezary store.

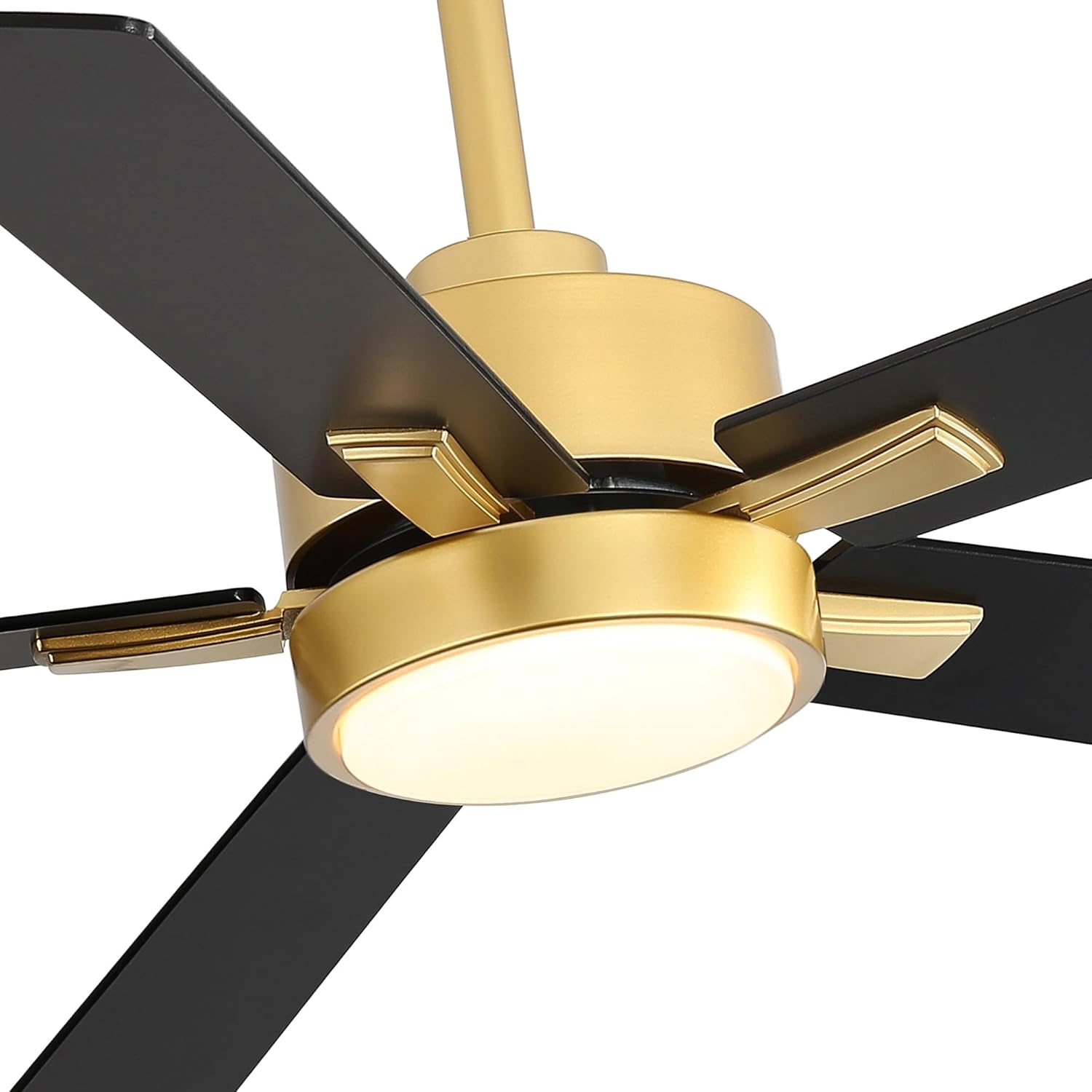

Billede 4: Detaljeret view of the fan's gold motor housing and integrated LED light, illustrating the connection points for the blades.
Betjeningsvejledning
Your Breezary ceiling fan is controlled by the included handheld remote control. Install 2 AAA batteries (not included) into the remote before use.
Fjernbetjeningsfunktioner:
- Blæser tændt/slukket: Tryk på ventilatorknappen for at tænde eller slukke ventilatoren.
- Blæserhastighed: Adjust between 6 fan speeds.
- Fan Direction (Forward/Reverse): Change the fan's rotation direction for summer (downward airflow) or winter (upward airflow) operation.
- Lys til/fra: Turn the integrated LED light on or off.
- Farvetemperaturændring: Cycle through 3 color temperatures (3000K/4000K/6500K for 52" model; 3000K/4500K/6500K for 42" model).
- Timing funktion: Indstil en timer, så ventilatoren slukker automatisk.
Image 5: Illustration of the remote control's functions, showing the fan in both off and on states with the LED light illuminated.

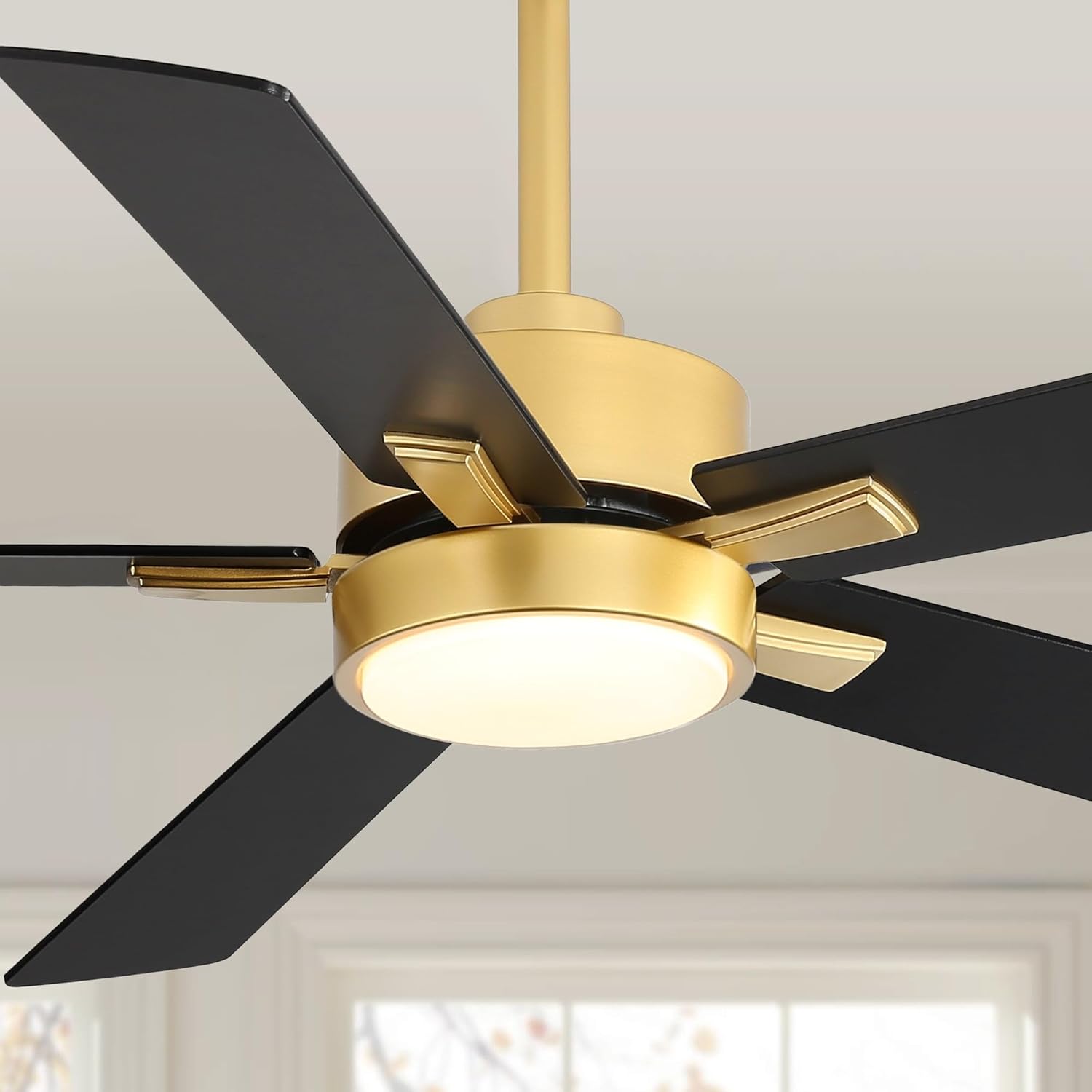

Billede 6: Et nærbillede view of the integrated LED light, showcasing its illumination.
Opretholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din loftsventilator.
- Rensning: For at rengøre ventilatoren skal du tørre den af med en blød klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da disse kan beskadige overfladen eller de elektriske komponenter.
- Rengøring af knive: Dust the fan blades regularly to prevent dust buildup, which can affect balance and airflow.
- Tæthedskontrol: Periodically check all screws and connections for tightness. Due to natural movement, some connections may become loose over time.
- Smøring: The fan's DC motor is permanently lubricated and does not require additional oiling.
Billede 7: Detaljeret view of the fan blades connecting to the gold motor housing, useful for maintenance checks.
Fejlfinding
Før du forsøger at reparere produktet, skal du sørge for, at strømmen er afbrudt ved afbryderen.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ventilator starter ikke | No power to the fan; Loose wire connections; Remote control battery low or not installed. | Kontroller afbryderen; Verificer at alle ledningsforbindelser er sikre; Udskift batterierne i fjernbetjeningen. |
| Lys virker ikke | Løs ledningsforbindelse til lyssæt; Problem med fjernbetjening. | Check light kit wiring; Ensure remote batteries are fresh and remote is paired (if applicable). |
| Blæseren slingrer | Løse knivskruer; Ubalancerede knive; Løst monteringsbeslag. | Spænd alle knivskruer; Brug et afbalanceringssæt (medfølger ikke) til at afbalancere knivene; Sørg for, at monteringsbeslaget er forsvarligt fastgjort. |
| Støjende drift | Loose screws; Blades rubbing; Motor hum. | Check and tighten all screws; Ensure blades are not touching any part of the fan housing; A slight motor hum is normal for DC motors. |
Produktspecifikationer
| Feature | Detalje |
|---|---|
| Mærke | Breezary |
| Modelnavn | 24024-AB |
| Størrelser tilgængelige | 42 tommer, 52 tommer |
| Materiale | Acrylic (lampshade), Metal (fan body), Plywood (blades) |
| Stil | Moderne |
| Motortype | Energy Efficient DC Motor |
| Antal blade | 5 |
| Kontrolmetode | Fjernbetjening |
| Blæserhastigheder | 6-trins |
| Lys type | Integreret LED |
| Lysudgang | 1200 Lumens, 18W LED |
| Farvetemperatur | 3000K/4000K/6500K (52"), 3000K/4500K/6500K (42") |
| Maks luftstrøm | 3419 CFM |
| Sloped Ceiling Support | Op til 15 grader |
| Room Size (approx.) | Op til 350 kvm |
| Downrod Included | 5-inch (diameter 1 inch) |
| UPC | 766646790810 |
Image 8: Visual summary of key specifications for the 52-inch Breezary ceiling fan, including style, timer, dimension, finish, room size, speed settings, light source, and control type.
Garantioplysninger
Breezary products are manufactured to high-quality standards. For specific warranty details regarding your 52/42-IN LED Ceiling Fan, please refer to the warranty card included with your purchase or contact Breezary customer support. Keep your proof of purchase for warranty claims.
Kundesupport
If you have any questions, require assistance with installation, or need to troubleshoot an issue not covered in this manual, please contact Breezary customer support. You can find contact information on the official Breezary webhjemmeside eller gennem den forhandler, hvor du købte produktet.
