Indledning
Welcome to the user manual for your new Carry-on SH100 Over-Ear Closed-Back Headphones. These headphones are designed to provide high-quality audio for various applications, including music listening, gaming, podcasting, and use with musical instruments. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your SH100 headphones to ensure optimal performance and longevity.

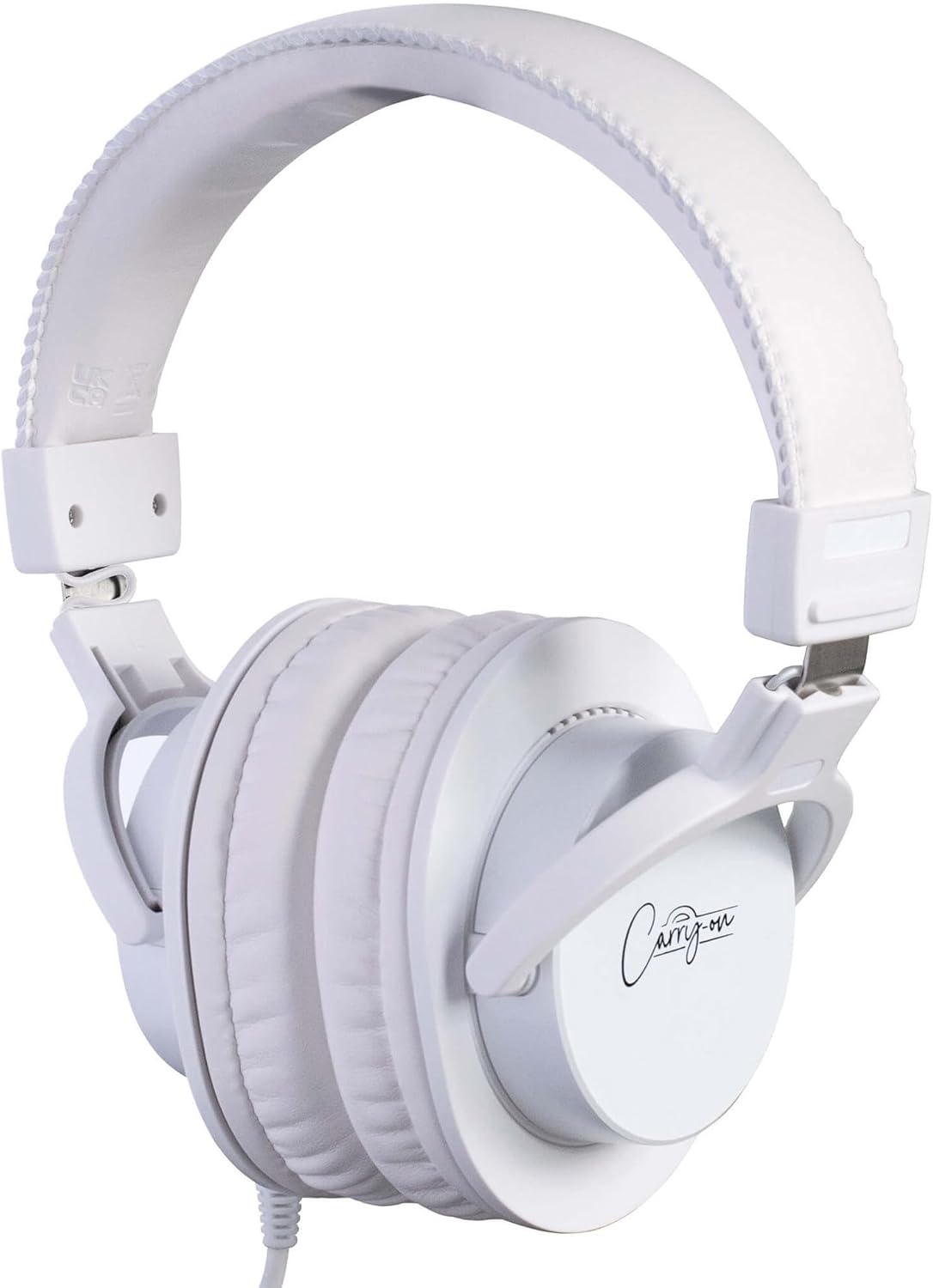

Figure 1: Carry-on SH100 Over-Ear Closed-Back Headphones.
Vigtige sikkerhedsoplysninger
Please read all safety instructions carefully before using the product.
- Undgå langvarig lytning ved høj lydstyrke for at forhindre høreskader.
- Brug ikke hovedtelefoner under kørsel, cykling eller i situationer, hvor det kan være farligt at ikke høre omgivende lyde.
- Hold hovedtelefonerne væk fra vand, fugt og ekstreme temperaturer.
- Forsøg ikke at skille hovedtelefonerne ad eller ændre dem. Dette vil ugyldiggøre garantien.
- Rengør kun hovedtelefonerne med en blød, tør klud.
Pakkens indhold
Bekræft at alle varer er til stede i din pakke:
- Carry-on SH100 Over-Ear Closed-Back Headphones
- 3m Detachable Audio Cable
- 6.3 mm jack-adapter
Figure 2: Key features of the SH100 headphones, including the detachable cable.
Produkt overview
The Carry-on SH100 headphones feature a robust design with comfortable ear pads and an adjustable headband for extended listening sessions.
Figure 3: Components of the SH100 headphones.
Nøglekomponenter:
- Justerbart pandebånd: For en komfortabel og sikker pasform.
- Bløde ørepuder: Designed for all-day wear and improved sound isolation.
- 50 mm drivere: Deliver a full range of dynamic audio.
- Detachable 3m Cable: Provides flexibility and easy storage.
- 3.5mm Stereo Jack Plug: Standard connection for most devices.
- 6.3mm Jack Adapter: For compatibility with professional audio equipment.
Opsætning
Follow these steps to set up your Carry-on SH100 headphones:
- Attach the Audio Cable: Locate the input port on the left earcup of the headphones. Insert the 3.5mm end of the detachable audio cable into this port. Ensure it is securely connected.
- Juster pandebåndet: Place the headphones on your head. Adjust the headband slides on both sides until the earcups comfortably cover your ears and the headband rests gently on your head.
- Opret forbindelse til din enhed:
- For devices with a 3.5mm audio jack (e.g., smartphones, tablets, laptops), plug the other end of the 3.5mm audio cable directly into the device's audio output.
- For devices with a 6.3mm audio jack (e.g., audio interfaces, DJ mixers, guitar amplifiers, synthesizers), attach the included 6.3mm adapter to the 3.5mm plug of the audio cable, then plug it into the device's audio output.
Figure 4: Connectivity options for the SH100 headphones.
Betjening af dine hovedtelefoner
Lytte til lyd
Once connected, ensure the volume on your audio source device is set to a low level before playing audio. Gradually increase the volume to a comfortable listening level. The closed-back design of the SH100 headphones provides superior sound isolation, allowing you to focus on your audio without external distractions.
Optimal pasform
For the best audio experience and comfort, ensure the earcups fully enclose your ears. The adjustable headband allows for a personalized fit, minimizing fatigue during long listening sessions.
Figure 5: Enjoying premium sound with the SH100 headphones.
Vedligeholdelse og pleje
Korrekt pleje vil forlænge dine hovedtelefoners levetid.
Rensning
- Use a soft, dry, lint-free cloth to clean the exterior surfaces of the headphones.
- Brug ikke flydende rengøringsmidler, aerosoler eller opløsningsmidler.
- Gently wipe the ear pads to remove any dust or debris.
Opbevaring
- Når hovedtelefonerne ikke er i brug, skal de opbevares et rent og tørt sted, væk fra direkte sollys og ekstreme temperaturer.
- The headphones are designed to be easily stowable, making them convenient for travel.
Fejlfinding
If you encounter issues with your SH100 headphones, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd | Kablet er ikke helt tilsluttet; forkert lydkilde valgt; enhedens lydstyrke er for lav. | Ensure the audio cable is securely plugged into both the headphones and the audio source. Check your device's audio output settings and increase the volume. |
| Lyden er forvrænget eller uklar | Volume too high; damaged cable; incorrect adapter. | Lower the volume on your device. Inspect the audio cable for any damage. Ensure you are using the correct 3.5mm or 6.3mm adapter for your device. |
| Hovedtelefoner er ubehagelige | Hovedbøjlen er ikke justeret korrekt. | Adjust the headband slides to find a comfortable fit that allows the earcups to sit properly over your ears. |
Specifikationer
The following are the technical specifications for the Carry-on SH100 headphones:
| Feature | Specifikation |
|---|---|
| Model | SH-100WH |
| Type | Over-Ear, Closed-Back |
| Driver størrelse | 50 mm |
| Impedans | 32 ohm |
| Følsomhed | 99 ± 3dB |
| Frekvensrespons | 20Hz - 20kHz |
| Nominel effekt | 400mW |
| Max Power | 1500mW |
| Kabellængde | Approx. 3m (9.8 ft) |
| Stiktype | 3.5 mm stereostik |
| Adapter medfølger | 6.3 mm jack-adapter |
| Materiale | Plast |
Figur 6: Detaljerede tekniske specifikationer.
Garanti og support
Your Carry-on SH100 headphones come with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
For warranty claims or technical support, please contact your retailer or visit the official Carry-on website. Please have your proof of purchase and product model number (SH-100WH) ready when contacting support.
For mere information og produktregistrering, besøg: www.carry-on.com
