1. Introduktion
This manual provides comprehensive instructions for the assembly, installation, and operation of your Mount-It! Anti-Theft Tablet Floor Stand. This stand is designed to securely display tablets in commercial environments such as retail stores, trade shows, hotels, and educational institutions. It features a universal enclosure, anti-theft locking mechanisms, and adjustable viewing vinkler.
Billede 1.1: Forside view of the Mount-It! Anti-Theft Tablet Floor Stand.
Image 1.2: The tablet floor stand positioned in a commercial reception area, demonstrating its application.
2. Vigtige sikkerhedsoplysninger
Please read all instructions carefully before assembly and use. Failure to follow these instructions may result in property damage or personal injury.
- Sørg for, at alle komponenter er til stede og ubeskadigede, før monteringen påbegyndes.
- Do not exceed the maximum weight capacity of 2.2 lbs (1 kg) for the tablet enclosure.
- Assemble the stand on a flat, stable surface.
- Hold børn og kæledyr væk under montering.
- Use only the provided hardware. Do not substitute parts.
- Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver stramme og sikre.
3. Pakkens indhold
Verify that all parts listed below are included in your package. If any parts are missing or damaged, please contact Mount-It! customer support.
- Lockable Tablet Stand (main assembly)
- Assembly Hardware Kit (screws, washers, etc.)
- Keys for Tablet Enclosure Lock
- Keys for Lower Cabinet Lock
- Tablet Spacers/Pads for universal fit

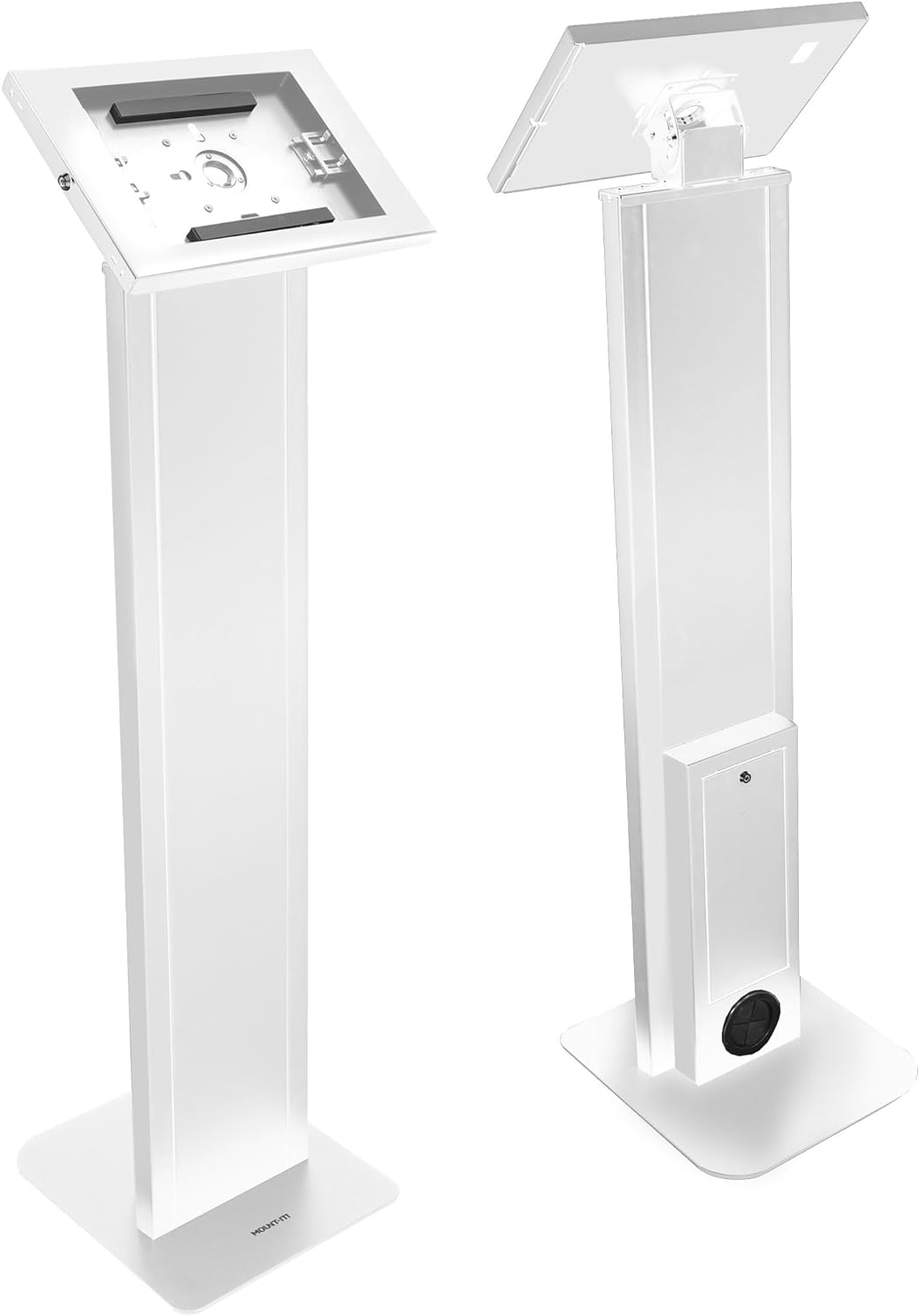

Billede 3.1: Foran og bagpå views of the assembled stand, showing the tablet enclosure and the lower cabinet.
4. Setup and Tablet Installation
4.1 Samling af stativet
The Mount-It! Tablet Floor Stand typically arrives partially assembled. Follow these steps to complete the assembly:
- Fastgør basen: Secure the main column to the freestanding base using the provided screws and tools. Ensure the base is oriented correctly for stability.
- Attach the Tablet Enclosure: Connect the tablet enclosure to the top of the main column. Ensure all connections are firm.
- Secure the Locks: Confirm that the locking mechanisms for both the tablet enclosure and the lower cabinet are functioning correctly with the provided keys.
4.2 Installation af din tablet
The universal enclosure is compatible with various iPad models, including iPad Pro (10.5", 11"), iPad Air (10.5", 10.9"), iPad 10 (10.9"), iPad 9 (10.2"), iPad 8 (10.2"), and iPad 7 (10.2").
- Unlock the Enclosure: Use the key to unlock and open the tablet enclosure.
- Adjust Sliders: The enclosure features adjustable sliders. Position these sliders to securely hold your specific iPad model. Refer to Image 4.1 for guidance.
Image 4.1: Illustration of the adjustable sliders within the tablet enclosure, designed to accommodate various iPad sizes.
- Indsæt tablet: Carefully place your iPad into the enclosure, ensuring it is centered and held firmly by the sliders.
- Luk og lås: Close the enclosure and use the key to lock it securely.
4.3 Kabelstyring
The stand includes internal cable routing to keep power cords organized and out of sight.
- Route the tablet's charging cable through the designated opening in the enclosure and down through the stand's column.
- The cable can exit through the opening at the base of the stand, or be connected to a power strip stored in the lockable lower cabinet.
Image 4.2: Visual guide for routing the power cable through the stand's column for a tidy setup.
5. Betjeningsvejledning
5.1 Anti-Theft Security
The tablet enclosure is equipped with a key lock to prevent unauthorized removal of the tablet.
- To lock, close the enclosure and insert the key into the lock cylinder. Turn the key clockwise to secure.
- To unlock, insert the key and turn counter-clockwise.

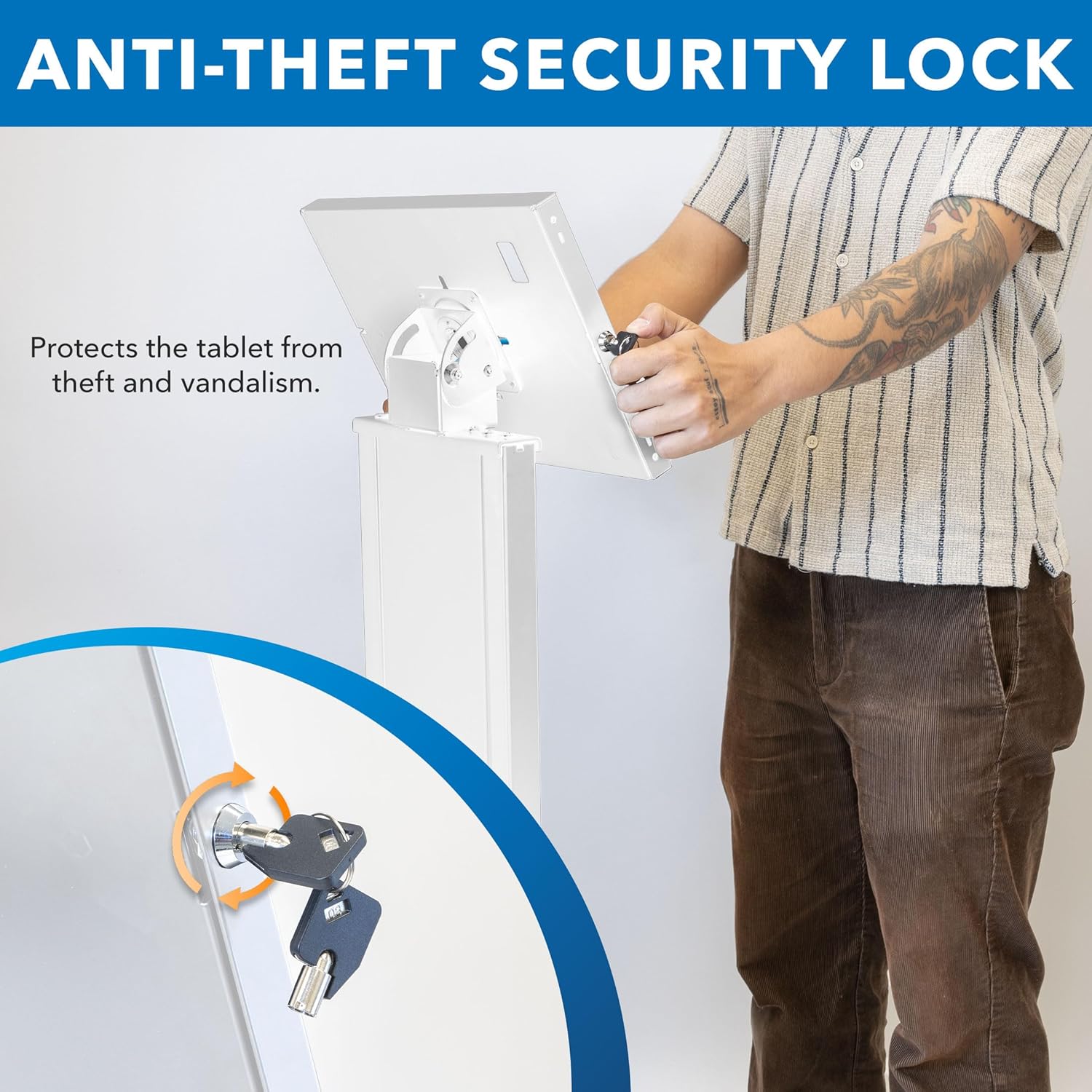

Image 5.1: Detail of the key-operated security lock on the tablet enclosure, designed to protect the device from theft.
5.2 Justerbar Viewi vinkler
The tablet enclosure offers both tilt and rotation adjustments for optimal viewing.
- Justering af hældning: The enclosure can be tilted from 0° to 75° to achieve the desired viewing angle. Loosen the adjustment knob, set the angle, and re-tighten.
- Rotation: The enclosure can rotate 90° between portrait and landscape orientations. Gently rotate the enclosure to switch between modes.
Image 5.2: Illustration demonstrating the 0° to 75° tilt range and 90° rotation capability of the tablet enclosure.
5.3 Lockable Lower Cabinet
A lockable cabinet is integrated into the stand's column, providing secure storage for power adapters, cables, or other small accessories.
- Use the separate key to open and close the lower cabinet door.
- Ensure the cabinet is locked when not in use to maintain security.
Image 5.3: The lower cabinet shown open, revealing space for a power strip or other small items. Note: Power cord and source are not included.
6. Vedligeholdelse
To ensure the longevity and proper function of your tablet floor stand, follow these simple maintenance guidelines:
- Rensning: Tør stativet af med en blød kludamp klud. Undgå slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.
- Inspektion: Kontrollér regelmæssigt alle skruer, bolte og forbindelser for at sikre, at de er stramme. Spænd igen om nødvendigt.
- Låsemekanisme: Keep the lock mechanisms clean and free of debris. Do not force keys if they feel stiff.
7. Fejlfinding
Se dette afsnit for løsninger på almindelige problemer, du kan støde på.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Tablet does not fit securely in the enclosure. | Sliders are not adjusted correctly for the tablet size. | Unlock the enclosure, adjust the internal sliders to firmly grip your tablet, then re-lock. Ensure your tablet model is compatible. |
| Enclosure lock is stiff or not working. | Debris in the lock cylinder; key is bent or damaged. | Ensure the key is fully inserted and not bent. Clean the lock cylinder if visible debris is present. Do not force the key. Contact support if the issue persists. |
| Stativet føles ustabilt. | Base screws are loose; stand is on an uneven surface. | Check and tighten all assembly screws, especially those connecting the column to the base. Move the stand to a flat, level surface. |
8. Specifikationer
Technical details for the Mount-It! Anti-Theft Tablet Floor Stand MI-3880B_G10:
- Modelnummer: MI-3880B_G10
- Produktdimensioner: 41.75 x 12.75 x 5.25 tommer (106 x 32.4 x 13.3 cm)
- Varens vægt: 33.6 pund (15.2 kg)
- Farve: Hvid
- Materiale: Højstyrkestål
- Kompatible enheder: Tablets (specifically iPad Pro 10.5", 11"; iPad Air 10.5", 10.9"; iPad 10 10.9"; iPad 9 10.2"; iPad 8 10.2"; iPad 7 10.2")
- Vægt kapacitet: 2.2 lbs (1 kg)
- Hældningsområde: 0° til 75°
- Rotation: 90° (Portræt til Landskab)
Image 8.1: Detailed dimensions of the tablet floor stand, including height, base, and enclosure measurements.
Image 8.2: Visual guide illustrating the compatibility of the stand with different iPad, iPad Air, and iPad Pro models and their screen sizes.
Image 8.3: Various configurations of the tablet enclosure to accommodate different iPad models, including options for home button access, hard button cover, no home button access, and camera cutouts.
9. Garanti og kundesupport
Mount-It! stands behind the quality of its products.
- Livstidsgaranti: This Mount-It! tablet kiosk with freestanding base comes with a Lifetime Warranty.
- Kundesupport: Our knowledgeable and responsive US-based customer support team is available to answer any questions you may have during standard business hours.
For assistance, please visit the official Mount-It! website or refer to your product packaging for contact information.
