Indledning
Welcome to the Kuephom Portable CD Player Boombox. This versatile device offers multiple audio playback options including CD, MP3, FM radio, Bluetooth, USB, and TF card support. Designed for both home and portable use, it features stereo speakers and a rechargeable battery for extended listening enjoyment. Please read this manual thoroughly to ensure proper operation and care of your new device.
Vigtige sikkerhedsoplysninger
- Advarsel: Udsæt ikke dette apparat for regn eller fugt.
- Forsigtighed: For at undgå elektrisk stød må du ikke åbne casing. Overlad al service til kvalificeret personale.
- Undgå at placere enheden i nærheden af varmekilder såsom radiatorer, varmeregistre, komfurer eller andre apparater, der producerer varme.
- Brug kun tilbehør/tilbehør specificeret af producenten.
- Beskyt netledningen mod at blive gået på eller klemt, især ved stik, stikkontakter og det punkt, hvor de kommer ud af apparatet.
- Træk stikket ud af dette apparat under tordenvejr, eller når det ikke skal bruges i længere perioder.
- Bloker ikke ventilationsåbninger. Installer i overensstemmelse med producentens anvisninger.
- Sørg for tilstrækkelig ventilation under drift af enheden.
- Indsæt ikke fremmedlegemer i enheden.
- Hold enheden væk fra stærke magnetiske felter.
- Bortskaf batterier korrekt i henhold til lokale regler.
Pakkens indhold
Kontroller venligst, at alle varer er til stede:
- Kuephom Portable CD Player Boombox (Model W15)
- USB opladningskabel
- Strømadapter
- Brugermanual
Produkt overview
Familiarize yourself with the main components and controls of your CD player boombox.
Figur 1: Forside View - This image displays the main unit with its top-loading CD compartment open, revealing a CD. The front panel features control buttons for playback (play/pause, skip), a mode button, an LCD screen showing track time, and a large rotary volume knob. Two speaker grilles are visible at the bottom.
Figur 2: Bagside View - The rear of the boombox is shown, highlighting the extendable FM antenna. Below the antenna, from left to right, are the USB port, TF (Micro SD) card slot, DC 5V IN power input, and a headphone jack. The speaker grilles are also visible from this angle.
Kontrol og porte:
- Play/Pause Button (►▮▮): Tryk for at afspille eller sætte lydafspilningen på pause.
- Previous/Rewind Button (◀◀): Press to go to the previous track or rewind the current track.
- Next/Fast Forward Button (►►): Press to go to the next track or fast forward the current track.
- Mode-knap (M): Press to switch between CD, FM Radio, Bluetooth, USB, and TF card modes.
- Repeat/Random Button (↺): Press to cycle through repeat modes (repeat one, repeat all) or enable random playback (shuffle).
- Volume Knob (MIN-MAX): Rotate to adjust the volume level. Also serves as the power on/off switch.
- LCD-skærm: Shows current mode, track number, time, and FM frequency.
- CD-rum: Topbetjent bakke til ilægning af lyd-cd'er.
- FM-antenne: Udtrækkelig antenne for forbedret FM-radiomodtagelse.
- USB-port: For playing MP3/WMA files from a USB flash drive (up to 32GB).
- TF-kortslot: For playing MP3/WMA files from a TF (Micro SD) card (up to 32GB).
- DC 5V IN Port: Power input for charging the internal battery or operating the unit via the included power adapter.
- Headphone Jack (🎧): Til privat lytning med kablede hovedtelefoner.
Opsætning
1. Tænd for enheden
Your Kuephom CD player boombox comes with a built-in rechargeable Lithium Ion battery. Before first use, it is recommended to fully charge the battery.
- Connect the provided USB charging cable to the DC 5V IN port on the back of the unit.
- Connect the other end of the USB cable to the power adapter, and plug the adapter into a standard wall outlet.
- The LCD display will indicate charging status. Charging typically takes 3-4 hours for a full charge.
- Alternatively, the unit can be powered directly from the wall adapter without battery charge.
Figur 3: Opladningsmuligheder - This image illustrates the versatility of charging the boombox. It can be charged using a standard wall charger, a car charger (via a USB car adapter, not included), or a portable power bank, making it convenient for both indoor and outdoor use.
2. Tænd/sluk
To turn the unit on, rotate the Volume Knob clockwise from the MIN position. To turn off, rotate the Volume Knob counter-clockwise to the MIN position until it clicks.
Driftstilstande
Tryk på Tilstand (M) button repeatedly to cycle through the available playback modes: CD, FM Radio, Bluetooth, USB, and TF Card.
Figure 4: 5 Play Modes - This graphic highlights the five primary playback modes of the Kuephom boombox: CD Player, Bluetooth, FM Radio, TF Card, and USB Input, emphasizing its multi-functional capabilities.
1. CD-afspilning
- Open the CD compartment lid by gently lifting it.
- Place an audio CD or MP3 CD onto the spindle, label side up.
- Close the CD compartment lid firmly.
- Tryk på Tilstand (M) button until "CD" appears on the LCD display.
- CD'en begynder at afspille automatisk. Hvis ikke, tryk på Afspil/Pause (►▮▮) knap.
- Brug Forrige (◀◀) og Næste (►►) knapper til at springe spor over.
- Tryk og hold på Forrige (◀◀) or Næste (►►) buttons to fast forward or rewind.
- Tryk på Repeat/Random (↺) button to cycle through repeat modes (Repeat One, Repeat All) or enable random (shuffle) playback.
2. Bluetooth-afspilning
- Tryk på Tilstand (M) button until "BT" appears on the LCD display. The unit will enter Bluetooth pairing mode, indicated by a flashing "BT".
- På din Bluetooth-aktiverede enhed (f.eks. smartphone, tablet) skal du aktivere Bluetooth og søge efter tilgængelige enheder.
- Select "Kuephom W15" from the list of devices.
- Once paired, "BT" will stop flashing and remain solid. You can now play audio from your device through the boombox.
- Use the playback controls on your connected device or the boombox's Afspil/Pause (►▮▮), Forrige (◀◀), og Næste (►►) knapper til at styre afspilning.
Figure 5: CD Player & Bluetooth Speaker Functionality - This image demonstrates the dual functionality of the device, showing it first as a standalone CD player and then as a Bluetooth speaker, with a smartphone successfully paired to it. This highlights its versatility for different audio sources.
3. Betjening af FM-radio
- Extend the FM antenna on the back of the unit for optimal reception.
- Tryk på Tilstand (M) button until "FM" appears on the LCD display.
- To auto-scan and save stations: Press and hold the Afspil/Pause (►▮▮) button. The unit will automatically scan for available FM stations and save them as presets (up to 30 stations).
- To tune to a saved preset station: Use the Forrige (◀◀) og Næste (►►) buttons to navigate through the saved presets.

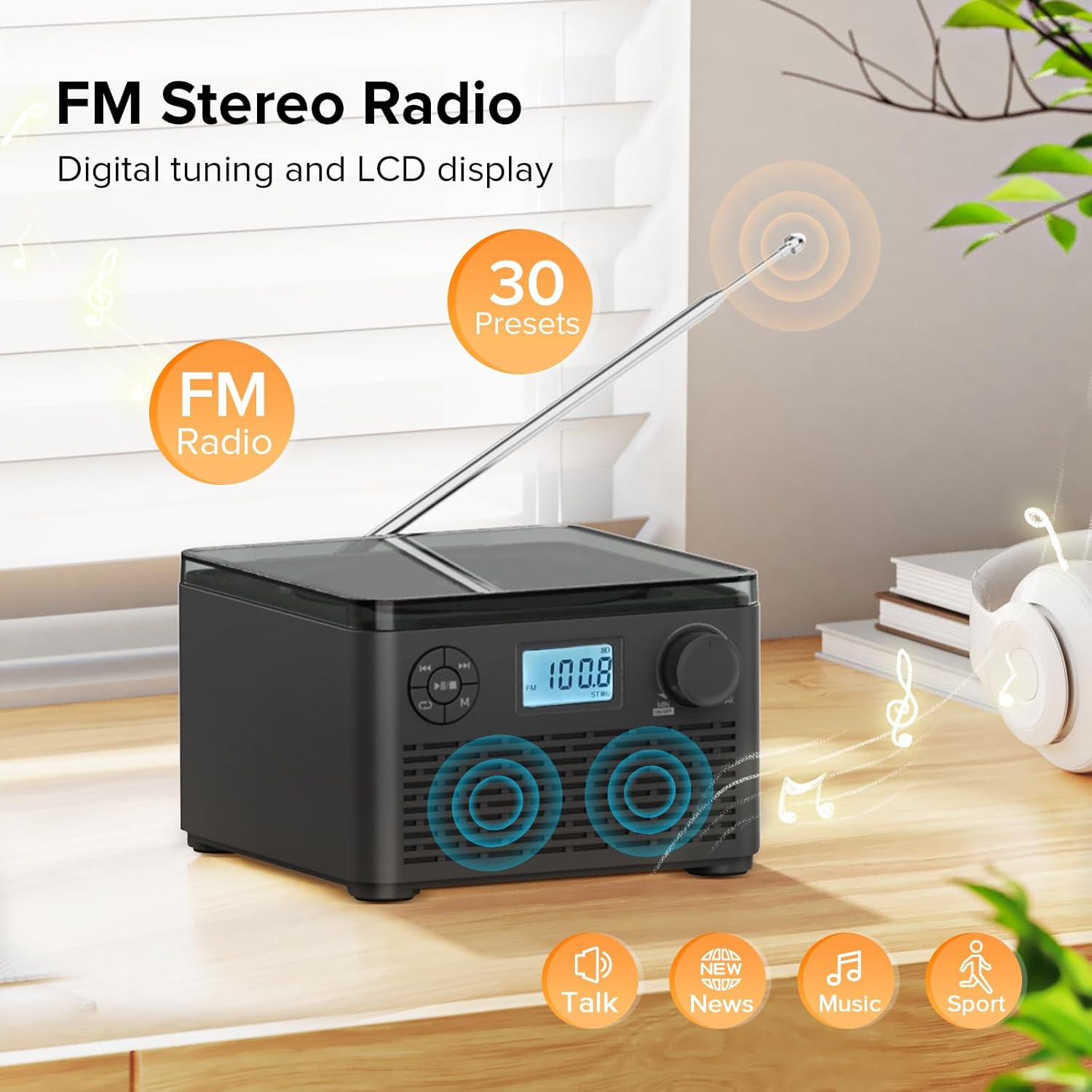

Figure 6: FM Stereo Radio - This image focuses on the FM radio feature, showing the digital display tuned to a frequency and indicating the availability of 30 presets. The extendable antenna is also visible, emphasizing its radio capabilities.
4. USB/TF-kortafspilning
The unit supports MP3 and WMA audio formats from USB flash drives and TF (Micro SD) cards up to 32GB.
- Insert a USB flash drive into the USB port or a TF card into the TF card slot on the back of the unit. Ensure the antenna is moved out of the way if necessary.
- Tryk på Tilstand (M) button until "USB" or "TF" appears on the LCD display.
- Enheden vil automatisk registrere og begynde at afspille lyd files fra den isatte lagerenhed.
- Brug Afspil/Pause (►▮▮), Forrige (◀◀), og Næste (►►) knapper til at styre afspilning.
- Tryk på Repeat/Random (↺) button to cycle through repeat modes or enable random playback.
5. Brug af hovedtelefoner
For private listening, connect standard 3.5mm headphones to the headphone jack on the back of the unit. The internal speakers will automatically mute when headphones are connected.
Vedligeholdelse og pleje
- Rensning: Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- CD-pleje: Håndter cd'er i kanterne. Hold dem rene og fri for ridser. Brug en blød, fnugfri klud til at tørre cd'er af fra midten og udad.
- Opbevaring: Når enheden ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
- Batteripleje: For at forlænge batteriets levetid, undgå at aflade batteriet helt ofte. Genoplad enheden regelmæssigt, selvom den ikke er i konstant brug.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Batteriet er fladt, eller strømadapteren er ikke tilsluttet korrekt. | Ensure the volume knob is rotated clockwise to turn on. Connect the power adapter and charge the unit. |
| CD'en springer over eller afspilles ikke. | CD'en er snavset, ridset eller isat forkert. | Clean the CD with a soft cloth. Ensure the CD is placed correctly in the compartment. Try a different CD. |
| Dårlig FM-radiomodtagelse. | Antennen er ikke strakt ud, eller signalet er svagt. | Fully extend the FM antenna. Try repositioning the unit for better signal. |
| Bluetooth-enheden kan ikke parres. | Unit is not in pairing mode or device is too far. | Ensure the unit is in "BT" mode and flashing. Move your Bluetooth device closer to the boombox. Disconnect other Bluetooth devices. |
| USB/TF card not recognized. | Ikke understøttet file format or card capacity. | Sikre files are MP3 or WMA format. Check that the card capacity is 32GB or less. Reinsert the card/drive. |
Specifikationer
- Model: W15
- Mærke: Kuephom
- Produktmål (L x B x H): 6.3 x 6.3 x 4.2 tommer
- Varens vægt: 1.9 pund
- Strømindgang: DC 5V
- Batteri: 1 lithium-ion batteri (medfølger)
- Batteriets spilletid: 6-10 hours (approx., varies with usage)
- Understøttede diskformater: CD, CD-R, CD-RW, MP3-CD
- Supported USB/TF Card Formats: MP3, WMA (up to 32GB)
- FM Radio Frequency Range: 87.5 - 108 MHz
- Højttalertype: Indbyggede stereohøjttalere
- Hovedtelefonstik: 3.5 mm
Garanti og support
Kuephom products are designed and manufactured to the highest quality standards. For any questions, technical support, or warranty claims, please contact Kuephom customer service through the retailer where you purchased the product or visit the official Kuephom webside for mere information.
Gem venligst din købsbevis af garantihensyn.
