ANCEL L3000 Digital Røglækagedetektor til Biler Brugermanual

1. Introduktion

The ANCEL L3000 Digital Automotive Smoke Leak Detector is a professional tool designed for diagnosing leaks in various vehicle systems. It provides precise measurement of pressure drop rates and visually identifies leaks using smoke output. This manual provides detailed instructions for the safe and effective use of the device.

The L3000 is equipped with an integrated LED display and a precision pressure gauge to quantify leaks, moving beyond simple leak location to measure severity. It includes four essential adapters for secure sealing on most gasoline and diesel engines, enabling testing of EVAP systems, intake manifolds, turbo piping, and vacuum lines.

Billede 1.1: Diagram illustrating various vehicle systems where leaks can occur, including exhaust, EGR, crankcase, turbo, fuel tank, EVAP, intake, and cooling systems. Below are descriptions of Major, Minor, and Undetectable leaks.

2. Sikkerhedsoplysninger

Always observe the following safety precautions when operating the ANCEL L3000 to prevent injury or damage to the device or vehicle:

• Brug passende personlige værnemidler, herunder sikkerhedsbriller og handsker.
• Ensure adequate ventilation in the work area to disperse smoke.
• Brug ikke apparatet i nærheden af ​​åben ild eller antændelseskilder.
• Use only the recommended test oil (baby oil is suitable) in the device.
• Tilslut strømmen clamps correctly: red to positive (+), black to negative (-). Incorrect connection can damage the device.
• Avoid using the device in windy environments, as this can affect smoke visibility.
• The device features anti-frost protection down to -20°C and over-heat protection up to 75°C. Do not operate outside these temperature ranges.
• Hold enheden væk fra vand og fugt.

Billede 2.1: This image highlights the ANCEL L3000's safety features, including anti-frost protection down to -20°C and over-heat protection up to 75°C. It also shows the wide range of vehicles it can be used on, such as cars, ATVs, boats, motorcycles, snowmobiles, and light trucks.

3. Pakkens indhold

The ANCEL L3000 package typically includes the following items:

• ANCEL L3000 Digital Automotive Smoke Leak Detector Unit
• Power Cable with Battery Clamps
• Røgudløbsslange
• Various Universal Automotive Adapters (e.g., for engine, fuel, intake systems, and a cone set)
• Oil Fill Bottle/Funnel
• Brugermanual

Billede 3.1: A collection of universal automotive adapters designed for use with the ANCEL L3000, including specific adapters for engine systems, fuel systems, intake systems, and a general adapter cone set.

4. Produktet er slutview

The ANCEL L3000 is a compact and robust diagnostic tool. Key components include:

• Digital skærm: Shows real-time pressure readings in various units (Psi, Bar, Kpa, kg/cm²).
• Trykmåler: Provides a visual indication of system pressure.
• Flowmåler: Indicates the rate of smoke output and helps assess leak size.
• Oil Fill Port: For adding test oil to the smoke generator.
• Smoke Output Port: Connects to the smoke hose.
• Strømindgang: Connects to a 12V vehicle battery.
• Indbygget luftpumpe: Generates smoke without needing an external air compressor.

Billede 4.1: A red ANCEL L3000 diagnostic leak detector unit, featuring a digital display, pressure gauge, and various connection hoses and adapters.

Billede 4.2: En detaljeret view of the digital display gauge, emphasizing its high accuracy, customizable unit preferences (Psi, Bar, Kpa, kg/cm²), and memory functionality for precise leak insights.

Billede 4.3: En intern view of the ANCEL L3000's built-in air pump, which ensures hands-free smoke generation, precise and adjustable smoke output, quick smoke generation, and reduces the need for external air compressors, improving testing ease and efficiency.

5. Opsætning

Follow these steps to prepare the ANCEL L3000 for operation:

1. Tilsæt testolie: Open the oil fill port and carefully pour the recommended test oil (e.g., baby oil) into the reservoir using the provided funnel. Do not overfill; ensure the oil level is within the indicated range.
2. Connect the Machine: Attach the smoke output hose to the smoke output port on the device.
3. Prepare Vehicle Connection: Disconnect the pipe or system component on the vehicle that needs to be tested. Select the appropriate adapter from the kit to seal the opening securely.
4. Tilslut strøm: Connect the red power clamp to the vehicle's positive (+) battery terminal and the black power clamp to the negative (-) battery terminal. Ensure a secure connection.

Billede 5.1: A simplified visual guide showing the four steps for quick setup: 1) Fill test oil (baby oil recommended), 2) Disconnect the pipe to be tested, 3) Connect the detector to a DC 12V battery and choose work mode, and 4) Inspect for smoke to identify leak points.

6. Betjening

The ANCEL L3000 offers two primary modes for leak detection:

6.1. Air Mode (Pressure Decay Test)

Air Mode is used to quickly diagnose if a leak exists and to quantify its severity by monitoring pressure drops. This mode is particularly useful for small leaks that may not produce visible smoke immediately.

1. After setup, select Air Mode on the device.
2. The device will pressurize the system with air.
3. Observe the digital display and pressure gauge. A drop in pressure indicates a leak. The rate of pressure drop helps determine the leak's size.
4. For very small leaks (e.g., less than 0.2mm), the smoke may not be immediately obvious. In such cases, rely on the pressure decay reading.

6.2. Smoke Mode

Smoke Mode is used to visually locate the exact point of a leak once its presence has been confirmed.

1. After setup, select Smoke Mode on the device.
2. The device will begin generating and outputting smoke through the hose.
3. Direct the smoke output into the sealed system.
4. Visually inspect all connections, hoses, and components for escaping smoke, which indicates the leak location.
5. Adjust the smoke output volume as needed using the control knob for optimal visibility.

6.3. EVAP System Testing

For EVAP systems, which often require lower pressure, an optional external pressure regulator may be beneficial to optimize testing.

• Connect an external pressure regulator (7-12 PSI recommended) between the smoke output hose and the EVAP system.
• Proceed with Air Mode or Smoke Mode as described above, ensuring the pressure is appropriate for the EVAP system.

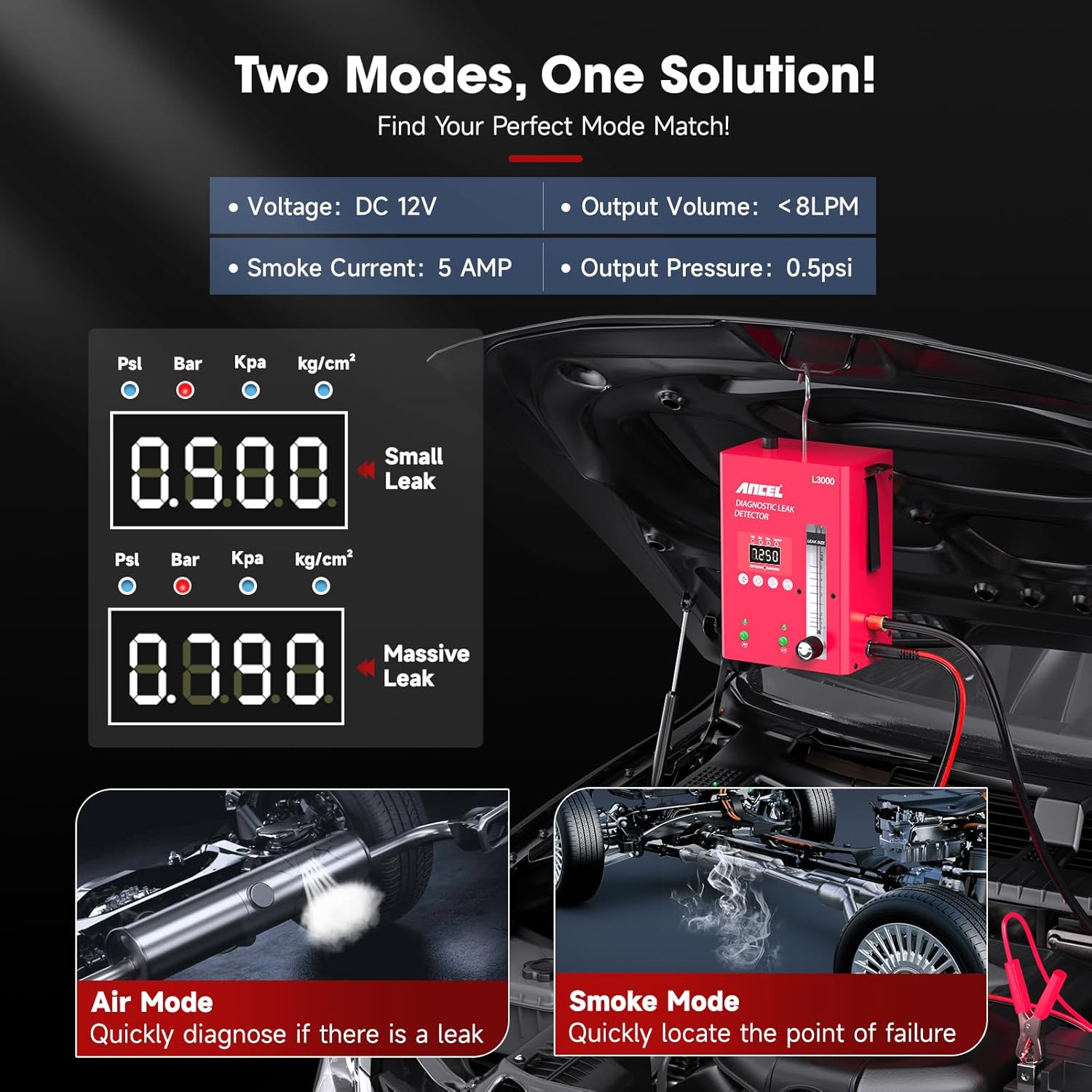

Billede 6.1: This image explains the two operational modes: Air Mode, which quickly diagnoses the presence of a leak by showing pressure drops for small or massive leaks on the digital display, and Smoke Mode, which helps quickly locate the exact point of failure using visible smoke.

Billede 6.2: This image demonstrates how to optimize the ANCEL L3000 for EVAP systems by adding an external pressure regulator (7-12 PSI) for low-pressure testing, ensuring accurate diagnosis for sensitive systems.

7. Vedligeholdelse

Proper maintenance ensures the longevity and reliable performance of your ANCEL L3000.

• Olieniveau: Regularly check the oil level before each use. Refill if it is below the minimum mark.
• Smoke Oil: Use only clean, recommended test oil. Incompatible oils can lead to weak smoke or oil drips.
• Smoke Hose: Periodically remove the smoke hose and dry it to prevent normal smoke condensation from affecting performance.
• Rensning: Tør ydersiden af ​​enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Opbevaring: Opbevar enheden et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.

8. Fejlfinding

Se tabellen nedenfor for almindelige problemer og løsninger på disse:

Billede 8.1: A table outlining common operational errors, their potential causes, and corresponding solutions.

9. Specifikationer

10. Garanti og support

For warranty information, technical support, or service inquiries, please refer to the official ANCEL website or contact their customer service directly. Details regarding product registration and warranty claims can typically be found on the manufacturer's support pages.

Please retain your purchase receipt as proof of purchase for any warranty-related services.
