VOLTCRAFT WBS-120 Termografikamera Brugermanual

1. Introduktion

Thank you for choosing the VOLTCRAFT WBS-120 Thermal Imager. This device is a compact and powerful thermal imaging camera designed for use with Android smartphones via a USB-C® connection. It provides accurate temperature measurements and thermal imaging from -20°C to 400°C, with a resolution of 120 x 90 pixels and a 25Hz refresh rate, making it ideal for various applications including electrical inspections, HVAC diagnostics, building inspections, and more. Please read this manual thoroughly before operating the device to ensure safe and efficient use.

2. Sikkerhedsinstruktioner

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af enheden.

• Do not point the thermal imager directly at extremely high-intensity energy sources (e.g., the sun, lasers) as this may damage the detector.
• Udsæt ikke enheden for ekstreme temperaturer, fugtighed eller ætsende miljøer.
• Undgå at tabe eller udsætte enheden for kraftige stød.
• Forsøg ikke at skille enheden ad eller ændre den. Reparationer bør kun udføres af kvalificeret personale.
• Ensure the USB-C port on your Android device is clean and free of debris before connecting the thermal imager.
• Use the device within its specified operating temperature range (-20°C to 400°C).
• Keep the lens clean using a soft, lint-free cloth. Do not use abrasive cleaners.

3. Pakkens indhold

Kontroller venligst pakkens indhold ved udpakning. Hvis der mangler eller er beskadigede dele, skal du kontakte din forhandler.

• VOLTCRAFT WBS-120 Thermal Imager
• Beskyttende etui
• Brugervejledning (dette dokument)

4. Produktet er slutview

Familiarize yourself with the components of your VOLTCRAFT WBS-120 Thermal Imager.

Figur 4.1: Forside view of the VOLTCRAFT WBS-120 Thermal Imager, showing the USB-C connector and the thermal lens.

Figur 4.2: Tilbage view of the VOLTCRAFT WBS-120 Thermal Imager, highlighting the compact design and USB-C connector.

Figur 4.3: Øverst view of the VOLTCRAFT WBS-120, showing the thermal lens and the USB-C connector in an upright position.

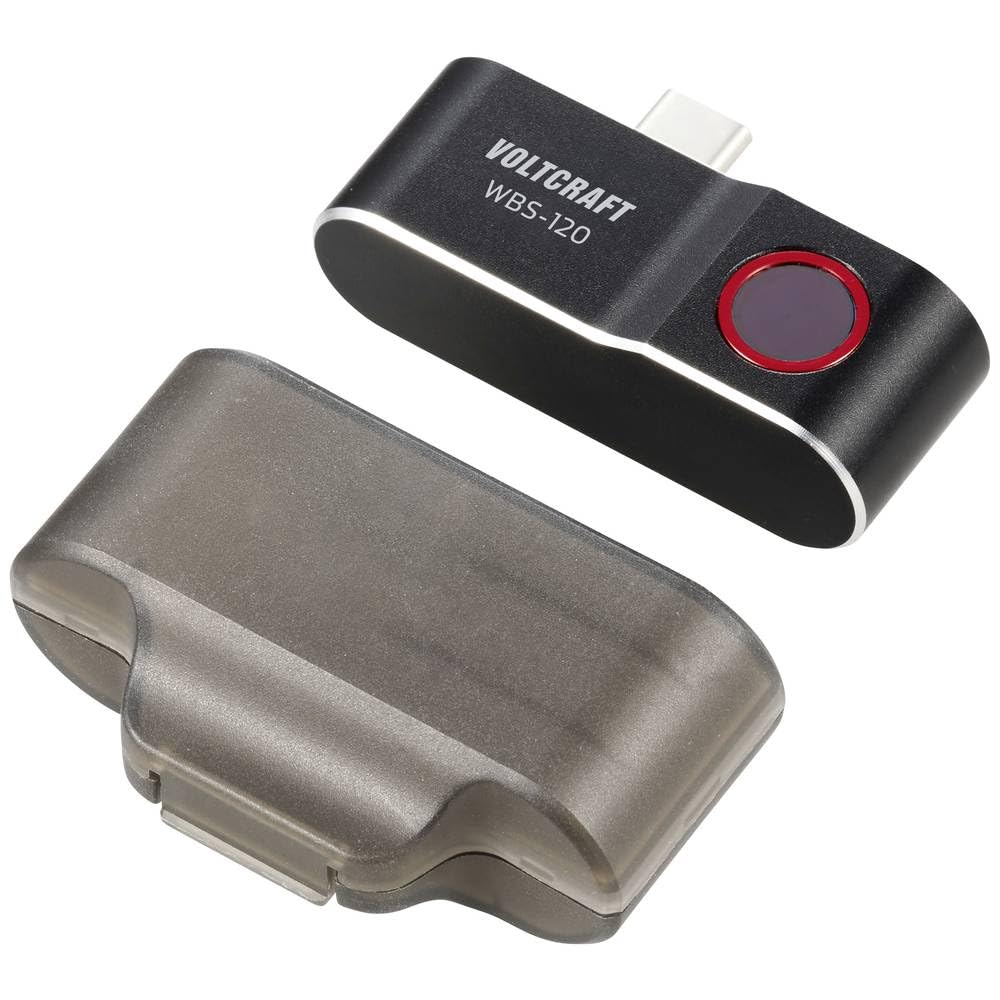

Figure 4.4: The VOLTCRAFT WBS-120 Thermal Imager alongside its transparent protective case.

5. Opsætning

Follow these steps to set up your VOLTCRAFT WBS-120 Thermal Imager for first use.

1. Download appen: Søg efter the official VOLTCRAFT thermal imaging app on the Google Play Store. Install the app on your Android smartphone.
2. Enable OTG Function (if necessary): Some Android devices require the "OTG" (On-The-Go) function to be enabled in their settings for external USB devices to be recognized. Check your phone's settings if the device is not detected.
3. Tilslut enheden: Carefully plug the USB-C connector of the VOLTCRAFT WBS-120 into the USB-C port of your Android smartphone.
4. Start appen: Open the installed VOLTCRAFT thermal imaging app. The app should automatically detect the connected thermal imager and display the thermal image.
5. Indledende kalibrering: The device may perform a brief self-calibration upon first connection or when ambient temperature changes significantly. This is normal.

6. Betjeningsvejledning

This section provides guidance on operating the VOLTCRAFT WBS-120 Thermal Imager with its dedicated application.

6.1 Grundlæggende betjening

• Levende termisk View: Once connected and the app is open, the screen will display a live thermal image.
• Temperaturmåling: The app typically displays the temperature of the central point, as well as the hottest and coldest points within the field of view.
• Paletvalg: Most thermal imaging apps allow you to change the color palette (e.g., Iron, Rainbow, Grayscale) to better visualize temperature differences. Access this option within the app settings.
• Billedoptagelse: Use the app's interface to capture thermal images or record thermal videos. These will be saved to your smartphone's gallery.

6.2 Advanced Features (App Dependent)

The specific features available may vary depending on the version of the VOLTCRAFT app.

• Emissivitetsjustering: For accurate temperature readings, especially on different materials, adjust the emissivity setting in the app. Refer to the app's help section for common emissivity values.
• Temperaturalarmer: Set high or low temperature alarms to be notified when temperatures exceed or fall below a specified threshold.
• Spot/Area Measurement: The app may allow you to add multiple spot meters or define areas for temperature analysis.
• Rapportering: Some apps offer features to generate basic reports from captured thermal images.

For detailed instructions on specific app features, refer to the in-app help or the app's dedicated user guide.

7. Vedligeholdelse

Proper maintenance ensures the longevity and accuracy of your thermal imager.

• Rengøring af linsen: Use a soft, clean, lint-free cloth to gently wipe the thermal lens. For stubborn dirt, a small amount of lens cleaning solution designed for optical lenses can be applied to the cloth (not directly to the lens). Do not use abrasive materials or solvents.
• Rengøring af kroppen: Tør enhedens kabinet af med en blød,amp cloth. Do not immerse the device in water or use harsh chemicals.
• Opbevaring: When not in use, store the thermal imager in its protective case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Firmwareopdateringer: Periodically check the VOLTCRAFT app for any available firmware updates for the thermal imager. Updates can improve performance and add new features.

8. Fejlfinding

If you encounter issues with your VOLTCRAFT WBS-120, refer to the following common problems and solutions.

If the problem persists, please contact VOLTCRAFT customer support.

9. Specifikationer

10. Garanti og support

VOLTCRAFT products are designed for reliability and performance.

10.1 Garantioplysninger

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official VOLTCRAFT webwebstedet for detaljerede garantivilkår og -betingelser, der er specifikke for din region. Gem din købsbevis til garantikrav.

10.2 Kundesupport

For technical assistance, troubleshooting, or service inquiries, please contact VOLTCRAFT customer support.

• Online support: Visit the official VOLTCRAFT website for FAQs, software downloads, and support contact information.
• Kontaktoplysninger: Specific contact details (phone, email) can usually be found on the VOLTCRAFT webwebstedet eller i din produktdokumentation.

When contacting support, please have your product model number (VC-14378990) and purchase details ready.
