TELLUR Obia PRO 60W Bluetooth-højttaler brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation of your TELLUR Obia PRO 60W Bluetooth Speaker. Please read this manual thoroughly before using the product and retain it for future reference.

2. Sikkerhedsoplysninger

• Udsæt ikke højttaleren for ekstreme temperaturer eller direkte sollys i længere perioder.
• Undgå at tabe eller udsætte højttaleren for kraftige stød.
• Forsøg ikke at skille højttaleren ad eller ændre den. Dette vil ugyldiggøre garantien.
• Hold højttaleren væk fra medicinsk udstyr.
• Ensure the charging port cover is securely closed when near water to maintain IPX6 water resistance.
• Brug kun det specificerede opladningskabel og strømadapter.

3. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• TELLUR Obia PRO 60W Bluetooth Speaker
• USB opladningskabel
• 3.5 mm AUX lydkabel
• Brugervejledning (dette dokument)

4. Produktet er slutview og kontroller

Familiarize yourself with the speaker's components and control buttons.

Figur 4.1: Front view of the TELLUR Obia PRO speaker, showcasing the main grille, control panel, and integrated LED lights on the handle and side woofers.

4.1 Kontrolpanel

Figur 4.2: Detaljeret view of the control buttons located on the top panel of the speaker.

1. Volume Down (-) / Previous Track: Tryk kort for at sænke lydstyrken. Tryk og hold nede for at gå til det forrige nummer.
2. Volume Up (+) / Next Track: Press briefly to increase volume. Press and hold to go to the next track.
3. LED Light Mode Button: Press to cycle through different LED light modes.
4. Power knap: Press and hold to power on/off. Briefly press to play/pause music.
5. TWS (True Wireless Stereo) Button: Press to activate TWS pairing mode.
6. Mode-knap (M): Press to switch between Bluetooth, USB, and AUX input modes.

4.2 Input/output porte

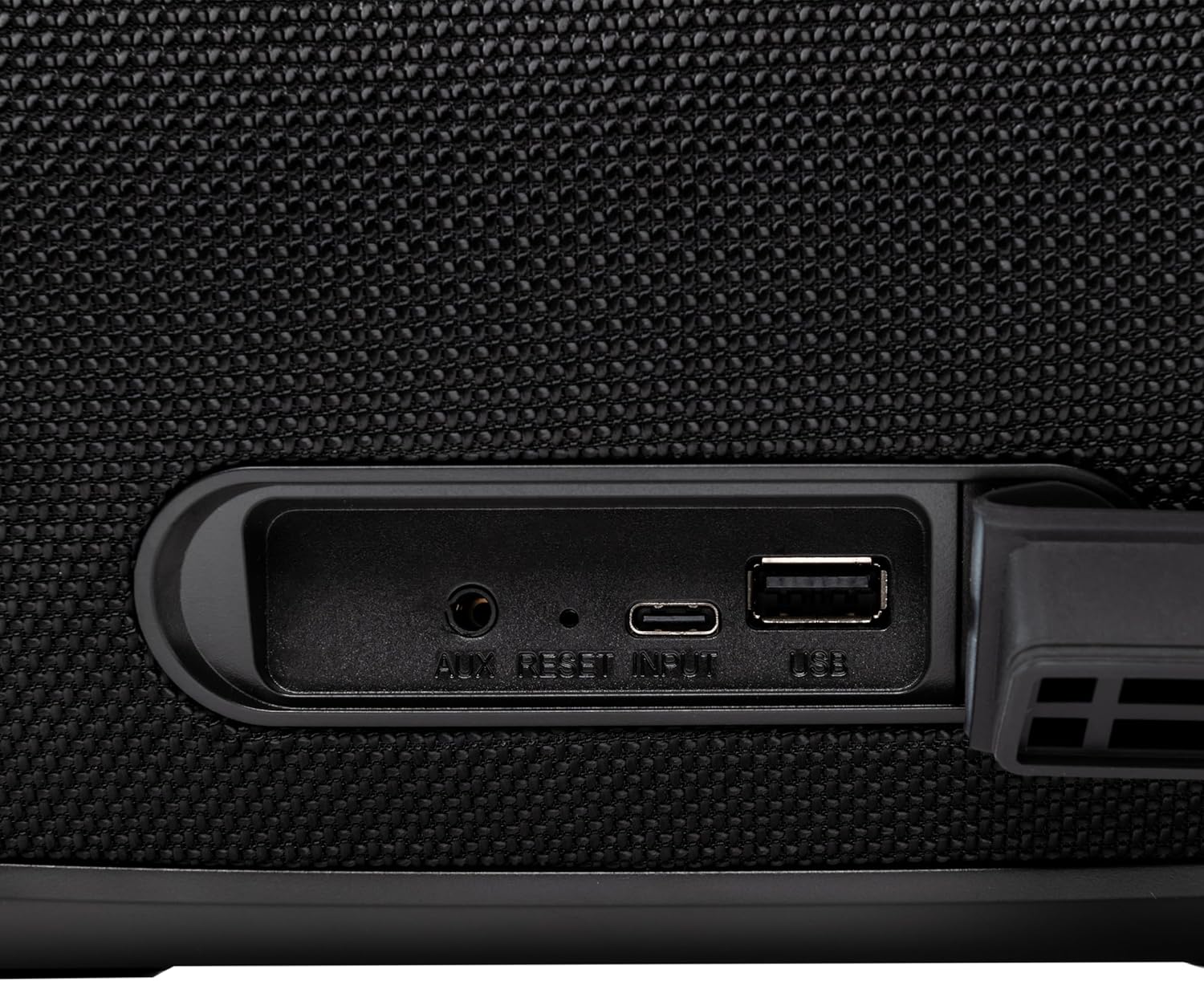

Figur 4.3: Close-up of the protected input/output ports on the rear of the speaker.

• AUX-IN-port: Til tilslutning af eksterne lydenheder via et 3.5 mm lydkabel.
• Nulstil knap: Use a thin object to press and reset the speaker if necessary.
• USB-C-indgang: Til opladning af højttaleren.
• USB-A-port: For playing MP3 audio files from a USB drive or for power bank functionality.

5. Opsætning

5.1 Opladning af højttaleren

Before initial use, fully charge the speaker. The speaker also functions as a power bank to charge other devices via its USB-A port.

1. Connect the USB charging cable to the USB-C input port on the speaker.
2. Tilslut den anden ende af kablet til en kompatibel USB-strømadapter (medfølger ikke).
3. The charging indicator light will illuminate. It will turn off once charging is complete.
4. The battery level can be displayed on your connected phone when paired via Bluetooth.

5.2 Tænd/sluk

• For at tænde: Tryk og hold på Power knap for approximately 3 seconds until you hear an audible prompt and the LED lights activate.
• For at slukke: Tryk og hold på Power knap for approximately 3 seconds until you hear an audible prompt and the LED lights turn off.

6. Betjeningsvejledning

6.1 Bluetooth -parring

The speaker uses Bluetooth v5.3 for stable wireless connection up to 10 meters.

1. Ensure the speaker is powered on and in Bluetooth mode (indicated by a flashing blue LED). If not, press the Tilstandsknap (M) for at skifte til Bluetooth-tilstand.
2. Aktiver Bluetooth på din mobile enhed (smartphone, tablet osv.).
3. Søg efter available Bluetooth devices and select "TELLUR Obia PRO" fra listen.
4. Once paired, the speaker will emit an audible confirmation, and the blue LED will stop flashing.
5. The speaker will automatically reconnect to the last paired device when powered on, if available.

Figur 6.1: The TELLUR Obia PRO speaker wirelessly connected to a smartphone, ready for audio playback.

6.2 Ægte trådløs stereo (TWS) funktion

TWS allows you to pair two Obia PRO speakers for a stereo sound experience.

1. Ensure both Obia PRO speakers are powered on and in Bluetooth mode, but not yet paired with any device.
2. På én højttaler (dette vil være den primære højttaler) skal du trykke på TWS knap. The speaker will enter TWS pairing mode, indicated by a flashing light.
3. The two speakers will automatically connect to each other. Once connected, you will hear an audible confirmation, and the TWS indicator light on both speakers will become solid.
4. Now, connect your mobile device to the primary speaker via Bluetooth as described in Section 6.1. The audio will play in stereo across both speakers.

6.3 Multiple Link Technology

This technology allows connecting an unlimited number of Obia PRO speakers wirelessly for a synchronized audio experience. Refer to the manufacturer's website or specific instructions for detailed setup of Multiple Link.

6.4 USB Playback (MP3)

Afspil MP3-lyd files directly from a USB flash drive (up to 128GB).

1. Indsæt et USB-flashdrev, der indeholder MP3 files into the USB-A port.
2. Tryk på Tilstandsknap (M) to switch to USB mode. The speaker will automatically begin playing music from the USB drive.
3. Brug Lydstyrke op/ned og Power knap (for play/pause) to control playback.

6.5 AUX-IN-tilslutning

Connect non-Bluetooth devices using the 3.5mm AUX audio cable.

1. Connect one end of the 3.5mm AUX audio cable to the AUX-IN port on the speaker.
2. Tilslut den anden ende til lydudgangsstikket på din eksterne enhed (f.eks. MP3-afspiller, bærbar computer).
3. Tryk på Tilstandsknap (M) for at skifte til AUX-tilstand.
4. Styr afspilning og lydstyrke fra din eksterne enhed.

6.6 Håndfri opkald

When connected to a smartphone via Bluetooth, the speaker's built-in microphone allows for hands-free calls.

• Besvar/afslut opkald: Tryk kort på Power knap.
• Afvis opkald: Tryk og hold på Power knap i 2 sekunder.

6.7 LED-lystilstande

The speaker features integrated LED lights with multiple display modes.

• Tryk på LED-lystilstandsknap to cycle through available light patterns and colors.
• Tryk og hold på LED-lystilstandsknap to turn the lights off or on.

Figur 6.2: A user interacting with the LED light mode button to change the speaker's lighting effects.

6.8 Equalizer Settings (Indoor/Outdoor)

The speaker allows for equalizer customization for different environments. Specific controls for this are not detailed in the provided data, but typically involve a dedicated button or a combination of existing buttons. Refer to the product's quick start guide or manufacturer's website for precise instructions on adjusting the equalizer.

7. Vedligeholdelse

7.1 Rengøring

• Tør højttaleren af ​​med en blød, tør klud.
• Brug ikke slibende rengøringsmidler, alkohol eller kemiske opløsningsmidler.

7.2 Vandtæthed (IPX6)

The Obia PRO speaker is rated IPX6, meaning it is protected against high-pressure water jets from any direction. This makes it suitable for outdoor use and environments where it might be exposed to splashes or rain.

• Ensure the rubber cover for the charging and AUX ports is securely closed before exposing the speaker to water.
• Nedsænk ikke højttaleren i vand.
• After exposure to water, wipe the speaker dry before charging.

7.3 Pleje af batterier

• For at forlænge batteriets levetid bør du undgå at aflade batteriet helt ofte.
• Oplad højttaleren regelmæssigt, selvom den ikke er i brug, for at opretholde batteriets sundhedstilstand.
• Opbevar højttaleren et køligt og tørt sted, når den ikke er i brug i længere perioder.

8. Fejlfinding

9. Specifikationer

Bemærk: Specifikationerne kan ændres uden forudgående varsel.

10. Garanti og support

TELLUR products are manufactured to the highest quality standards. For information regarding warranty terms, technical support, or service, please refer to the warranty card included with your product or visit the official TELLUR webwebsted.

Kontaktoplysninger: Besøg venligst www.tellur.com for de seneste supportoplysninger.
