ACEZUK M01 5000A Bærbar Bilstarter Brugermanual

1. Introduktion

Thank you for choosing the ACEZUK M01 Portable Car Jump Starter. This device is designed to provide emergency jump-starting for 12V vehicles (up to 7.0L gasoline or 5.5L diesel engines) and also functions as a portable power bank and LED flashlight. Please read this manual thoroughly before use to ensure safe and proper operation.

2. Sikkerhedsoplysninger

WARNING: Improper use may result in damage to the device, vehicle, or personal injury. Always follow these safety guidelines.

• Do not attempt to jump start vehicles with engines larger than specified (7.0L gas, 5.5L diesel).
• Sørg for, at jumpstarteren er mindst 50% opladet, før du forsøger at starte et køretøj med startkabler.
• Tilslut clamps correctly: Red clamp to positive (+) terminal, Black clamp to negative (-) terminal. Reverse polarity can cause damage.
• Remove the jump starter clamps from the vehicle battery within 30 seconds after the engine starts.
• Forbind ikke den røde og sorte clamps sammen.
• Do not expose the device to extreme temperatures (below -20℃ or above 60℃), direct sunlight, or water.
• Opbevares utilgængeligt for børn.
• If the device becomes excessively hot during use, discontinue operation immediately.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• 1 x ACEZUK M01 Jump Starter
• 1 x Smart Jumper Cable with Clamps
• 1 x USB-C opladningskabel
• 1 x brugermanual
• 1 x Opbevaringspose

Image: Package contents of the ACEZUK M01 Jump Starter.

4. Produktet er slutview

The ACEZUK M01 is a versatile device featuring multiple functionalities:

• 5000A spidsstrøm: Capable of jump-starting 12V vehicles with up to 7.0L gas or 5.5L diesel engines.
• 2.5 tommer LCD-skærm: Shows real-time power level, charging status, and temperature protection indicator.
• Multifunction LED Light: Features three modes: illumination, strobe, and SOS for various emergency situations.
• 12800mAh powerbank: Equipped with 1 USB output (5V/2.4A) and 1 Type-C input/output (5V/2A, 9V/2A) for charging mobile devices.
• Smart Jumper Clamps: Incorporate 8 advanced protection technologies for safe operation.

Image: ACEZUK M01 Jump Starter and accessories.

Image: Labeled diagram of the ACEZUK M01 Jump Starter's components.

5. Opsætning og opladning

5.1 Indledende opladning

Before first use, fully charge the jump starter. It is recommended to charge the device every 3-6 months to maintain battery health, even if not in use.

• Connect the provided USB-C charging cable to the Type-C input port on the jump starter.
• Connect the other end of the USB-C cable to a 5V/2.4A (or higher) USB wall adapter (not included).
• The LCD display will show the charging progress. The device is fully charged when the display shows 100%.

Image: Charging the ACEZUK M01 Jump Starter.

6. Betjeningsvejledning

6.1 Jumpstart af et køretøj

Ensure the jump starter has at least 50% charge before attempting to jump start.

1. Insert Jumper Cable: Plug the smart jumper cable into the EC5 output port on the jump starter. Ensure a secure connection.
2. Tilslut Clamps: Fastgør den røde (+) clamp to the positive terminal of the vehicle's battery. Attach the black (-) clamp to the negative terminal of the vehicle's battery. The smart cable indicator light should turn green, indicating a safe connection.
3. Start motor: Gå tilbage til dit køretøj og start motoren.
4. Fjern Clamps: Once the engine starts, immediately remove the clamps from the vehicle battery within 30 seconds. First, remove the black (-) clamp, derefter den røde (+) clamp. Disconnect the smart cable from the jump starter.

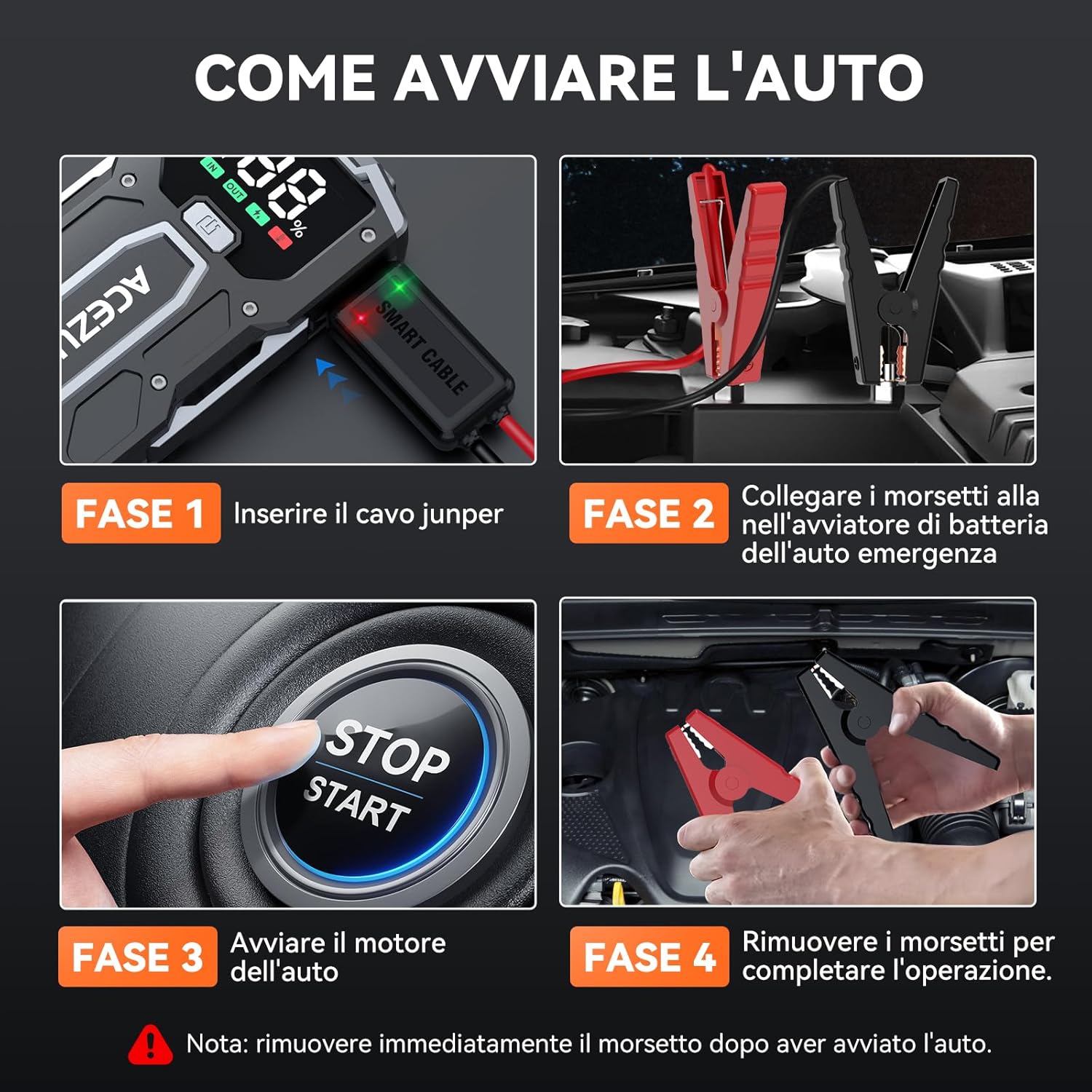

Image: Step-by-step guide for jump starting a vehicle.

6.2 Brug som powerbank

The ACEZUK M01 can charge various USB-powered devices.

• Connect your device's charging cable to the USB output port (5V/2.4A) or the Type-C port (5V/2A, 9V/2A) on the jump starter.
• The LCD display will indicate that charging is active.

Image: Using the jump starter to charge mobile devices.

6.3 Brug af LED-lommelygten

The integrated LED light has three modes for different situations.

• Press and hold the power button for 3 seconds to turn on the LED light (illumination mode).
• Press the power button once to switch to strobe mode.
• Press the power button again to switch to SOS mode.
• Press and hold the power button for 3 seconds to turn off the LED light.

Image: LED flashlight modes.

7. Vedligeholdelse og opbevaring

• Rengør enheden med en tør, blød klud. Brug ikke skrappe kemikalier eller slibende materialer.
• Store the jump starter in its protective bag in a cool, dry place, away from direct sunlight and moisture.
• Recharge the device every 3-6 months to prevent deep discharge and prolong battery life.
• Behold clamper ren og fri for korrosion.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

ACEZUK provides a 2-year warranty for this product. For any missing parts, technical support, or other issues, please contact ACEZUK customer service via Amazon. Our customer service team is available 24/7 to assist you.
