Dlyfull DL4 4-Bay Lithium Batterioplader Brugermanual

Indledning

Thank you for choosing the Dlyfull DL4 4-Bay Lithium Battery Charger. This intelligent charger is designed to provide efficient and safe charging for a wide range of rechargeable lithium-ion batteries. With its independent charging slots, LCD display, and multiple protection features, the DL4 ensures optimal battery performance and longevity. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your charger and batteries.

Sikkerhedsoplysninger

Always observe the following safety precautions to prevent injury or damage to the charger and batteries:

• Use this charger only for 3.7V Li-ion rechargeable batteries. Do not attempt to charge other battery types, such as Ni-MH, Ni-Cd, alkaline, or primary lithium batteries, as this may cause explosion, rupture, or leakage, leading to property damage or personal injury.
• Do not disassemble, modify, or repair the charger. Unauthorized modifications may cause electric shock, fire, or damage to the charger.
• Keep the charger away from water, moisture, and high temperatures. Operate it in a dry, well-ventilated area.
• Ensure proper battery polarity (+/-) when inserting batteries into the charger slots. Incorrect insertion can damage the charger and battery.
• Tag opladeren ud af strømkilden, når den ikke er i brug, eller før rengøring.
• Bloker ikke opladerens ventilationsåbninger.
• Opbevares utilgængeligt for børn.
• If the charger emits smoke, unusual odors, or makes abnormal noises, immediately unplug it and contact customer service.

Billede: Overview of the Dlyfull DL4 charger's safety features, including reverse polarity, short circuit, automatic stop charging, overcurrent/voltage, overheat, and overcharge protection.

Pakkens indhold

Kontroller venligst pakkens indhold ved åbning:

• Dlyfull DL4 18650 Battery Charger x 1
• USB-A to USB-C Data Cable x 1
• Brugervejledning x 1

Image: The Dlyfull DL4 4-bay battery charger shown with its accompanying USB-A to USB-C charging cable.

Produkt overview

The Dlyfull DL4 charger features four independent charging slots and an intuitive LCD display for monitoring charging status. It is designed for ease of use and durability.

• Uafhængige spilleautomater: Each of the four slots operates independently, allowing you to charge different battery types or capacities simultaneously without interference.
• LCD-skærm: A clear LCD screen provides real-time information on the charging status of each battery.
• Robust USB-C Port: Equipped with a durable USB-C input for versatile power connection.
• Thickened Slider: The battery slot sliders are designed for enhanced durability, withstanding over 50,000 uses.

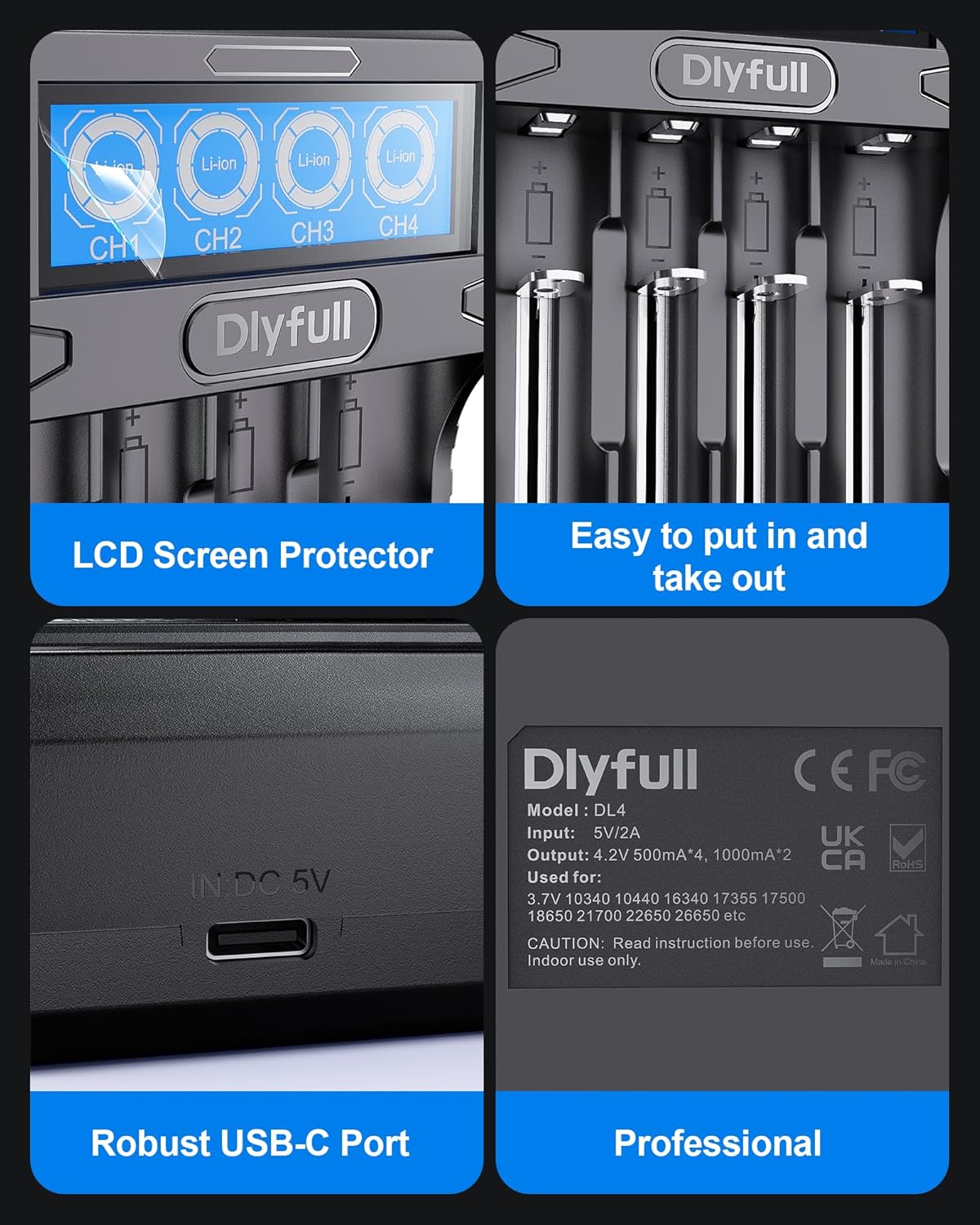

Billede: Detaljeret views highlighting the LCD screen, easy-to-use battery slots, robust USB-C input port, and the professional product information label on the Dlyfull DL4 charger.

Image: A visual comparison illustrating the upgraded, thickened slide mechanism in the new version of the Dlyfull DL4 charger, designed for increased durability compared to older, more fragile versions.

Opsætning

To set up your Dlyfull DL4 charger:

1. Place the charger on a stable, flat, and well-ventilated surface.
2. Connect the provided USB-A to USB-C data cable to the USB-C input port on the back of the charger.
3. Plug the USB-A end of the cable into a compatible USB power adapter (e.g., 5V/2A or higher recommended for optimal charging speed). The charger will power on, and the LCD display will illuminate.

Image: A hand demonstrating the connection of a USB-C cable to the Dlyfull DL4 charger, emphasizing the robust design of the USB-C port and its ease of use.

Betjeningsvejledning

Batteriindsættelse

Carefully insert the rechargeable Li-ion batteries into the charging slots, ensuring the correct polarity (+ and -) matches the markings on the charger. The charger supports various battery sizes:

• 3.7V Li-ion: 10340, 10440, 16340, 17335, 17500, 18650, 21700, 22650, 26650.

Image: The Dlyfull DL4 charger shown with multiple types of rechargeable lithium-ion batteries, including 18650, 21700, and 26650, highlighting its "All in One" compatibility.

Image: A diagram illustrating the diverse slot design of the Dlyfull DL4 charger, showing its compatibility with both button-top and flat-top battery types like RCR21700 and RCR18650.

Forstå LCD-skærmen

The LCD screen provides visual feedback on the charging status for each independent channel (CH1, CH2, CH3, CH4):

• Opladningsindikator: Displays the approximate charge level (0-25%, 25-50%, 50-75%, 75-100%).
• Fuldt opladet: When a battery is fully charged, the display for that channel will show 100% or a full battery icon.
• Unormal opladning: If an issue occurs (e.g., incorrect battery type, short circuit, reverse polarity), the indicator for that channel will flash, indicating an error.

Image: The LCD screen of the Dlyfull DL4 charger displaying charging indicators for each channel, showing battery level percentages and an abnormal charging warning (flashing icon).

Image: A detailed graphic explaining the simple and intuitive LCD display of the Dlyfull DL4 charger, showing how charge levels (0-25% to 100%) are indicated and the visual cue for battery failure.

Opladningsproces

Once batteries are correctly inserted, the charger will automatically detect them and begin the charging process. The LCD display will show the progress for each slot.

• Hurtig opladning: The charger supports 0.5A or 1A fast charging. For example, an 18650-2500mAh battery can be charged in approximately 3 hours, and a 21700-5000mAh battery in about 6 hours.
• Automatic Termination: Charging automatically stops when batteries reach full capacity to prevent overcharging.

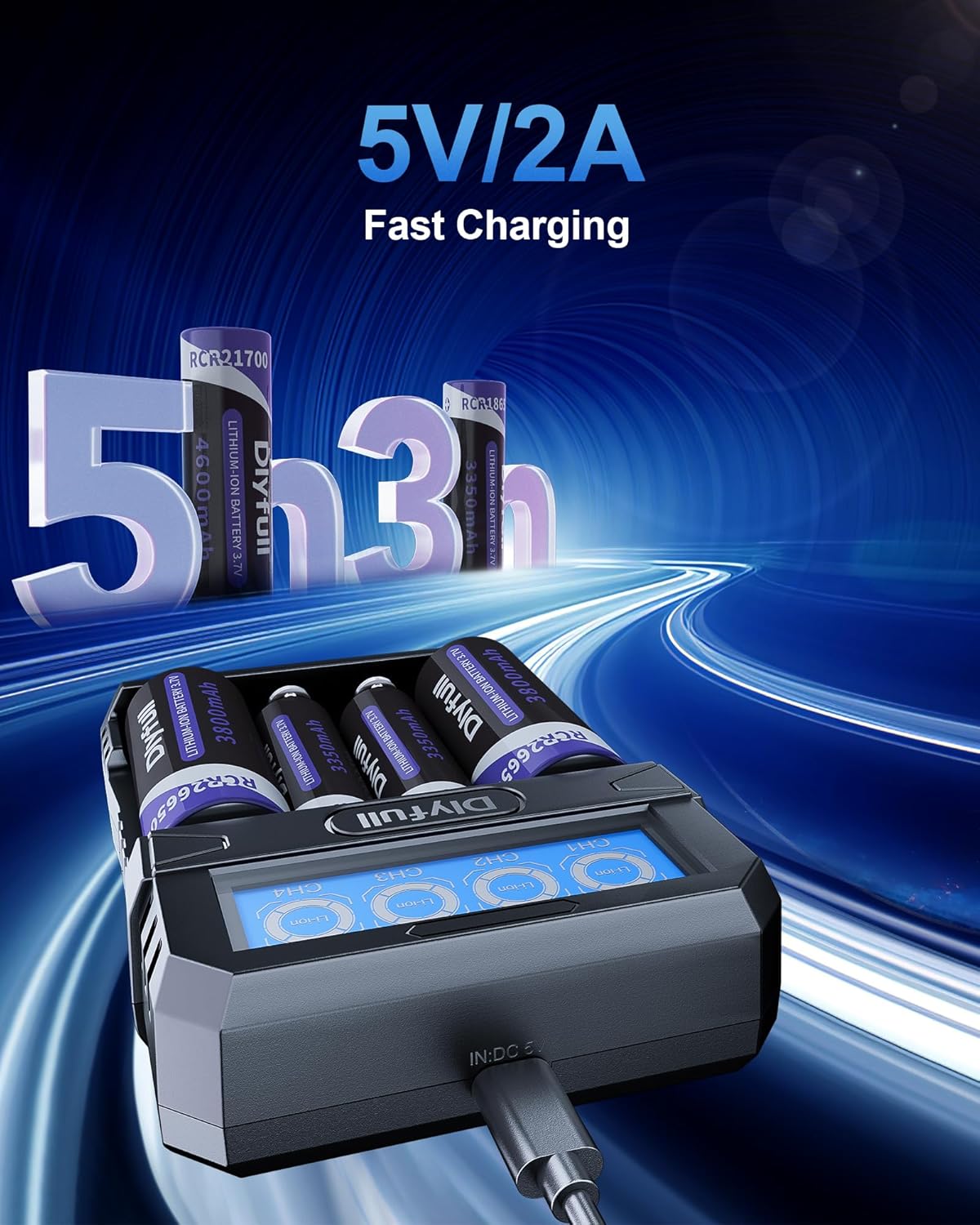

Image: The Dlyfull DL4 charger in use, demonstrating its 5V/2A fast charging capability with batteries inserted, and indicating approximate charging times for different battery capacities.

Image: A graphic illustrating the 0.5A or 1A fast charging capabilities of the Dlyfull DL4 charger, with examples of charging times for 18650-2500mAh and 21700-5000mAh single cells.

0V/Low-Voltage-aktivering

The DL4 charger features a 0V and low-voltage activation function. It can activate batteries with voltages between 1.9V and 2.8V (±0.1V tolerance). This helps to restore over-discharged batteries, extending their lifespan. Note: Activation function is only applicable to lithium batteries with protection boards.

Image: A visual representation of the 0V/Low-Voltage Activation process, showing how the charger can activate and charge deeply discharged batteries to restore them for use.

Opretholdelse

To ensure the longevity and optimal performance of your Dlyfull DL4 charger:

• Rengør opladeren regelmæssigt med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Hold opladningsåbningerne fri for støv og snavs.
• Opbevar opladeren på et køligt, tørt sted, når den ikke er i brug.
• Undgå at tabe opladeren eller udsætte den for kraftige stød.

Fejlfinding

Specifikationer

Garanti og support

Dlyfull provides a 1 års garanti for the DL4 battery charger from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use.

Garantien dækker ikke:

• Skader forårsaget af misbrug, misbrug, ulykke eller uagtsomhed.
• Damage caused by unauthorized modification or repair.
• Almindelig slitage.

For technical support, warranty claims, or any questions regarding your Dlyfull DL4 charger, please contact our customer service team. We offer 24-hour attentive customer service.

You can typically find contact information on the product packaging or the official Dlyfull website. Please have your purchase receipt and product model number (DL4) ready when contacting support.
