VIVOHOME Electric Food Dehydrator VH1182-WH User Manual

1. Introduktion

Thank you for choosing the VIVOHOME Electric Food Dehydrator. This appliance is designed to efficiently remove moisture from various foods, preserving their nutrients, flavor, and extending their shelf life. Please read this manual thoroughly before operation to ensure safe and optimal use of your dehydrator.

Image 1.1: The VIVOHOME Electric Food Dehydrator, showcasing its 8 transparent trays filled with colorful dried fruits and vegetables, with the digital control panel visible at the base.

2. Vigtige sikkerhedsinstruktioner

For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger:

• Læs alle instruktioner før brug af apparatet.
• Rør ikke ved varme overflader. Brug håndtag eller knopper.
• To protect against electrical hazards, do not immerse the cord, plugs, or the appliance base in water or other liquid.
• Tæt opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af.
• Betjen ikke noget apparat med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Brug af tilbehør, der ikke er anbefalet af apparatets producent, kan forårsage skader.
• Må ikke bruges udendørs.
• Lad ikke ledningen hænge ud over kanten af ​​et bord eller bord, eller rør ved varme overflader.
• Må ikke placeres på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Sæt altid stikket i apparatet først, og sæt derefter ledningen i stikkontakten. For at afbryde forbindelsen skal du slukke for en vilkårlig knap og derefter tage stikket ud af stikkontakten.
• Brug ikke apparatet til andet end tilsigtet brug.

3. Produktet er slutview

3.1 Komponenter

• Main Unit Base with Digital Control Panel
• 8 stabelbare tørrebakker
• Toplåg
• Fine Mesh Plastic Sheet (for small items like herbs)
• Silikone tang

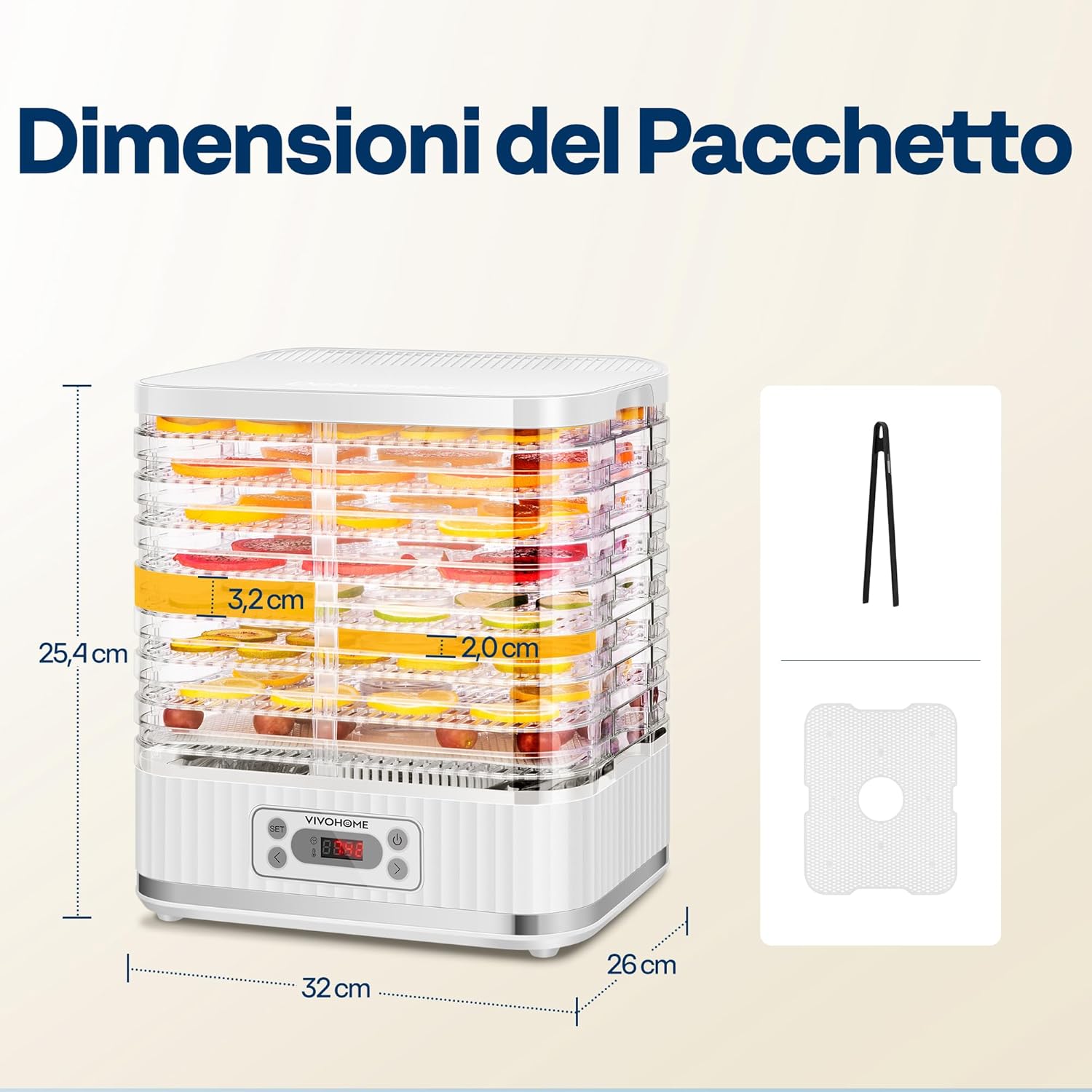

Image 3.1: Diagram illustrating the dehydrator's dimensions (32cm x 26cm x 25.4cm) and showing the included fine mesh sheet and silicone tongs.

3.2 Nøglefunktioner

• Powerful Drying Capacity: 400W drying power with constant airflow for efficient moisture removal, preserving up to 97% of vitamins and minerals.
• Præcis digital kontrol: Easy-to-use digital panel for setting temperature (35°C to 70°C / 95°F to 158°F) and timer (1 to 72 hours).
• Adjustable Trays: 8 large food-grade trays that can be rotated 180° to create two different heights (3.2 cm and 2 cm) for various food thicknesses.
• Durable and Safe Materials: Constructed from BPA-free plastic with food-grade plastic trays. Operates quietly.
• Let at rengøre: Detachable design with dishwasher-safe trays (Note: fine mesh sheet and silicone tongs are hand-wash only).

Image 3.2: Visual representation of the dehydrator's powerful 400W drying capability and 360-degree air circulation for uniform drying.

4. Opsætning

1. Pakker ud: Fjern forsigtigt alle komponenter fra emballagen. Gem emballagen til senere opbevaring eller transport.
2. Ren: Before first use, wash the trays, lid, fine mesh sheet, and silicone tongs in warm, soapy water. Rinse thoroughly and dry. Wipe the main unit base with a damp klæde.
3. Placering: Place the dehydrator on a stable, flat, heat-resistant surface. Ensure there is adequate ventilation around the unit. Do not place it near heat sources or flammable materials.
4. Assemble Trays: Stack the desired number of trays onto the main unit base. Ensure they are correctly aligned. You can adjust tray height by rotating them 180 degrees for either 3.2 cm or 2 cm clearance.
5. Tilslut strøm: Sæt netledningen i en almindelig stikkontakt.

5. Betjeningsvejledning

5.1 Madlavning

• Vask: Thoroughly wash all fruits, vegetables, or herbs.
• Skive: Slice food into uniform pieces (approximately 0.5 cm / 0.2 inches thick) for even drying.
• Forbehandling (valgfrit): Some foods, especially fruits like apples or bananas, may benefit from pre-treatment (e.g., lemon juice dip) to prevent discoloration.

Image 5.1: A visual guide to the dehydration process: 1. Wash and slice food, 2. Load trays evenly, 3. Set time and temperature, 4. Enjoy dried food.

5.2 Fyldning af bakker

• Arrange food in a single layer on each tray, ensuring pieces do not overlap. This allows for optimal airflow.
• For smaller items like herbs, use the fine mesh plastic sheet on a tray.
• Stack the trays and place the lid securely on top.

Image 5.2: The 8 stackable trays demonstrating their adjustable heights (3.2 cm for thick slices, 2 cm for thin slices) by rotating them 180 degrees.

5.3 Indstilling af temperatur og tid

The digital control panel allows for precise adjustments:

• Temperaturområde: 35 ° C til 70 ° C (95 ° F til 158 ° F).
• Timerområde: 1 til 72 timer.

1. Tryk på SÆT button to toggle between temperature and time settings.
2. Brug < og > buttons to adjust the desired value.
3. Once settings are confirmed, the dehydrator will begin operation. The fan and heating element will cycle automatically to maintain the set temperature.

Image 5.3: The digital control panel with recommended temperature and time ranges for various foods: Herbs (35-40°C), Fruits/Vegetables (54-60°C), and Meat (54-70°C).

5.4 Recommended Dehydration Times and Temperatures

Note: Drying times can vary based on food thickness, moisture content, and ambient humidity. Check food periodically for desired dryness.

6. Vedligeholdelse og rengøring

Regelmæssig rengøring sikrer optimal ydeevne og forlænger levetiden på din dehydrator.

1. Tag stikket ud: Tag altid stikket ud af stikkontakten til tørretumbleren, og lad den køle helt af, inden den rengøres.
2. Bakker og låg: The drying trays and lid are dishwasher-safe. Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry.
3. Fine Mesh Sheet and Tongs: These accessories are ikke dishwasher-safe. Wash them by hand in warm, soapy water, rinse, and dry.
4. Hovedenhedsbase: Wipe the exterior of the main unit base with a damp cloth. Do not immerse the base in water or any other liquid. Ensure no water enters the fan or control panel area.
5. Opbevaring: Once clean and dry, store the dehydrator in a cool, dry place.

Image 6.1: A hand cleaning a detachable dehydrator tray under running water, highlighting the ease of cleaning and labor-saving design.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

VIVOHOME products are manufactured to high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your purchase or visit the official VIVOHOME webwebsted.

Gem venligst dit købsbevis for garantikrav.
