Indledning
This manual provides essential information for the installation, operation, and maintenance of your HOROW Wall-Mounted Toilet Complete Pack. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of the product. Keep this manual for future reference.
Komponenter inkluderet
Your HOROW Wall-Mounted Toilet Complete Pack includes the following main components:
- Wall-mounted toilet bowl (black ceramic)
- Pre-wall installation element (frame with cistern)
- Soft-close toilet seat (Urea-Formaldehyde)
- Dual flush control plate (Betätigungsplatte A, Silver Rectangle)
Funktioner
- Pladsbesparende design: The wall-mounted configuration takes up less floor space compared to traditional toilets, making it ideal for smaller bathrooms.

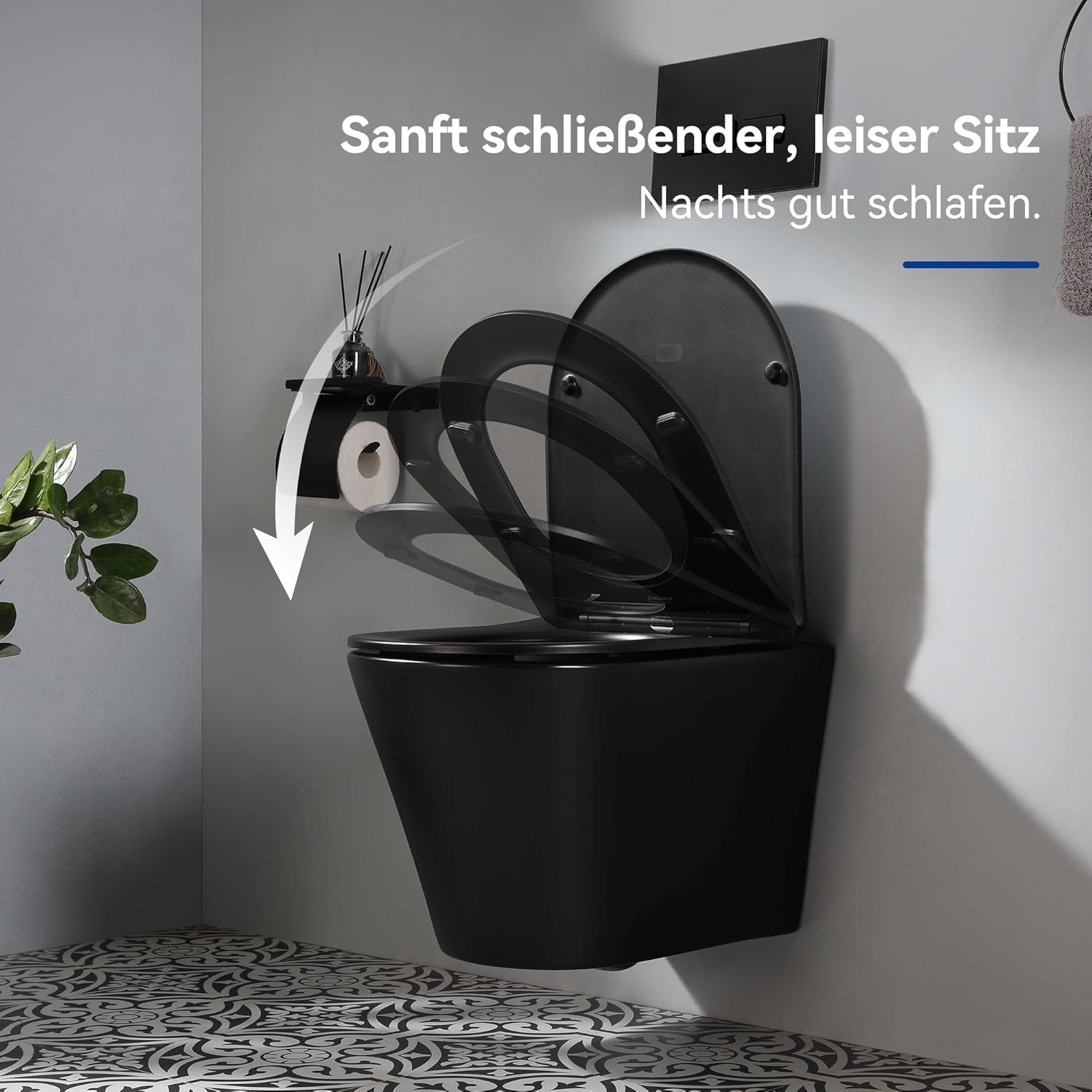

- Soft-Close Toilet Seat: The toilet features a soft-closing seat mechanism, ensuring quiet operation and preventing accidental slamming.
- Nem rengøring: The wall-mounted design eliminates hard-to-reach areas around the base, facilitating thorough bathroom cleaning. The smooth, multi-layer glazed ceramic surface and Urea-Formaldehyde seat material are designed for easy maintenance.
- Quick Release sæde: The toilet seat is designed for easy disassembly, simplifying cleaning and maintenance.
- Durable Multi-layer Glazing: The ceramic surface features multi-layer glazing, providing a smooth, non-porous finish that resists stains and facilitates cleaning.
Dimensioner
Refer to the diagram below for detailed product dimensions:
- Overall Product Dimensions (L x W x H): 62 x 55 x 48 cm
- Toilet Bowl Depth: Approximately 485 mm
- Toilet Bowl Width: Approximately 355 mm
- Toilet Bowl Height: Approximately 325 mm
- Item Weight: 29.1 Kilograms
Opsætning og installation
The HOROW Wall-Mounted Toilet Complete Pack is designed for wall-mounted installation. Professional installation is recommended to ensure proper setup and compliance with local plumbing codes. The pre-wall element provides the necessary support and houses the cistern.
Key steps generally include:
- Mounting the pre-wall element securely to the wall and floor.
- Connecting water supply and waste pipes to the cistern and frame.
- Enclosing the pre-wall element with appropriate wall finishes.
- Attaching the ceramic toilet bowl to the mounting bolts on the frame.
- Installing the flush control plate and connecting it to the cistern mechanism.
- Attaching the soft-close toilet seat.
Always refer to the detailed installation guide provided with the physical product for specific instructions and safety warnings.
Betjeningsvejledning
Dobbelt skyllesystem
Your HOROW toilet is equipped with a dual flush system, controlled by the flush plate. This system allows you to choose between a full flush (typically 6 liters) and a reduced flush (typically 3 liters) to conserve water.
- Fuld skylning: Press the larger button on the flush plate for a complete flush.
- Reduceret skylning: Press the smaller button on the flush plate for a water-saving flush.
Soft-Close sæde
To operate the soft-close seat, simply lower the seat and lid gently. The integrated damping mechanism will ensure a slow and quiet closure, preventing sudden drops and noise.
Opretholdelse
Cleaning the Toilet Bowl and Seat
Regular cleaning will maintain the appearance and hygiene of your toilet. Use mild, non-abrasive cleaning agents and a soft cloth or sponge. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the ceramic glaze and seat finish.
- For the ceramic bowl, wipe with a damp cloth and a mild bathroom cleaner. Rinse thoroughly with water.
- For the Urea-Formaldehyde seat, use a soft cloth dampened with water and a mild soap. Do not use strong disinfectants or abrasive cleaners.
- The quick-release feature of the seat allows for easy removal, enabling thorough cleaning of both the seat and the ceramic rim.
Cistern and Flush Mechanism
The internal components of the cistern are generally maintenance-free. In case of issues with flushing or water filling, it is recommended to consult a qualified plumber.
Fejlfinding
If you encounter any issues with your HOROW Wall-Mounted Toilet, consider the following general troubleshooting steps:
- Svag flush: Check if the water supply valve to the cistern is fully open. Ensure there are no obstructions in the flush mechanism.
- Kontinuerlig vandstrøm: This may indicate an issue with the fill valve or flush valve inside the cistern. Try gently pressing the flush buttons to ensure they return to their original position. If the problem persists, professional inspection may be required.
- Loose Toilet Seat: Tighten the mounting bolts for the toilet seat. Refer to the installation guide for specific instructions on securing the seat.
For complex issues or if troubleshooting steps do not resolve the problem, please contact HOROW customer support or a certified plumber.
Specifikationer
| Specifikation | Detalje |
|---|---|
| Mærke | HOROW |
| Model | WC Suspendu Pack Complet (Betätigungsplatte A) |
| Farve | Sort |
| Material (Toilet Bowl) | Porcelæn |
| Materiale (toiletsæde) | Urea-Formaldehyde (UF) |
| Installationstype | Vægmonteret |
| Form | Rund |
| Produktmål (L x B x H) | 62 x 55 x 48 cm |
| Varens vægt | 29.1 kilo |
| Inkluderede komponenter | Flush plate, Wall-mounted toilet, Wall element |
| UPC | 732829117033 |
Garanti og support
Your HOROW Wall-Mounted Toilet Complete Pack comes with a 12 måneders garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl ved normal brug.
For any questions, concerns, or warranty claims, please contact HOROW customer service. Our professional team is available to assist you.
Contact information can typically be found on the product packaging or the seller's webwebsted.
