Pulido F199B 4-i-1 Smart Fingeraftrykslås til dørhåndtag, brugsanvisning

1. Introduktion

Thank you for choosing the Pulido F199B Smart Fingerprint Door Knob Lock. This device provides enhanced security and convenience with multiple unlocking methods. This manual will guide you through the installation, operation, and maintenance of your new smart lock.

The Pulido F199B offers four distinct unlocking modes: fingerprint, access code, IC card, and traditional physical key. It is designed for local data storage, ensuring your information remains secure without cloud dependency.

2. Sikkerhedsoplysninger

• Læs alle instruktioner omhyggeligt før installation og brug.
• Forsøg ikke selv at skille låsen ad eller reparere den. Kontakt kundesupport for at få hjælp.
• Use only specified battery types. Incorrect battery usage may lead to damage or malfunction.
• Keep physical keys in a secure location outside the property to prevent lockout in case of electronic failure.
• Undgå at udsætte låsen for ekstreme temperaturer eller direkte fugt.

3. Produktet er slutview

The Pulido F199B is a versatile smart door knob designed for various applications, including homes, studios, and offices. It features a sleek design and robust construction.

Image: The Pulido F199B Smart Fingerprint Door Knob Lock, showcasing its modern design, integrated keypad, fingerprint sensor, and accompanying IC cards and physical keys.

Nøglefunktioner:

• 4-in-1 Unlocking Modes: Fingerprint, Access Code, IC Card, and Physical Key.
• Lokal datalagring: Stores up to 100 access codes and 100 fingerprints securely on the device.
• Enhanced Fingerprint Sensor: Larger, high-precision sensor with 99% recognition rate and 0.5-second unlock speed.
• Universal installation: Compatible with both left-handed and right-handed doors without modification.
• Nødkraft: Micro USB interface for temporary power supply if batteries deplete.
• Passagetilstand: Allows temporary unrestricted access.

Image: A detailed diagram highlighting the key components of the Pulido F199B Smart Lock, including the mechanical keyhole, IC card reader, fingerprint sensor, Micro USB interface, passage mode setting button, and reset button.

4. Opsætning og installation

The Pulido F199B is designed for straightforward installation, typically requiring no modification to existing door holes. Ensure you have the necessary tools (screwdriver, measuring tape) before beginning.

Installationstrin:

1. Forbered døren: Ensure your door has standard boreholes for a door knob.
2. Installer låsen: Sæt låsemekanismen ind i dørkanten og fastgør den med skruer.
3. Monter den udvendige enhed: Place the exterior handle assembly through the door, ensuring the spindle aligns with the latch.
4. Monter den indvendige enhed: Connect the interior handle assembly to the exterior assembly, ensuring all wires are properly routed and not pinched. Secure with mounting screws.
5. Indsæt batterier: Open the battery cover on the interior assembly and insert the required batteries (typically 4 AAA batteries, not included).
6. Test drift: After installation, test the mechanical operation of the handle and the electronic functions.

Image: A visual comparison illustrating how the Pulido F199B Smart Lock replaces a general mechanical lock, highlighting its modern design and ease of upgrade.

5. Betjeningsvejledning

The Pulido F199B offers multiple ways to secure and access your space.

Unlocking Modes:

• Lås op med fingeraftryk: Placer din registrerede finger på fingeraftrykssensoren. Låsen låses op, hvis fingeraftrykket genkendes.
• Access Code Unlock: Enter your registered access code on the keypad, followed by the '#' key.
• Oplåsning af IC-kort: Præsenter et registreret IC-kort i det angivne sensorområde på låsen.
• Fysisk nøgleoplåsning: In case of electronic failure or dead batteries, use the provided physical key to unlock the door.

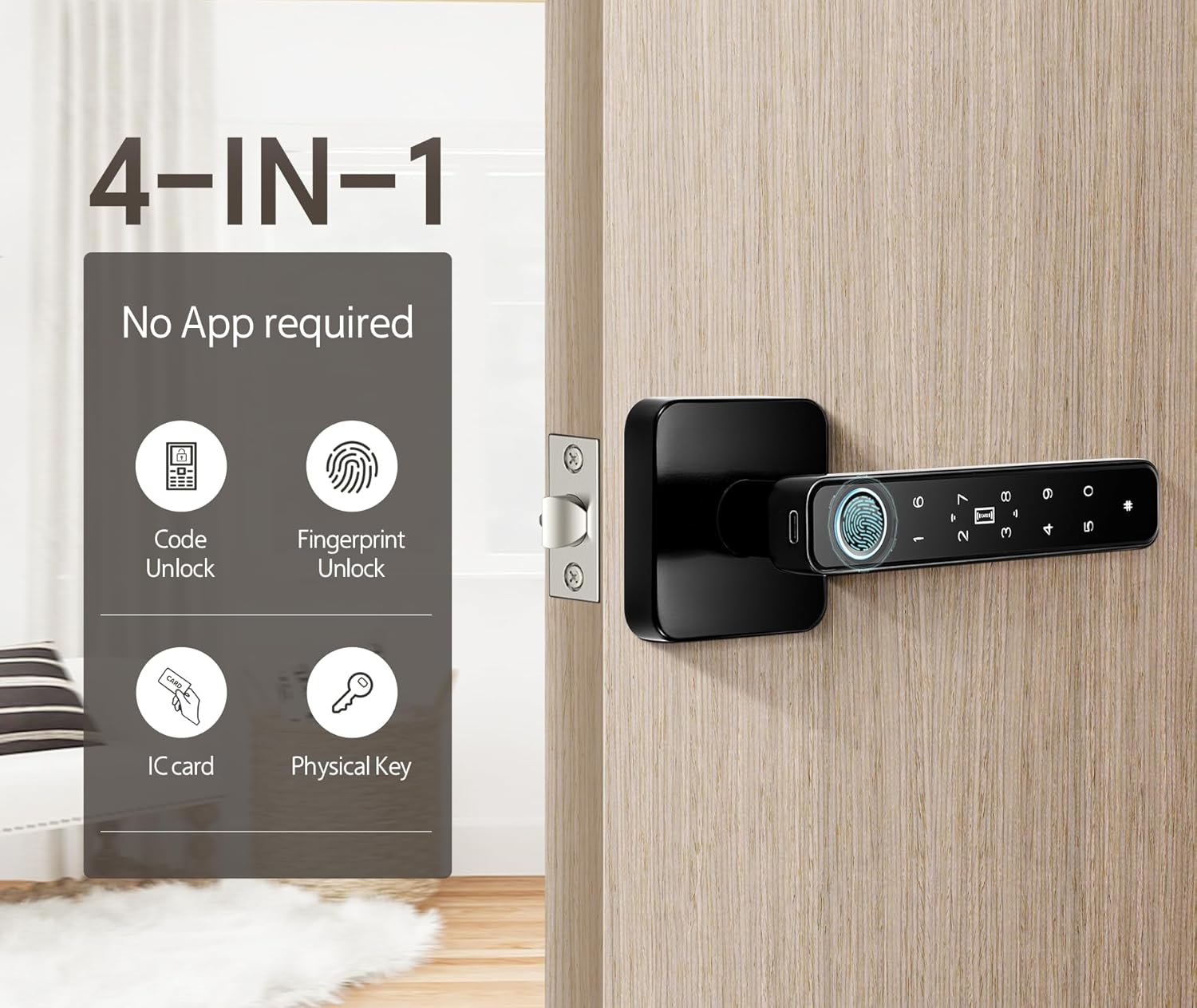

Image: The Pulido F199B Smart Lock illustrating its four unlocking methods: Code Unlock, Fingerprint Unlock, IC Card, and Physical Key.

Programming Fingerprints and Codes:

Refer to the detailed programming instructions included in the packaging for adding and deleting user fingerprints and access codes. This process is typically initiated by pressing a programming button on the interior side of the lock.

Passagetilstand:

To enable Passage Mode, press and hold the Passage Mode setting button (usually located on the interior handle) for 1 second. This allows the door to be opened without requiring a fingerprint or code. Press again for 1 second to disable Passage Mode.

Image: The Pulido F199B Smart Lock demonstrating Passage Mode, where the lock remains unlocked for convenient access.

Nødoplåsning:

If the batteries are completely depleted, the lock can be temporarily powered via the Micro USB interface located on the exterior handle. Connect a power bank or USB charger to provide temporary power for unlocking. Alternatively, use the physical backup key.

Image: The Pulido F199B Smart Lock showing emergency unlock options, including USB charging capability and the physical backup keyhole.

Videodemonstration:

6. Vedligeholdelse

• Udskiftning af batteri: Replace batteries when the low battery indicator appears or when the lock's response time slows. Use 4 AAA batteries.
• Rensning: Wipe the lock's surface with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the finish or electronic components.
• Pleje af fingeraftrykssensor: Hold fingeraftrykssensoren ren og tør for optimal ydeevne.

7. Fejlfinding

• Låsen svarer ikke: Check battery levels. If batteries are dead, use the Micro USB emergency power or physical key.
• Fingeraftryk ikke genkendt: Ensure your finger is clean and dry. Try re-registering your fingerprint. Remove any protective plastic film from the sensor.
• Adgangskoden virker ikke: Verify the code is entered correctly, followed by the '#' key. Ensure the code is still active.
• IC-kort virker ikke: Ensure the card is properly registered and presented to the correct sensor area.
• Låsen bipper kontinuerligt: This may indicate low battery. Replace batteries immediately.

For yderligere assistance henvises til kontaktoplysningerne i supportafsnittet.

8. Specifikationer

9. Garanti og support

Pulido products are manufactured with quality and reliability in mind. For specific warranty details, please refer to the warranty card included with your product.

If you encounter any issues during use or installation, please contact our customer support team. We aim to reply within 8-12 hours.

Kundesupport: Please refer to the contact information provided in your product packaging or visit the official Pulido webwebsted for supportmuligheder.
