1. Introduktion
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Globe Electric Integrated LED Motion Sensor Security Flood Light. Designed for outdoor use, this flood light features motion activation, adjustable lamp heads, and bright LED illumination to enhance security around your property.
Please read these instructions carefully before installation and retain them for future reference.
2. Sikkerhedsoplysninger
ADVARSEL: Risiko for elektrisk stød. Afbryd strømmen ved sikringen eller afbryderen før installation eller service.
- Sørg for, at alle elektriske forbindelser overholder lokale forskrifter og bestemmelser samt den nationale elektriske kode (NEC).
- Hvis du ikke er bekendt med elektriske ledninger, bør du kontakte en kvalificeret elektriker.
- Installer ikke dette armatur på overflader, der er ustabile eller udsatte for vibrationer.
- This product is designed for outdoor, wall-mounted installation only.
- Do not attempt to disassemble or modify the LED light source. It is integrated and not user-serviceable.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- Integrated LED Motion Sensor Security Flood Light
- Monteringsudstyr (skruer, trådmøtrikker, pakning)
- Instruktionsmanual
4. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | GLOBUS |
| Model | B0CS1RB3FY |
| Lysudgang | 1000 lumen |
| Farvetemperatur | 4000 Kelvin (Daylight White) |
| Bevægelsesdetekteringszone | 180 grader |
| Rækkevidde for bevægelsesdetektering | Op til 40 fod (12 meter) |
| Strømkilde | Elektrisk med ledning |
| Indendørs/Udendørs brug | Udendørs |
| Materiale | Harpiks |
| Finish Type | Satin |
| Produktdimensioner | 18L x 11.4W x 18H centimeter |
| Inkluderede komponenter | Monteringshardware |
This flood light is designed for use in various outdoor settings such as driveways, garages, gardens, pathways, and patios.
Figure 4.1: Dimensions of the flood light, showing measurements in centimeters.
5. Opsætning og installation
The Globe Electric Motion Sensor Security Flood Light is designed for quick and easy wall-mount installation. All necessary mounting hardware is included.
5.1 Trin før installation
- Sluk for strømmen: Before starting any electrical work, ensure the power to the installation area is turned off at the circuit breaker or fuse box.
- Vælg placering: Choose a suitable outdoor wall location that provides the desired coverage and is within reach of electrical wiring.
- Udpak indhold: Tag forsigtigt alle komponenter ud af emballagen, og kontroller dem for eventuelle skader.
5.2 Monteringsvejledning
- Fastgør monteringsbeslaget til samledåsen ved hjælp af de medfølgende skruer.
- Connect the electrical wires (black to black, white to white, ground to ground) using the supplied wire nuts. Ensure connections are secure.
- Carefully tuck the wires into the junction box and align the flood light fixture with the mounting bracket.
- Secure the fixture to the mounting bracket using the provided screws. Ensure the gasket is properly seated to maintain weather resistance.
Figure 5.1: Wall mount installation and lamp head adjustment options.
5.3 Justering af Lamp Hoveder
Lamp heads can be adjusted to customize the light coverage area. Gently grasp each lamp head and tilt it up, down, or side to side as needed. No tools are required for this adjustment.
Figur 5.2: Forside view of the flood light, showing adjustable lamp hoveder.
6. Betjeningsvejledning
Once installed and power is restored, the flood light will operate based on its integrated motion sensor.
6.1 Motion Activation
- The light is activated by motion within its 180-degree sensing zone.
- The motion sensor can detect movement up to 40 feet (12 meters) away.
- Upon detection, the 1000 lumen LED lights will illuminate, providing bright daylight white (4000 Kelvin) light.
- The duration the light stays on after motion detection is typically pre-set or adjustable via controls (refer to specific model details if available on the fixture).
Figure 6.1: Motion detection zone and range.

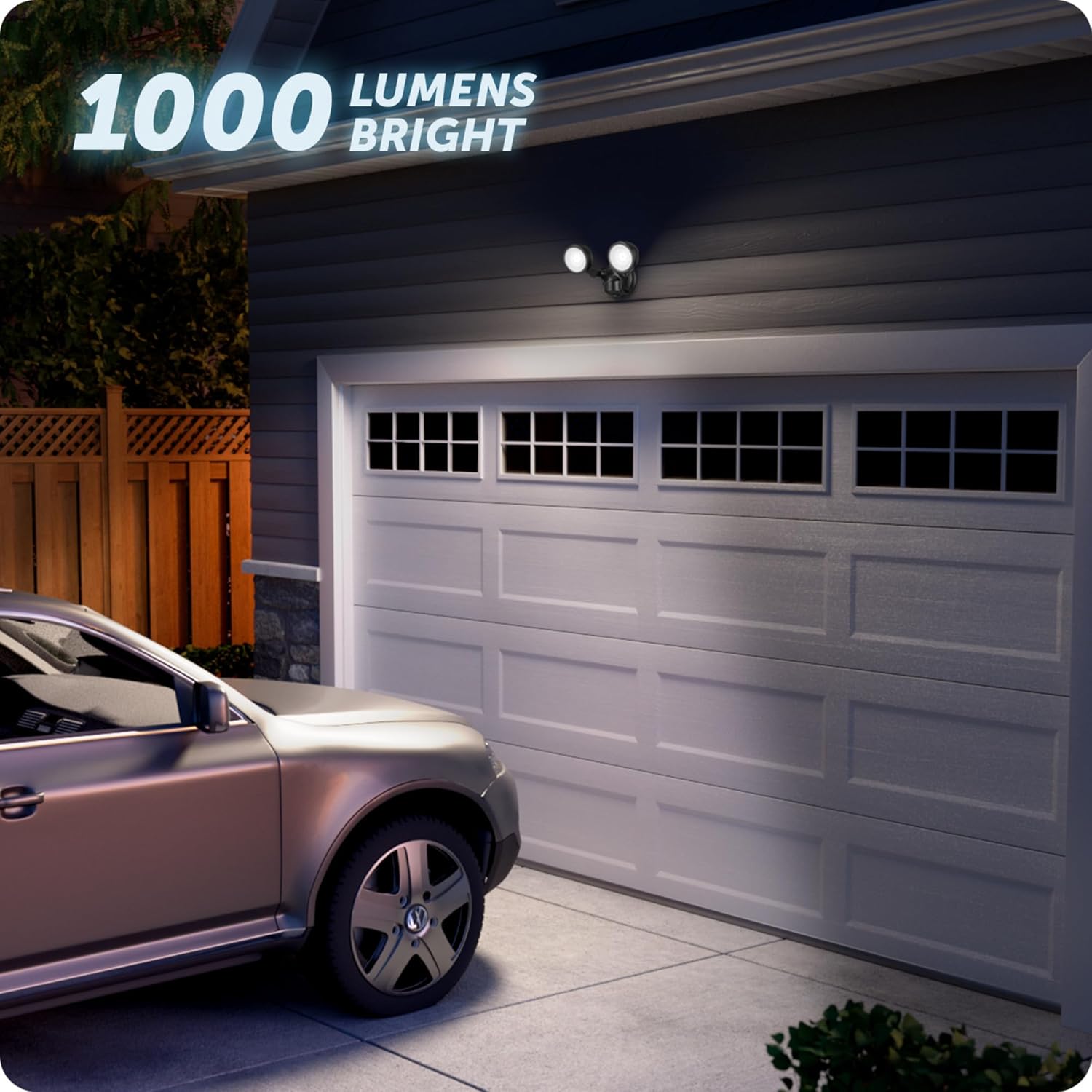

Figure 6.2: Flood light illumination at night.
7. Vedligeholdelse
Regular maintenance ensures optimal performance and longevity of your flood light.
- Rensning: Rengør armaturet regelmæssigt med en blød, tør klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen eller de elektriske komponenter.
- Inspektion: Annually inspect the wiring and mounting hardware for any signs of wear, corrosion, or loosening. Tighten connections as necessary.
- lysdioder: Den integrerede LED-lyskilde er designet til lang levetid og kræver ikke udskiftning.
Figure 7.1: The flood light is outdoor rated and weather resistant.
Figure 7.2: IP65 rating confirms robust outdoor protection.
8. Fejlfinding
If you experience issues with your flood light, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power, faulty wiring, sensor obstruction. | Check circuit breaker. Verify wiring connections. Ensure sensor is clear of obstructions. |
| Lyset er tændt konstant. | Continuous motion, sensor sensitivity too high, wiring issue. | Check for constant motion in detection zone. Adjust sensor sensitivity (if applicable). Consult an electrician. |
| Lys tændes uden nogen åbenbar grund. | Sensor detecting small animals, moving branches, or heat sources. | Adjust sensor angle or sensitivity. Clear vegetation from detection zone. |
| Detektionsområdet er dårligt. | Sensor obstruction, incorrect angle, extreme temperatures. | Clear obstructions. Adjust sensor angle. Performance may vary in extreme cold/heat. |
9. Garanti og support
This Globe Electric Integrated LED Motion Sensor Security Flood Light is backed by a 5 års garanti, demonstrating our commitment to quality and durability.
For warranty claims, technical support, or further assistance, please contact Globe Electric customer service. Keep your proof of purchase for warranty validation.
Fabrikant: Globe Electric
Webwebsted: www.globe-electric.com (Note: This is a placeholder link, please refer to your product packaging for the official support webwebsted eller kontaktoplysninger.)
