1. Introduktion
Thank you for choosing the Focal Aria Evo X Center Channel Speaker. This manual provides essential information for the proper setup, operation, and maintenance of your speaker. Please read this manual thoroughly before using your speaker and retain it for future reference.
The Aria Evo X Center speaker is designed to integrate seamlessly into a high-performance Home Cinema system. Its 2-way design and Flax sandwich cone drivers ensure clear, transparent sound and articulate vocal reproduction, crucial for an immersive cinematic experience.
2. Sikkerhedsinstruktioner
For at forhindre skader og sikre sikker drift skal du overholde følgende sikkerhedsforanstaltninger:
- Placering: Position the speaker on a stable, level surface to prevent it from falling. Avoid placing it near heat sources, direct sunlight, or in areas with high humidity.
- Ventilation: Sørg for tilstrækkelig ventilation omkring højttaleren. Bloker ikke ventilationsåbninger.
- Magt: Connect the speaker to an appropriate amplifier. Do not exceed the recommended power handling capacity.
- Rensning: Use a soft, dry cloth for cleaning. Avoid liquid cleaners or abrasive materials.
- Service: Do not attempt to service the speaker yourself. Refer all servicing to qualified service personnel.
- Børn: Hold emballagematerialer og små dele væk fra børn for at undgå kvælningsfare.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- 1 x Focal Aria Evo X Center Channel Speaker (Model: FARIAEVOXCCMGR)
- 1 x Speaker Grille
- 1 x Brugermanual (dette dokument)
Note: Speaker cables are typically sold separately and are not included.
4. Opsætning
4.1 Udpakning
Tag forsigtigt højttaleren ud af emballagen. Gem al emballage til senere transport eller opbevaring.
4.2 Placering
The center channel speaker is crucial for dialogue clarity in a home cinema system. Optimal placement is directly above or below the center of your television or projection screen, at ear level when seated. Ensure the speaker is stable and not obstructed.
Billede: Forside view of the Focal Aria Evo X Center Channel Speaker without its protective grille, showcasing the two Flax cone woofers and the central tweeter.
Image: The Focal Aria Evo X Center Channel Speaker integrated into a home cinema environment, positioned below a television, flanked by floorstanding speakers.
4.3 Forbindelser
Connect the speaker to the center channel output of your AV receiver or amplifier using high-quality speaker cables. Ensure correct polarity (+ to + and - to -) to maintain proper phase alignment.
Billede: Bagside view of the Focal Aria Evo X Center Channel Speaker, highlighting the speaker wire terminals and the two rear bass ports.
- Turn off your AV receiver/amplader, før der foretages nogen tilslutninger.
- Afisoler cirka 12 mm isolering fra enderne af dine højttalerkabler.
- Unscrew the binding posts on the back of the speaker and your amplivligere.
- Sæt den bare ledning i de tilsvarende terminaler (rød for positiv, sort for negativ).
- Tighten the binding posts securely.
5. Betjeningsvejledning
5.1 Indledende opstart
Once all connections are secure, power on your AV receiver/amplifier. Select an audio source and gradually increase the volume to a low level to confirm sound output.
5.2 Systemkalibrering
For optimal performance in a home cinema setup, it is recommended to run the automatic room correction system (e.g., Audyssey, MCACC, YPAO) on your AV receiver. This will calibrate the speaker levels, distances, and equalization for your listening environment.
If manual setup is preferred, adjust the center channel level to ensure dialogue is clear and balanced with other channels.
5.3 Grille Attachment
The speaker comes with a magnetic grille. You can choose to use the speaker with or without the grille. For protection against dust and physical damage, attach the grille by aligning it with the front baffle; the magnets will hold it in place.

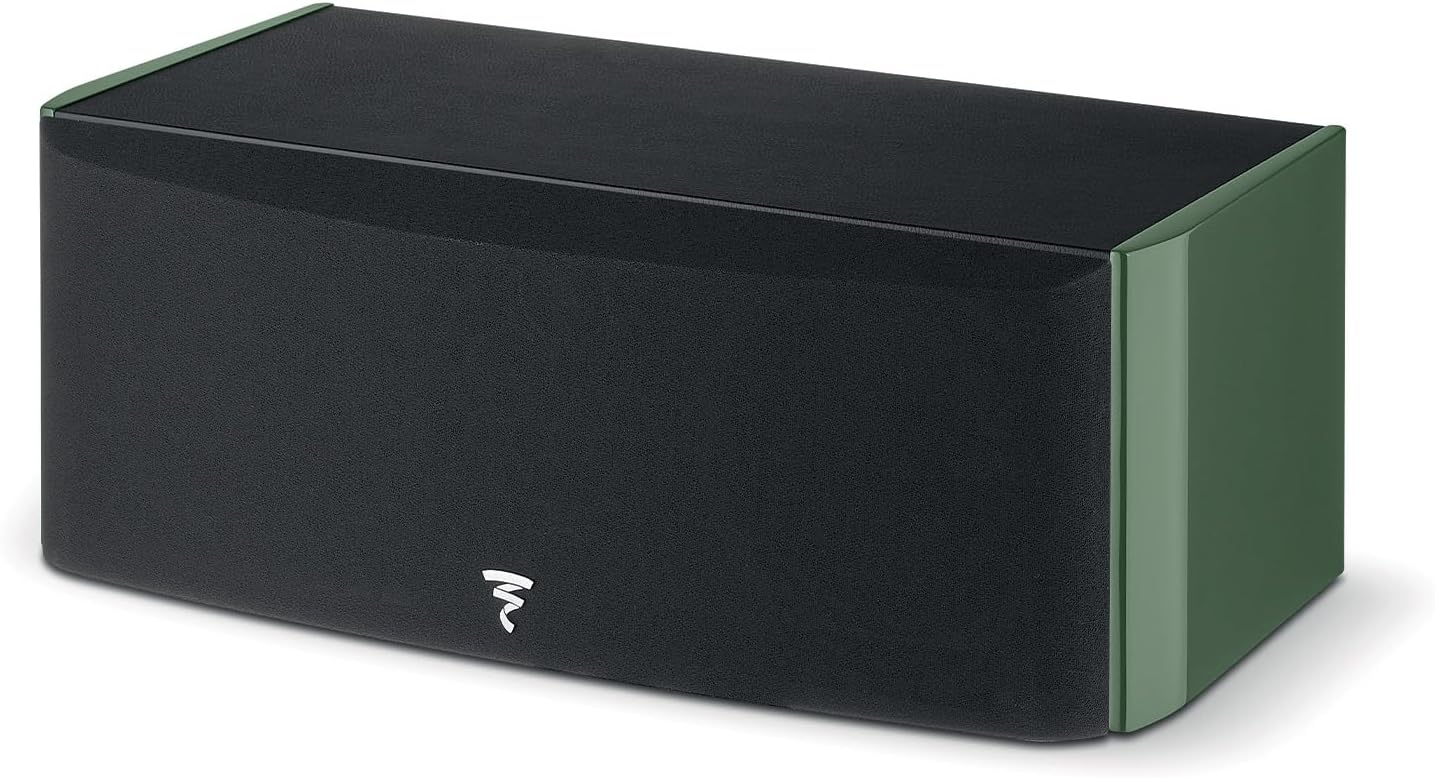

Billede: Forside view of the Focal Aria Evo X Center Channel Speaker with its protective grille attached, showing a clean, minimalist aesthetic.
6. Vedligeholdelse
Proper care will ensure the longevity and performance of your Focal Aria Evo X Center Channel Speaker.
- Rengøring af kabinettet: Use a soft, lint-free cloth to gently wipe the cabinet. For stubborn marks, a slightly damp en ren klud kan bruges, efterfulgt af en tør klud. Undgå skrappe kemikalier eller slibende rengøringsmidler.
- Rengøring af gitteret: The magnetic grille can be carefully removed and gently dusted with a soft brush or vacuumed with a low-power setting.
- Førerpleje: Avoid touching the speaker cones or tweeter dome. Dust can be removed from the drivers using a soft brush or compressed air from a distance.
- Miljøforhold: Keep the speaker away from extreme temperatures, humidity, and direct sunlight.
7. Fejlfinding
Hvis du støder på problemer med din højttaler, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd fra højttaleren | Forkert ledningsføring; Amplifier off; Source not selected; Volume too low | Check speaker cable connections and polarity; Ensure amplifier is on and correct input is selected; Increase volume. |
| Forvrænget lyd | Overdriving speaker; Loose connections; Damaged cable | Reduce volume; Check all connections for tightness; Inspect speaker cables for damage. |
| Dialogue unclear or too quiet | Center channel level too low; Incorrect placement | Adjust center channel level in your AV receiver settings; Ensure speaker is positioned optimally and unobstructed. |
| Speaker hums or buzzes | Ground loop; Interference from other electronics | Ensure all components are plugged into the same power outlet or power conditioner; Move speaker away from other electronic devices. |
If the problem persists after trying these solutions, please contact Focal customer support or your authorized dealer.
8. Specifikationer
Key technical specifications for the Focal Aria Evo X Center Channel Speaker (Model: FARIAEVOXCCMGR):
- Højttalertype: 2-way Center Channel Speaker
- Drivere: 2 x 6.5" (16.5cm) Flax bass/midrange, 1 x 1" (25mm) 'M'-shaped inverted dome TAM tweeter
- Anbefales Amplivligere magt: Op til 150 watt
- Frekvensrespons: (Not explicitly stated in input, but typical for center channel)
- Følsomhed: (Not explicitly stated in input)
- Nominel impedans: (Not explicitly stated in input)
- Dimensioner (H x B x D): 7.88" x 21" x 9.63" (ca. 20 cm x 53.3 cm x 24.5 cm)
- Vægt: 23.2 lbs (10.5 kg)
- Farve: Moss Green (High Gloss)
- Forbindelse: RCA (Binding Posts)
- Surround Sound Kanalkonfiguration: Designed for 5.1 systems
Image: Diagram illustrating the dimensions of the Focal Aria Evo X Center Channel Speaker: 21 inches wide, 7.88 inches high, and 9.62 inches deep.
9. Garanti og support
The Focal Aria Evo X Center Channel Speaker comes with a Limited Warranty. Please refer to the warranty card included with your product or visit the official Focal webwebsted for detaljerede vilkår og betingelser.
For technical support, service, or warranty claims, please contact your authorized Focal dealer or Focal customer service directly. You may need to provide your proof of purchase and the product's serial number.
Fabrikant: Fokal
Modelnummer: FARIAEVOXCCMGR
Dato først tilgængelig: 9. januar 2024
Fokal Webwebsted: www.focal.com
