Focal Aria Evo X No. 3 Gulvhøjttaler Brugermanual

Indledning

Thank you for choosing the Focal Aria Evo X No. 3 Floorstanding Loudspeaker. This manual provides essential information for the proper setup, operation, and maintenance of your speaker to ensure optimal performance and longevity. The Aria Evo X No. 3 is a 3-way floorstanding loudspeaker designed to deliver a natural sound with rich midrange reproduction and powerful bass, suitable for both music and home cinema applications.

Billede: Forside view of the Focal Aria Evo X No. 3 Floorstanding Loudspeaker in Gloss Black, showcasing its elegant design and driver configuration.

Opsætning

1. Udpakning

Carefully remove the speaker from its packaging. Ensure all components are present. The package includes one floorstanding speaker.

2. Placering

Proper speaker placement is crucial for optimal sound quality. Consider the following guidelines:

• Rumsakustik: Place speakers in a room that is not excessively reflective or absorbent.
• Afstand fra vægge: Position the speakers away from walls to prevent excessive bass resonance. Experiment with distances to find the best balance.
• Stereobilleddannelse: For a stereo setup, place the speakers equidistant from your primary listening position, forming an equilateral triangle.
• Toe-in: Slightly angle the speakers inward towards the listening position to improve soundstage og fokus.

Image: The Focal Aria Evo X No. 3 Floorstanding Loudspeaker positioned in a modern living room, demonstrating typical placement for optimal listening.

Image: A complete home theater setup featuring Focal Aria Evo X speakers, including floorstanding models, a center channel, and a subwoofer, illustrating system integration.

3. Tilslutning af højttaleren

The Aria Evo X No. 3 connects to your amplifier using standard speaker cables. Ensure your ampapparatet er slukket, før der foretages nogen tilslutninger.

1. Identify the positive (+) and negative (-) terminals on both your amplivligere og højttaleren.
2. Connect the positive (+) terminal of the amplifier to the positive (+) terminal of the speaker.
3. Connect the negative (-) terminal of the amplifier to the negative (-) terminal of the speaker.
4. Sørg for, at alle forbindelser er sikre for at forhindre signaltab eller kortslutninger.

The speaker has an impedance of 2.8 Ohm. Ensure your amplifier is compatible with this impedance rating.

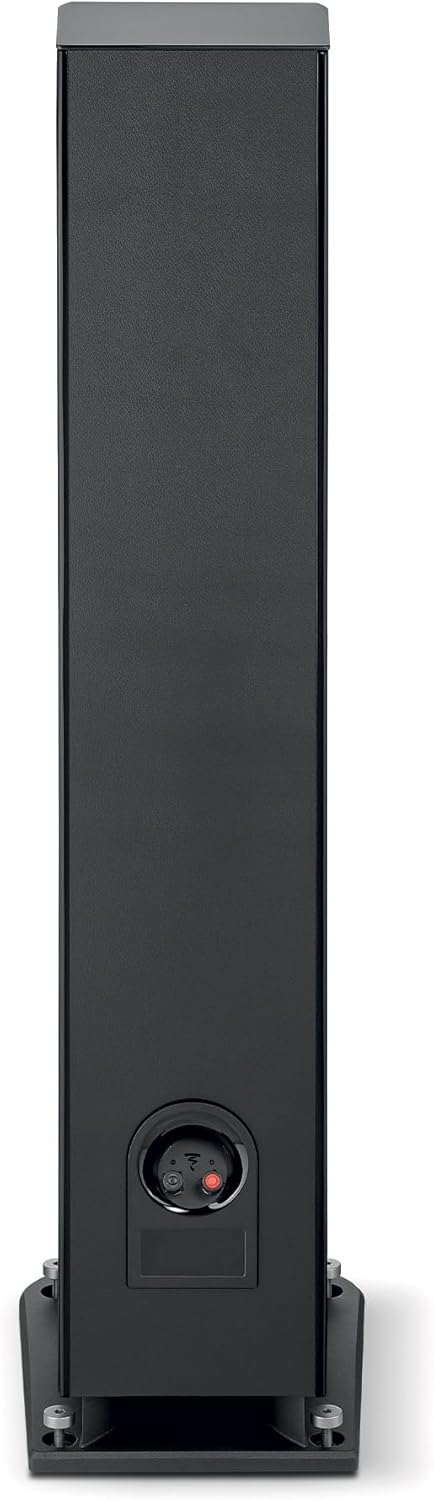

Billede: Bagside view of the Focal Aria Evo X No. 3 speaker, highlighting the speaker terminals for connecting to an amplivligere.

Betjeningsvejledning

Tænd og afspilning

1. Når du er forbundet, skal du tænde din amplivligere.
2. Select the appropriate input source on your amplivligere.
3. Begin playback from your audio source (e.g., smartphone, tablet, MP3 player, desktop, television, projector, laptop).
4. Adjust the volume gradually using your amplifiers kontroller.

Driver Technology

The Aria Evo X No. 3 incorporates advanced driver technologies for superior sound reproduction:

• Hørkegle: Features Focal's iconic flax cone, made from French flax fiber, which produces a natural sound with rich midrange reproduction and clear bass.
• TMD (Tunet masse Dampeh): Mellemtone-enheder er udstyret med TMD for reduceret forvrængning og perfekt afbalanceret dynamik.
• TAM-diskant: An innovative 'M'-shaped inverted dome TAM tweeter reproduces treble faithfully, ensuring smooth and clear high frequencies.
• Powerflow Multi-Port System: Eliminates compression with both front and down-facing ports for increased impact and powerful bass.

Image: A detailed close-up of the Focal Flax cone driver, showcasing its unique texture and construction.

Billede: Et nærbillede view of the Focal TAM tweeter, highlighting its 'M'-shaped inverted dome design.

Opretholdelse

Rensning

• Use a soft, dry, lint-free cloth to gently wipe the cabinet surfaces.
• Undgå at bruge slibende rengøringsmidler, opløsningsmidler eller kemiske spraymidler, da disse kan beskadige overfladen.
• For the speaker grilles, use a soft brush or vacuum cleaner with a brush attachment to remove dust.

Almen pleje

• Hold højttalerne væk fra direkte sollys, varmekilder og overdreven fugtighed.
• Sørg for tilstrækkelig ventilation omkring højttalerne.
• Avoid placing heavy objects on top of the speakers.

Fejlfinding

If you encounter issues with your Focal Aria Evo X No. 3 speaker, refer to the following common problems and solutions:

• Ingen lyd:
  • Check all speaker cable connections at both the speaker and the amplifier. Ensure they are secure and correctly connected (positive to positive, negative to negative).
  • Bekræft, at ampapparatet er tændt, og den korrekte inputkilde er valgt.
  • Sørg for lydstyrken på din ampLifier er ikke indstillet til minimum eller slået fra.
• Forvrænget lyd:
  • Reducer lydstyrken på din ampOverbelastning af højttalerne kan forårsage forvrængning.
  • Check speaker cable connections for any loose strands or short circuits.
  • Sørg for amplifier's power output is suitable for the speaker's maximum input power (150 Watts).
• Ujævn lyd eller dårlig billeddannelse:
  • Review speaker placement. Ensure speakers are equidistant from the listening position and have appropriate toe-in.
  • Check that both speakers are connected with correct polarity.

Specifikationer

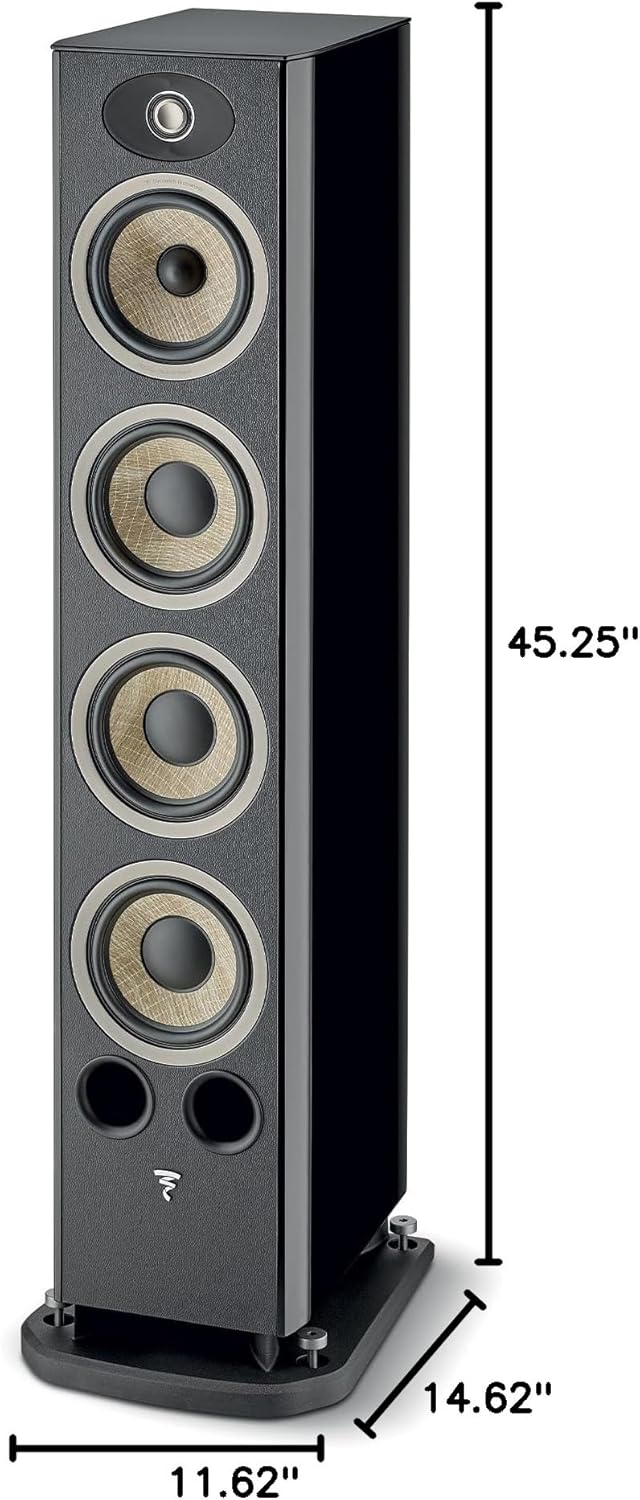

Image: Diagram illustrating the dimensions of the Focal Aria Evo X No. 3 Floorstanding Loudspeaker: 45.25 inches height, 11.62 inches width, and 14.62 inches depth.

Garantioplysninger

The Focal Aria Evo X No. 3 Floorstanding Loudspeaker comes with a full warranty. For specific details regarding the duration and terms of your warranty, please refer to the documentation included with your purchase or visit the official Focal webwebsted.

Støtte

For further assistance, technical support, or inquiries, please contact Focal customer support. You can find contact information and additional resources on the official Focal webhjemmeside eller gennem din autoriserede forhandler.

Besøg Focal Store for yderligere produktinformation og supportressourcer.
