1. Introduktion
This manual provides essential information for the proper installation, operation, and maintenance of your Calix 726GE-I Indoor Gigabit Optical Network Terminal (ONT). The 726GE-I is designed to deliver high-speed internet, voice, and video services over a fiber optic network. Please read this manual thoroughly before using the device to ensure optimal performance and safety.
Figure 1: Calix 726GE-I ONT with included AC power adapter.
2. Sikkerhedsoplysninger
Overhold følgende sikkerhedsforanstaltninger for at forhindre personskade og beskadigelse af enheden:
- Elektrisk sikkerhed: Use only the provided AC adapter (12VDC, 1.5A) with the device. Do not expose the device to water or excessive humidity. Ensure proper ventilation to prevent overheating.
- Lasersikkerhed: This product contains a Class 1 Laser. Do not look directly into the optical port when the device is powered on or when the fiber optic cable is disconnected. Invisible laser radiation may be present.
- Håndtering: Håndter enheden forsigtigt. Undgå at tabe den eller udsætte den for hårde stød.
- Placering: Place the device on a stable, flat surface away from direct sunlight, heat sources, and areas with high dust or moisture.
Figure 2: Optical port with Class 1 Laser Product warning label.
3. Produktet er slutview
The Calix 726GE-I ONT features various ports and LED indicators for connectivity and status monitoring.
3.1. Indikatorer på frontpanelet
Figure 3: Front panel LED indicators.
- RF: Indicates the status of the RF video service.
- LAN 1-4: Angiver aktivitet og linkstatus for de respektive Ethernet-porte.
- Telefon: Indicates the status of the voice service.
- WAN: Indicates the status of the Wide Area Network (fiber optic) connection.
- CPU: Indicates the operational status of the device's central processing unit.
- Magt: Indicates if the device is receiving power.
3.2. Porte på bagpanelet

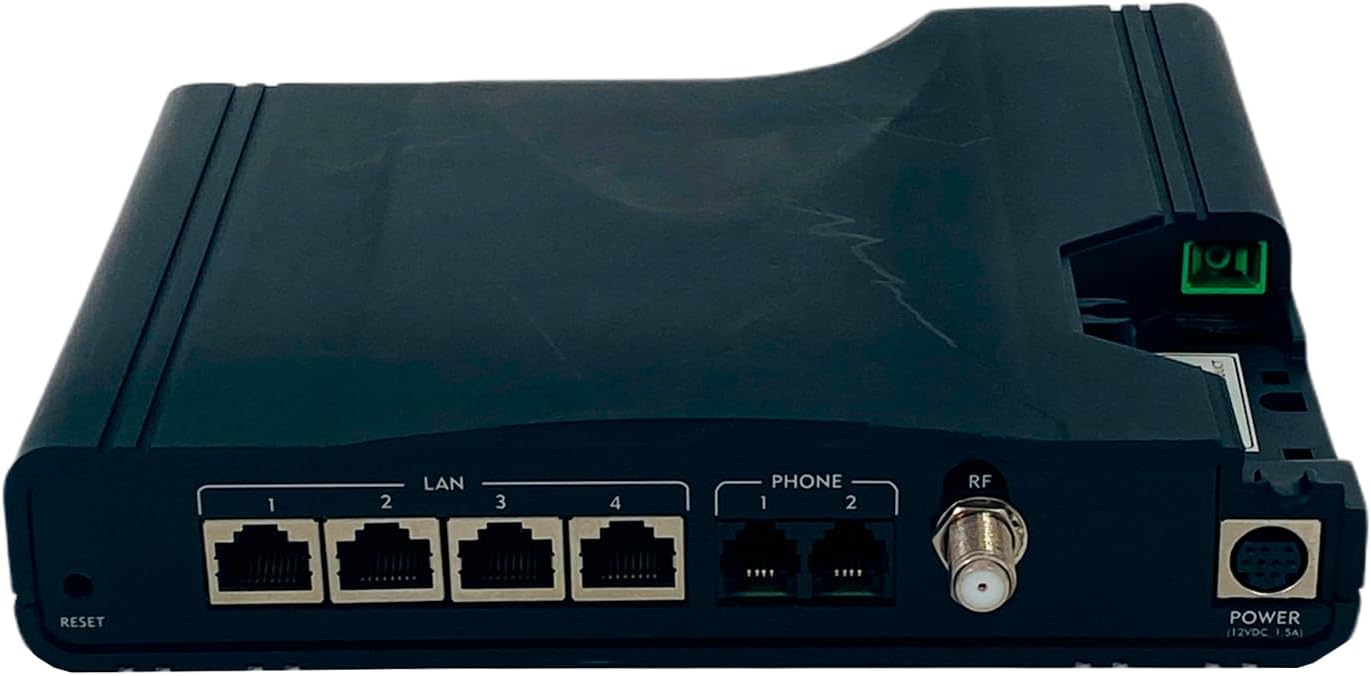

Figure 4: Rear panel connectivity ports.
- NULSTIL: A recessed button used to reset the device to factory default settings.
- LAN 1-4: Four Gigabit Ethernet ports for connecting wired devices such as computers, routers, or network switches.
- PHONE 1-2: Two RJ-11 ports for connecting analog telephones or fax machines.
- RF: Coaxial F-connector for RF video output.
- POWER (12VDC, 1.5A): Power input port for connecting the AC adapter.
- Optisk port: Located on the side, this port is for connecting the fiber optic cable from your service provider. Caution: Class 1 Laser Product. Do not look directly into the port.
4. Opsætningsvejledning
Follow these steps to set up your Calix 726GE-I ONT:
- Connect the Fiber Optic Cable: Carefully connect the fiber optic cable from your service provider to the optical port on the side of the ONT. Ensure the connector is clean and properly seated. WARNING: Do not look into the optical port.
- Tilslut strømadapteren: Plug the provided AC power adapter into the POWER port on the rear of the ONT, then plug the other end into a standard electrical outlet. The Power LED on the front panel should illuminate.
- Tilslut netværksenheder:
- For wired internet access, connect an Ethernet cable from any of the LAN 1-4 ports on the ONT to your computer or home router.
- For voice services, connect your analog telephone(s) to the PHONE 1 or PHONE 2 ports.
- If applicable, connect a coaxial cable from the RF port to your television or RF distribution system for video services.
- Verify Connection Status: Once powered on, allow a few minutes for the ONT to establish a connection with your service provider's network. Observe the LED indicators:
- De WAN LED should turn solid green, indicating a successful fiber connection.
- De CPU LED should be solid green, indicating normal operation.
- LAN LEDs will illuminate when a device is connected and active.
- Telefon og RF LEDs will illuminate when their respective services are active.
5. Betjeningsvejledning
The Calix 726GE-I ONT operates largely automatically once configured by your service provider. Here are some general operating guidelines:
- Tænd/sluk: To power off the device, simply disconnect the power adapter. Reconnect to power it on.
- LED-statusovervågning: Regularly check the LED indicators on the front panel to monitor the device's status. Refer to Section 3.1 for LED descriptions.
- Nulstilling af enheden: In some troubleshooting scenarios, your service provider may instruct you to reset the device. Use a paperclip or similar pointed object to press and hold the recessed RESET button on the rear panel for approximately 10-15 seconds until the LEDs flash. This will restore the device to its factory default settings. Note: This may require re-provisioning by your service provider.
6. Vedligeholdelse
Minimal maintenance is required for the Calix 726GE-I ONT:
- Rensning: Brug en blød, tør klud til at rengøre enhedens yderside. Brug ikke flydende rengøringsmidler eller aerosoler.
- Ventilation: Sørg for, at ventilationsåbningerne på enheden ikke er blokerede for at forhindre overophedning.
- Kabelstyring: Keep cables neatly organized and avoid sharp bends, especially with the fiber optic cable.
7. Fejlfinding
If you encounter issues with your Calix 726GE-I ONT, try the following steps. For persistent problems, contact your Internet Service Provider (ISP).
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm (strøm-LED slukket) | Power adapter disconnected or faulty outlet. | Ensure power adapter is securely connected to the ONT and a working electrical outlet. Try a different outlet. |
| No Internet Connection (WAN LED Off or Blinking) | Fiber optic cable disconnected or service issue. | Check if the fiber optic cable is securely connected. Do not attempt to re-seat the fiber cable if you are unsure. Contact your ISP. |
| No Dial Tone (Phone LED Off) | Phone cable disconnected or voice service issue. | Ensure phone cables are securely connected. Contact your ISP. |
| Wired Device Not Connecting (LAN LED Off) | Ethernet cable disconnected or device issue. | Check Ethernet cable connection. Try a different LAN port or cable. Ensure the connected device is powered on. |
| Langsom internethastighed | Network congestion, service issue, or device configuration. | Restart the ONT by unplugging and replugging the power. If using a separate router, restart it as well. Contact your ISP if the issue persists. |
8. Specifikationer
Key technical specifications for the Calix 726GE-I ONT:
| Feature | Beskrivelse |
|---|---|
| Modelnummer | 726GE-I |
| Producentens varenummer (MPN) | 380-00559 R13 |
| Mærke | Calix |
| Forbindelsesteknologi | Fiber Optic (WAN), RF, Ethernet (LAN), Phone (RJ-11) |
| Ethernet-porte | 4 x Gigabit Ethernet (RJ-45) |
| Telefon porte | 2 x RJ-11 |
| RF port | 1 x Coaxial F-connector |
| Strømindgang | 12VDC, 1.5A |
| Inkluderede komponenter | Modem with Power Supply |
| Speciel funktion | Access Point Mode (Note: Functionality depends on ISP configuration) |
| Standard for trådløs kommunikation | 802.11a (Note: This device primarily functions as an ONT; internal Wi-Fi capabilities may vary or be disabled by ISP.) |
| Frekvensbåndsklasse | Single-Band |
Figure 5: Device bottom label with model and regulatory details.
Relevant link: Calix Product Information
9. Garanti og support
Garantioplysninger: Warranty coverage for the Calix 726GE-I ONT is typically provided by your Internet Service Provider (ISP) or the original vendor from whom you acquired the device. Please refer to your service agreement or purchase documentation for specific warranty terms and conditions. Calix, as the manufacturer, generally provides support to service providers, not directly to end-users.
Teknisk support: For any technical issues, service disruptions, or questions regarding your Calix 726GE-I ONT, please contact your Internet Service Provider (ISP) directly. They are responsible for the installation, configuration, and ongoing support of the device as part of your service.
