LENCENT Bluetooth 5.3 FM-sender brugermanual

1. Introduktion

This manual provides comprehensive instructions for the safe and effective use of your LENCENT Bluetooth 5.3 FM Transmitter. This device is designed to enhance your in-car audio experience by providing wireless audio streaming, hands-free calling, and fast charging capabilities through your vehicle's cigarette lighter socket.

Image: The LENCENT Bluetooth 5.3 FM Transmitter, showing its compact design, LED display, USB-A and USB-C charging ports, and control buttons.

2. Produktfunktioner

• Immersive 3D Stereo Audio Effect: Experience enhanced sound quality with a dedicated 3D audio button for a concert-like atmosphere. Supports music playback from your phone or a U-Disk (up to 64GB, WMA/MP3/WAV/APE/FLAC formats).
• PD 30W and QC 18W Fast Charging: Equipped with PD3.0 30W (Type-C) and QC3.0 18W (USB-A) ports, allowing simultaneous high-speed charging for two devices, with a maximum total output of 48W.
• 7-Color LED Design and Light Off: Features customizable LED lights in 7 colors (red, purple, cyan, green, blue, gradient) that can sync with music or be turned off according to preference.
• Bluetooth V5.3 and Hands-Free Calling: Provides a fast and stable Bluetooth connection for audio streaming. Includes a built-in microphone and CVC noise reduction technology for clear hands-free calls. Voice assistant activation is supported.
• Advanced Security and Universal Compatibility: Built-in safety features protect against overcurrent, overvoltage, overheating, and short-circuits. Compatible with most Bluetooth-enabled devices (smartphones, tablets, etc.) and vehicles (12V-24V).

Image: Visual representation of the 3D audio effect feature, showing sound waves emanating from the device.

Image: The transmitter displaying its various 7-color LED lighting modes, enhancing the car's ambiance.

3. Pakkens indhold

Tjek venligst pakken for følgende varer:

• LENCENT Bluetooth 5.3 FM Transmitter Unit
• Brugermanual

4. Produktdiagram og komponenter

Billede: Forside view of the LENCENT FM Transmitter, highlighting its various ports and controls.

1. Mikrofon: Til håndfri opkald.
2. USB-A Port (QC3.0): Quick Charge 3.0 compatible port for fast charging.
3. USB-C Port (PD 30W): Power Delivery 30W compatible port for ultra-fast charging.
4. LED display: Shows FM frequency and other status indicators.
5. Multi-function Joystick (Call Button): Press to answer/end calls, push left/right for track control, push up/down for volume control.
6. 3D-lydknap: Activates/deactivates the 3D stereo audio effect.
7. Power knap: Tænder/slukker enheden.
8. CH (Kanal)-knap: Used to enter FM frequency adjustment mode.
9. Cigarette Lighter Plug: Connects the device to your car's power socket.

5. Opsætningsvejledning

Follow these steps to set up your LENCENT FM Transmitter:

1. Indsæt senderen: Plug the LENCENT FM Transmitter into your vehicle's 12V-24V cigarette lighter socket. The device will power on automatically and display the current FM frequency.
2. Find en tom FM-frekvens: Tune your car's FM radio to an empty frequency. An empty frequency is one with static or no active broadcast. Ideally, choose a frequency between 87.5 MHz and 108.0 MHz that is not used by local radio stations.
3. Match senderfrekvens:
   • Tryk på "CH" button on the transmitter. The frequency display will start flashing.
   • Use the multi-function joystick (push left/right) to adjust the transmitter's frequency to match the empty frequency you found on your car radio.
   • Once matched, wait a few seconds for the frequency to stop flashing, indicating it's set.
4. Pair with Your Phone via Bluetooth:
   • Aktiver Bluetooth på din smartphone, og søg efter tilgængelige enheder.
   • Vælge "BT23R" (or similar model name) from the list of devices.
   • Once paired, the transmitter's display may show a Bluetooth icon, and you will hear a confirmation tone.

Image: A visual guide demonstrating the three setup steps: tuning the car radio, adjusting the transmitter's frequency, and Bluetooth pairing.

6. Betjeningsvejledning

6.1 Lydafspilning

After successful Bluetooth pairing, you can stream audio from your smartphone to your car's stereo system.

• Bluetooth-streaming: Play music or audio from your phone's apps (e.g., Spotify, YouTube, Apple Music) directly through your car speakers.
• U-disk afspilning: Insert a U-Disk (USB flash drive) into the USB-A port. The transmitter will automatically detect and play audio files (WMA/MP3/WAV/APE/FLAC formats, up to 64GB).
• Lydstyrkekontrol: Push the multi-function joystick up or ned to adjust the volume. It is recommended to set your phone's volume to maximum and control the overall volume using your car's stereo.
• Sporkontrol: Push the multi-function joystick venstre for det forrige nummer og højre til næste nummer.
• 3D Audio Effect: Tryk på "3D" button to activate or deactivate the immersive 3D stereo audio effect.

Image: Diagram illustrating the simple operation of the multi-function joystick for volume and track control during music playback.

6.2 Håndfri opkald

The built-in microphone and CVC noise reduction technology ensure clear communication during calls.

• Besvar opkald: Press the multi-function joystick (call button) once.
• Afslut opkald: Press the multi-function joystick (call button) once during a call.
• Afvis opkald: Press and hold the multi-function joystick (call button) for 2 seconds.
• Genopkald sidste nummer: Double-press the multi-function joystick (call button).
• Aktiver stemmeassistent: Press and hold the multi-function joystick (call button) for 3 seconds.

Image: A visual guide showing how to use the multi-function joystick for various hands-free calling operations.

6.3 Enhedsopladning

Utilize the fast-charging ports to power your mobile devices.

• PD 30W (Type-C) Port: Ideal for fast charging compatible devices like iPhones and iPads.
• QC 18W (USB-A) Port: Suitable for quick charging Android phones and other QC3.0 compatible devices.

Image: The LENCENT FM Transmitter plugged into a car's power outlet, simultaneously charging an Apple phone via PD 30W and an Android phone via QC 18W.

7. Vedligeholdelse

To ensure the longevity and optimal performance of your LENCENT FM Transmitter, follow these maintenance guidelines:

• Rensning: Use a soft, dry cloth to clean the device. Do not use liquid cleaners or aerosols, as they may damage the electronics.
• Opbevaring: Når enheden ikke er i brug i længere perioder, skal den opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
• Håndtering: Undgå at tabe enheden eller udsætte den for kraftige stød, da dette kan beskadige de interne komponenter.
• Strømkilde: Always ensure the device is plugged into a 12V-24V DC power supply as specified.

8. Fejlfinding

If you encounter issues with your LENCENT FM Transmitter, refer to the following common problems and solutions:

9. Specifikationer

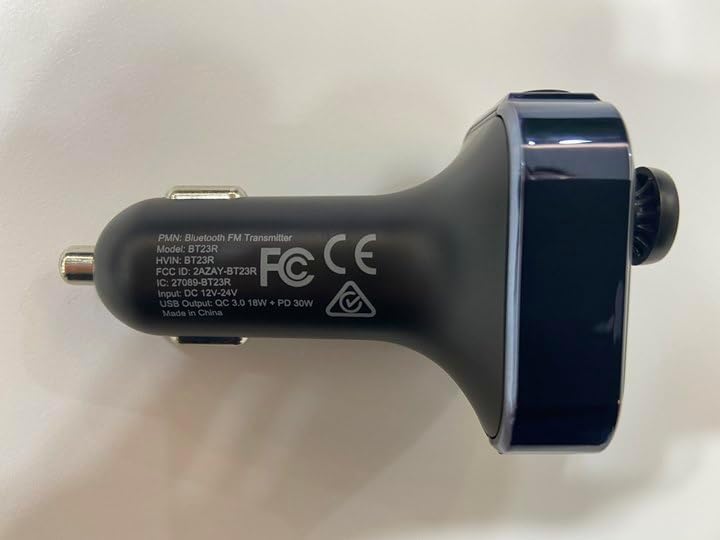

Image: The underside of the LENCENT FM Transmitter, displaying regulatory markings and model information.

10. Garanti og support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. LENCENT is committed to providing quality products and attentive customer service.

Seller: LencentUS
